Schneider Electric

BDL36035 - Circuit breaker, PowerPacT B, 35A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%

Category Base Mount, Unit Mount, Din Rail Mount Circuit Breakers

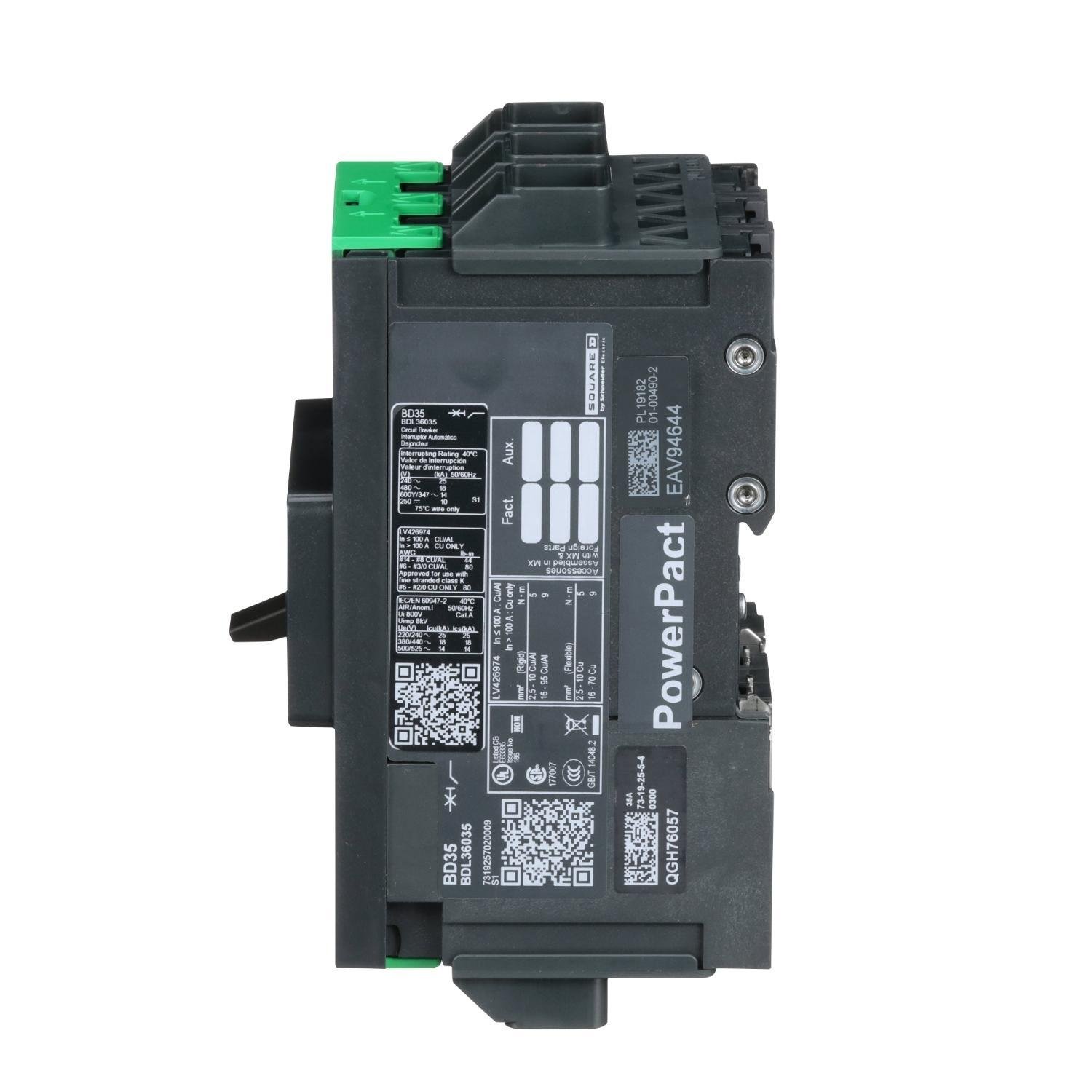

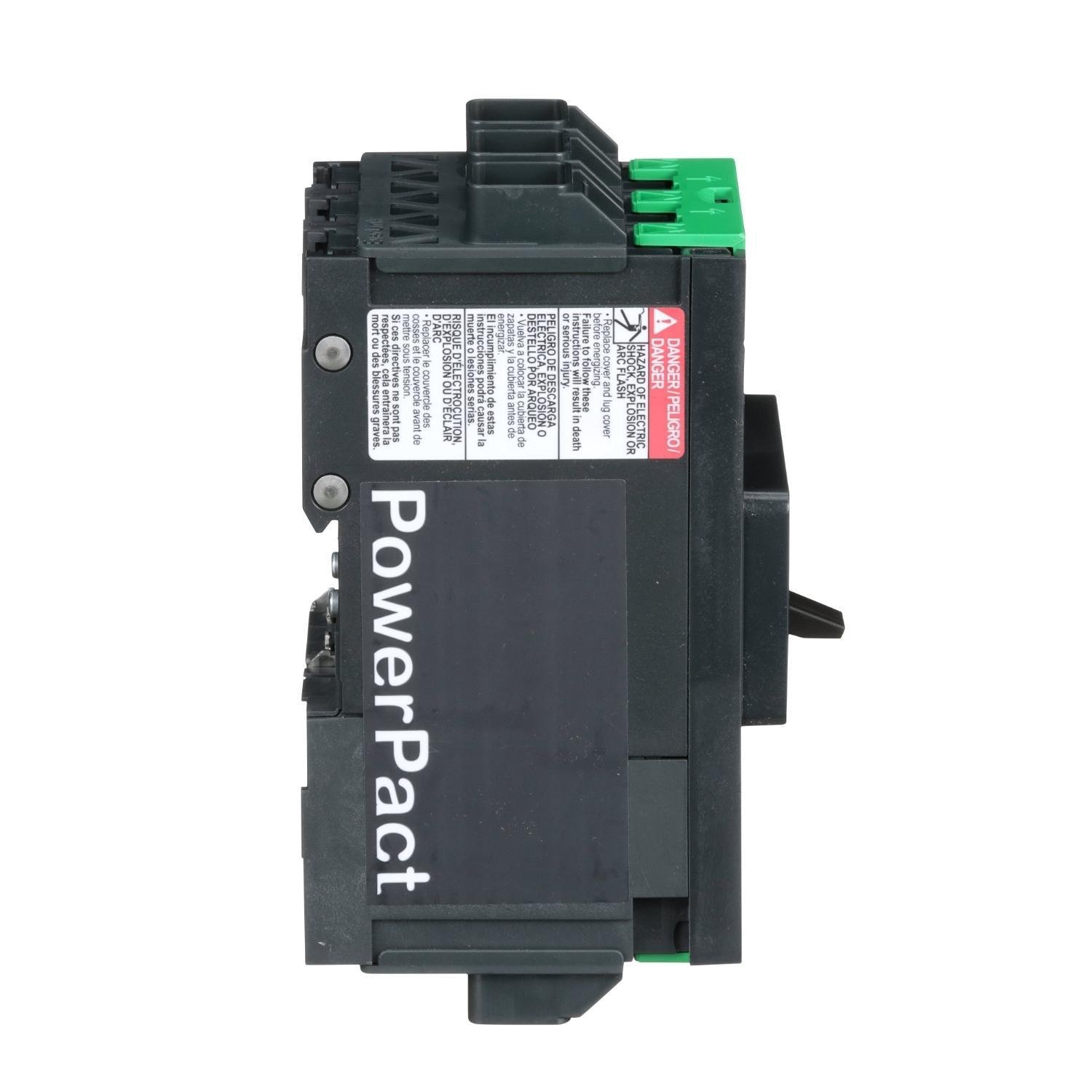

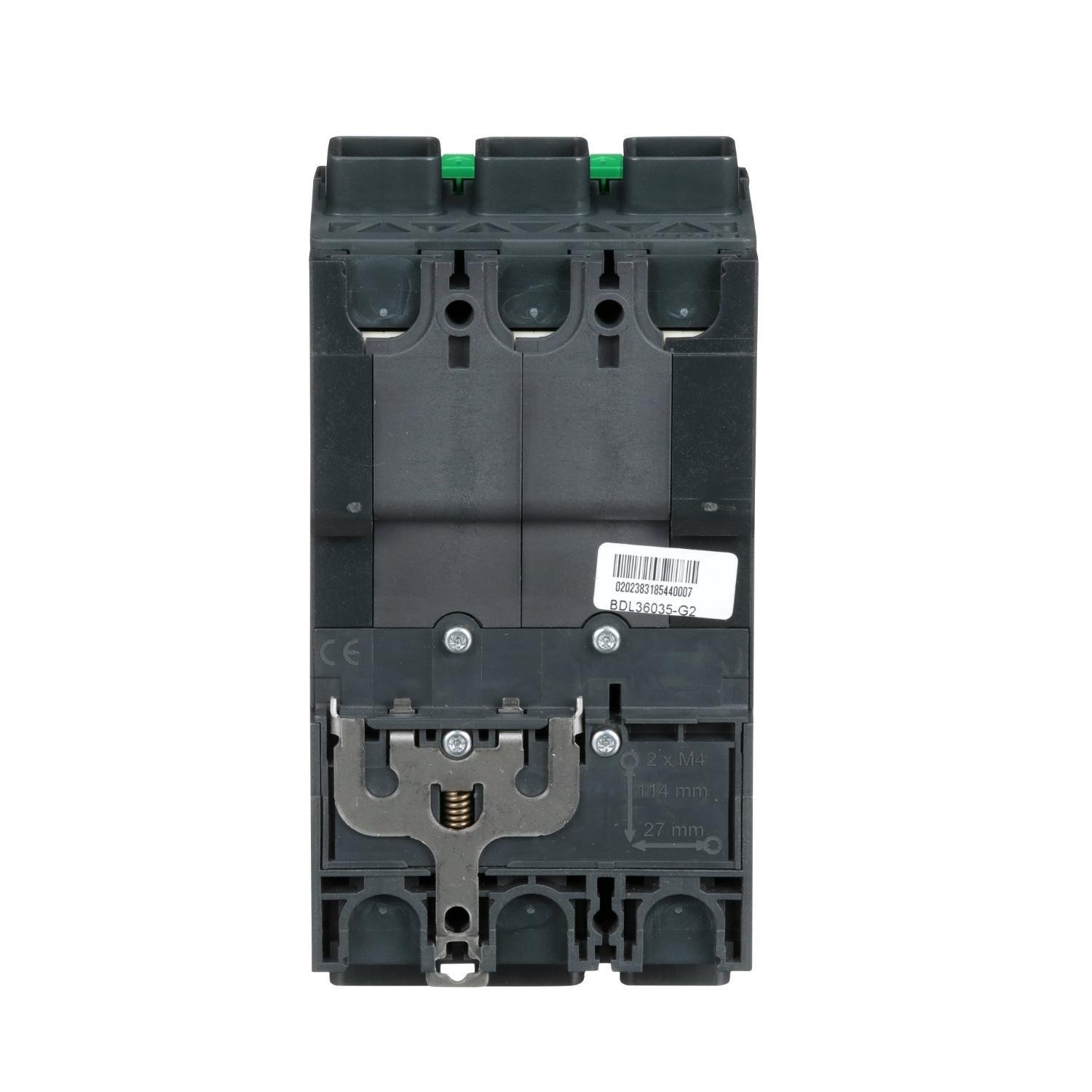

Picture of BDL36035 - Circuit breaker, PowerPacT B, 35A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80% Picture of BDL36035 - Circuit breaker, PowerPacT B, 35A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%
Picture of BDL36035 - Circuit breaker, PowerPacT B, 35A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80% Picture of BDL36035 - Circuit breaker, PowerPacT B, 35A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%
Picture of BDL36035 - Circuit breaker, PowerPacT B, 35A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80% Picture of BDL36035 - Circuit breaker, PowerPacT B, 35A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%
Picture of BDL36035 - Circuit breaker, PowerPacT B, 35A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80% Picture of BDL36035 - Circuit breaker, PowerPacT B, 35A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%
Picture of BDL36035 - Circuit breaker, PowerPacT B, 35A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80% Picture of BDL36035 - Circuit breaker, PowerPacT B, 35A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%
Schneider Electric

BDL36035 - Circuit breaker, PowerPacT B, 35A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%

Item Code: 1007298
Category Base Mount, Unit Mount, Din Rail Mount Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BDL36035

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a break

Specifications

Weight

3.1

Width

6.43

Length

10.02

AD All Features

Available in 1, 2, 3, and 4 pole for unit mounts

AD Application

Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Building and Industrial Building Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BREAKER CKT CASE MLD 35A 10/14/18/25KA

AD Item Features 01

Available in 1, 2, 3, and 4 pole for unit mounts

AD Item Features 02

Dual rated AC/DC with 3 levels of breaking capacity

AD Item Features 03

A wide range of accessories, auxiliaries, and lug connections available

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

10.0200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

3.1000

AD Package Weight UOM

LB

AD Package Width

6.4300

AD Package Width UOM

IN

Brand

Square D

Category

BASE MOUNT, UNIT MOUNT, DIN RAIL MOUNT CIRCUIT BREAKERS

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Clip-On/DIN Rail/Threaded

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

3

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg F

Spec 12 Attribute Value

-13 To 158

Spec 13 Attribute

Trip Range

Spec 13 Attribute UOM

A

Spec 13 Attribute Value

400 to 600

Spec 14 Attribute

Trip Type

Spec 14 Attribute Value

Thermal Magnetic

Spec 15 Attribute

Type

Spec 15 Attribute Value

Type BDL

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute Value

600Y to 347 V AC/250 V DC

Spec 17 Attribute

Wire Size

Spec 17 Attribute Value

6 to 2/0 AWG Aluminum, 14 to 3/0 AWG Copper

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

35

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

EverLink™ Line/Load

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

3.19 in L x 3.15 in W x 5.39 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP40/IK07

Spec 7 Attribute

Frame

Spec 7 Attribute Value

B

Spec 8 Attribute

Frequency Rating

Spec 8 Attribute UOM

HZ

Spec 8 Attribute Value

50/60

Spec 9 Attribute

Interrupt Rating

Spec 9 Attribute UOM

KA

Spec 9 Attribute Value

10/14/18/25
