Schneider Electric

BDL36040 - Circuit breaker, PowerPacT B, 40A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%

Category Thermal Magnetic Trip Molded Case Circuit Breakers

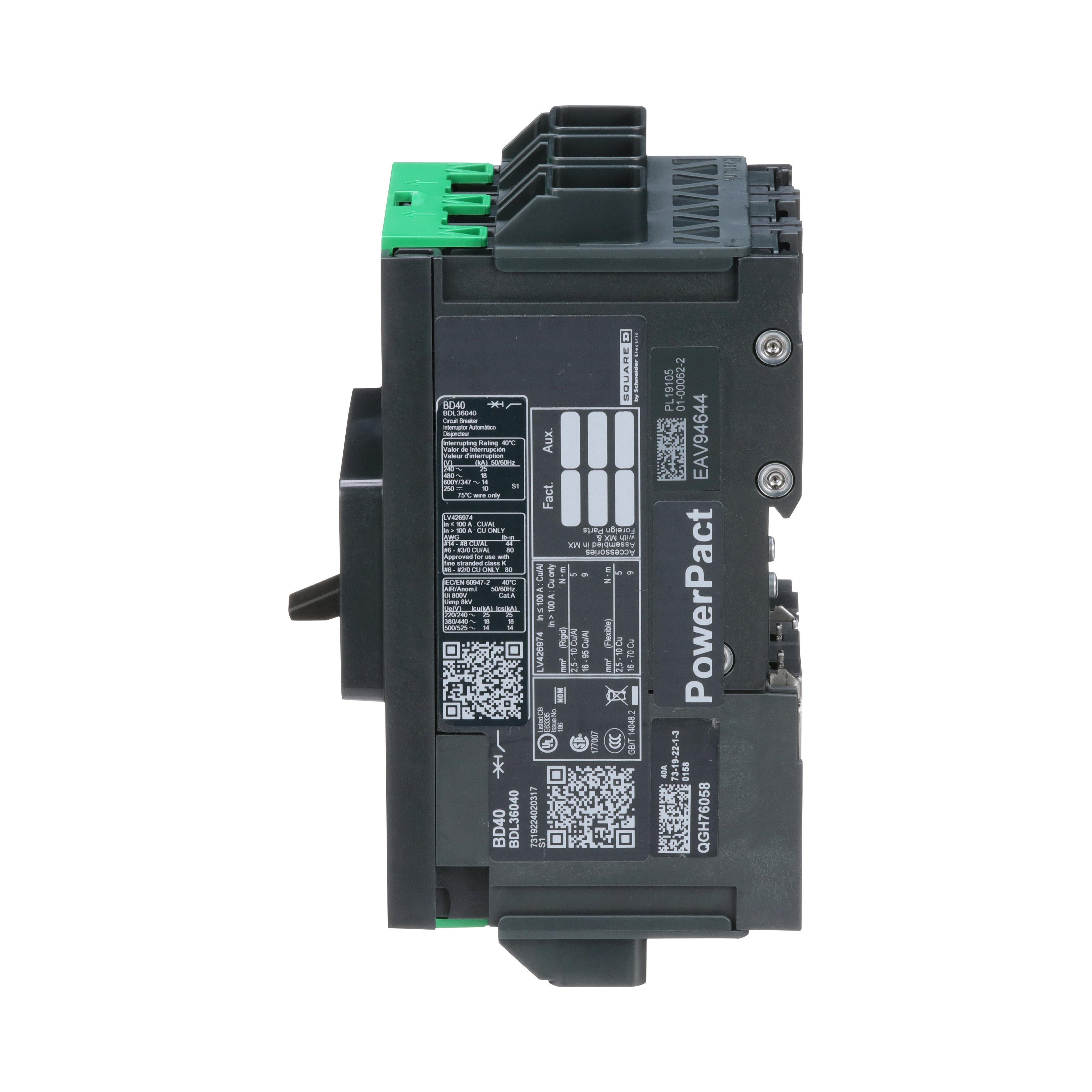

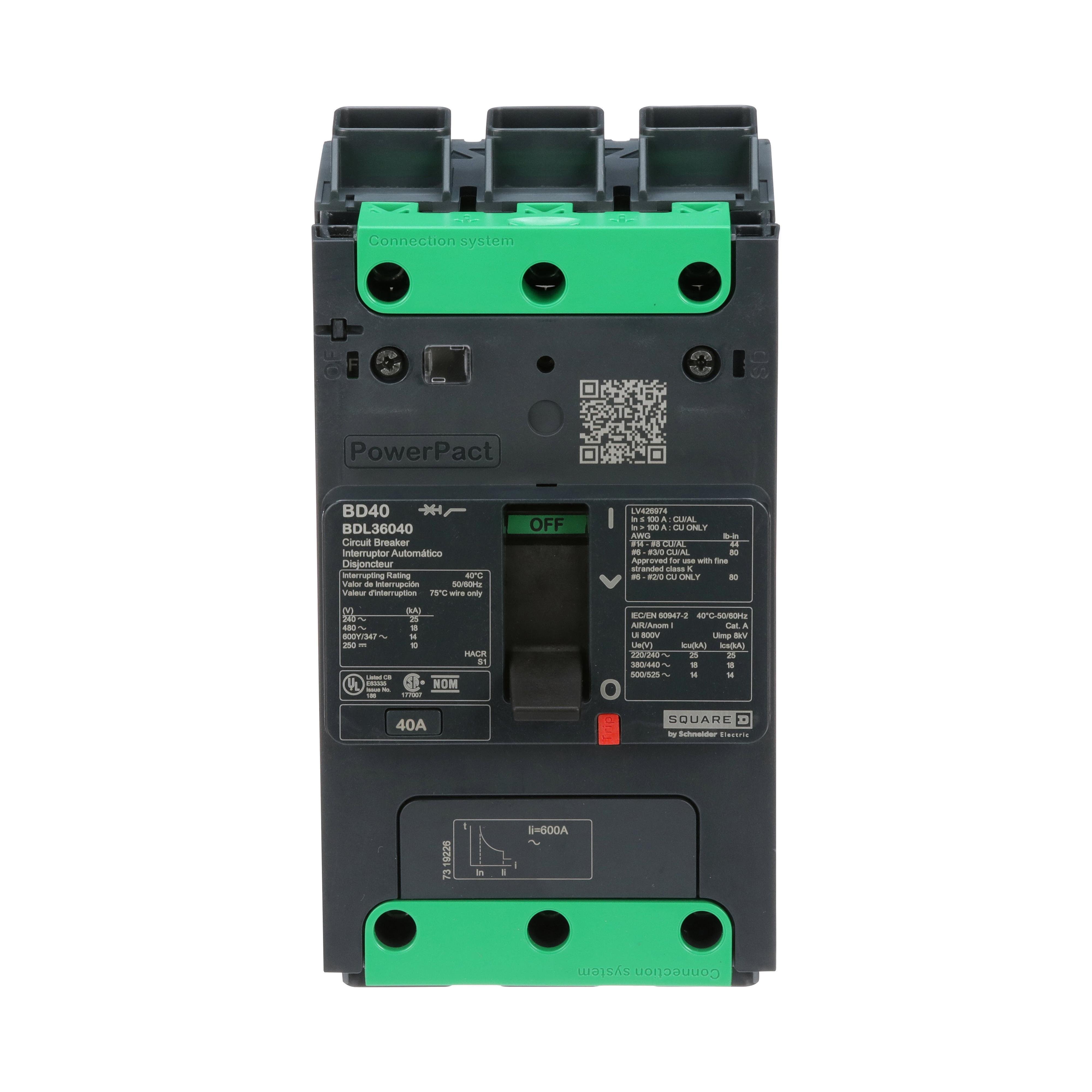

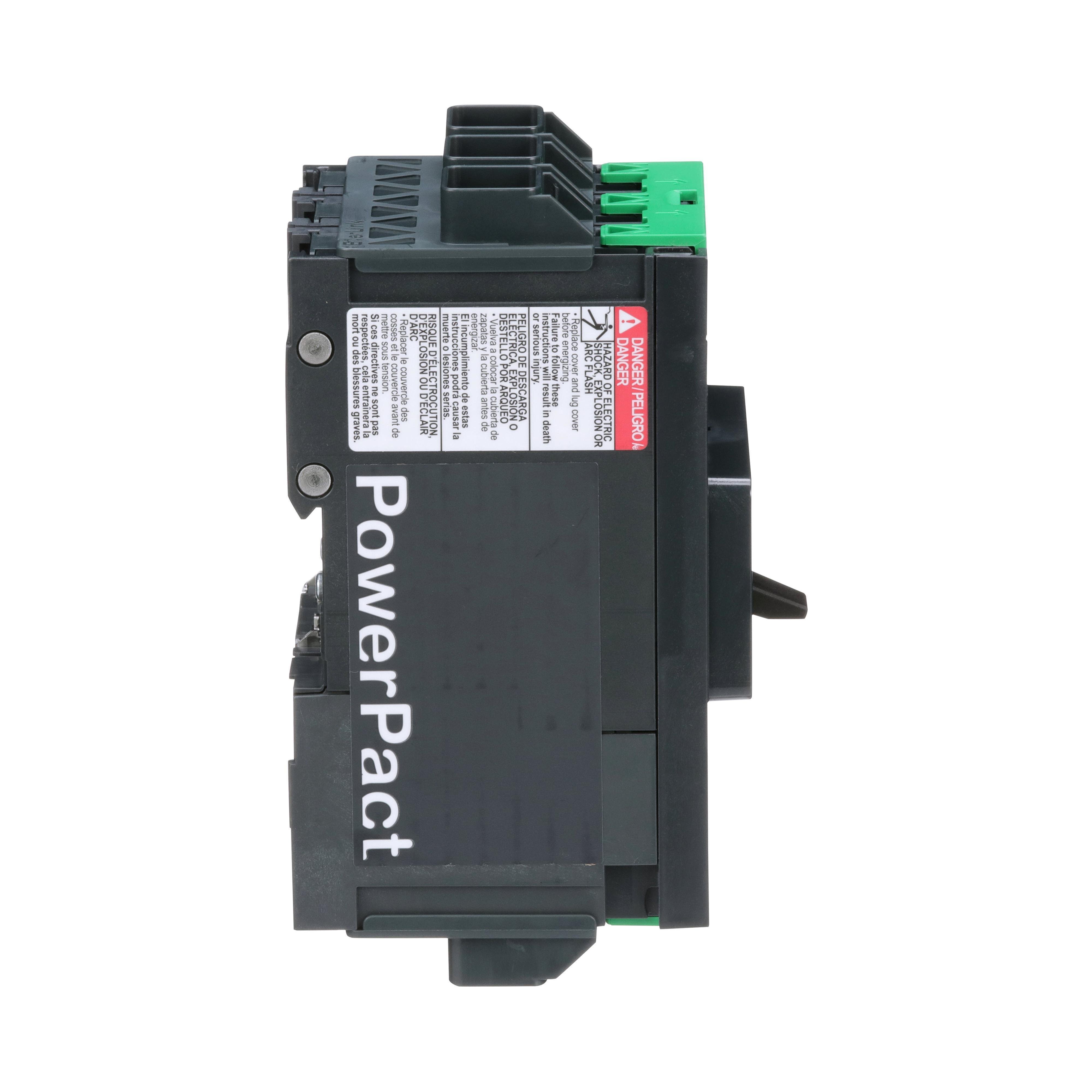

Picture of BDL36040 - Circuit breaker, PowerPacT B, 40A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80% Picture of BDL36040 - Circuit breaker, PowerPacT B, 40A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%
Picture of BDL36040 - Circuit breaker, PowerPacT B, 40A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80% Picture of BDL36040 - Circuit breaker, PowerPacT B, 40A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%
Picture of BDL36040 - Circuit breaker, PowerPacT B, 40A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80% Picture of BDL36040 - Circuit breaker, PowerPacT B, 40A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%
Picture of BDL36040 - Circuit breaker, PowerPacT B, 40A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80% Picture of BDL36040 - Circuit breaker, PowerPacT B, 40A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%
Schneider Electric

BDL36040 - Circuit breaker, PowerPacT B, 40A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%

Item Code: 973131
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BDL36040
Call for Availability
Add to Favorites
Compare

Description

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 40A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

3.1lb

Height

137mm

Width

6.54mm

Length

10.2mm

Depth

80mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/BDL36015/BDL36015.spin

AD All Features

Available in 1, 2, 3, and 4 pole for unit mounts

AD Alternative Part Number

13874809

AD Application

Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Building and Industrial Building Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD EAN

3606481153074

AD Gtin

03606481153074

AD IDEA Index ID

13874809

AD Invoice Description

BREAKER CKT CASE MLD 40A 10/14KA 3 B TGL

AD Item Features 01

Available in 1, 2, 3, and 4 pole for unit mounts

AD Item Features 02

Dual rated AC/DC with 3 levels of breaking capacity

AD Item Features 03

A wide range of accessories, auxiliaries, and lug connections available

AD Keywords

PowerPact BDL36040 BD 040 80% Rated Molded Case Circuit Breaker, 600Y/347 VAC, 250 VDC, 40 A, 10/14 kA Interrupt, 3 Poles, Thermal Magnetic Trip ; Schneider Electric ; Schneider Electric ; BDL36040 ; BDL36040 ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

10.2000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

3.1000

AD Package Weight UOM

LB

AD Package Width

6.5400

AD Package Width UOM

IN

AD Part Number Keywords

BDL36040 ; 13874809 ; 03606481153074 ; 3606481153074

AD Video Links

https://www.youtube.com/embed/teTZrIAE1L0

Brand

Schneider Electric

Category

THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle Handle

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

DIN Rail/Surface/Threaded

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

3

Spec 12 Attribute

Series

Spec 12 Attribute Value

BD 040

Spec 13 Attribute

Temperature Rating

Spec 13 Attribute UOM

deg F

Spec 13 Attribute Value

-13 To 158

Spec 14 Attribute

Trip Range

Spec 14 Attribute UOM

A

Spec 14 Attribute Value

400 to 600

Spec 15 Attribute

Trip Type

Spec 15 Attribute Value

Thermal Magnetic

Spec 16 Attribute

Type

Spec 16 Attribute Value

80% rated

Spec 17 Attribute

Voltage Rating

Spec 17 Attribute Value

600Y to 347 V AC/250 V DC

Spec 18 Attribute

Wire Size

Spec 18 Attribute Value

6 to 2/0 AWG, 14 to 3/0 AWG

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

40

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

EverLink™ Lug

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

3.19 in W x 3.15 in D x 5.39 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP40/IK07

Spec 7 Attribute

Frame

Spec 7 Attribute Value

B

Spec 8 Attribute

Frequency Rating

Spec 8 Attribute UOM

HZ

Spec 8 Attribute Value

50/60

Spec 9 Attribute

Interrupt Rating

Spec 9 Attribute UOM

KA

Spec 9 Attribute Value

14-Oct
