BDL36045 - Circuit breaker, PowerPacT B, 45A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%

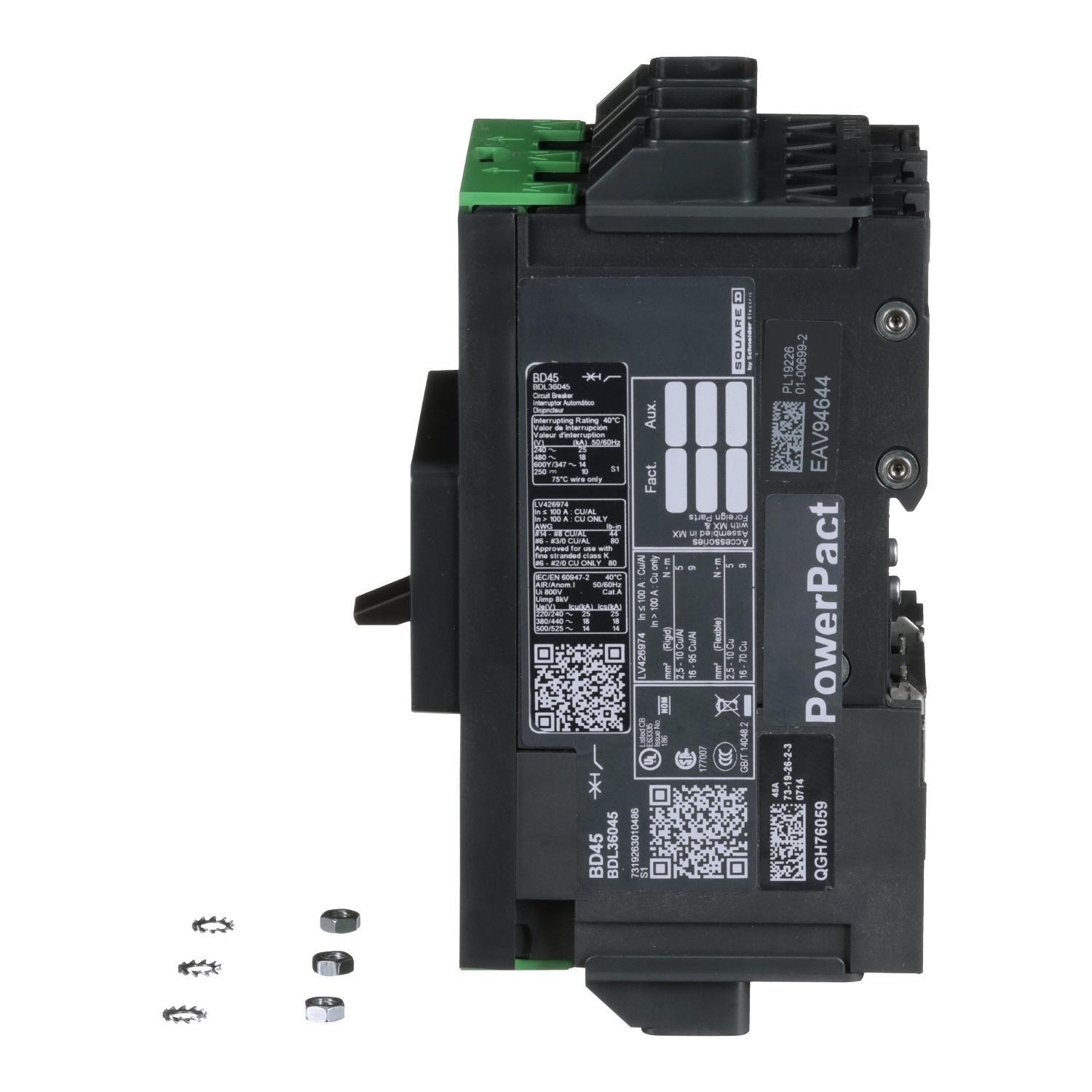

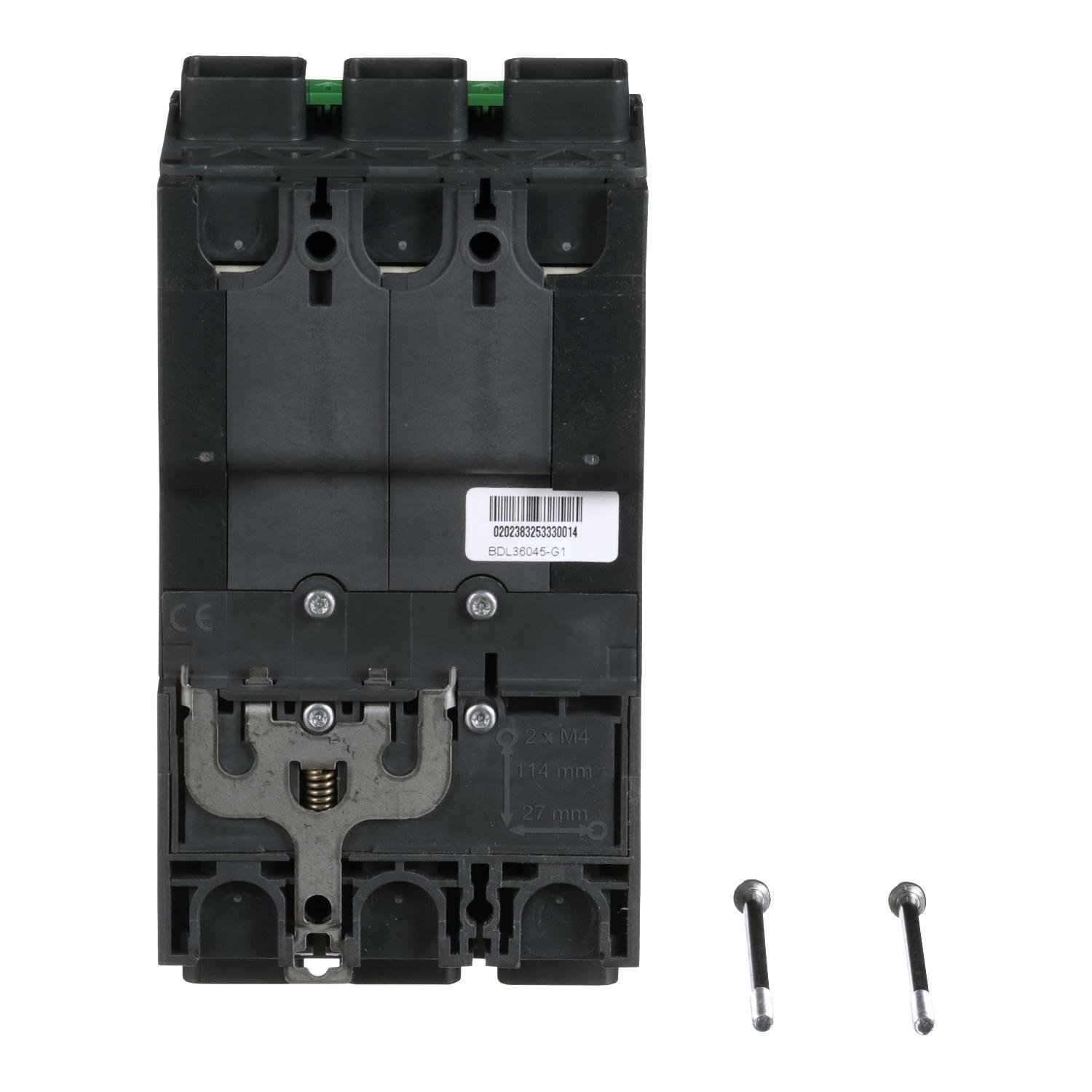

Picture of BDL36045 - Circuit breaker, PowerPacT B, 45A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%

BDL36045 - Circuit breaker, PowerPacT B, 45A, 3 pole, 600Y/347VAC, 14kA, lugs, thermal magnetic, 80%

Item Code: 1002121
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BDL36045
Login for Pricing & Availability
Compare

Fetching product details


Description

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 45A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

  • Brand : Square D
  • Category : 3 POLE UNIT MOUNT CIRCUIT BREAKERS
  • Certifications : UL
  • Color : Gray
  • Country of Origin : MX
  • Depth : 80 Millimeters
  • Height : 137 millimeters
  • Line Rated Current : 45-45 amperes
  • Manufacturer ID : 123
  • Manufacturer Logo : https://media.distributordatasolutions.com/ManufacturerLogos/Schneider+Electric/_sized/primary_logo-large.png
  • Manufacturer Part Number : BDL36045
  • Mounting Type : Clip-on 35 X 15 Mm Symmetrical DIN Rail)
  • Net Weight : 1.074 kilograms
  • Order Minimum : 1
  • Standard : UL 489
  • Storage Temperature : -50-85 °C
  • Strip Length : 20 Millimeters
  • Width : 81 millimeters
