Square D™

BGA34125Y - Circuit breaker, PowerPacT B, 125A, 3 pole, 480Y/277VAC, 35kA, I-Line, thermal magnetic, 80%, ABC

Category Miscellaneous

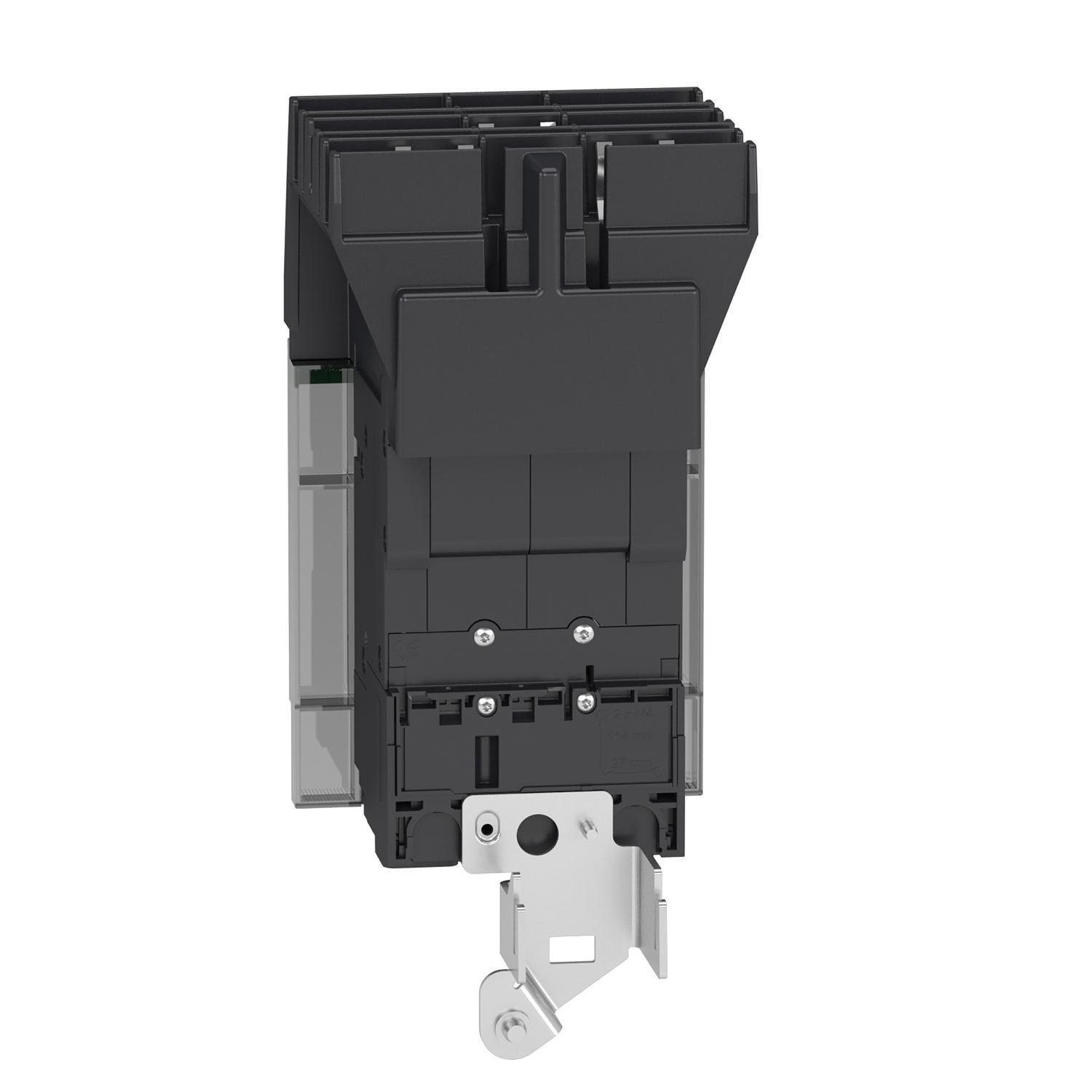

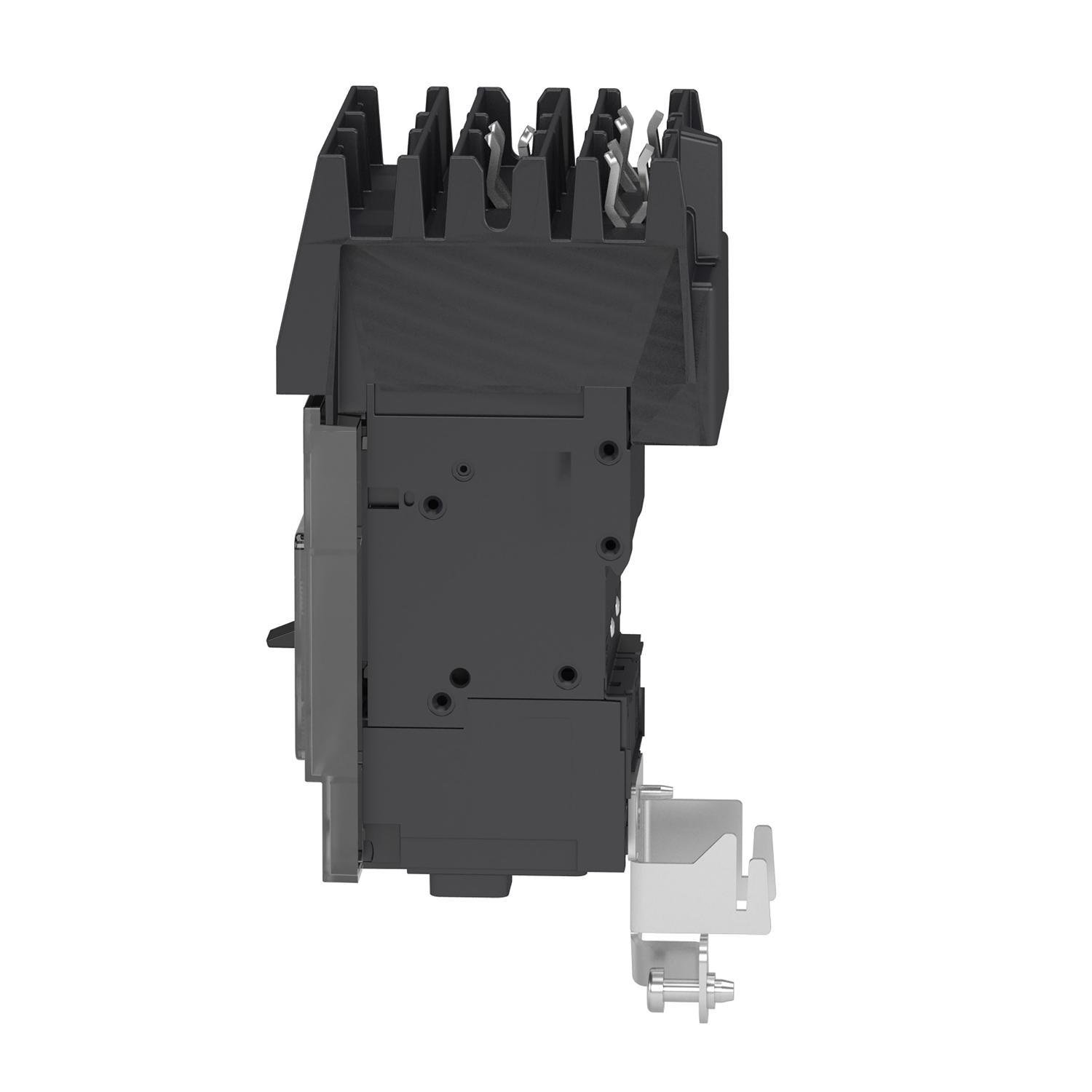

Picture of BGA34125Y - Circuit breaker, PowerPacT B, 125A, 3 pole, 480Y/277VAC, 35kA, I-Line, thermal magnetic, 80%, ABC Picture of BGA34125Y - Circuit breaker, PowerPacT B, 125A, 3 pole, 480Y/277VAC, 35kA, I-Line, thermal magnetic, 80%, ABC
Picture of BGA34125Y - Circuit breaker, PowerPacT B, 125A, 3 pole, 480Y/277VAC, 35kA, I-Line, thermal magnetic, 80%, ABC Picture of BGA34125Y - Circuit breaker, PowerPacT B, 125A, 3 pole, 480Y/277VAC, 35kA, I-Line, thermal magnetic, 80%, ABC
Picture of BGA34125Y - Circuit breaker, PowerPacT B, 125A, 3 pole, 480Y/277VAC, 35kA, I-Line, thermal magnetic, 80%, ABC Picture of BGA34125Y - Circuit breaker, PowerPacT B, 125A, 3 pole, 480Y/277VAC, 35kA, I-Line, thermal magnetic, 80%, ABC
Picture of BGA34125Y - Circuit breaker, PowerPacT B, 125A, 3 pole, 480Y/277VAC, 35kA, I-Line, thermal magnetic, 80%, ABC Picture of BGA34125Y - Circuit breaker, PowerPacT B, 125A, 3 pole, 480Y/277VAC, 35kA, I-Line, thermal magnetic, 80%, ABC
Picture of BGA34125Y - Circuit breaker, PowerPacT B, 125A, 3 pole, 480Y/277VAC, 35kA, I-Line, thermal magnetic, 80%, ABC Picture of BGA34125Y - Circuit breaker, PowerPacT B, 125A, 3 pole, 480Y/277VAC, 35kA, I-Line, thermal magnetic, 80%, ABC
Square D™

BGA34125Y - Circuit breaker, PowerPacT B, 125A, 3 pole, 480Y/277VAC, 35kA, I-Line, thermal magnetic, 80%, ABC

Item Code: 1059615
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BGA34125Y

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 35kA at 480Y/277VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. I-Line circuit breakers come with a shrouded I-Line plug on jaw. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT B, 125A, 3 pole, circuit breaker has a breaking capacity of 35kA at 480Y/277VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Weight

3.78

Height

4.8

Width

3.16

Length

3.47

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/BDA34015Y/BDA34015Y.spin

AD All Features

Available in 1, 2, 3, and 4 pole for unit mounts

AD Alternative Part Number

14898030

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901069553

AD Gtin

00785901069553

AD IDEA Index ID

14898030

AD Invoice Description

BREAKER CKT CASE MLD 480Y/277 VAC 125A

AD Item Features 01

Available in 1, 2, 3, and 4 pole for unit mounts

AD Item Features 02

Dual rated AC/DC with 3 levels of breaking capacity

AD Item Features 03

A wide range of accessories, auxiliaries, and lug connections available

AD Keywords

PowerPact B BGA34125Y Standard Molded Case Circuit Breaker, 480Y/277 V AC, 125 A, 35 kA Interrupt, 3 Poles, Thermal Magnetic Trip ; Schneider Electric ; Square D ; BGA34125Y ; BGA34125Y ; 785901069553 ; Molded Case Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.8000

AD Package Height UOM

IN

AD Package Length

3.4700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

497.6600

AD Package Volume UOM

cu-in

AD Package Weight

3.7800

AD Package Weight UOM

LB

AD Package Width

3.1600

AD Package Width UOM

IN

AD Part Number Keywords

BGA34125Y ; 14898030 ; 785901069553 ; 78590106955 ; 00785901069553 ; 0785901069553

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

3

Spec 11 Attribute

PHASE

Spec 11 Attribute Value

3

Spec 12 Attribute

Trip Type

Spec 12 Attribute Value

Thermal Magnetic

Spec 13 Attribute

Type

Spec 13 Attribute Value

Standard

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

480Y/277

Spec 15 Attribute

Wire Size

Spec 15 Attribute UOM

AWG

Spec 15 Attribute Value

14 to 2/0

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

125

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Line/Load Lug

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

81 mm W x 89 mm D x 137 mm H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP40

Spec 7 Attribute

Frame

Spec 7 Attribute Value

B

Spec 8 Attribute

Frequency Rating

Spec 8 Attribute UOM

HZ

Spec 8 Attribute Value

50/60

Spec 9 Attribute

Interrupt Rating

Spec 9 Attribute UOM

KA

Spec 9 Attribute Value

35
