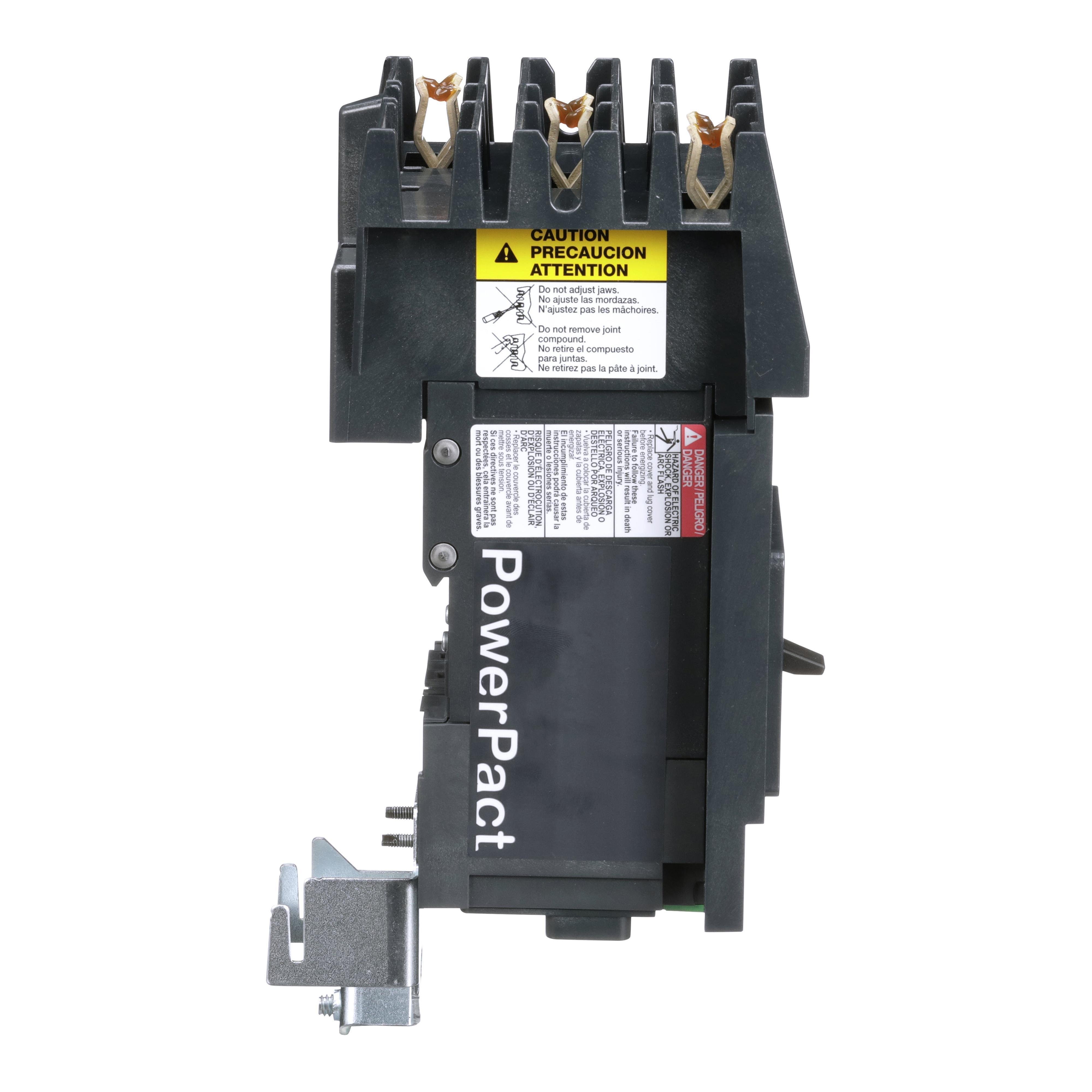

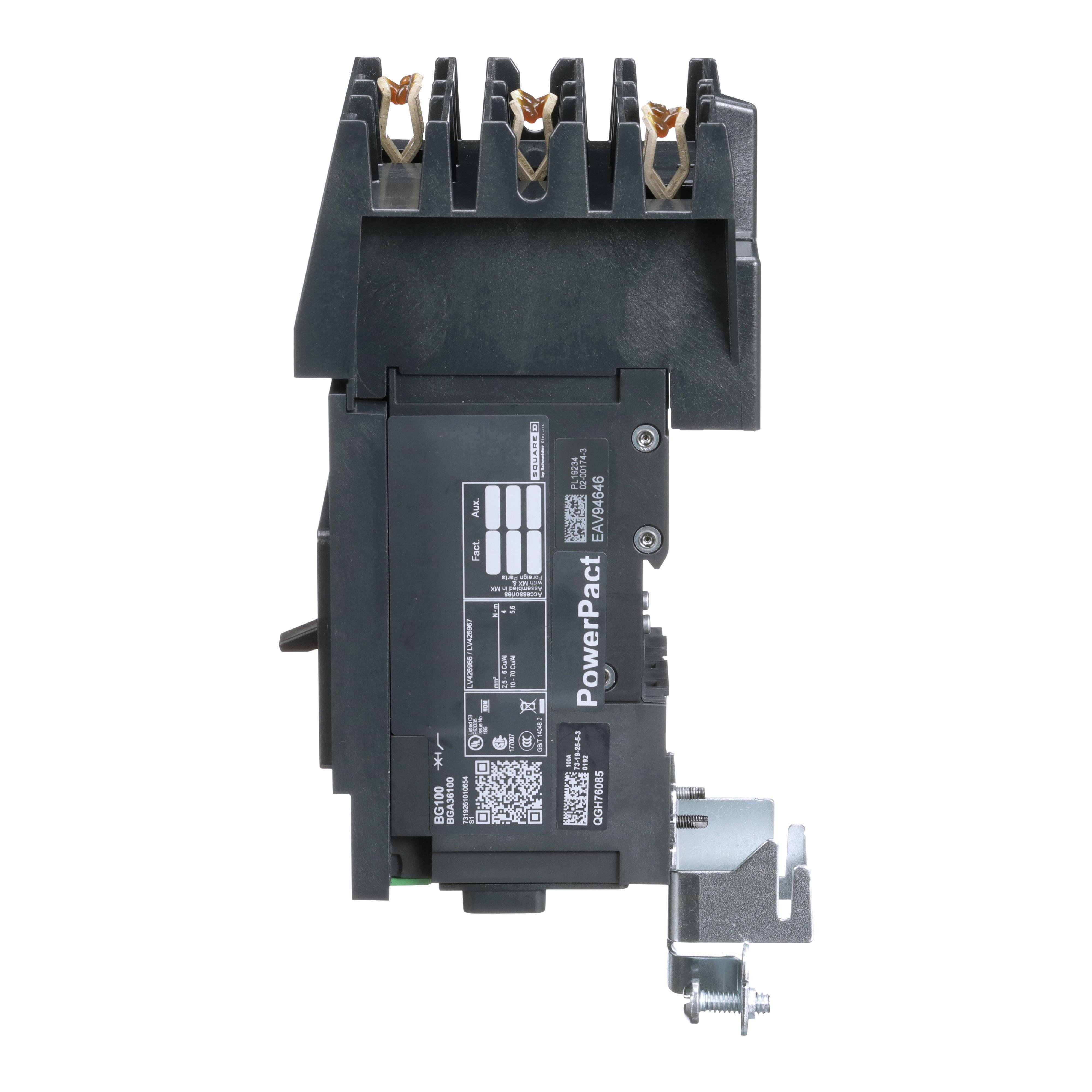

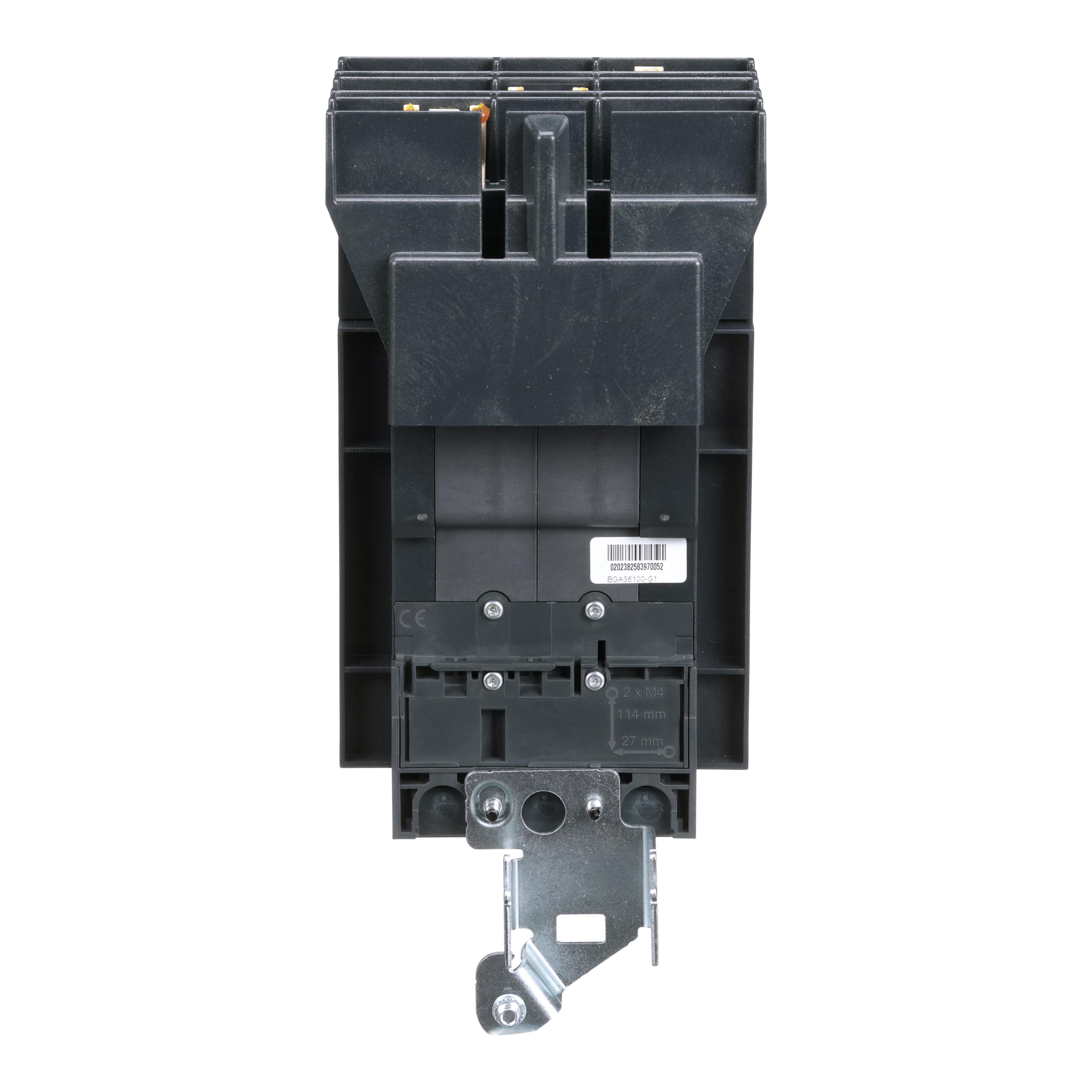

Picture of BGA36100 - Circuit breaker, PowerPacT B, 100A, 3 pole, 600Y/347VAC, 18kA, I-Line, thermal magnetic, 80%, ABC

Square D™

BGA36100 - Circuit breaker, PowerPacT B, 100A, 3 pole, 600Y/347VAC, 18kA, I-Line, thermal magnetic, 80%, ABC

Item Code: 1015520

Category Miscellaneous

Manufacturer SCHNEIDER ELECTRIC

Manufacturer Ref BGA36100

Document
Document
Document
Document
Watch video

selection not available, try a different combination

Call for Availability

Add to Favorites

Compare

Description

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a break
