Schneider Electric

BGF36100 - Circuit breaker, PowerPacT B, 100A, 3 pole, 600Y/347VAC, 18kA, terminal nut, thermal magnetic, 80%

Category Base Mount, Unit Mount, Din Rail Mount Circuit Breakers

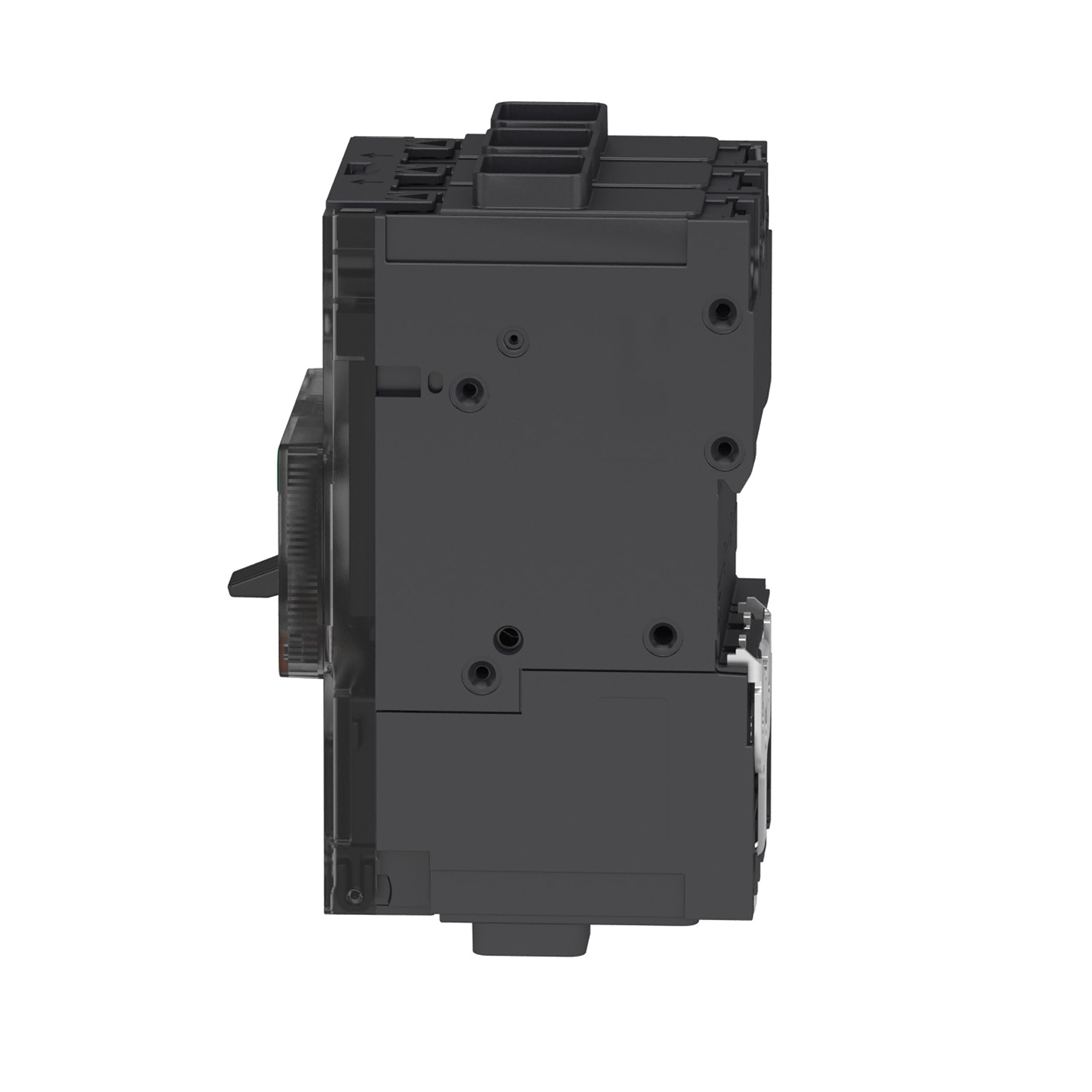

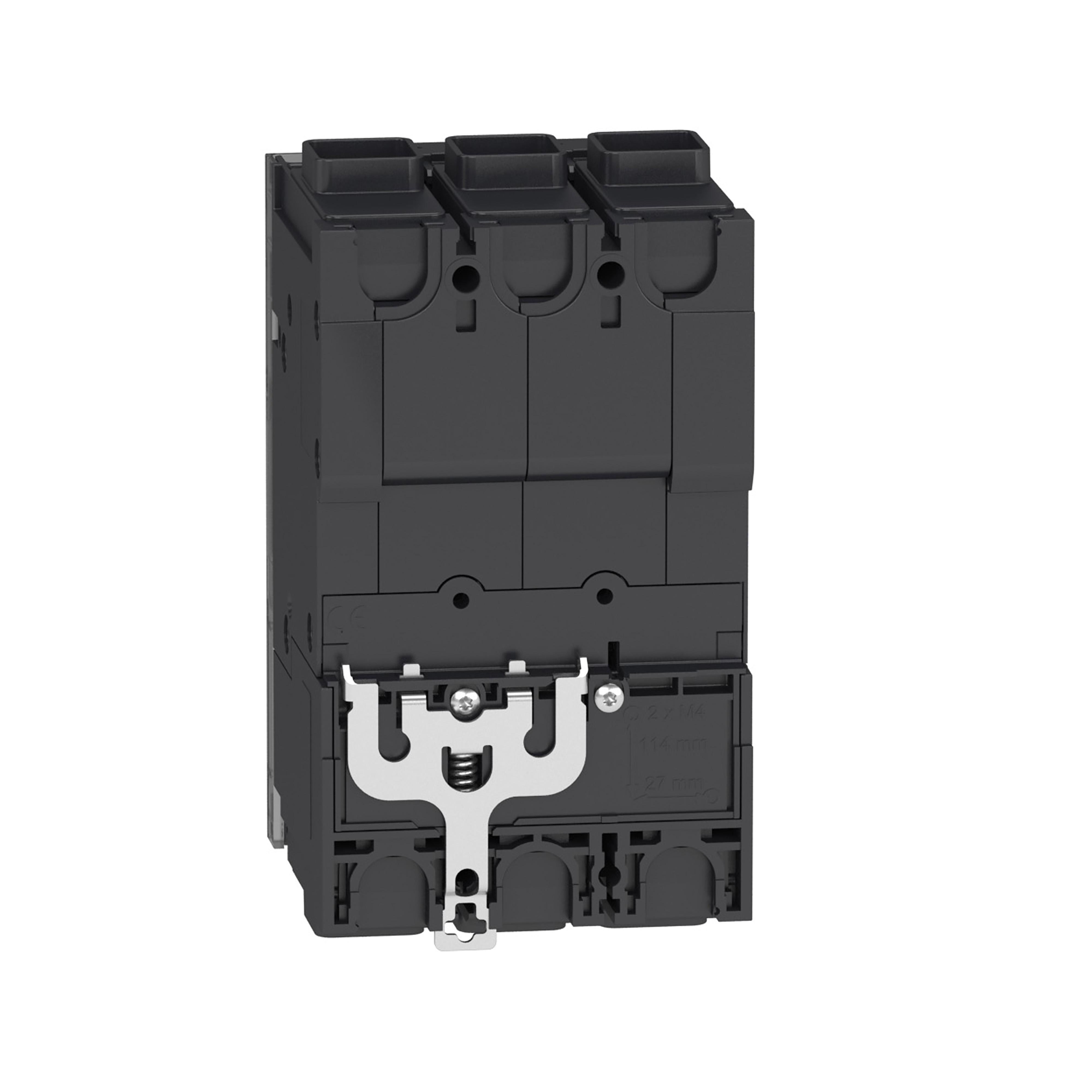

Picture of BGF36100 - Circuit breaker, PowerPacT B, 100A, 3 pole, 600Y/347VAC, 18kA, terminal nut, thermal magnetic, 80% Picture of BGF36100 - Circuit breaker, PowerPacT B, 100A, 3 pole, 600Y/347VAC, 18kA, terminal nut, thermal magnetic, 80%
Picture of BGF36100 - Circuit breaker, PowerPacT B, 100A, 3 pole, 600Y/347VAC, 18kA, terminal nut, thermal magnetic, 80% Picture of BGF36100 - Circuit breaker, PowerPacT B, 100A, 3 pole, 600Y/347VAC, 18kA, terminal nut, thermal magnetic, 80%
Picture of BGF36100 - Circuit breaker, PowerPacT B, 100A, 3 pole, 600Y/347VAC, 18kA, terminal nut, thermal magnetic, 80% Picture of BGF36100 - Circuit breaker, PowerPacT B, 100A, 3 pole, 600Y/347VAC, 18kA, terminal nut, thermal magnetic, 80%
Schneider Electric

BGF36100 - Circuit breaker, PowerPacT B, 100A, 3 pole, 600Y/347VAC, 18kA, terminal nut, thermal magnetic, 80%

Item Code: 1132033
Category Base Mount, Unit Mount, Din Rail Mount Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BGF36100

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a break

Specifications

AD All Features

Available in 1, 2, 3, and 4 pole for unit mounts

AD Application

Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Buildings and Industrial Building Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

BREAKER CKT CASE MLD 600Y/347VAC 100A

AD Item Features 01

Available in 1, 2, 3, and 4 pole for unit mounts

AD Item Features 02

Dual rated AC/DC with 3 levels of breaking capacity

AD Item Features 03

A wide range of accessories, auxiliaries, and lug connections available

AD Manufacturer (Description)

Schneider Electric

AD Package Quantity

1

Brand

Square D

Category

BASE MOUNT, UNIT MOUNT, DIN RAIL MOUNT CIRCUIT BREAKERS

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

DIN Rail/Surface/Threaded

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

3

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg F

Spec 12 Attribute Value

-13 To 158

Spec 13 Attribute

Trip Range

Spec 13 Attribute UOM

A

Spec 13 Attribute Value

1000 to 1500

Spec 14 Attribute

Trip Type

Spec 14 Attribute Value

Electronic

Spec 15 Attribute

Type

Spec 15 Attribute Value

Type BGF

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute UOM

V AC

Spec 16 Attribute Value

600Y/347

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

100

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Terminal Nut

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

5.39 in H x 3.19 in W x 3.15 in D

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP40/IK07

Spec 7 Attribute

Frame

Spec 7 Attribute Value

B

Spec 8 Attribute

Frequency Rating

Spec 8 Attribute UOM

HZ

Spec 8 Attribute Value

50/60

Spec 9 Attribute

Interrupt Rating

Spec 9 Attribute UOM

KA

Spec 9 Attribute Value

18
