Schneider Electric

BGL36080LU - Circuit breaker, PowerPacT B, 80A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%, control wire ON end

Category Base Mount, Unit Mount, Din Rail Mount Circuit Breakers

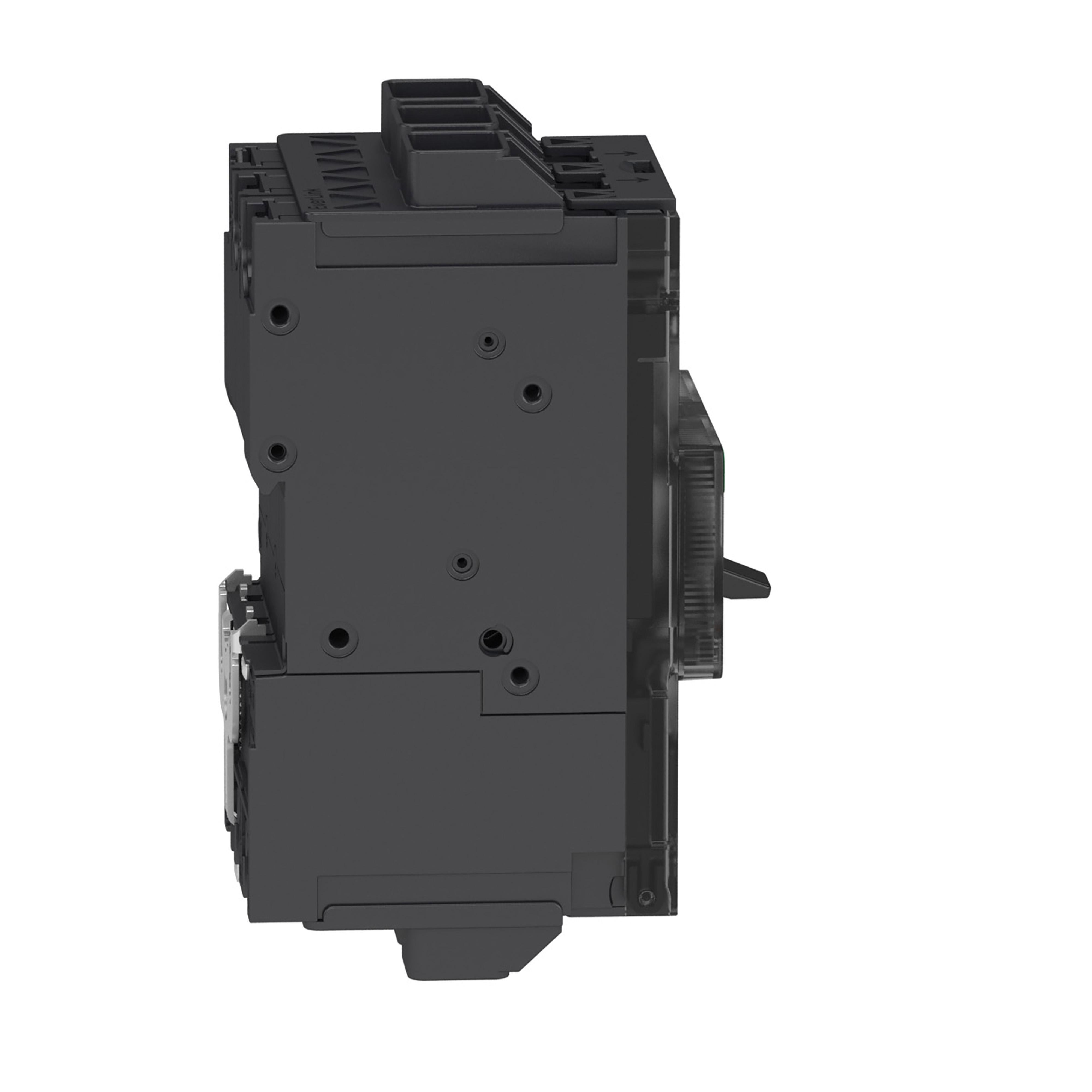

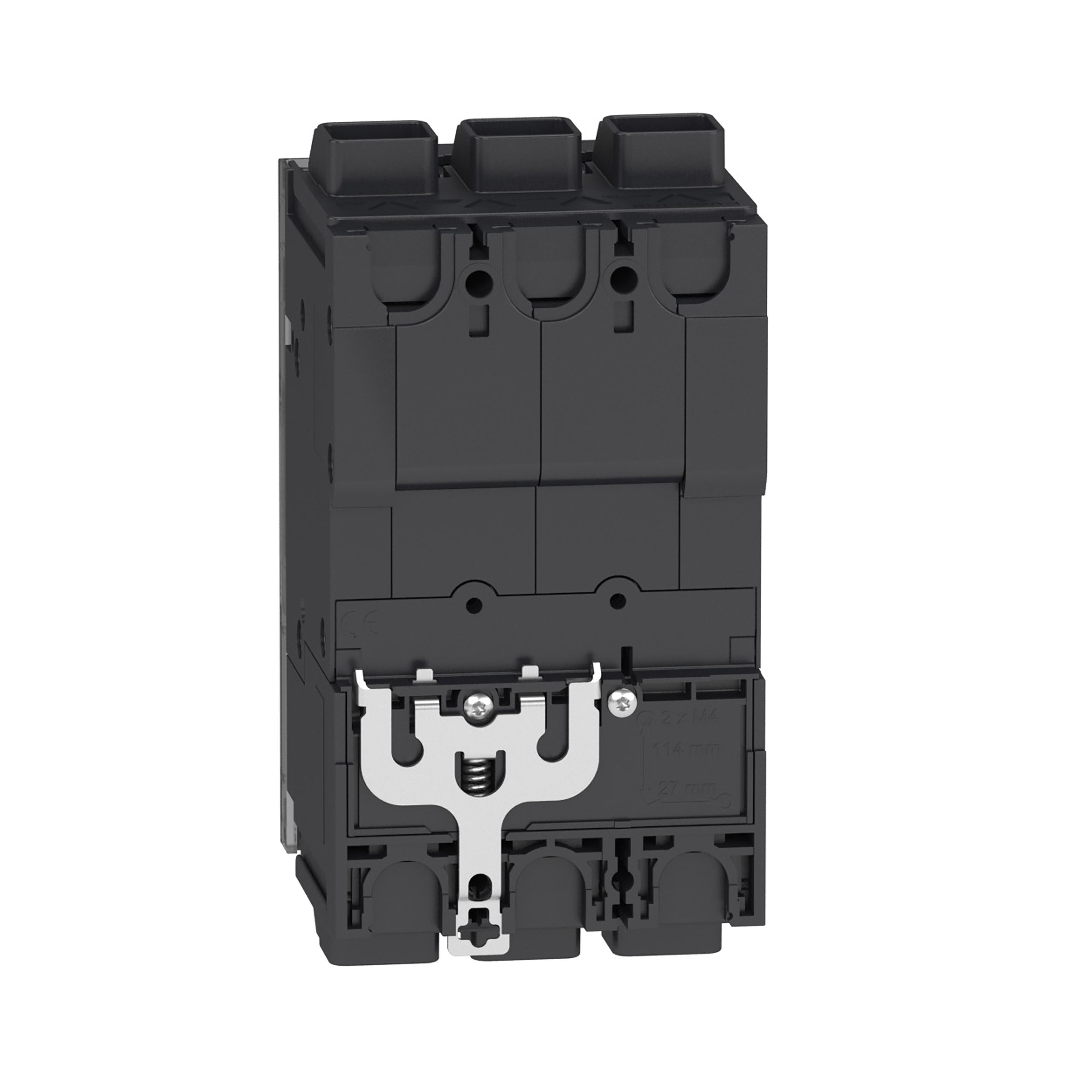

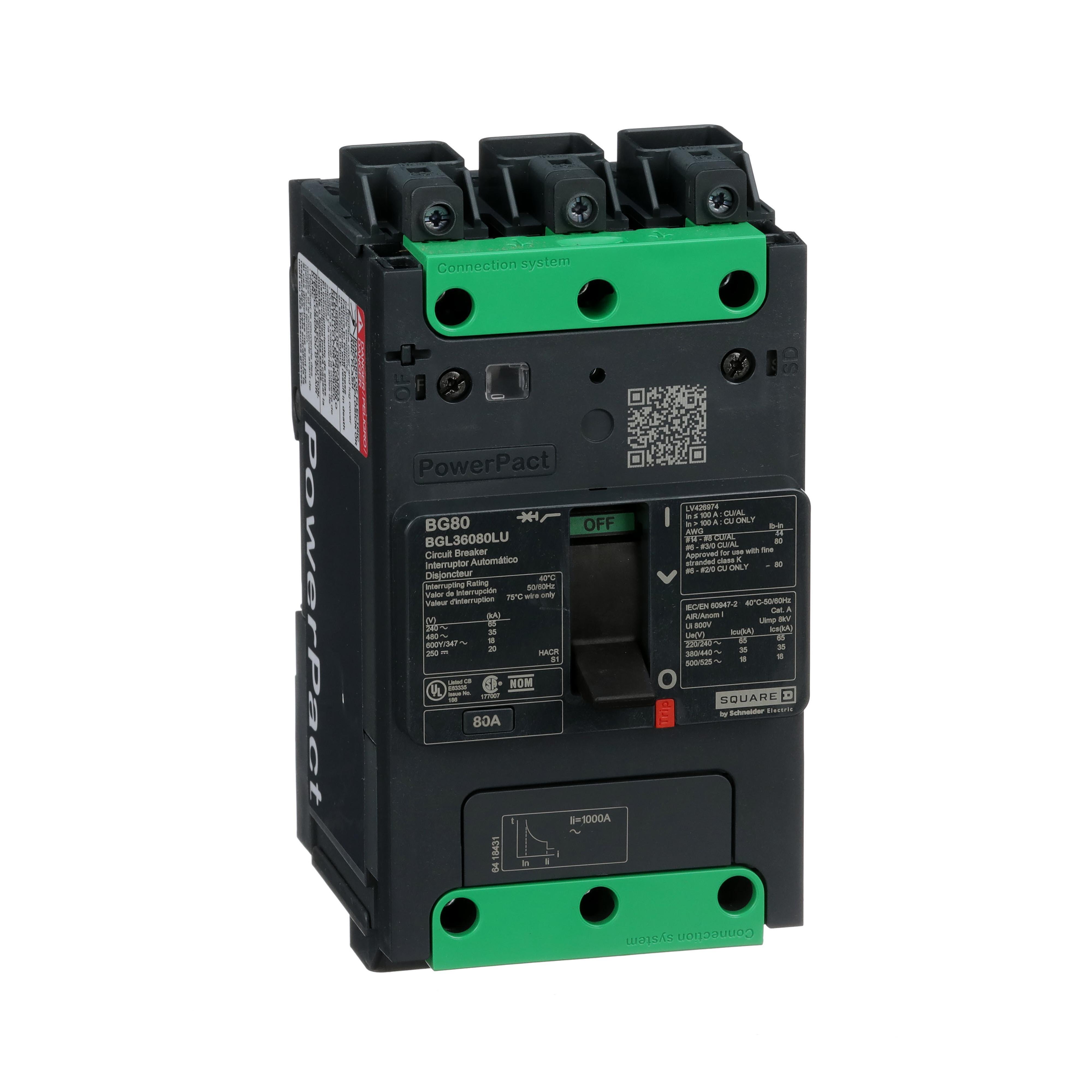

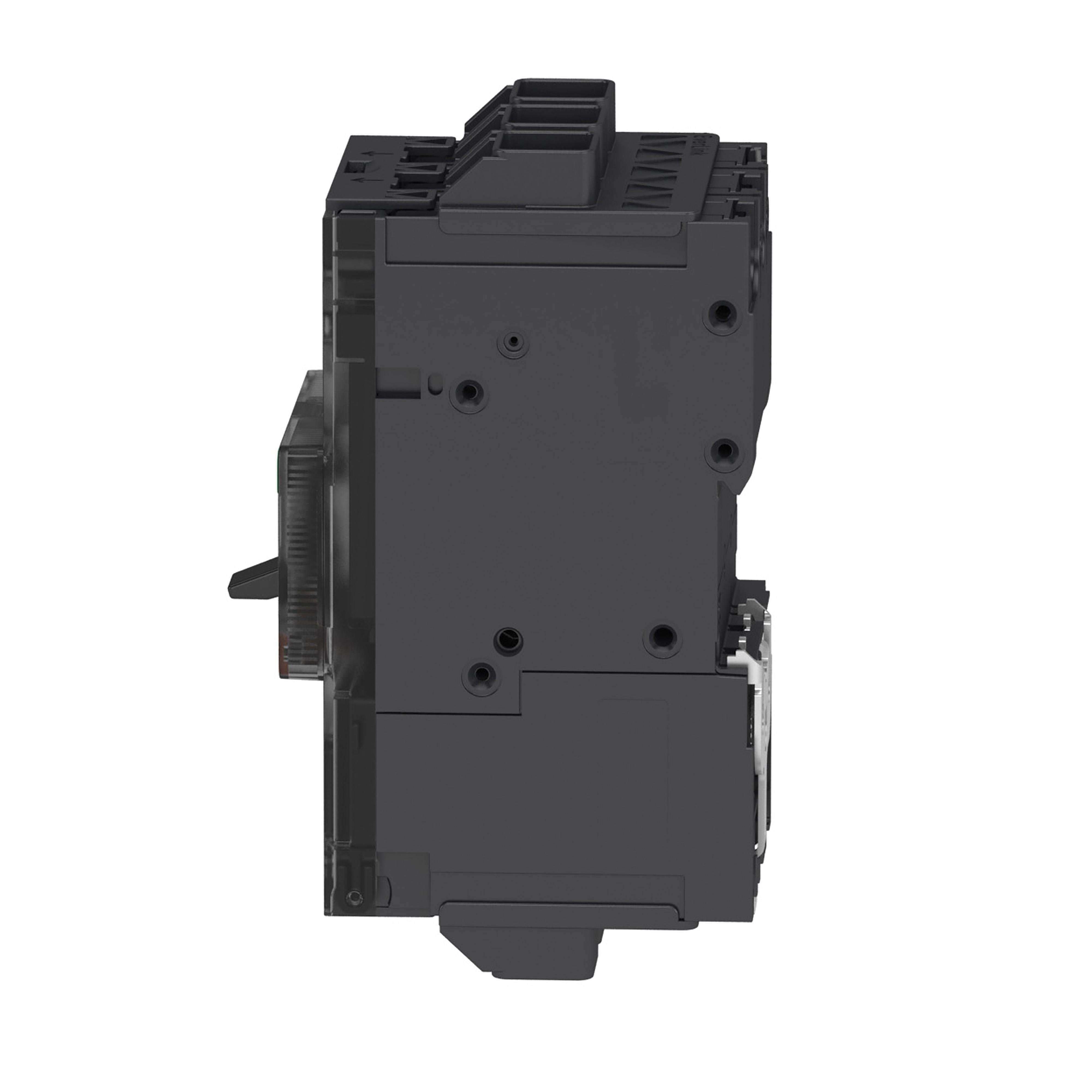

Picture of BGL36080LU - Circuit breaker, PowerPacT B, 80A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%, control wire ON end Picture of BGL36080LU - Circuit breaker, PowerPacT B, 80A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%, control wire ON end
Picture of BGL36080LU - Circuit breaker, PowerPacT B, 80A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%, control wire ON end Picture of BGL36080LU - Circuit breaker, PowerPacT B, 80A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%, control wire ON end
Picture of BGL36080LU - Circuit breaker, PowerPacT B, 80A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%, control wire ON end Picture of BGL36080LU - Circuit breaker, PowerPacT B, 80A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%, control wire ON end
Picture of BGL36080LU - Circuit breaker, PowerPacT B, 80A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%, control wire ON end Picture of BGL36080LU - Circuit breaker, PowerPacT B, 80A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%, control wire ON end
Picture of BGL36080LU - Circuit breaker, PowerPacT B, 80A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%, control wire ON end Picture of BGL36080LU - Circuit breaker, PowerPacT B, 80A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%, control wire ON end
Schneider Electric

BGL36080LU - Circuit breaker, PowerPacT B, 80A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%, control wire ON end

Item Code: 1235881
Category Base Mount, Unit Mount, Din Rail Mount Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BGL36080LU

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a break

Specifications

Weight

2.59

Width

4.66

Length

8.02

Actuator Type

Toggle

Amperage Rating

80 A

Brand

Square D

Category

BASE MOUNT, UNIT MOUNT, DIN RAIL MOUNT CIRCUIT BREAKERS

Color

Gray

Connection Type

Line/Load Lug

Dimensions

3.19 in W x 4.09 in D x 5.39 in H

Enclosure Type

NEMA AB4/IP40

Frame

B

Frequency Rating

50/60 Hz

Interrupt Rating

65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600Y/347 VAC

Mounting Type

DIN Rail/Threaded

Number Of Poles

3

Temperature Rating

-13 to 158 deg f

Trip Range

800 to 1200 A

Trip Type

Thermal Magnetic

Voltage Rating

600Y/347 V AC

Wire Size

14 to 2/0 AWG/14 to 3/0 AWG Al/Cu
