Schneider Electric

BGL36125 - Circuit breaker, PowerPacT B, 125A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%

Category Thermal Magnetic Trip Molded Case Circuit Breakers

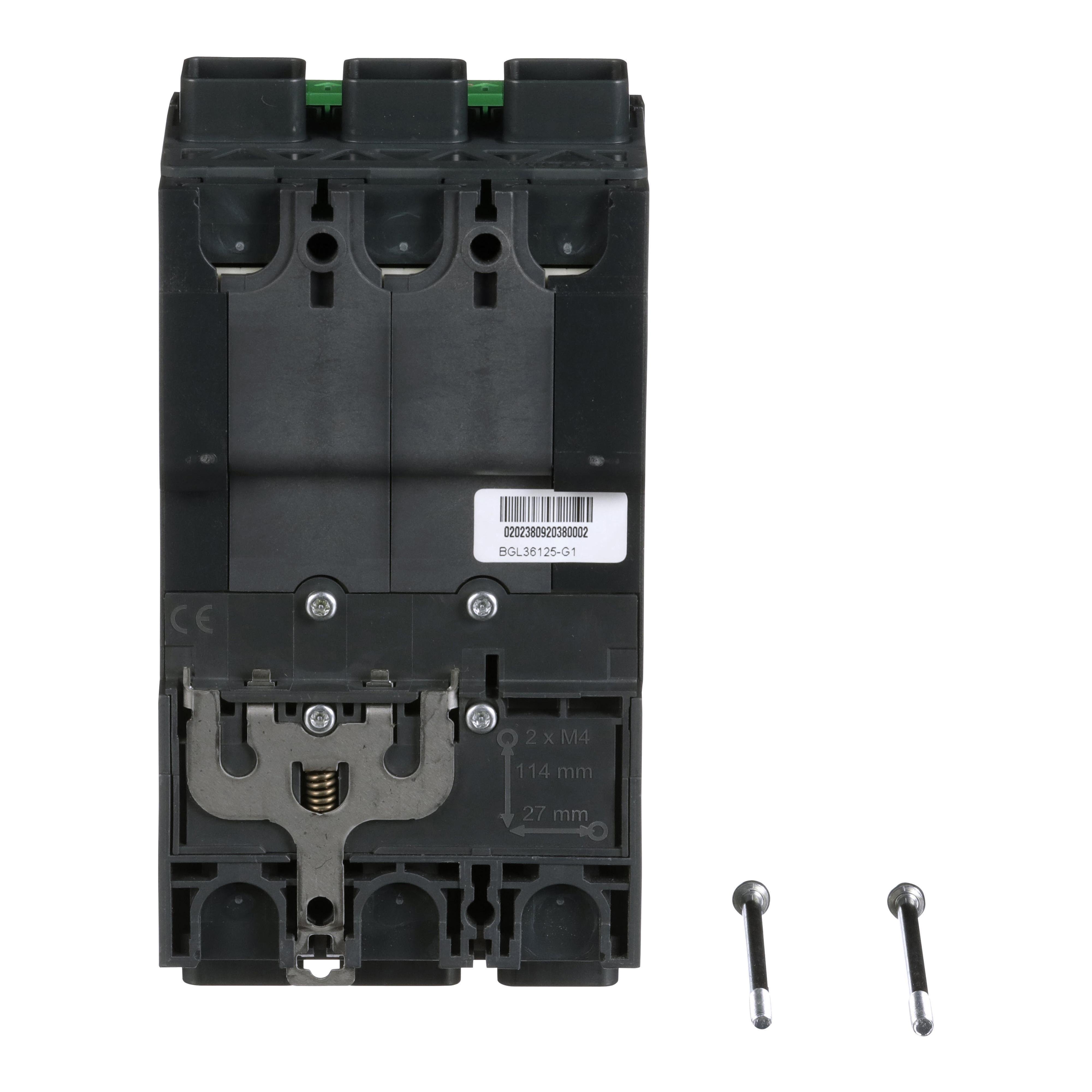

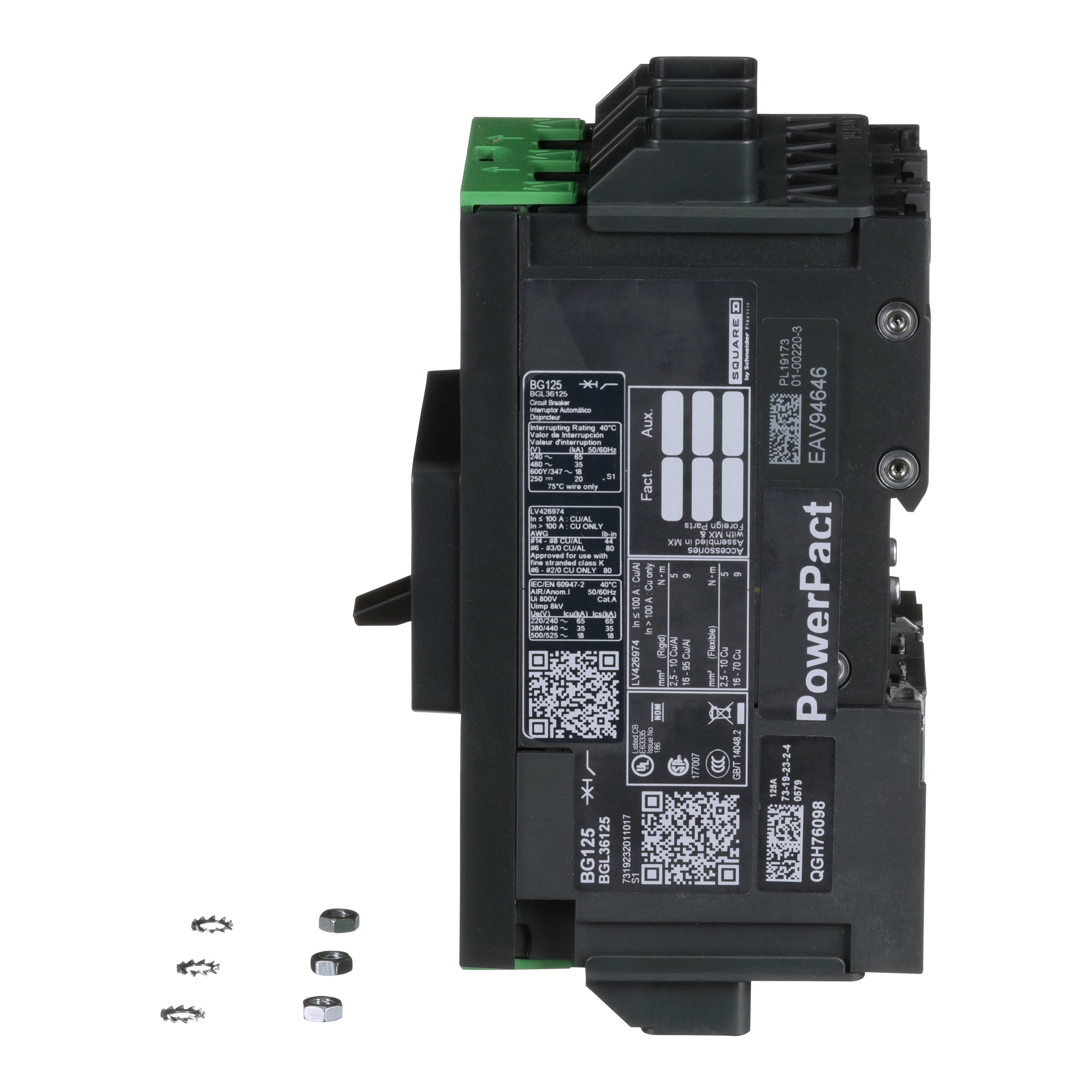

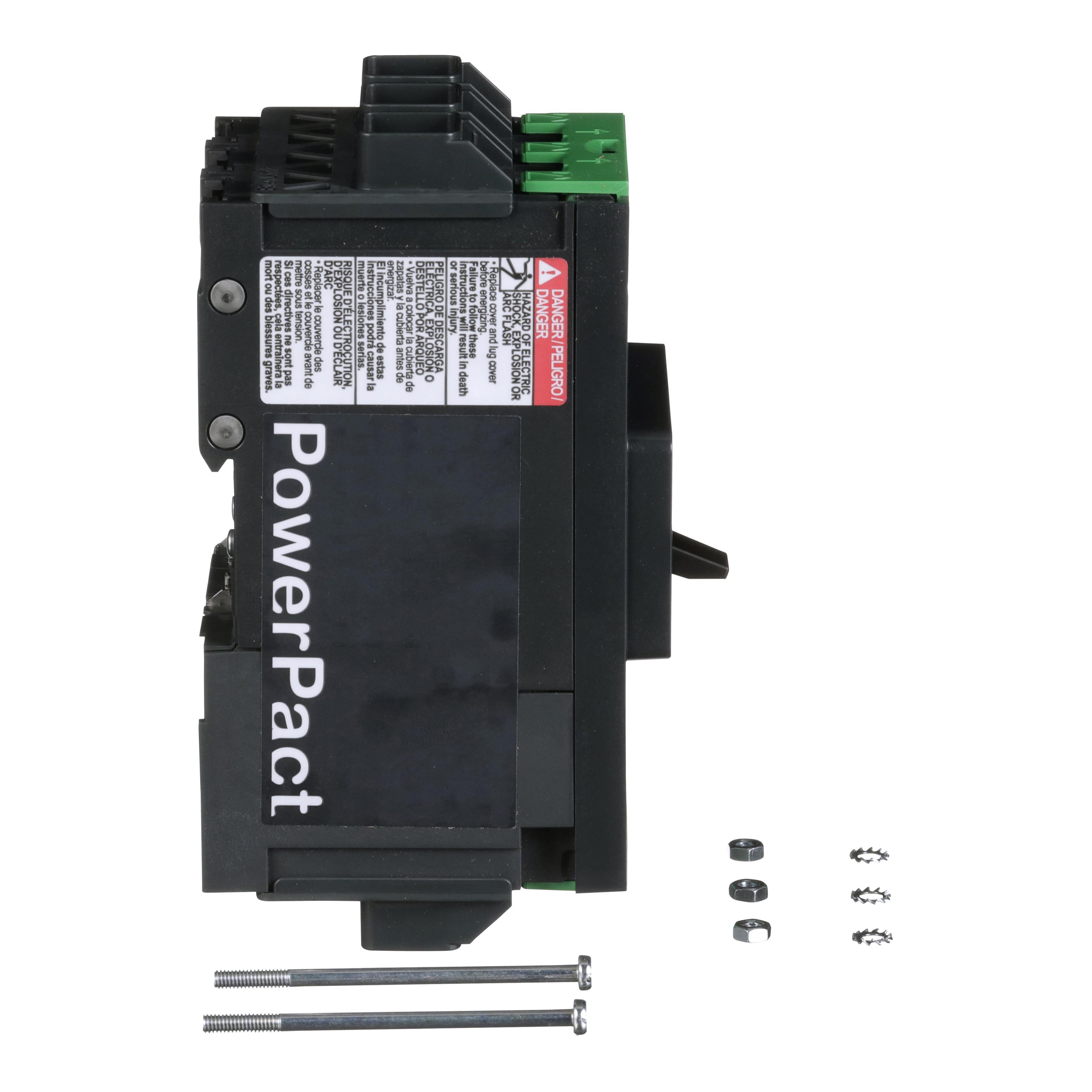

Picture of BGL36125 - Circuit breaker, PowerPacT B, 125A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80% Picture of BGL36125 - Circuit breaker, PowerPacT B, 125A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%
Picture of BGL36125 - Circuit breaker, PowerPacT B, 125A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80% Picture of BGL36125 - Circuit breaker, PowerPacT B, 125A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%
Picture of BGL36125 - Circuit breaker, PowerPacT B, 125A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80% Picture of BGL36125 - Circuit breaker, PowerPacT B, 125A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%
Picture of BGL36125 - Circuit breaker, PowerPacT B, 125A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80% Picture of BGL36125 - Circuit breaker, PowerPacT B, 125A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%
Picture of BGL36125 - Circuit breaker, PowerPacT B, 125A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80% Picture of BGL36125 - Circuit breaker, PowerPacT B, 125A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%
Schneider Electric

BGL36125 - Circuit breaker, PowerPacT B, 125A, 3 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%

Item Code: 1003629
Category Thermal Magnetic Trip Molded Case Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BGL36125

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a break

Specifications

Weight

2.59

Width

3.97

Length

3.16

AD All Features

Available in 1, 2, 3, and 4 pole for unit mounts

AD Application

Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Building and Industrial Building Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

BREAKER CKT CASE MLD 125A 18KA 3 50/60HZ

AD Item Features 01

Available in 1, 2, 3, and 4 pole for unit mounts

AD Item Features 02

Dual rated AC/DC with 3 levels of breaking capacity

AD Item Features 03

A wide range of accessories, auxiliaries, and lug connections available

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.1600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.5900

AD Package Weight UOM

LB

AD Package Width

3.9700

AD Package Width UOM

IN

Brand

Square D

Category

THERMAL MAGNETIC TRIP MOLDED CASE CIRCUIT BREAKERS

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

DIN Rail

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

3

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

3

Spec 13 Attribute

Temperature Rating

Spec 13 Attribute UOM

deg F

Spec 13 Attribute Value

-13 To 158

Spec 14 Attribute

Trip Range

Spec 14 Attribute UOM

A

Spec 14 Attribute Value

1000 to 1500

Spec 15 Attribute

Trip Type

Spec 15 Attribute Value

Thermal Magnetic

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute Value

600Y to 347 V AC/489 to 250 V DC

Spec 17 Attribute

Wire Size

Spec 17 Attribute Value

14 to 3/0 AWG, 6 to 2/0 AWG Cu

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

125

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Line/Load Lug

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

80 mm L x 81 mm W x 137 mm H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA AB1/IP40

Spec 7 Attribute

Frame

Spec 7 Attribute Value

B

Spec 8 Attribute

Frequency Rating

Spec 8 Attribute UOM

HZ

Spec 8 Attribute Value

50/60

Spec 9 Attribute

Interrupt Rating

Spec 9 Attribute UOM

KA

Spec 9 Attribute Value

18
