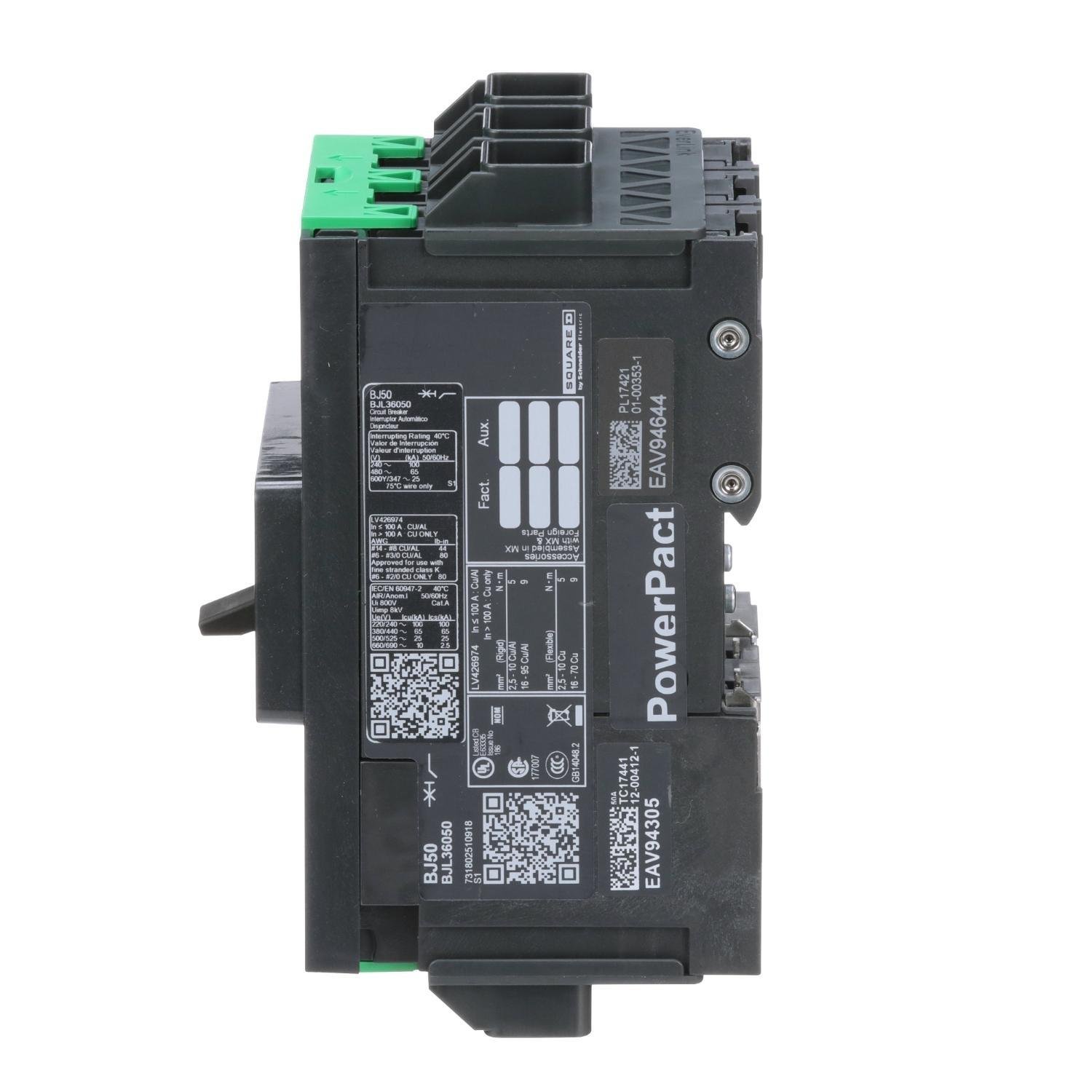

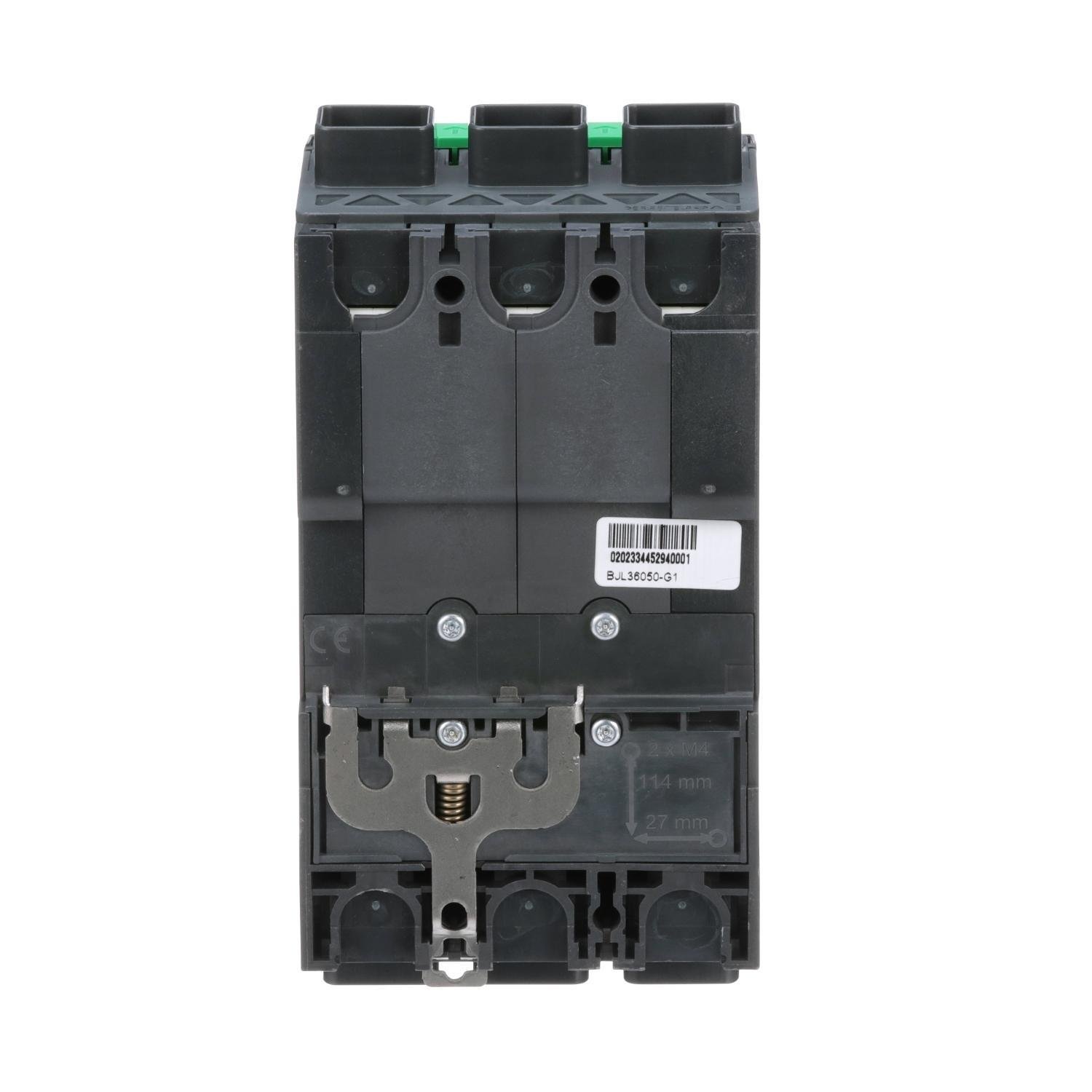

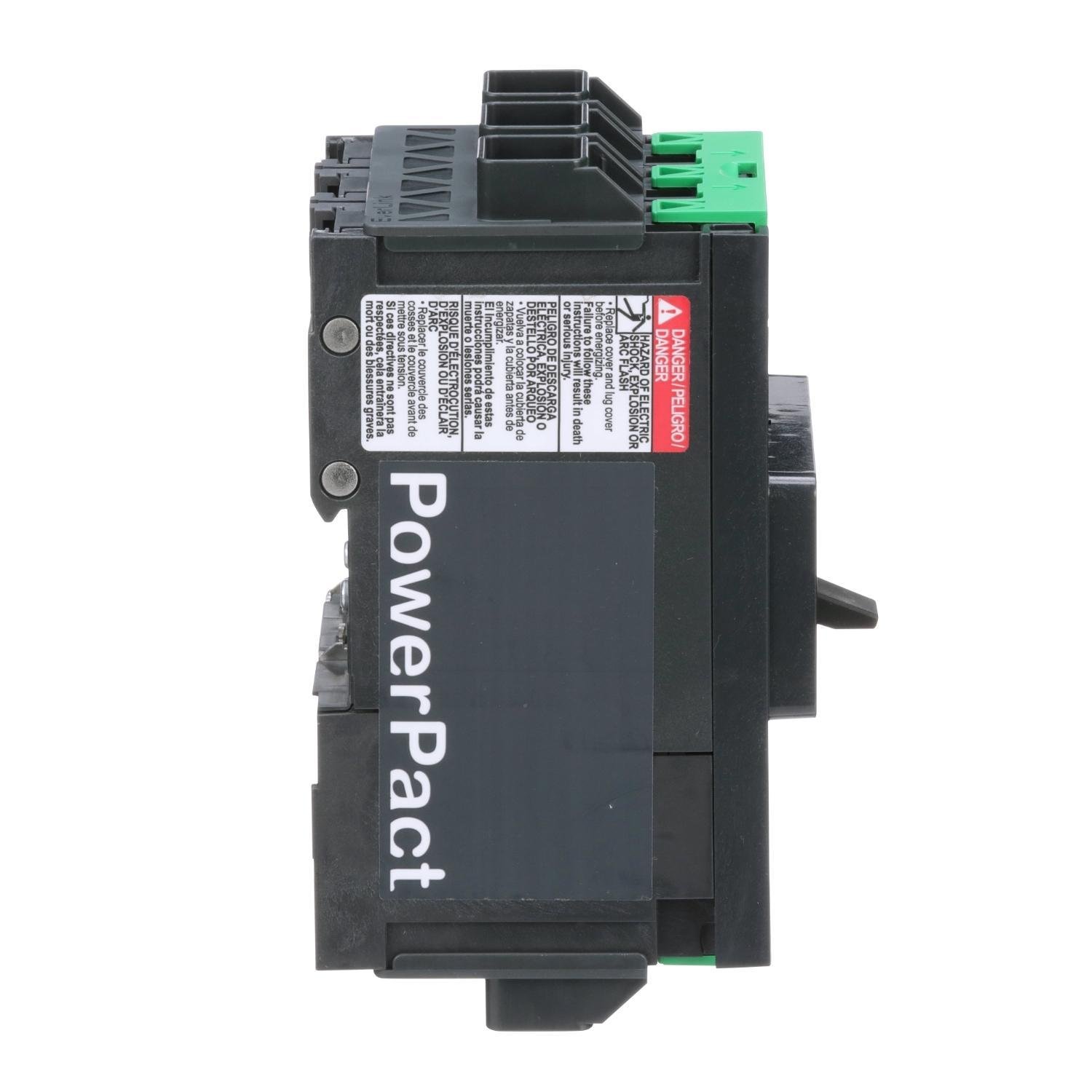

BJL36050 - Circuit breaker, PowerPacT B, 50A, 3 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80%
Item Code: 1028067
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BJL36050
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
2.92
Width
6.44
Length
10.4
Actuator Type
Toggle
Amperage Rating
50 A
Brand
Square D
Category
BASE MOUNT, UNIT MOUNT, DIN RAIL MOUNT CIRCUIT BREAKERS
Color
Gray
Connection Type
Line/Load Lug
Dimensions
5.39 in H x 3.19 in W x 4.09 in D
Enclosure Type
NEMA AB4/IP40
Frame
B
Frequency Rating
50/60 Hz
Interrupt Rating
100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600Y/347 VAC
Mounting Type
DIN Rail/Threaded
Number Of Poles
3
Phase
3
Temperature Rating
-13 to 158 deg f
Trip Range
480 to 720 A
Trip Type
Thermal Magnetic
Voltage Rating
600Y/347 V AC
Wire Size
14 to 3/0 AWG, 6 to 2/0 AWG Al/Cu
