Square D™

BJL36070 - Circuit breaker, PowerPacT B, 70A, 3 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80%

Category Miscellaneous

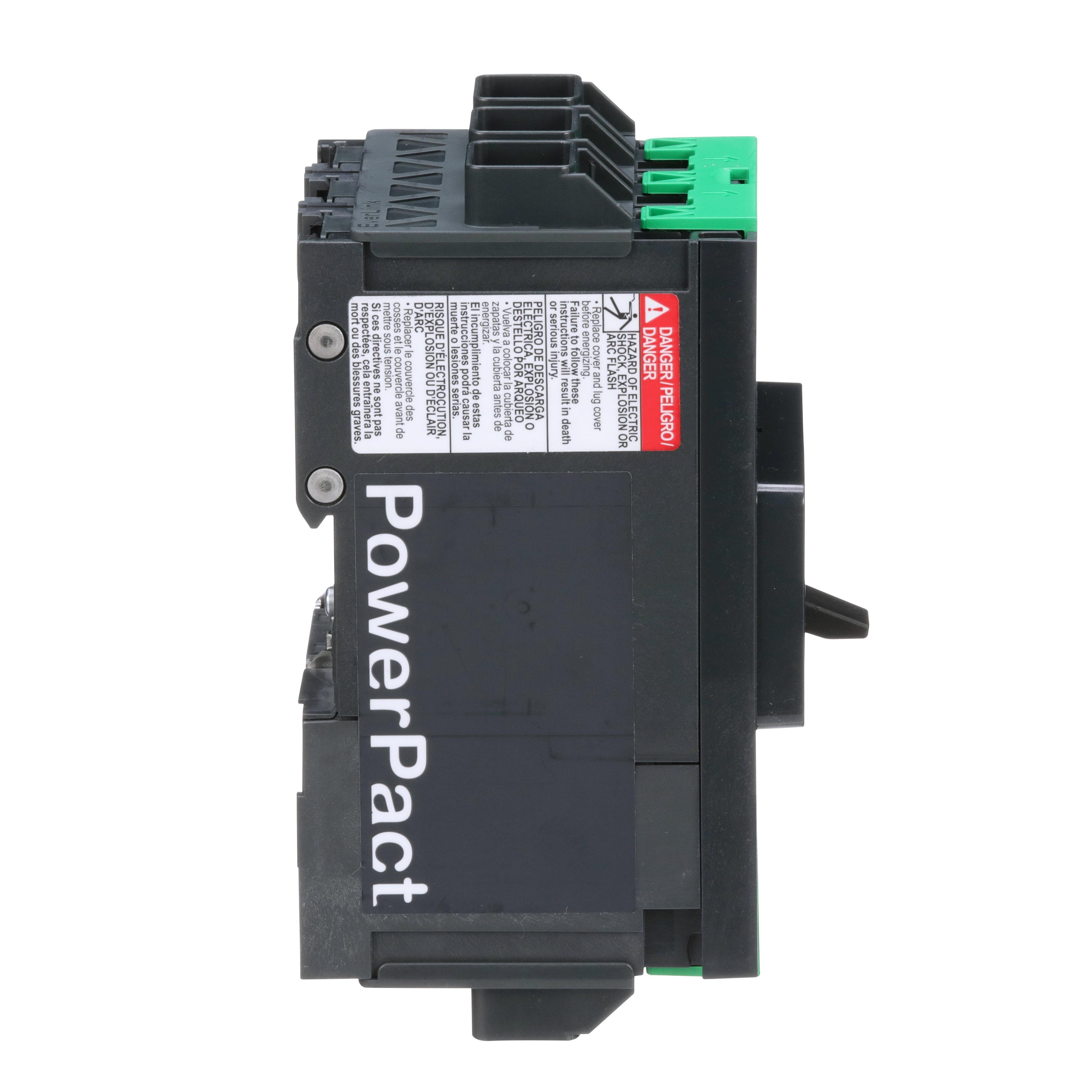

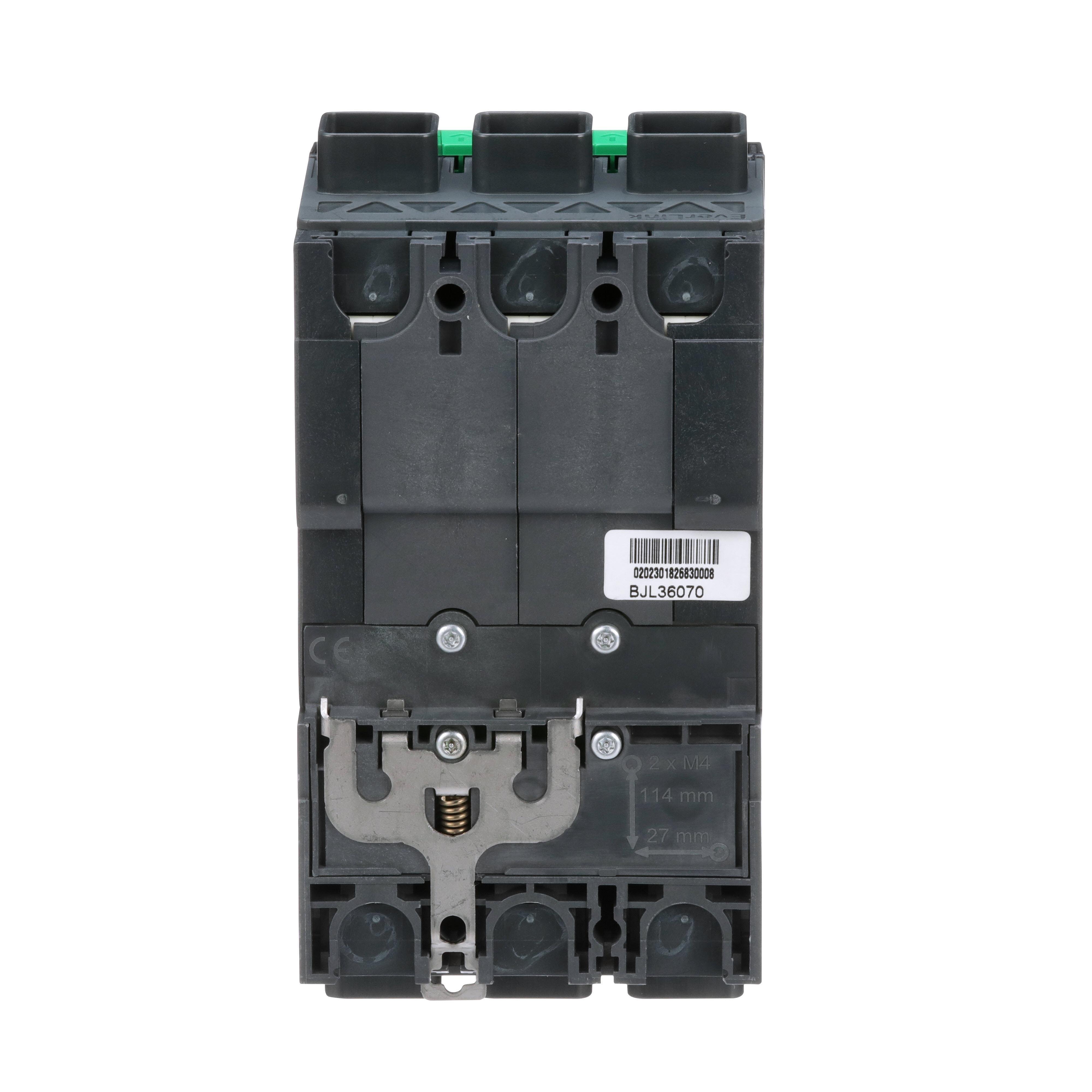

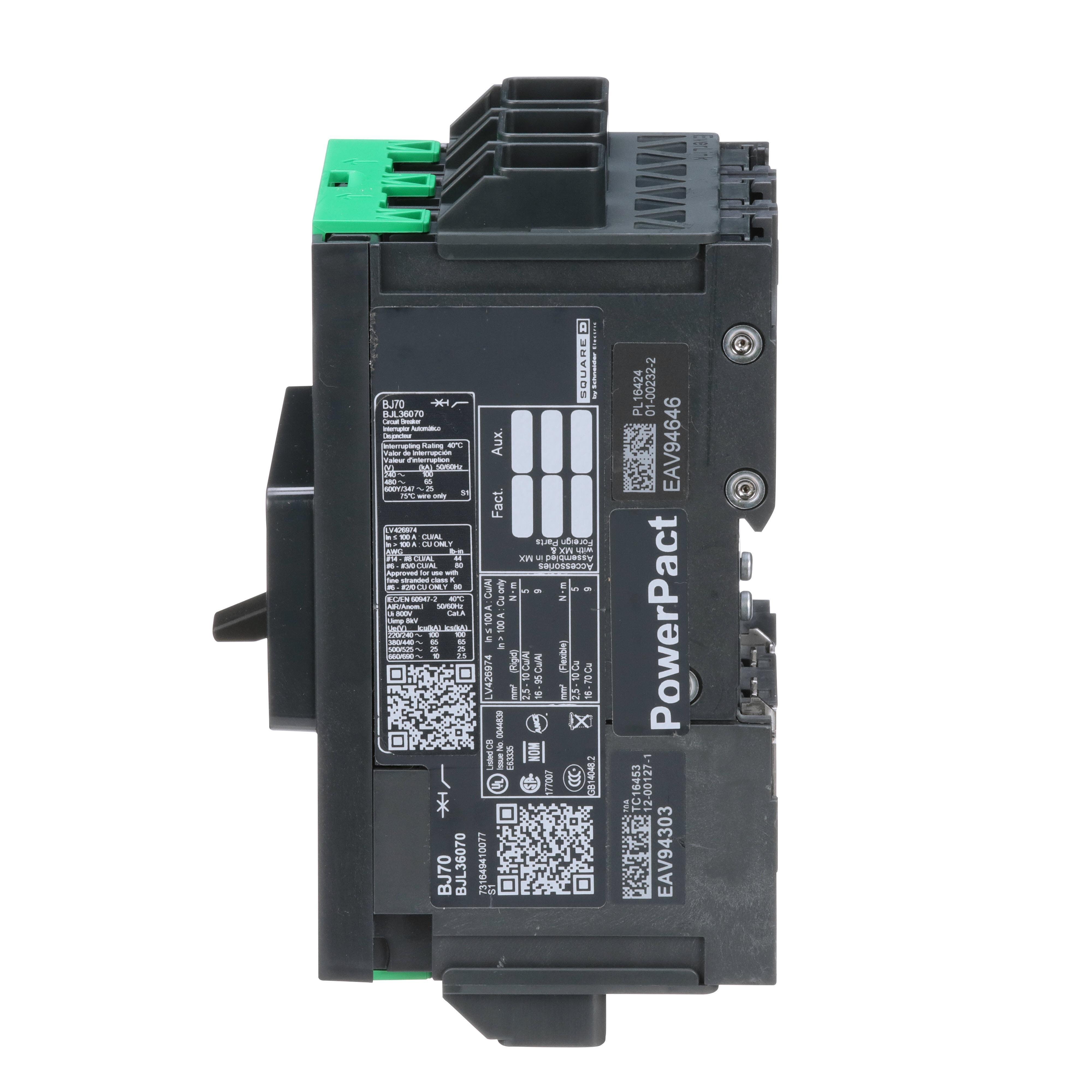

Picture of BJL36070 - Circuit breaker, PowerPacT B, 70A, 3 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80% Picture of BJL36070 - Circuit breaker, PowerPacT B, 70A, 3 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80%
Picture of BJL36070 - Circuit breaker, PowerPacT B, 70A, 3 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80% Picture of BJL36070 - Circuit breaker, PowerPacT B, 70A, 3 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80%
Picture of BJL36070 - Circuit breaker, PowerPacT B, 70A, 3 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80% Picture of BJL36070 - Circuit breaker, PowerPacT B, 70A, 3 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80%
Picture of BJL36070 - Circuit breaker, PowerPacT B, 70A, 3 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80% Picture of BJL36070 - Circuit breaker, PowerPacT B, 70A, 3 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80%
Picture of BJL36070 - Circuit breaker, PowerPacT B, 70A, 3 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80% Picture of BJL36070 - Circuit breaker, PowerPacT B, 70A, 3 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80%
Square D™

BJL36070 - Circuit breaker, PowerPacT B, 70A, 3 pole, 600Y/347VAC, 25kA, lugs, thermal magnetic, 80%

Item Code: 1072212
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BJL36070

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a break

Specifications

Weight

2.92

Width

6.93

Length

10.4

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/BDL36015/BDL36015.spin

AD All Features

Available in 1, 2, 3, and 4 pole for unit mounts

AD Alternative Part Number

13874818

AD Application

Industrial Control Panels, Commercial OEM, Electrical Distribution Equipment, Commercial Building and Industrial Building Applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD EAN

3606481186041

AD Gtin

03606481186041

AD IDEA Index ID

13874818

AD Invoice Description

BREAKER CKT CASE MLD 600Y/347VAC 70A 3 B

AD Item Features 01

Available in 1, 2, 3, and 4 pole for unit mounts

AD Item Features 02

Dual rated AC/DC with 3 levels of breaking capacity

AD Item Features 03

A wide range of accessories, auxiliaries, and lug connections available

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

10.4000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.9200

AD Package Weight UOM

LB

AD Package Width

6.9300

AD Package Width UOM

IN

AD Part Number Keywords

BJL36070 ; 13874818 ; 03606481186041 ; 3606481186041

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

DIN Rail/Threaded

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

3

Spec 12 Attribute

PHASE

Spec 12 Attribute Value

3

Spec 13 Attribute

Temperature Rating

Spec 13 Attribute UOM

deg F

Spec 13 Attribute Value

-13 To 158

Spec 14 Attribute

Trip Range

Spec 14 Attribute UOM

A

Spec 14 Attribute Value

640 to 960

Spec 15 Attribute

Trip Type

Spec 15 Attribute Value

Thermal Magnetic

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute UOM

V AC

Spec 16 Attribute Value

600Y/347

Spec 17 Attribute

Wire Size

Spec 17 Attribute Value

14 to 3/0 AWG, 6 to 2/0 AWG Al/Cu

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

70

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Line/Load Lug

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

5.39 in H x 3.19 in W x 4.09 in D

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA AB4/IP40

Spec 7 Attribute

Frame

Spec 7 Attribute Value

B

Spec 8 Attribute

Frequency Rating

Spec 8 Attribute UOM

HZ

Spec 8 Attribute Value

50/60

Spec 9 Attribute

Interrupt Rating

Spec 9 Attribute Value

100 kA at 240 VAC, 65 kA at 480 VAC, 25 kA at 600Y/347 VAC
