Square D

BMXAMO0802 - analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA

Category Programmable Logic & Automation Output Modules

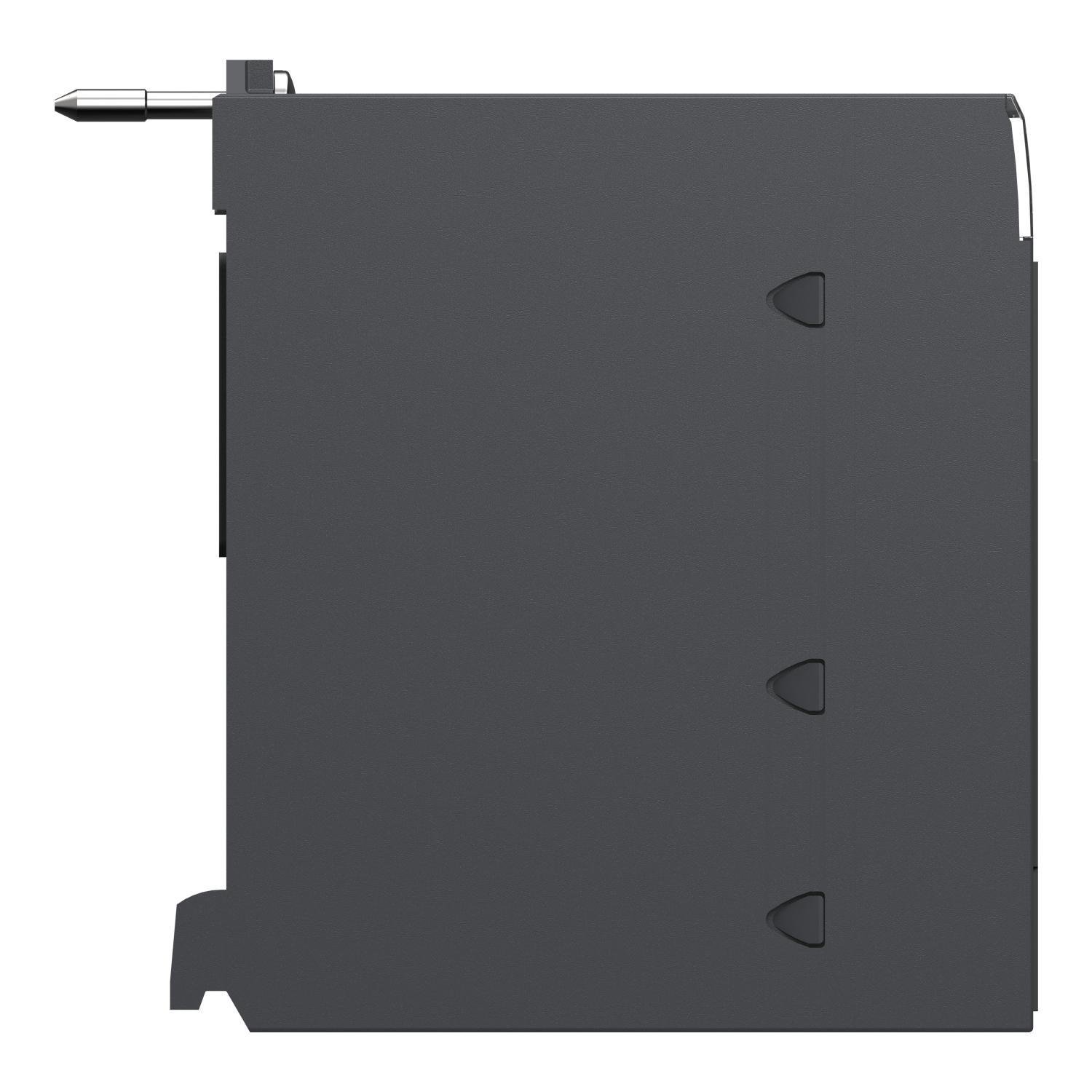

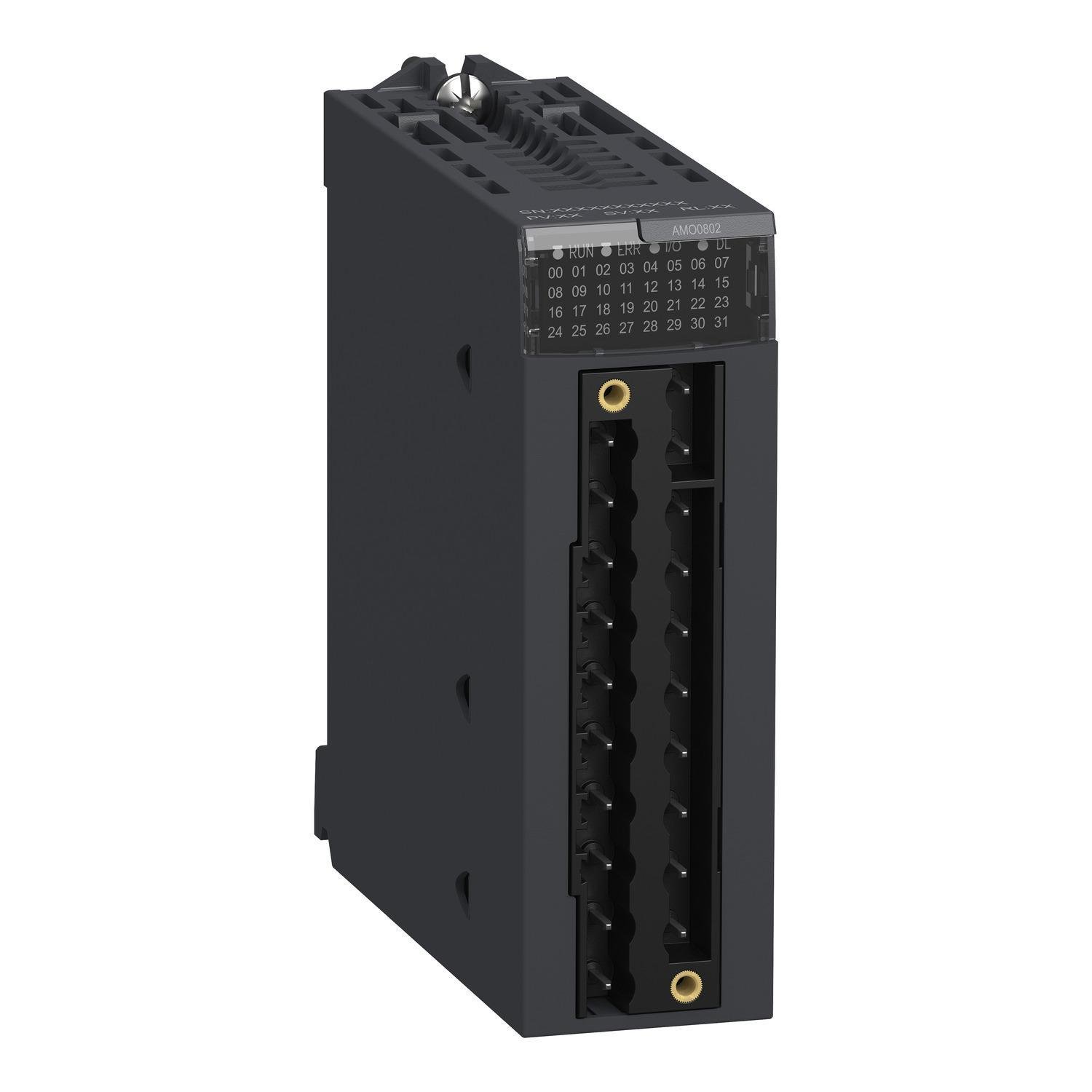

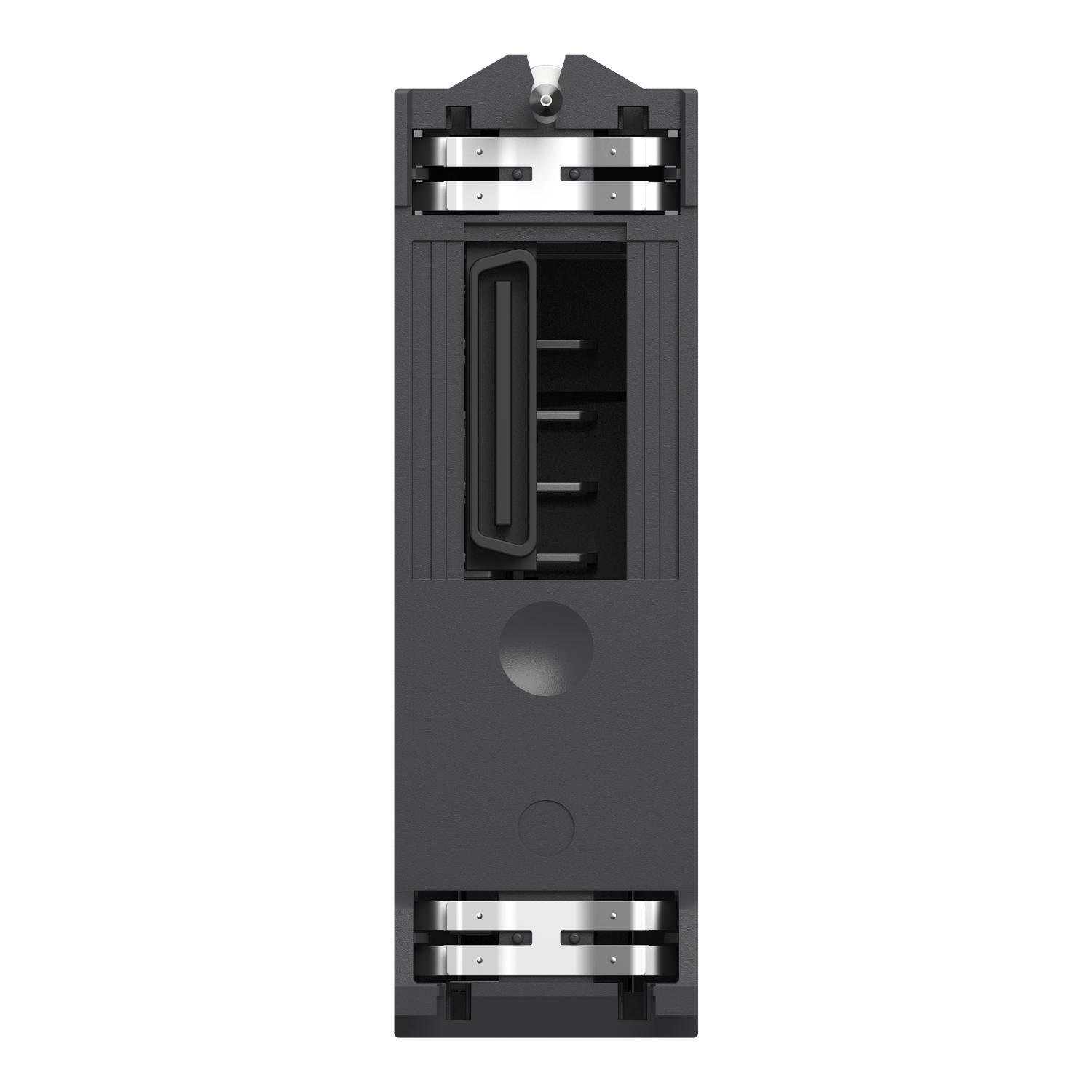

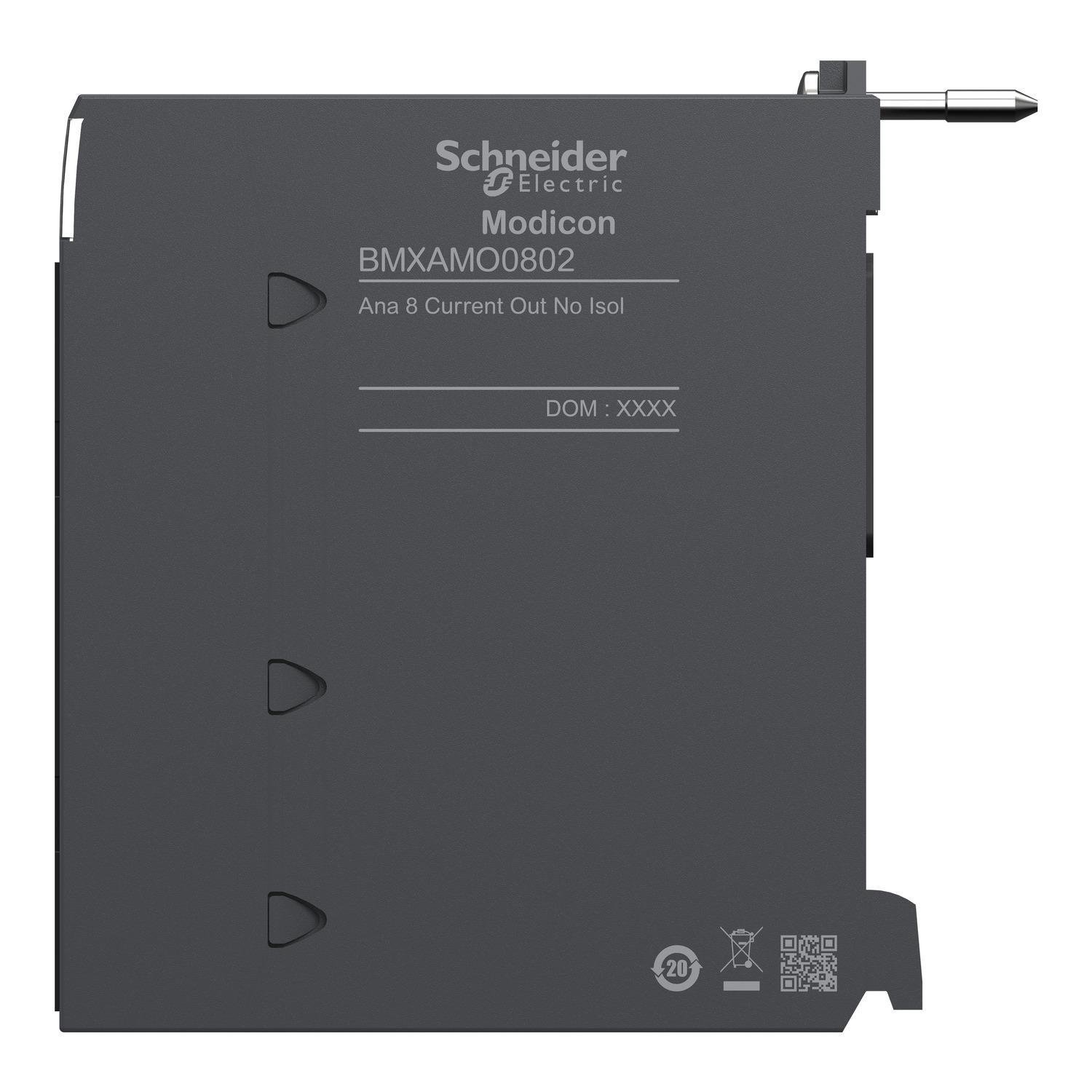

Picture of BMXAMO0802 - analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA Picture of BMXAMO0802 - analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA
Picture of BMXAMO0802 - analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA Picture of BMXAMO0802 - analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA
Picture of BMXAMO0802 - analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA Picture of BMXAMO0802 - analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA
Picture of BMXAMO0802 - analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA Picture of BMXAMO0802 - analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA
Picture of BMXAMO0802 - analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA Picture of BMXAMO0802 - analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA
Square D

BMXAMO0802 - analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA

Item Code: 1157212
Category Programmable Logic & Automation Output Modules
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BMXAMO0802

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue output module has 8 outputs with 16bit resolution. It is an output module which work with internal power supply via rack. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.15kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Specifications

AD All Features

Modularity and scalability

AD Application

For ethernet I/O, M340 PAC and M580 ePACs controller applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

MODULE OUT ANLG 8 16BIT 4MS 24VDC

AD Item Features 01

Modularity and scalability

AD Item Features 02

Robustness and reliability

AD Item Features 03

Wide range of operating temperature from 0 deg C to 60 deg C

AD Manufacturer (Description)

Schneider Electric

AD Package Quantity

1

Brand

Square D

Category

PROGRAMMABLE LOGIC & AUTOMATION OUTPUT MODULES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

MA

Spec 1 Attribute Value

20/4/20

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V DC

Spec 10 Attribute Value

24

Spec 2 Attribute

Conversion Rate

Spec 2 Attribute UOM

Ms

Spec 2 Attribute Value

4

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

3.93 in H x 6.29 in D

Spec 4 Attribute

Number of Outputs

Spec 4 Attribute Value

8

Spec 5 Attribute

Power Rating

Spec 5 Attribute UOM

W

Spec 5 Attribute Value

0.48/3.7

Spec 6 Attribute

Resolution

Spec 6 Attribute UOM

Bit

Spec 6 Attribute Value

16

Spec 7 Attribute

Series

Spec 7 Attribute Value

X80

Spec 8 Attribute

Temperature Rating

Spec 8 Attribute UOM

deg C

Spec 8 Attribute Value

0 To 60

Spec 9 Attribute

Terminal Type

Spec 9 Attribute Value

Cage/Screw/Spring

Square D

BMXAMO0802 - analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA
