Schneider Electric

BMXCPS3500 - power supply module, Modicon X80, 100 to 240V AC, 36W

Category Miscellaneous

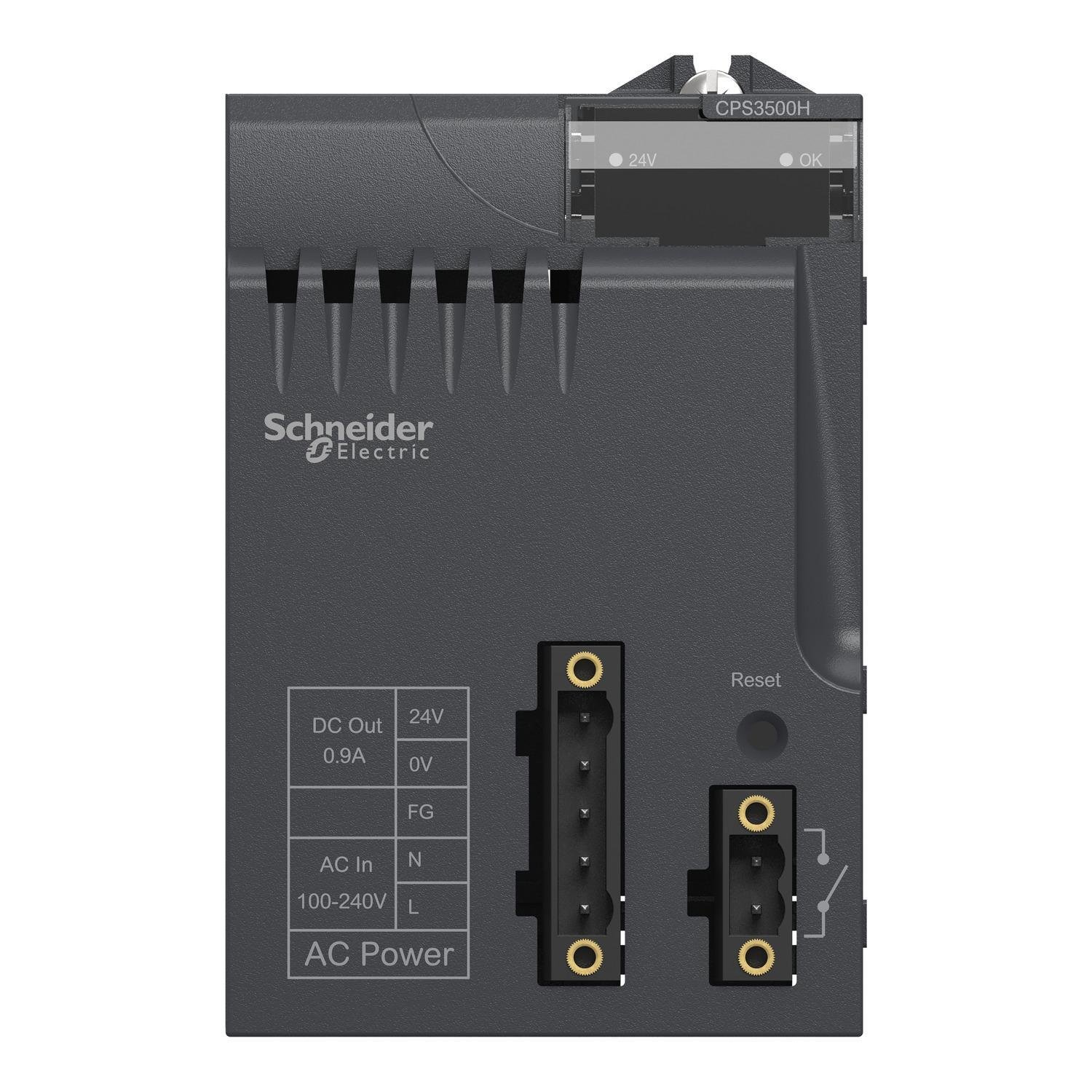

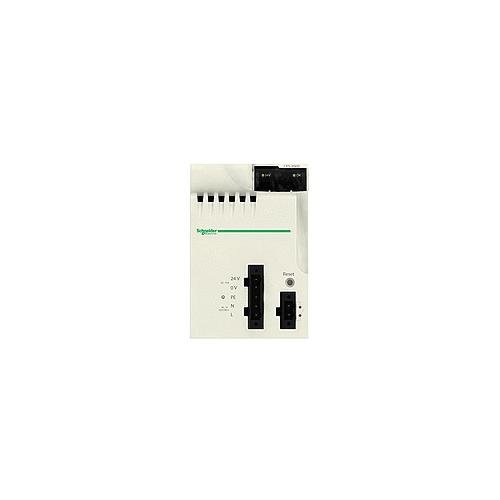

Picture of BMXCPS3500 - power supply module, Modicon X80, 100 to 240V AC, 36W Picture of BMXCPS3500 - power supply module, Modicon X80, 100 to 240V AC, 36W
Picture of BMXCPS3500 - power supply module, Modicon X80, 100 to 240V AC, 36W Picture of BMXCPS3500 - power supply module, Modicon X80, 100 to 240V AC, 36W
Schneider Electric

BMXCPS3500 - power supply module, Modicon X80, 100 to 240V AC, 36W

Item Code: 855186
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BMXCPS3500

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. It is an IP20 rated product. It weighs 0.36kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Specifications

Weight

1.08

Width

6.01

Length

6.08

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/BMXCPS3500/BMXCPS3500.spin

AD All Features

Internal fuse not accessible for primary circuit

AD Alternative Part Number

9788601

AD Application

Modicon X80 Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

ID

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD EAN

3595863908978

AD Gtin

03595863908978

AD IDEA Index ID

9788601

AD Invoice Description

MODULE SPLY PWR PLC 115/240VAC 24VDC 36W

AD Item Features 01

Internal fuse not accessible for primary circuit

AD Item Features 02

Overload and overvoltage protection for secondary circuit

AD Item Features 03

Modularity and scalability

AD Item Features 04

Robustness and reliability

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

6.0800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.0800

AD Package Weight UOM

LB

AD Package Width

6.0100

AD Package Width UOM

IN

AD Part Number Keywords

BMXCPS3500 ; 9788601 ; 785901477013 ; 78590147701 ; 03595863908978 ; 3595863908978

Brand

Square D

Spec 1 Attribute

Input Current

Spec 1 Attribute Value

0.52 A, 1.04 A

Spec 2 Attribute

Input Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

115/240

Spec 3 Attribute

Output Current

Spec 3 Attribute Value

0.9 A, 1.3 A, 4.5 A

Spec 4 Attribute

Output Voltage

Spec 4 Attribute UOM

V DC

Spec 4 Attribute Value

24

Spec 5 Attribute

Power Consumption

Spec 5 Attribute UOM

W

Spec 5 Attribute Value

36

Spec 6 Attribute

Power Dissipation

Spec 6 Attribute UOM

W

Spec 6 Attribute Value

8.5

Spec 7 Attribute

Specifications

Spec 7 Attribute Value

50/60 Hz Frequency, 0.07 kVA Apparent, IP20 Enclosure, -40 to 185 deg F Storage Temperature

Spec 8 Attribute

Temperature Rating

Spec 8 Attribute UOM

deg C

Spec 8 Attribute Value

0 To 60

Spec 9 Attribute

Type

Spec 9 Attribute Value

High Power Isolated
