Schneider Electric

BMXCPS3500H - power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment

Category Programmable Logic & Automation Accessories

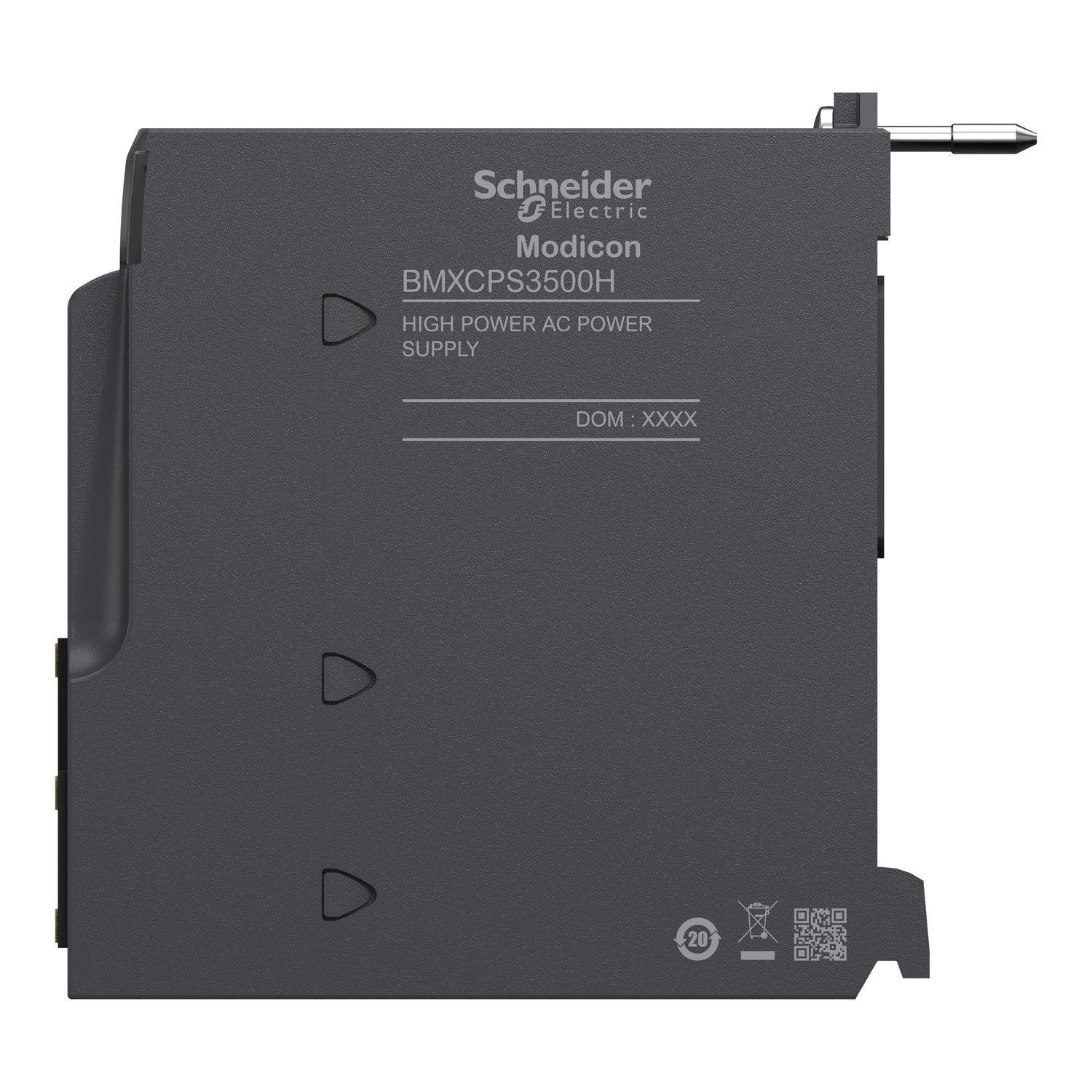

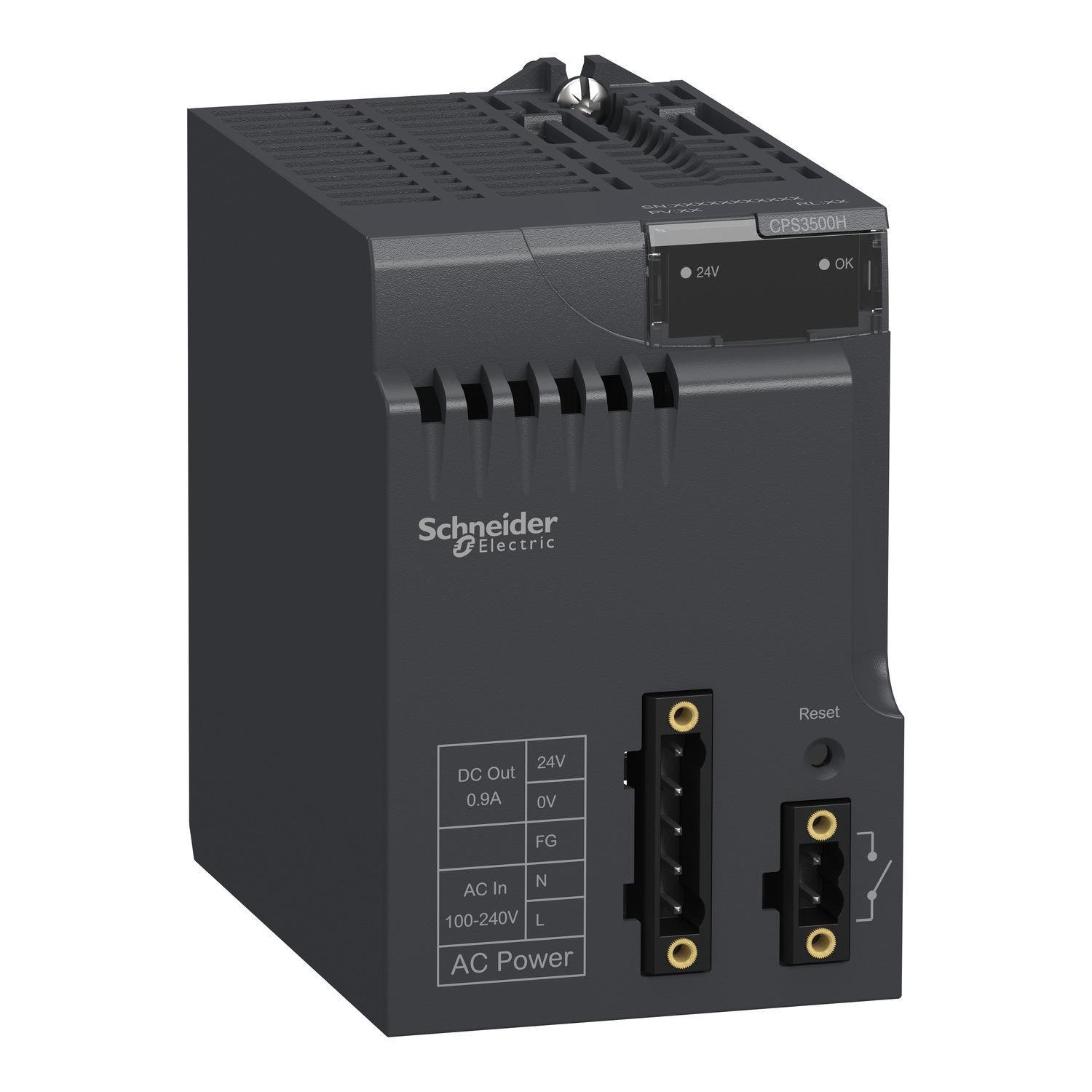

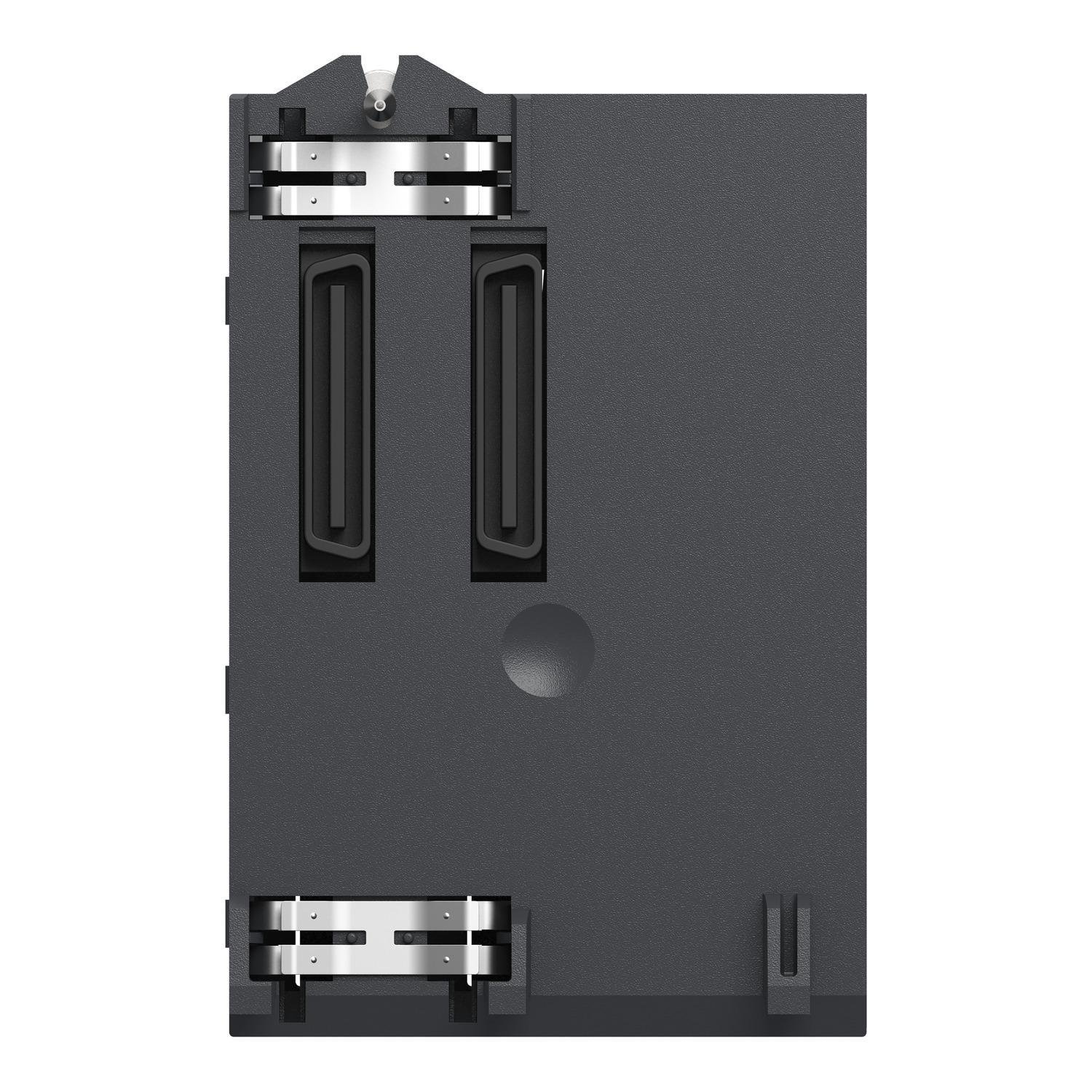

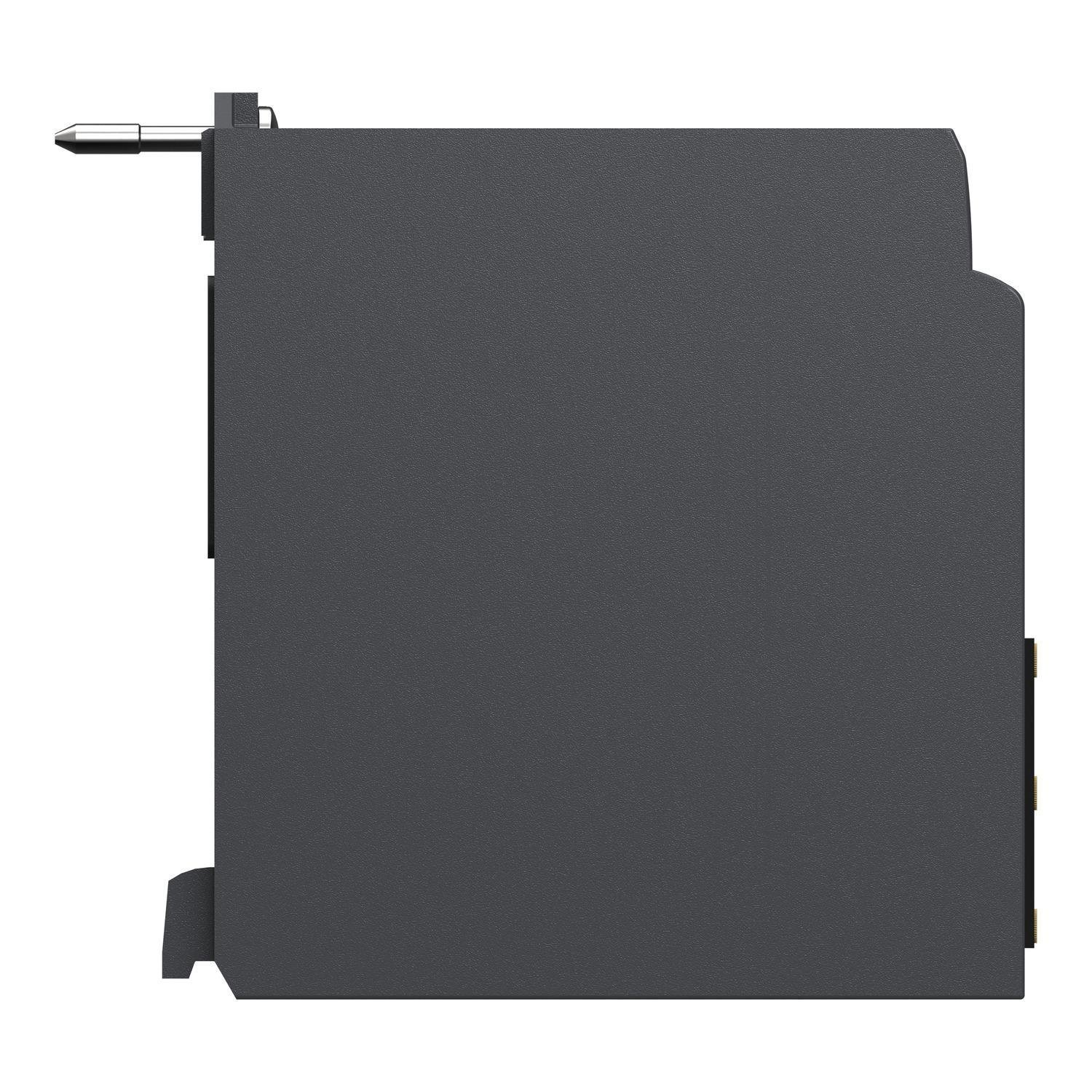

Picture of BMXCPS3500H - power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment Picture of BMXCPS3500H - power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment
Picture of BMXCPS3500H - power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment Picture of BMXCPS3500H - power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment
Picture of BMXCPS3500H - power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment Picture of BMXCPS3500H - power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment
Picture of BMXCPS3500H - power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment Picture of BMXCPS3500H - power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment
Picture of BMXCPS3500H - power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment Picture of BMXCPS3500H - power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment
Schneider Electric

BMXCPS3500H - power supply module, Modicon X80, 100 to 240V AC, 36W, severe environment

Item Code: 777570
Category Programmable Logic & Automation Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BMXCPS3500H

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC for severe environments. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product. It weighs 0.36kg. It is suitable for medium to large process applications. This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Specifications

Weight

1.1

Width

6.03

Length

6.12

AD All Features

Internal fuse not accessible for primary circuit

AD Application

Water Wastewater, Mining, Minerals, Metals, Food and Beverage, Oil and Gas, OEM Process, Energy, Automotive, Infrastructure and Building Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

MODULE PWRSPLY 115/240 100 TO 240VAC

AD Item Features 01

Internal fuse not accessible for primary circuit

AD Item Features 02

Overload and overvoltage protection for secondary circuit

AD Item Features 03

Modularity and scalability

AD Item Features 04

Robustness and reliability

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

6.1200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.1000

AD Package Weight UOM

LB

AD Package Width

6.0300

AD Package Width UOM

IN

Brand

Square D

Category

PROGRAMMABLE LOGIC & AUTOMATION ACCESSORIES

Spec 1 Attribute

Input Current

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

0.9/1.04/0.52

Spec 2 Attribute

Input Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

115/240, 100 to 240

Spec 3 Attribute

Output Current

Spec 3 Attribute UOM

A

Spec 3 Attribute Value

1.3/4.5

Spec 4 Attribute

Output Voltage

Spec 4 Attribute UOM

V DC

Spec 4 Attribute Value

24

Spec 5 Attribute

Power Consumption

Spec 5 Attribute UOM

W

Spec 5 Attribute Value

21.6

Spec 6 Attribute

Power Dissipation

Spec 6 Attribute UOM

W

Spec 6 Attribute Value

<=8.5

Spec 7 Attribute

Specifications

Spec 7 Attribute Value

30 A at 120 V AC, 60 A at 240 V AC Inrush Current, 47 to 63 Hz, (1) Green LED Signaling

Spec 8 Attribute

Temperature Rating

Spec 8 Attribute UOM

deg C

Spec 8 Attribute Value

-25 to 70
