Schneider Electric

BMXCPS4002 - power supply module, Modicon X80, 100 to 240V AC

Category Miscellaneous

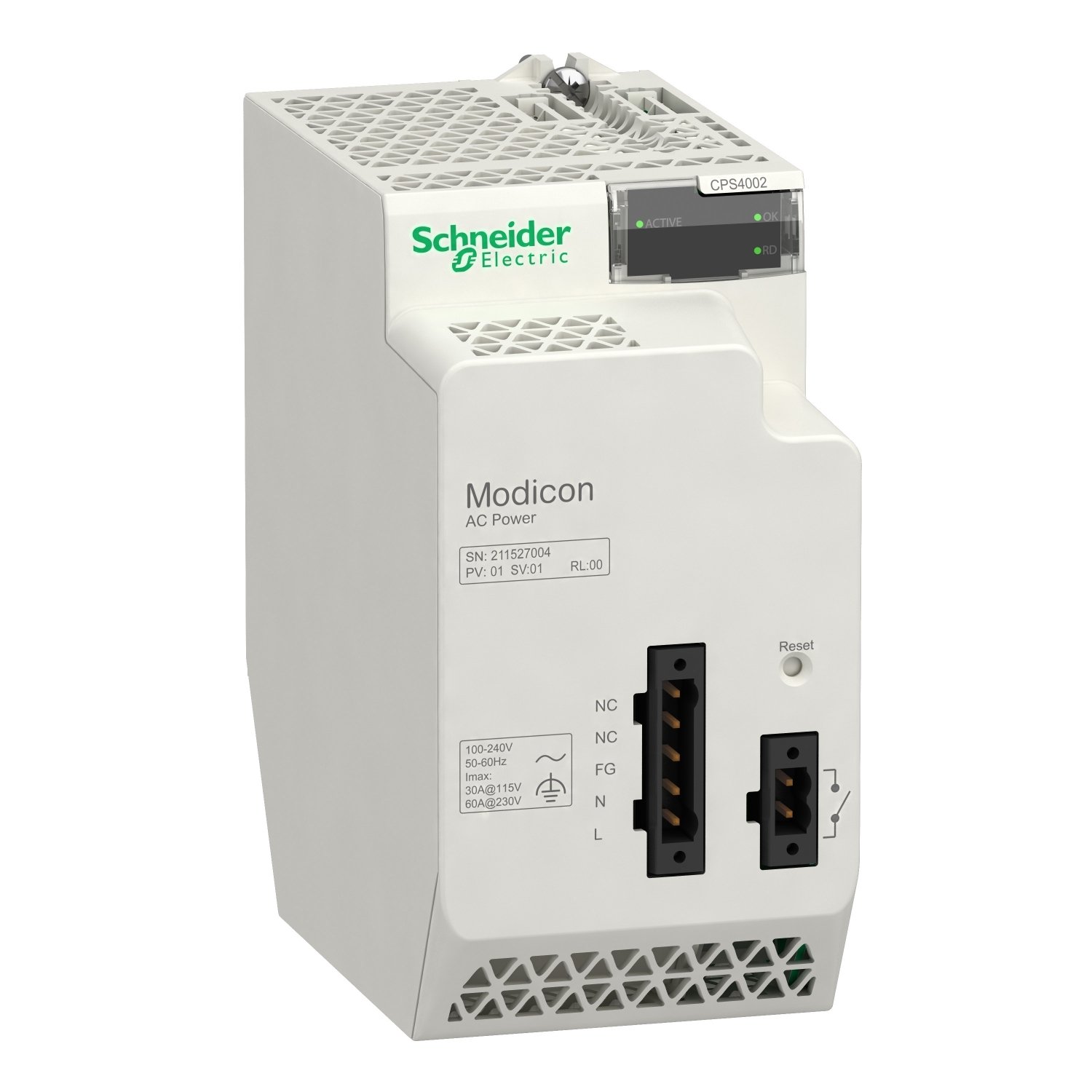

Picture of BMXCPS4002 - power supply module, Modicon X80, 100 to 240V AC Picture of BMXCPS4002 - power supply module, Modicon X80, 100 to 240V AC
Picture of BMXCPS4002 - power supply module, Modicon X80, 100 to 240V AC Picture of BMXCPS4002 - power supply module, Modicon X80, 100 to 240V AC
Schneider Electric

BMXCPS4002 - power supply module, Modicon X80, 100 to 240V AC

Item Code: 1120340
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BMXCPS4002

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC. It is a power supply module with a secondary power of 40W at 24V DC, a current at secondary voltage of 5.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. Advanced diagnostics available via networks are temperature sensing, redundancy test, uptime duration, redundancy information and remaining lifetime. It is an IP20 rated product. It weighs 0.51kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with all backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Specifications

Weight

1.34

Width

6.9

Length

9.76

AD All Features

Internal fuse not accessible for primary circuit

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

ID

AD Invoice Description

MODULE SPLY PWR REDUNDANT 100 TO 240VAC

AD Item Features 01

Internal fuse not accessible for primary circuit

AD Item Features 02

Overload and overvoltage protection for secondary circuit

AD Item Features 03

Modularity and scalability

AD Item Features 04

Robustness and reliability

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

9.7600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.3400

AD Package Weight UOM

LB

AD Package Width

6.9000

AD Package Width UOM

IN

Brand

Square D

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

10.5 in L x 7.1 in W x 4 in H

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg F

Spec 10 Attribute Value

32 to 140

Spec 2 Attribute

Input Current

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

0.52/1.04

Spec 3 Attribute

Input Voltage

Spec 3 Attribute UOM

V AC

Spec 3 Attribute Value

100 to 240

Spec 4 Attribute

Output Current

Spec 4 Attribute Value

1.67/5.5

Spec 5 Attribute

Output Voltage

Spec 5 Attribute UOM

V DC

Spec 5 Attribute Value

3.3 to 24

Spec 6 Attribute

Power Consumption

Spec 6 Attribute UOM

W

Spec 6 Attribute Value

18 to 40

Spec 7 Attribute

Power Dissipation

Spec 7 Attribute UOM

W

Spec 7 Attribute Value

8.5

Spec 8 Attribute

Series

Spec 8 Attribute Value

Modicon X80

Spec 9 Attribute

Specifications

Spec 9 Attribute Value

30 A at 120 V, 60 A at 240 V Inrush Current, 0.07 kVA Apparent, IP20, -40 to 185 deg F Storage Temperature
