Schneider Electric

BMXDAO1605 - discrete output module, Modicon X80, 16 triac outputs, 100 to 240V AC

Category Programmable Logic & Automation Output Modules

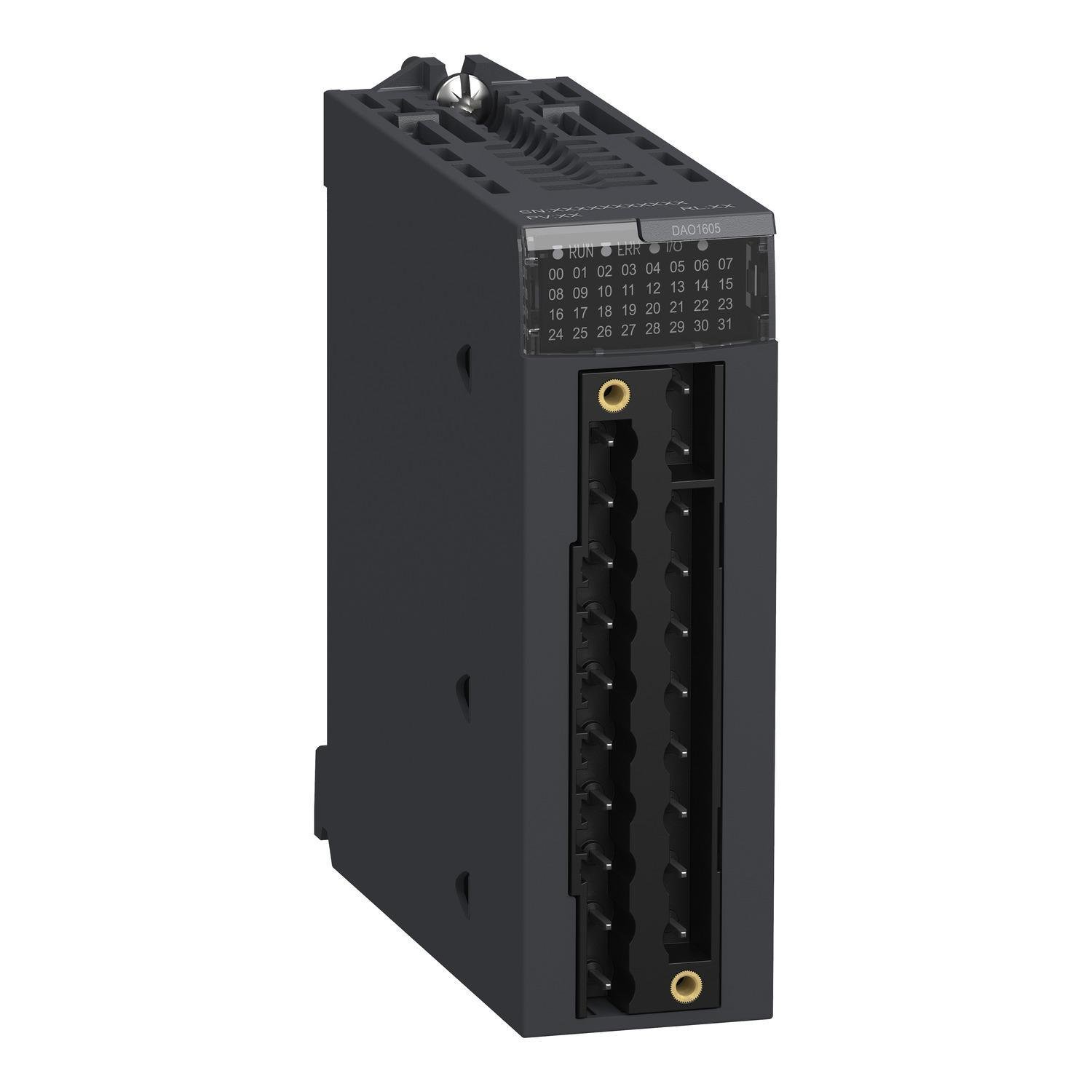

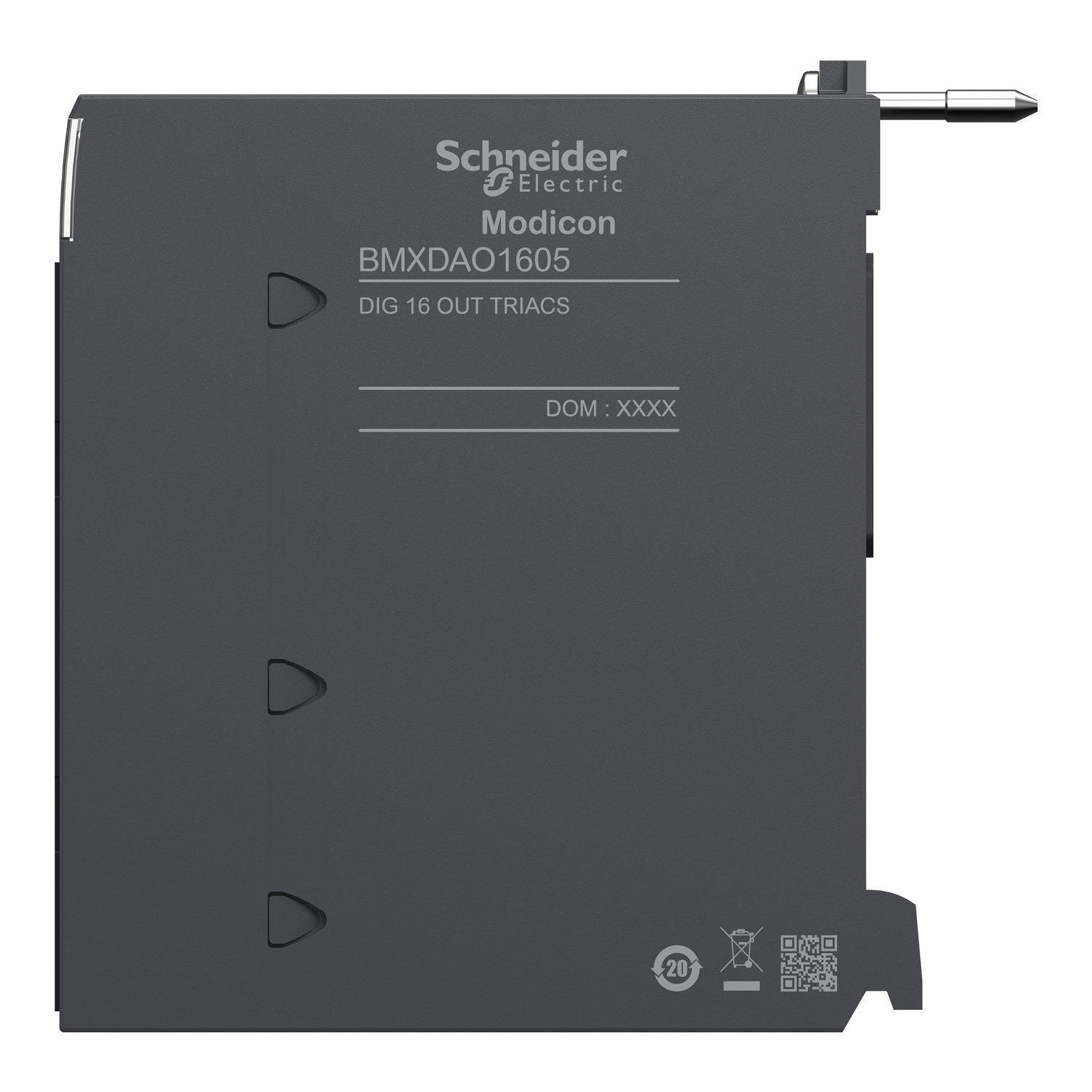

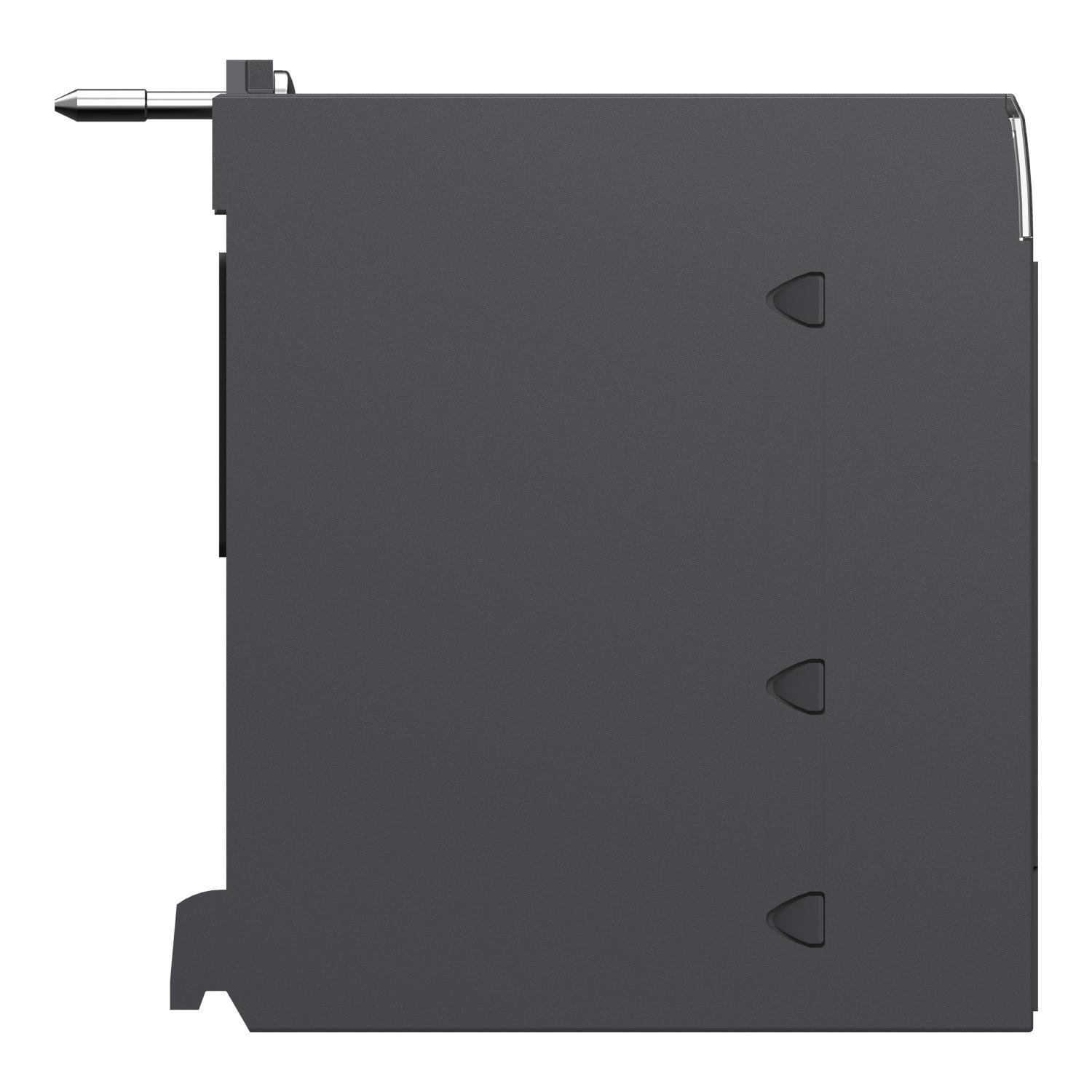

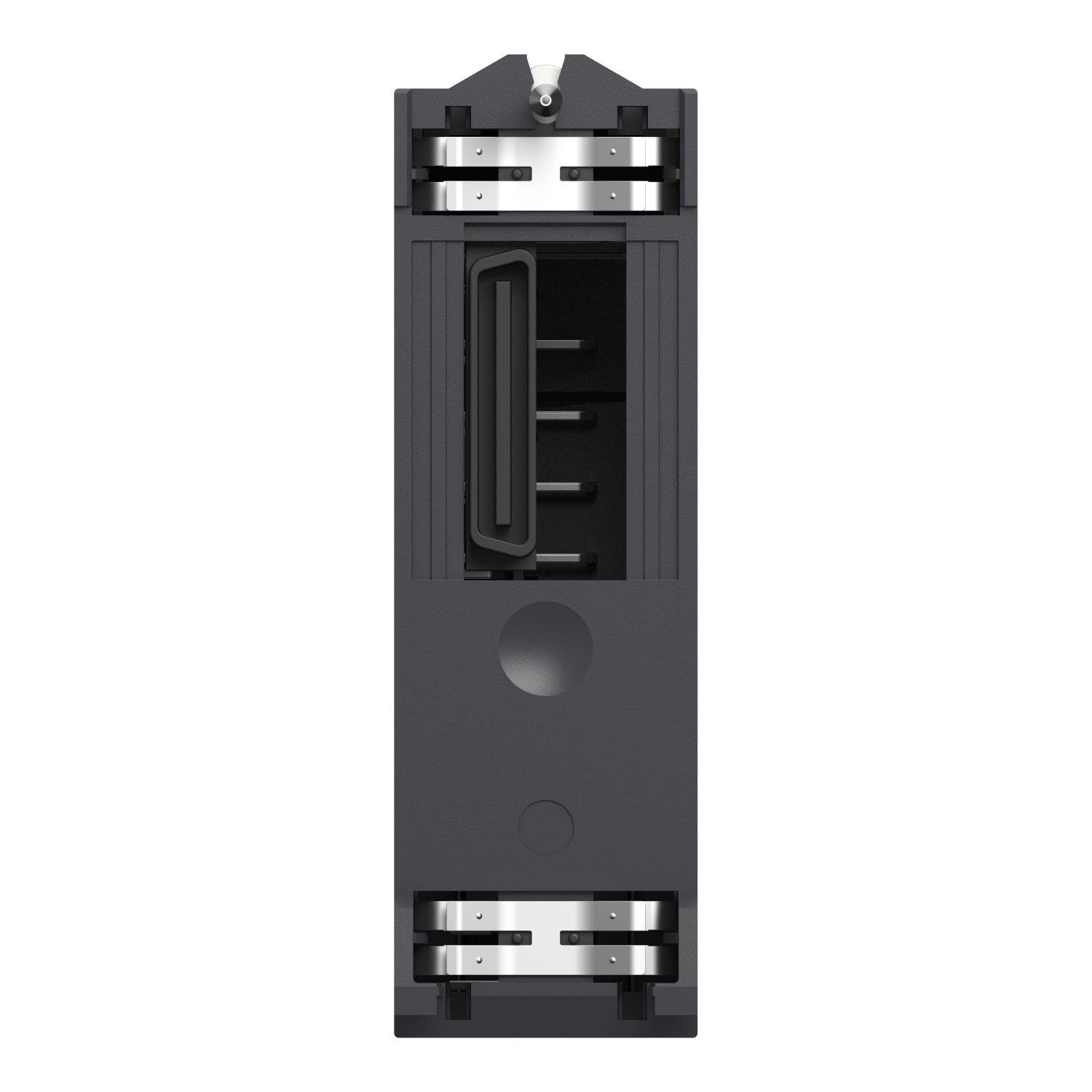

Picture of BMXDAO1605 - discrete output module, Modicon X80, 16 triac outputs, 100 to 240V AC Picture of BMXDAO1605 - discrete output module, Modicon X80, 16 triac outputs, 100 to 240V AC
Picture of BMXDAO1605 - discrete output module, Modicon X80, 16 triac outputs, 100 to 240V AC Picture of BMXDAO1605 - discrete output module, Modicon X80, 16 triac outputs, 100 to 240V AC
Picture of BMXDAO1605 - discrete output module, Modicon X80, 16 triac outputs, 100 to 240V AC Picture of BMXDAO1605 - discrete output module, Modicon X80, 16 triac outputs, 100 to 240V AC
Picture of BMXDAO1605 - discrete output module, Modicon X80, 16 triac outputs, 100 to 240V AC Picture of BMXDAO1605 - discrete output module, Modicon X80, 16 triac outputs, 100 to 240V AC
Picture of BMXDAO1605 - discrete output module, Modicon X80, 16 triac outputs, 100 to 240V AC Picture of BMXDAO1605 - discrete output module, Modicon X80, 16 triac outputs, 100 to 240V AC
Schneider Electric

BMXDAO1605 - discrete output module, Modicon X80, 16 triac outputs, 100 to 240V AC

Item Code: 792115
Category Programmable Logic & Automation Output Modules
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BMXDAO1605

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 16 triac outputs. It is a discrete output module with an output voltage of 100V to 240V AC, 85 to 288V AC, a typical current consumption 100mA at 3.3V DC and 0.6A current per channel. This product is robust, high quality and based on the latest innovative technology. Protection type is 1 external fuse fast blow. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Specifications

Weight

0.45

Width

4.56

Length

4.56

AD All Features

Modularity and scalability

AD Application

For Modicon® X80 modules applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

MODULE OUT DISCRETE 16 16 100/240VAC

AD Item Features 01

Modularity and scalability

AD Item Features 02

Robustness and reliability

AD Item Features 03

Wide range of operating temperature from 0 deg C to 60 deg C

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

4.5600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.4500

AD Package Weight UOM

LB

AD Package Width

4.5600

AD Package Width UOM

IN

Brand

Square D

Category

PROGRAMMABLE LOGIC & AUTOMATION OUTPUT MODULES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

MA

Spec 1 Attribute Value

100

Spec 2 Attribute

Number of Inputs

Spec 2 Attribute Value

16

Spec 3 Attribute

Number of Outputs

Spec 3 Attribute Value

16

Spec 4 Attribute

Temperature Rating

Spec 4 Attribute UOM

deg C

Spec 4 Attribute Value

0 To 60

Spec 5 Attribute

Voltage Rating

Spec 5 Attribute UOM

V AC

Spec 5 Attribute Value

100/240
