Schneider Electric

BMXDDI1602H - discrete input module, Modicon X80, 16 inputs, 24V DC positive, for severe environments

Category Programmable Logic & Automation Input Modules

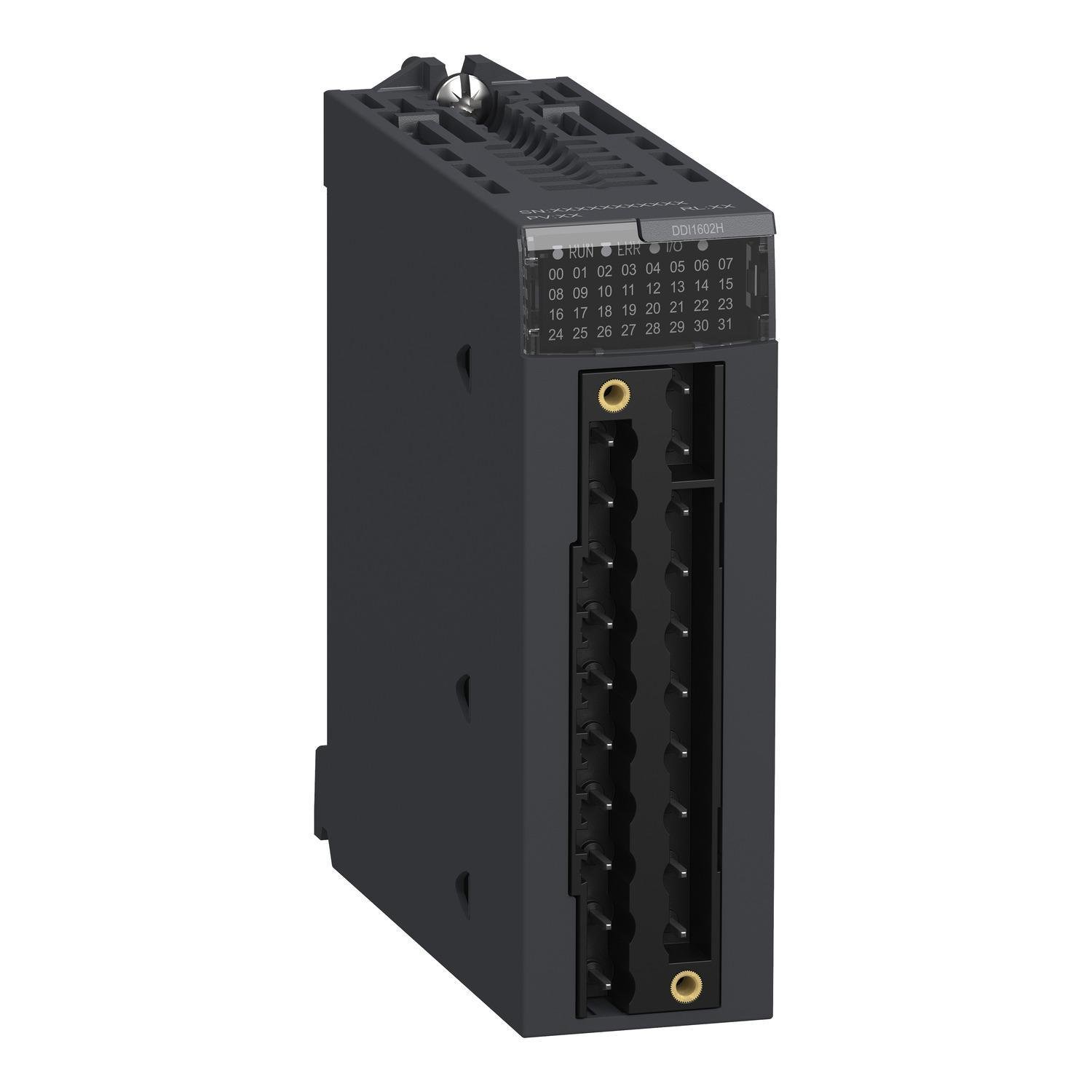

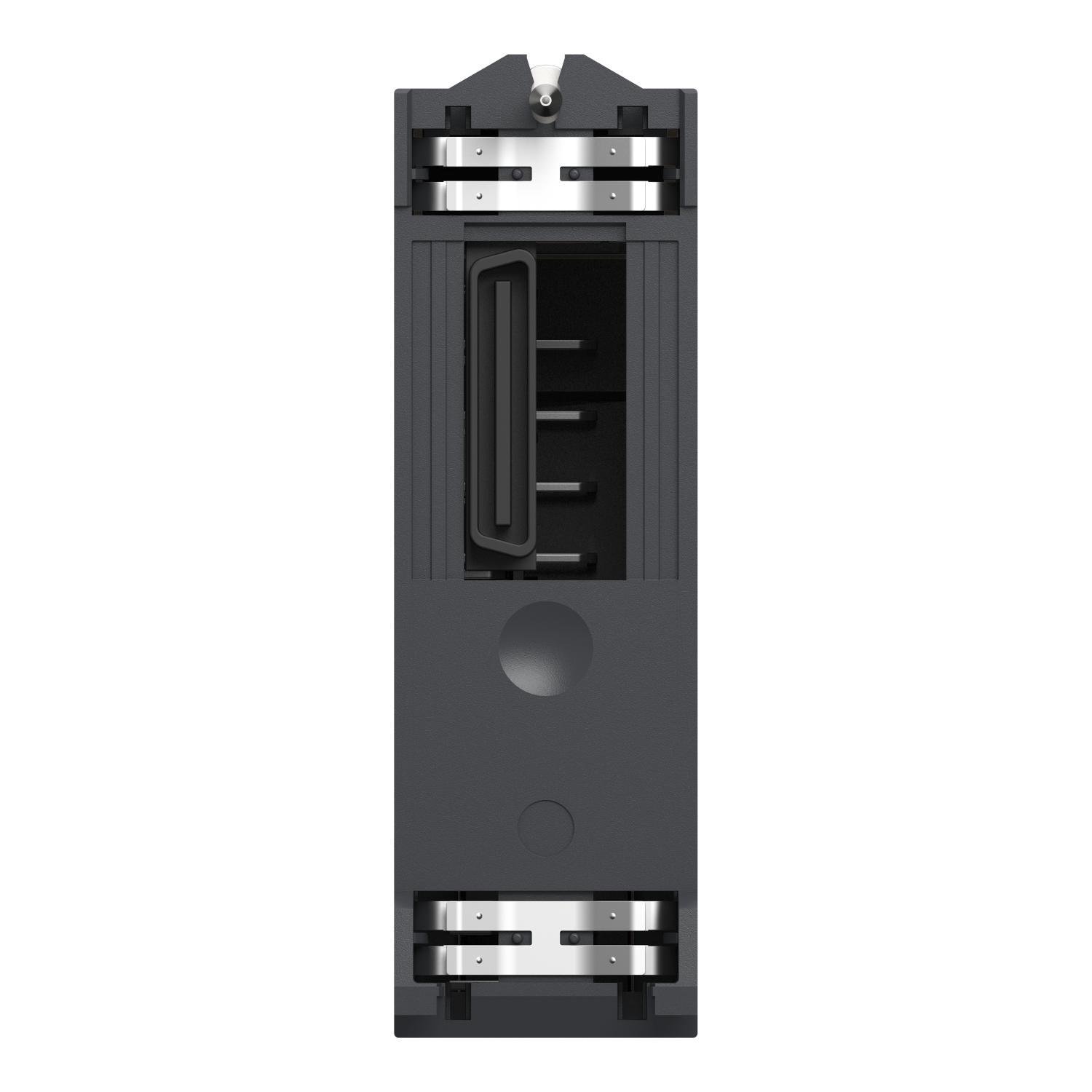

Picture of BMXDDI1602H - discrete input module, Modicon X80, 16 inputs, 24V DC positive, for severe environments Picture of BMXDDI1602H - discrete input module, Modicon X80, 16 inputs, 24V DC positive, for severe environments
Picture of BMXDDI1602H - discrete input module, Modicon X80, 16 inputs, 24V DC positive, for severe environments Picture of BMXDDI1602H - discrete input module, Modicon X80, 16 inputs, 24V DC positive, for severe environments
Picture of BMXDDI1602H - discrete input module, Modicon X80, 16 inputs, 24V DC positive, for severe environments Picture of BMXDDI1602H - discrete input module, Modicon X80, 16 inputs, 24V DC positive, for severe environments
Picture of BMXDDI1602H - discrete input module, Modicon X80, 16 inputs, 24V DC positive, for severe environments Picture of BMXDDI1602H - discrete input module, Modicon X80, 16 inputs, 24V DC positive, for severe environments
Picture of BMXDDI1602H - discrete input module, Modicon X80, 16 inputs, 24V DC positive, for severe environments Picture of BMXDDI1602H - discrete input module, Modicon X80, 16 inputs, 24V DC positive, for severe environments
Schneider Electric

BMXDDI1602H - discrete input module, Modicon X80, 16 inputs, 24V DC positive, for severe environments

Item Code: 777571
Category Programmable Logic & Automation Input Modules
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BMXDDI1602H

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 16 inputs with sink (positive) logic. It is an input module with an input voltage of 24V DC, a current consumption of 90mA at 3.3V DC and a power dissipation of 2.5W. There is an isolation between channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It has an external fuse per group of channel 0.5A and reverse polarity protection fast blow protection type. It offers 798237 hours of MTBF. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process and severe environments applications. This product is certified by EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Specifications

Weight

0.36

Width

4.29

Length

4.49

AD All Features

Modularity and scalability

AD Application

Water Wastewater, Mining, Minerals, Metals, Food and Beverage, Oil and Gas, OEM Process, Energy, Automotive, Infrastructure, Building and Severe Environment Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Includes

Backplane, All-in-Rack Modules, Power Supply, Ethernet Rio Module Drop Head, All I/O Modules, Communication Modules (Except Ethernet) and Expert Modules

AD Invoice Description

MODULE INP DISCRETE 16 7MS 24VDC 3.5MA

AD Item Features 01

Modularity and scalability

AD Item Features 02

Robustness and reliability

AD Item Features 03

Wide range of operating temperature from -25 deg C to 70 deg C

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

4.4900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.3600

AD Package Weight UOM

LB

AD Package Width

4.2900

AD Package Width UOM

IN

Brand

Square D

Category

PROGRAMMABLE LOGIC & AUTOMATION INPUT MODULES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

MA

Spec 1 Attribute Value

3.5

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V DC

Spec 10 Attribute Value

24

Spec 2 Attribute

Conversion Rate

Spec 2 Attribute UOM

Ms

Spec 2 Attribute Value

7

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

3.93 in H x 6.29 in D

Spec 4 Attribute

Number of Inputs

Spec 4 Attribute Value

16

Spec 5 Attribute

Power Rating

Spec 5 Attribute UOM

W

Spec 5 Attribute Value

2.5

Spec 6 Attribute

Series

Spec 6 Attribute Value

X80

Spec 7 Attribute

Temperature Rating

Spec 7 Attribute UOM

deg C

Spec 7 Attribute Value

-25 to 70

Spec 8 Attribute

Terminal Type

Spec 8 Attribute Value

Cage/Screw/Spring

Spec 9 Attribute

Type

Spec 9 Attribute Value

Isolated
