Schneider Electric

BMXDRA0815 - discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC, 24 to 125V DC

Category Miscellaneous

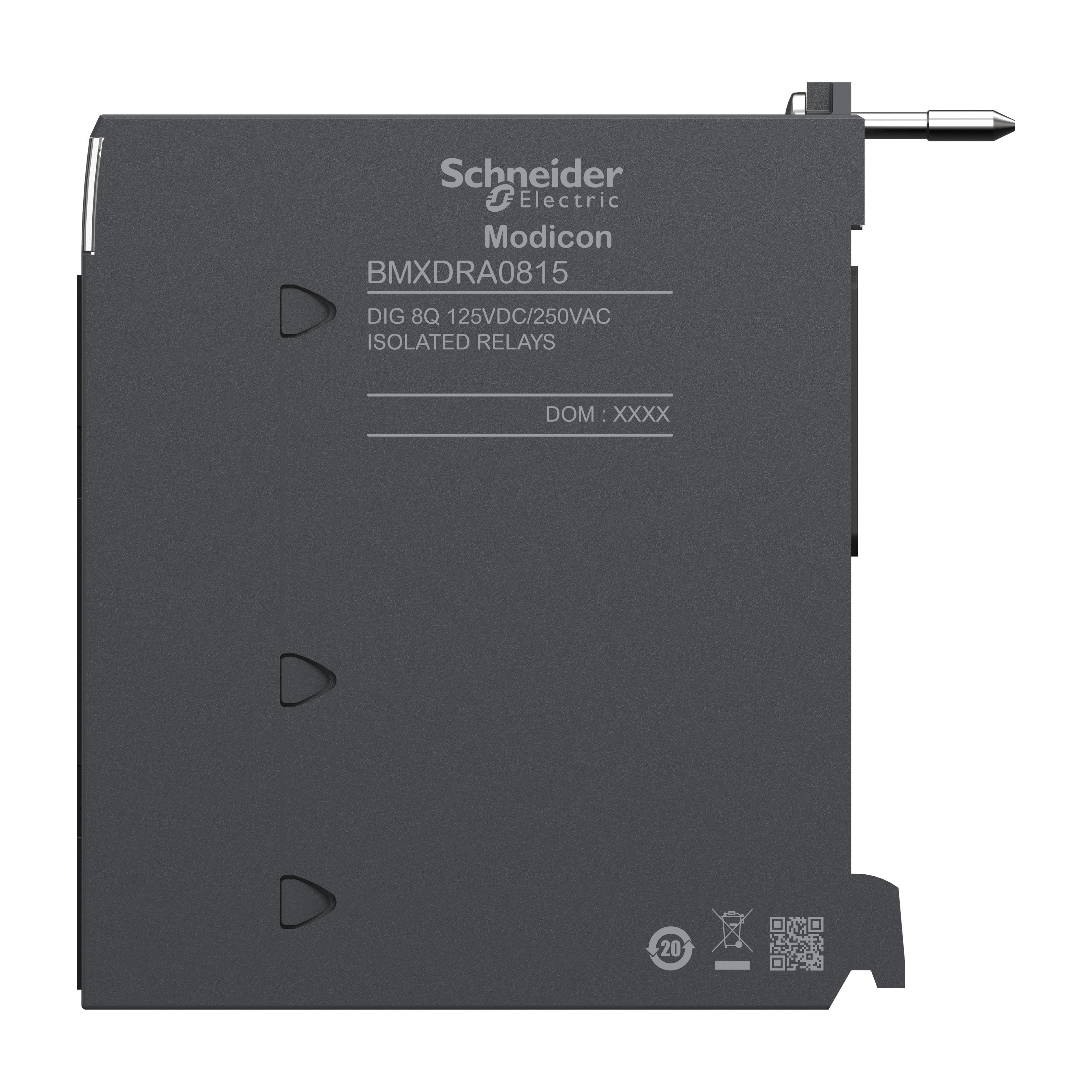

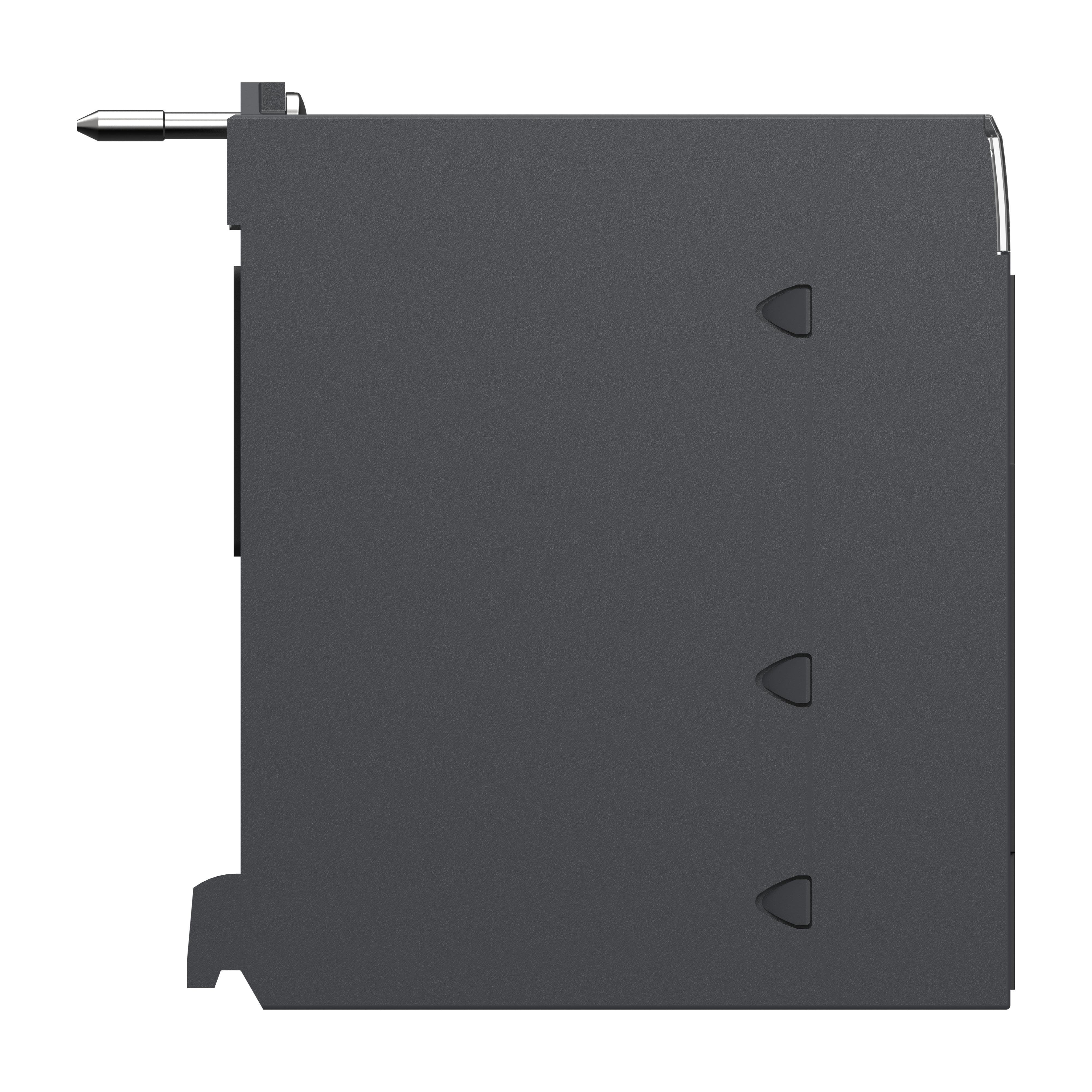

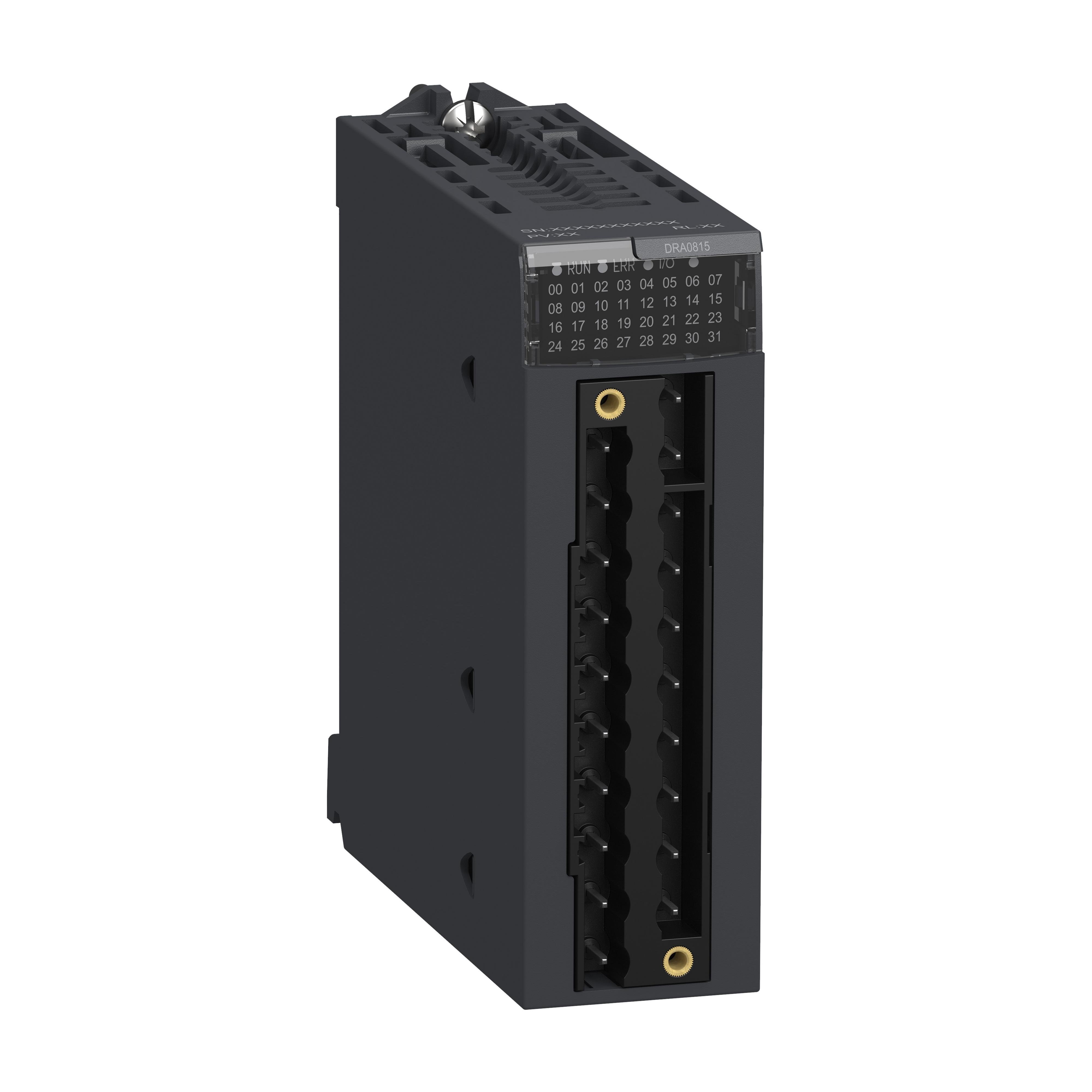

Picture of BMXDRA0815 - discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC, 24 to 125V DC Picture of BMXDRA0815 - discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC, 24 to 125V DC
Picture of BMXDRA0815 - discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC, 24 to 125V DC Picture of BMXDRA0815 - discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC, 24 to 125V DC
Picture of BMXDRA0815 - discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC, 24 to 125V DC Picture of BMXDRA0815 - discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC, 24 to 125V DC
Picture of BMXDRA0815 - discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC, 24 to 125V DC Picture of BMXDRA0815 - discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC, 24 to 125V DC
Schneider Electric

BMXDRA0815 - discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC, 24 to 125V DC

Item Code: 1197840
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BMXDRA0815

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This discrete relay output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 normally open isolated relay outputs and it is supplied with 24 to 240V AC/24 to 125V DC. This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 3223310 hours of MTBF. This discrete module has a weight of 0.210kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.

Specifications

Weight

0.44

Height

2.15

Width

4.56

Length

4.56

AD All Features

Cost-effective modernization and migration

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

PLC INP-OUT DGTL MDL 8

AD Item Features 01

Cost-effective modernization and migration

AD Item Features 02

Reduce time to market

AD Item Features 03

Process efficiency

AD Item Features 04

Easy Maintenance

AD Item Features 05

Reliability and robustness

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.1500

AD Package Height UOM

IN

AD Package Length

4.5600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.4400

AD Package Weight UOM

LB

AD Package Width

4.5600

AD Package Width UOM

IN

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

MA

Spec 1 Attribute Value

40/101

Spec 2 Attribute

Number of Outputs

Spec 2 Attribute Value

8

Spec 3 Attribute

Power Rating

Spec 3 Attribute UOM

W

Spec 3 Attribute Value

3.6

Spec 4 Attribute

Series

Spec 4 Attribute Value

Modicon X80

Spec 5 Attribute

Step Response

Spec 5 Attribute Value

<=10 ms Activation/<=13 ms Deactivation

Spec 6 Attribute

Temperature Rating

Spec 6 Attribute UOM

deg F

Spec 6 Attribute Value

32 to 140

Spec 7 Attribute

Terminal Type

Spec 7 Attribute Value

Block

Spec 8 Attribute

Type

Spec 8 Attribute Value

Discrete

Spec 9 Attribute

Voltage Rating

Spec 9 Attribute Value

24 to 240 V AC/24 to 125 V DC
