Schneider Electric

BMXEHC0800 - counter module, Modicon M340, high speed, 8 channels

Category Programmable Logic & Automation Special Function Modules

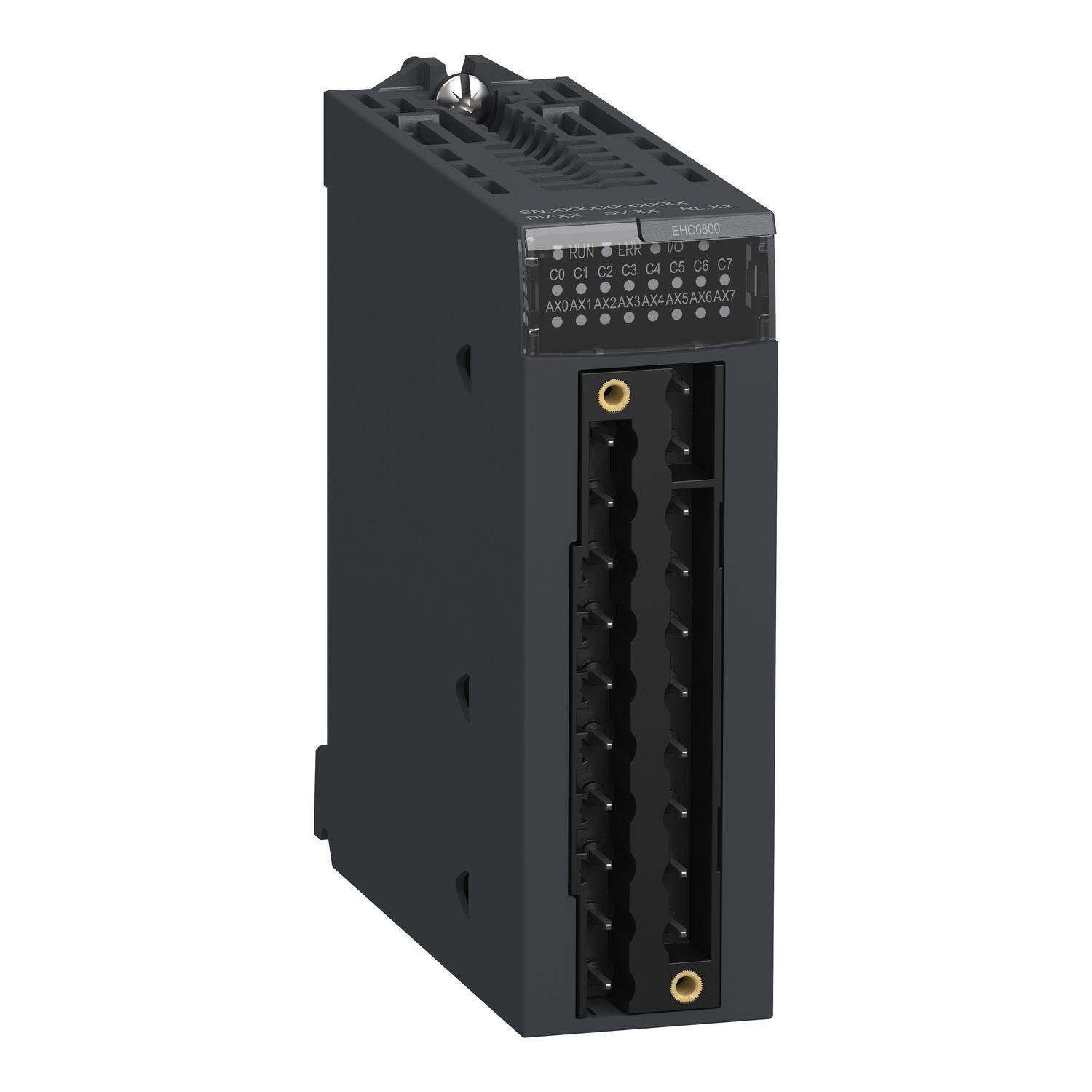

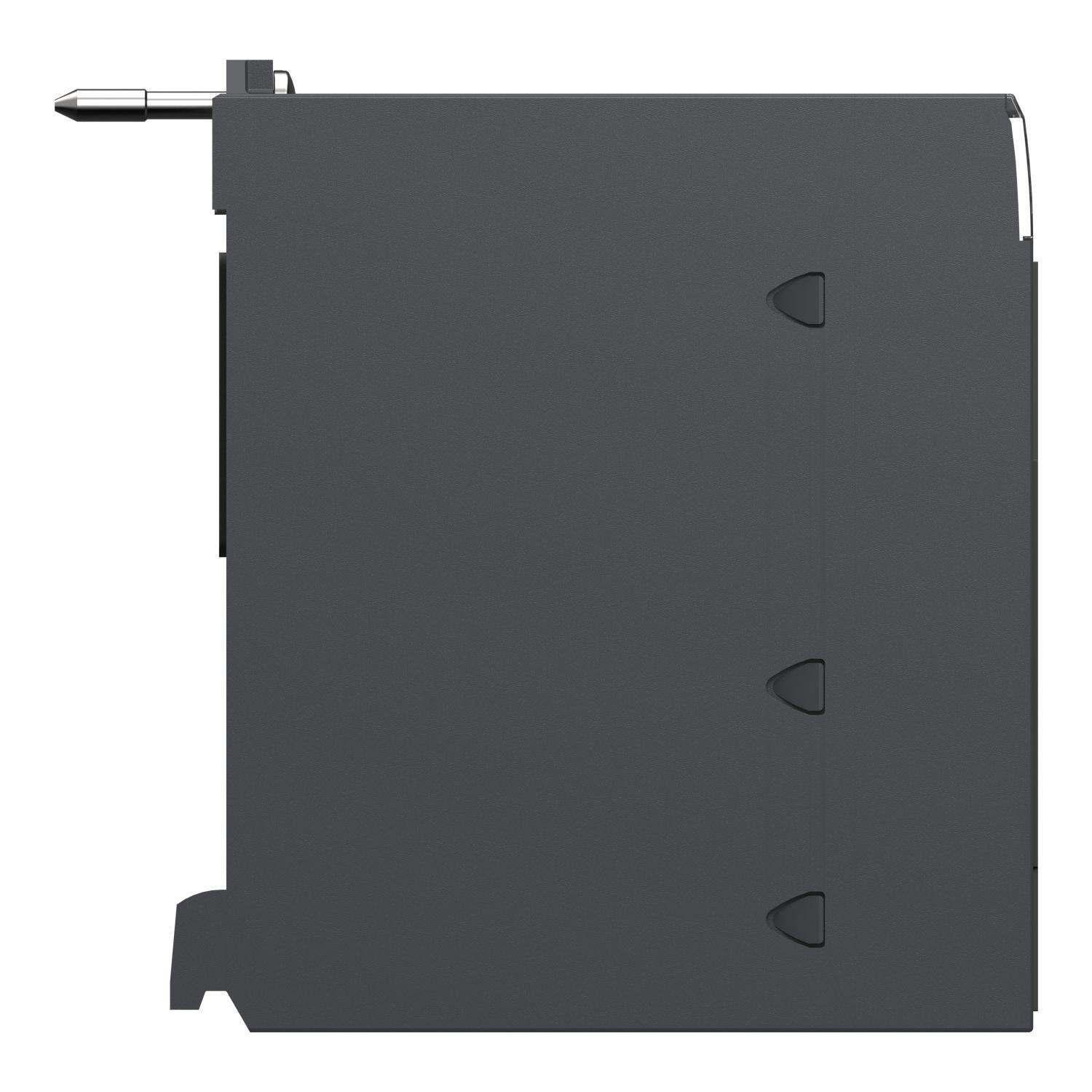

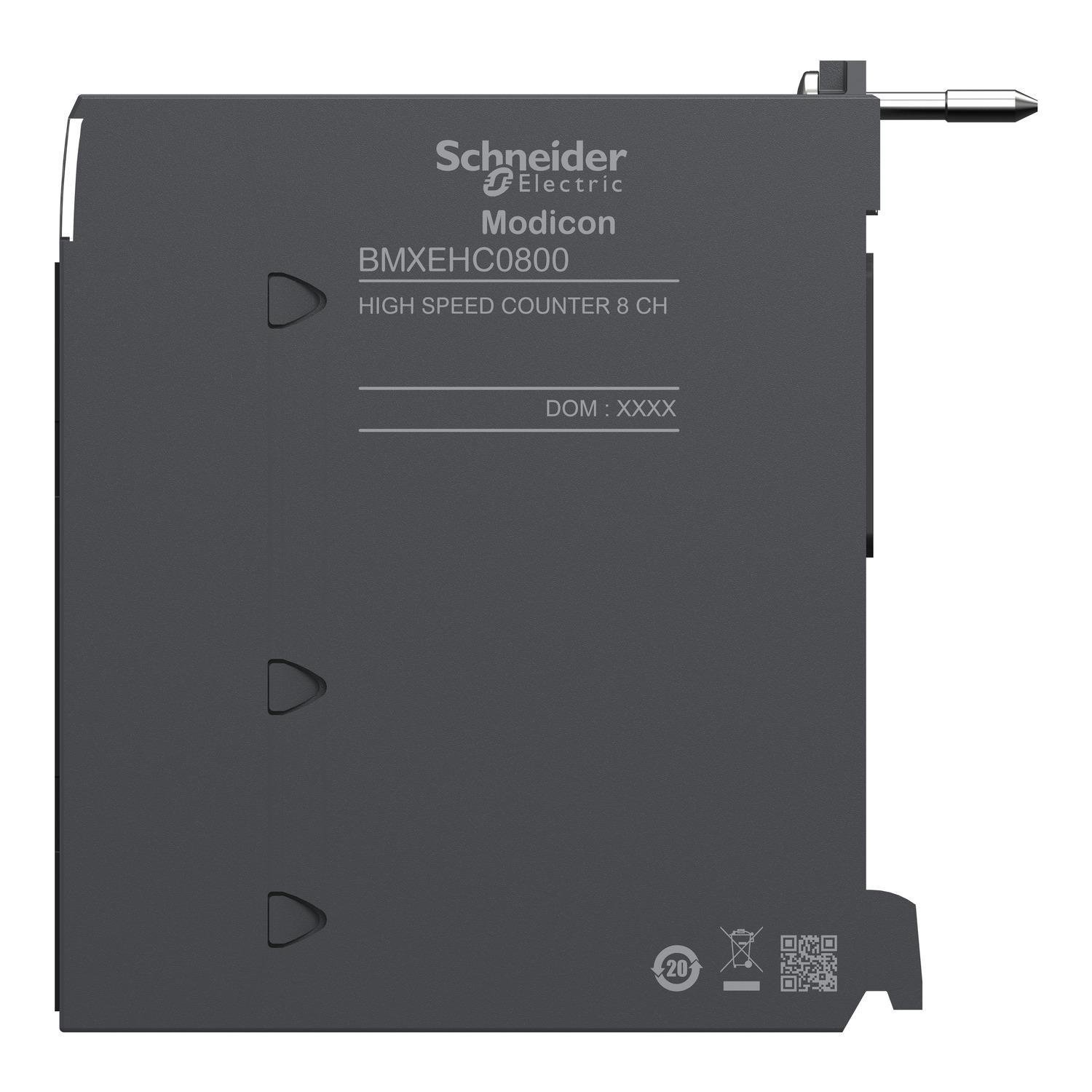

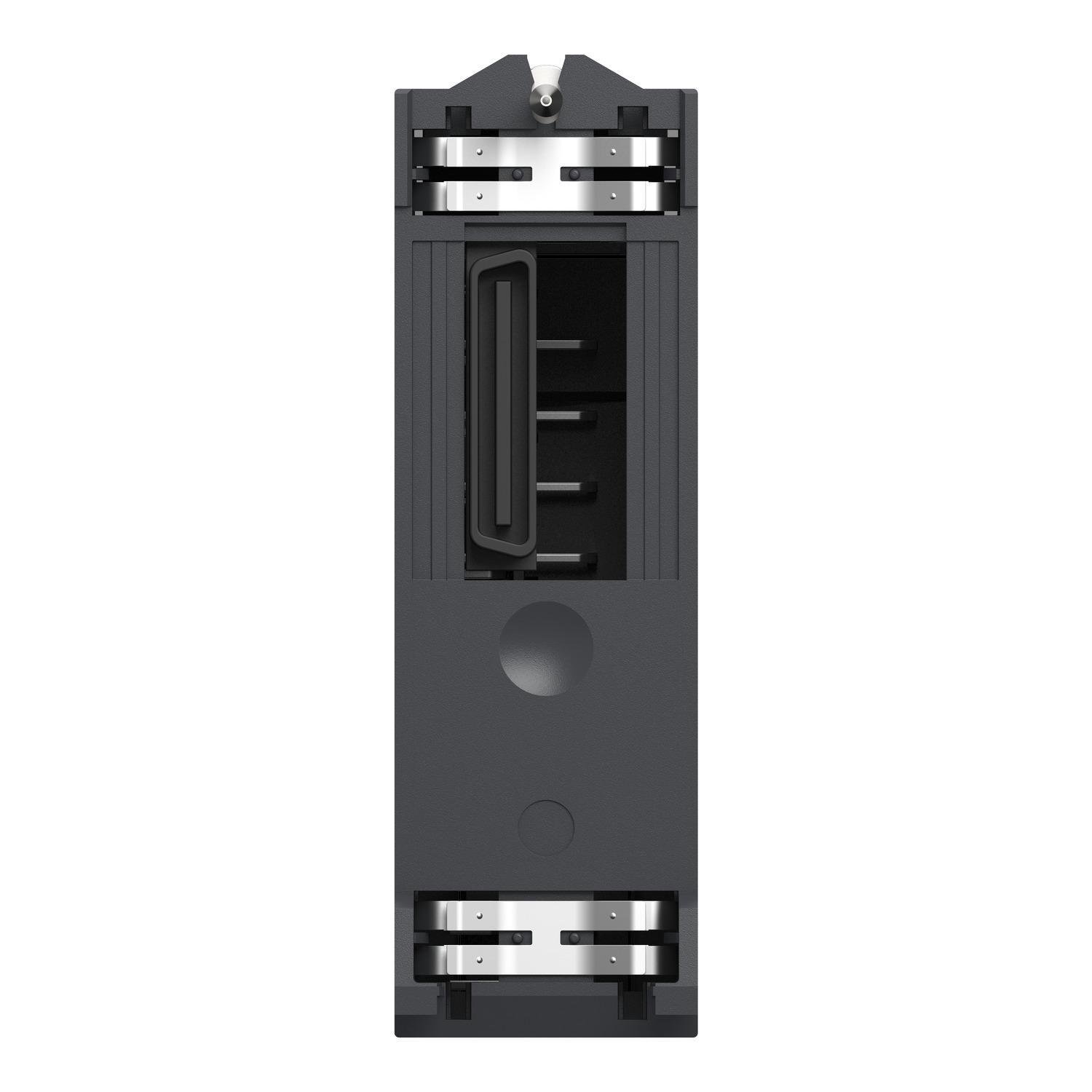

Picture of BMXEHC0800 - counter module, Modicon M340, high speed, 8 channels Picture of BMXEHC0800 - counter module, Modicon M340, high speed, 8 channels
Picture of BMXEHC0800 - counter module, Modicon M340, high speed, 8 channels Picture of BMXEHC0800 - counter module, Modicon M340, high speed, 8 channels
Picture of BMXEHC0800 - counter module, Modicon M340, high speed, 8 channels Picture of BMXEHC0800 - counter module, Modicon M340, high speed, 8 channels
Picture of BMXEHC0800 - counter module, Modicon M340, high speed, 8 channels Picture of BMXEHC0800 - counter module, Modicon M340, high speed, 8 channels
Picture of BMXEHC0800 - counter module, Modicon M340, high speed, 8 channels Picture of BMXEHC0800 - counter module, Modicon M340, high speed, 8 channels
Schneider Electric

BMXEHC0800 - counter module, Modicon M340, high speed, 8 channels

Item Code: 1117591
Category Programmable Logic & Automation Special Function Modules
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BMXEHC0800

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This high speed counter module has 8 channels, 2 single mode inputs and 3 special dual phase mode inputs. It is a counter module with an input voltage of 24V DC and a current consumption of 200mA at 3.3V DC bus, 80mA at 24V DC sensor. Counter functions are loop (modulo) counting, down counting, count events, 32bit counter counting etc. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.113kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 19.2V to 30V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10V to 30V totem pole. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Specifications

Weight

0.32

Width

4.29

Length

4.6

AD All Features

Modularity and scalability

AD Application

Modicon® M340 Automation Platform, Waste Water Treatment Plants, Mining, Minerals, Metals, Food and Beverage, Oil and Gas, OEM Process, Energy, Automotive, Infrastructure and Building

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

MODULE CTR SP HIGH 5 <= 10000HZ 24VDC

AD Item Features 01

Modularity and scalability

AD Item Features 02

Robustness and reliability

AD Item Features 03

Wide range of operating temperature from 0 deg C to 60 deg C

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

4.6000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.3200

AD Package Weight UOM

LB

AD Package Width

4.2900

AD Package Width UOM

IN

Brand

Square D

Category

PROGRAMMABLE LOGIC & AUTOMATION SPECIAL FUNCTION MODULES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

MA

Spec 1 Attribute Value

2

Spec 2 Attribute

Number of Inputs

Spec 2 Attribute Value

5

Spec 3 Attribute

Series

Spec 3 Attribute Value

M340

Spec 4 Attribute

Signal Range

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

<= 10000

Spec 5 Attribute

Temperature Rating

Spec 5 Attribute UOM

deg F

Spec 5 Attribute Value

32 to 140

Spec 6 Attribute

Terminal Type

Spec 6 Attribute Value

Screw/Spring

Spec 7 Attribute

Type

Spec 7 Attribute Value

8-Channel

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute UOM

V DC

Spec 8 Attribute Value

24
