Schneider Electric

BMXP342000 - processor, Modicon M340, max 1024 discrete, 256 analog IO, Modbus

Category Programmable Logic & Automation Base CPU's & Controllers

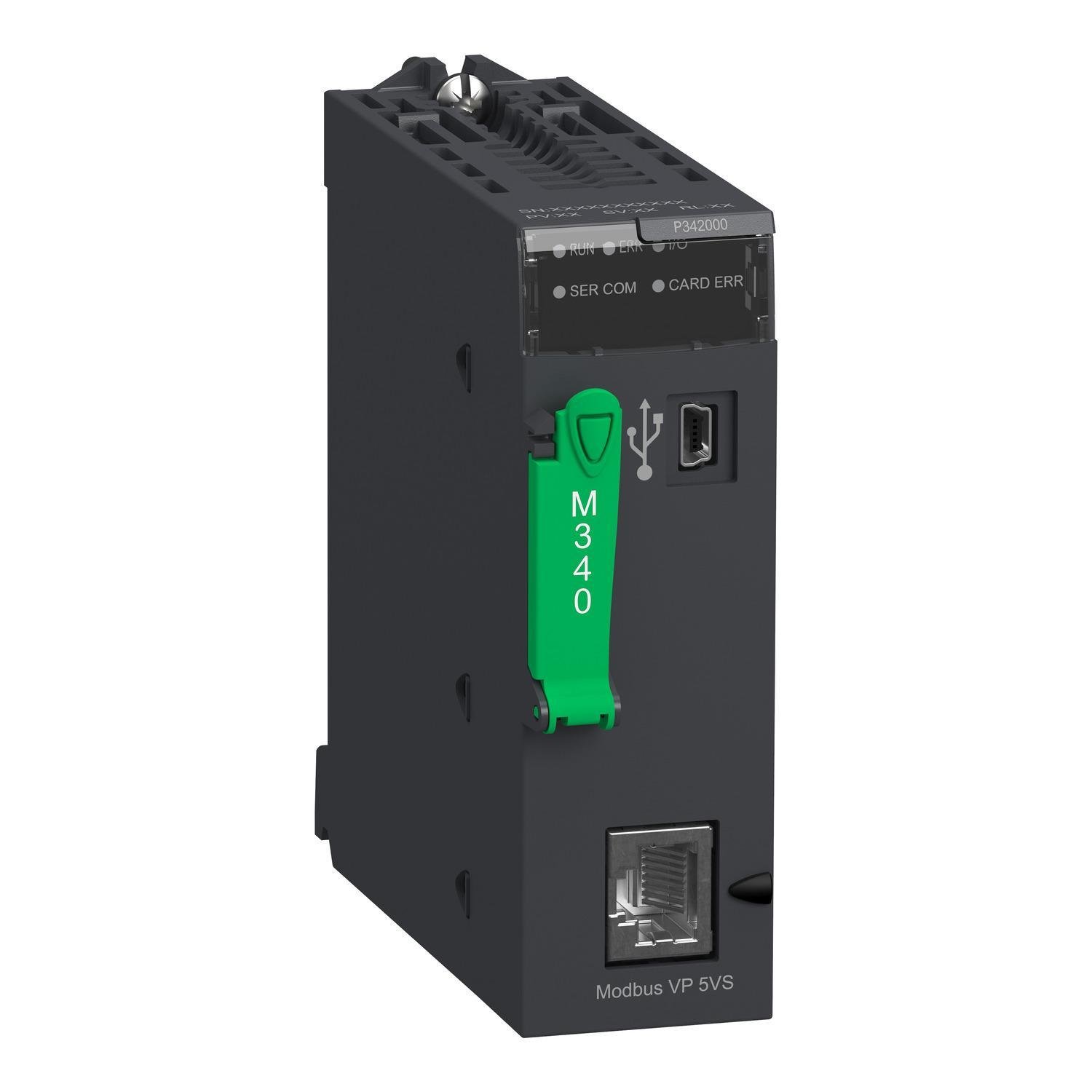

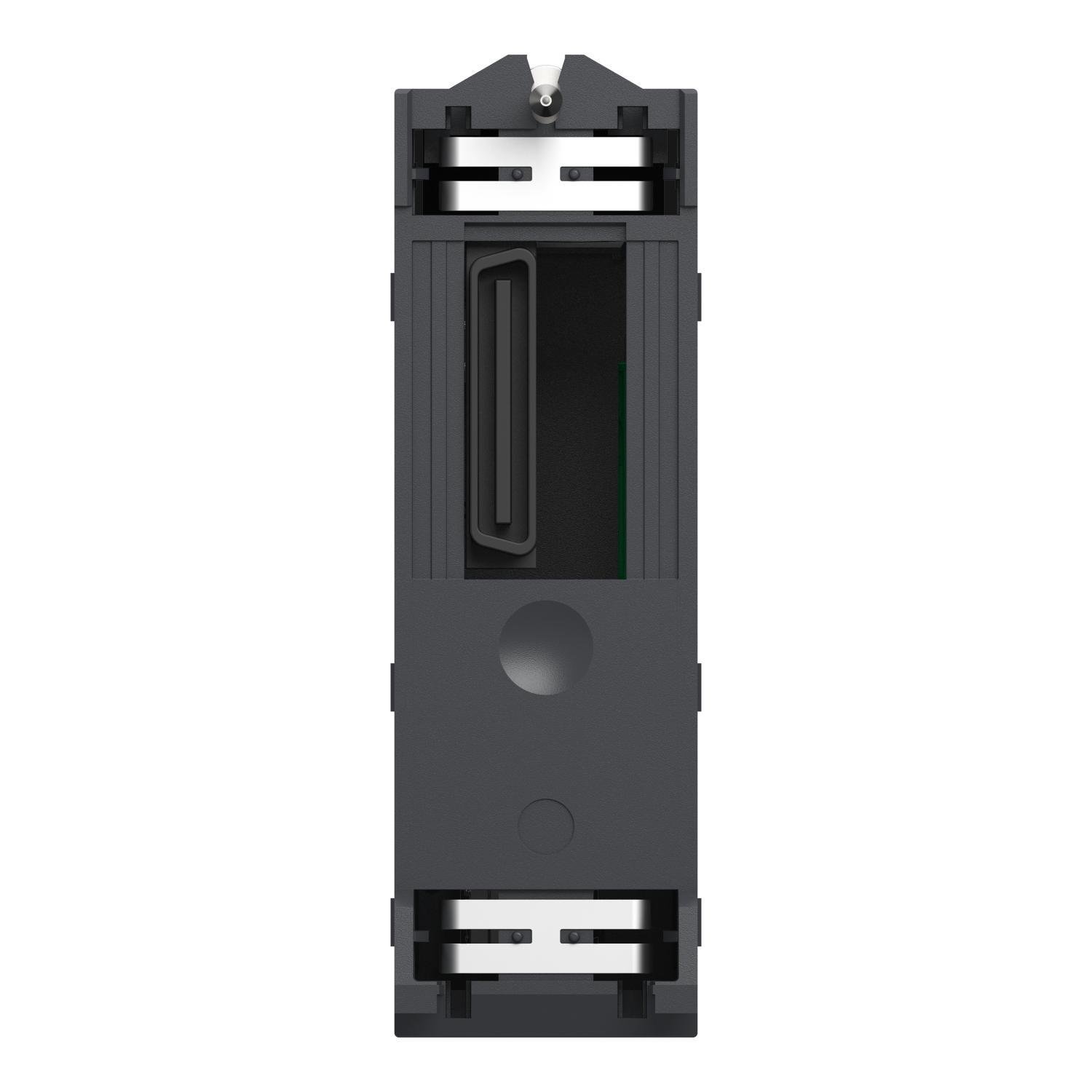

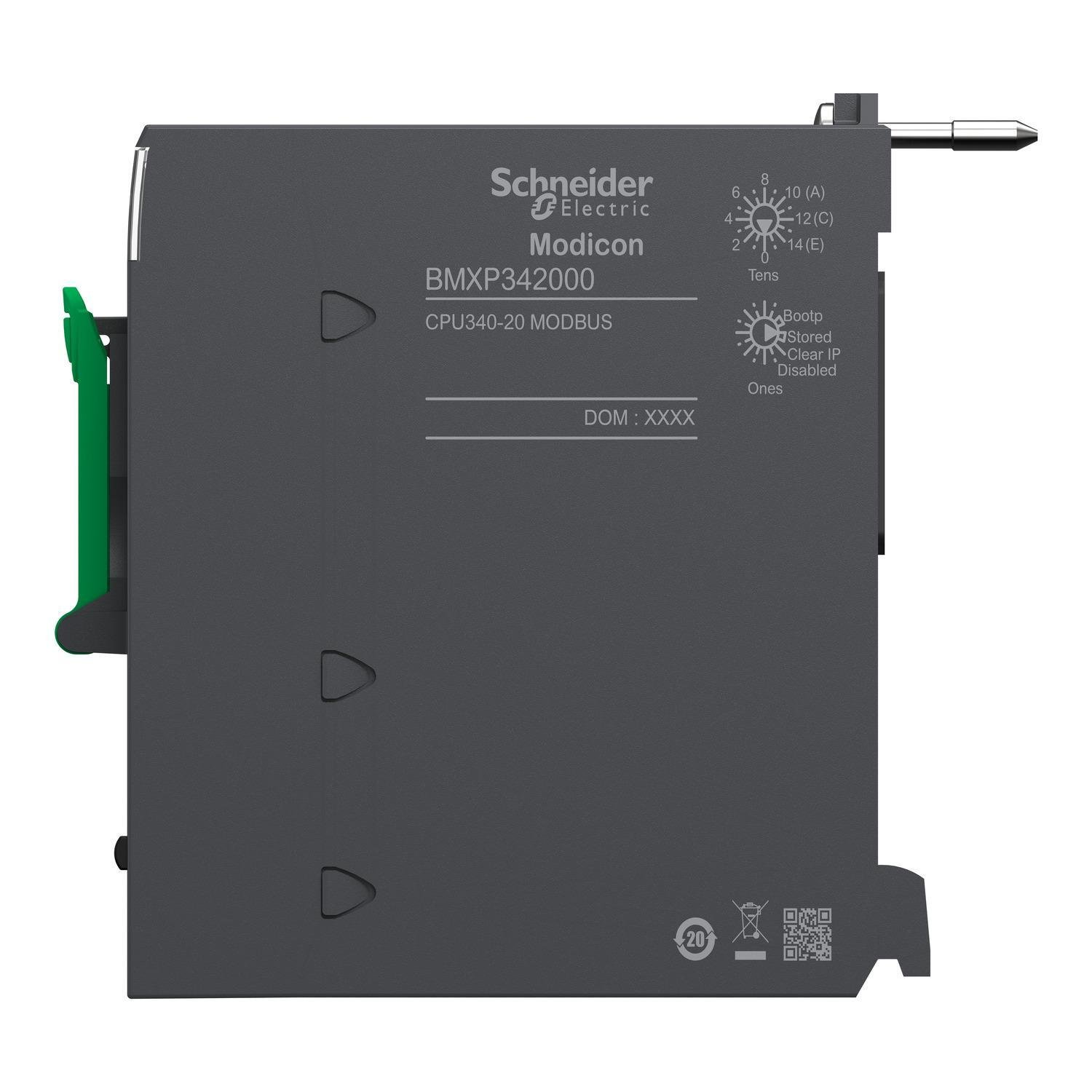

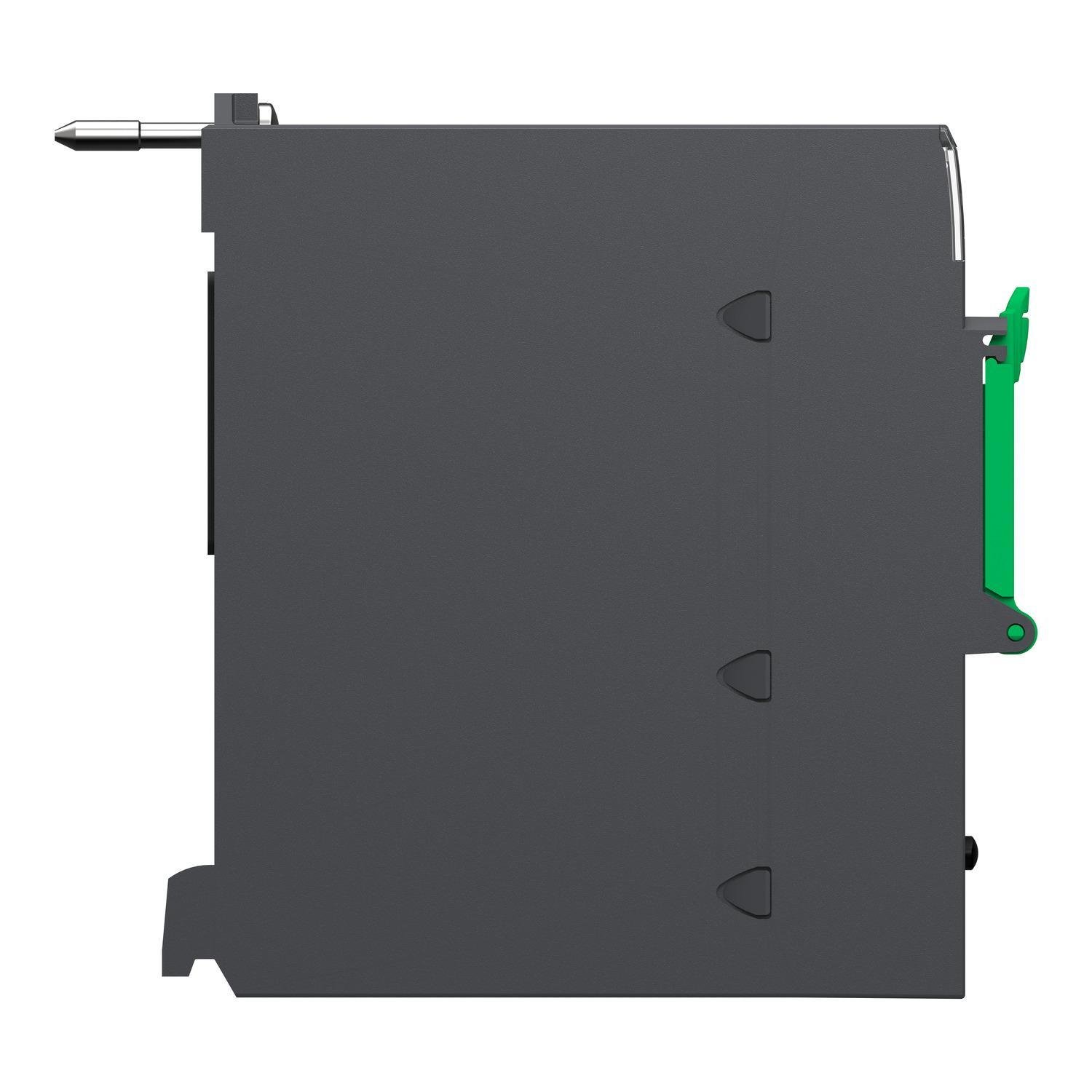

Picture of BMXP342000 - processor, Modicon M340, max 1024 discrete, 256 analog IO, Modbus Picture of BMXP342000 - processor, Modicon M340, max 1024 discrete, 256 analog IO, Modbus
Picture of BMXP342000 - processor, Modicon M340, max 1024 discrete, 256 analog IO, Modbus Picture of BMXP342000 - processor, Modicon M340, max 1024 discrete, 256 analog IO, Modbus
Picture of BMXP342000 - processor, Modicon M340, max 1024 discrete, 256 analog IO, Modbus Picture of BMXP342000 - processor, Modicon M340, max 1024 discrete, 256 analog IO, Modbus
Picture of BMXP342000 - processor, Modicon M340, max 1024 discrete, 256 analog IO, Modbus Picture of BMXP342000 - processor, Modicon M340, max 1024 discrete, 256 analog IO, Modbus
Picture of BMXP342000 - processor, Modicon M340, max 1024 discrete, 256 analog IO, Modbus Picture of BMXP342000 - processor, Modicon M340, max 1024 discrete, 256 analog IO, Modbus
Schneider Electric

BMXP342000 - processor, Modicon M340, max 1024 discrete, 256 analog IO, Modbus

Item Code: 792116
Category Programmable Logic & Automation Base CPU's & Controllers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BMXP342000

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 1 rack configuration, 36 application specific channels and 11 slots. It is a processor module with a current consumption of 72mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication processor module interfaces are 2 Ethernet modules and 4 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 1024 multi-rack configuration discrete I/O processor capacity and 256 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports 128kb data, 2048kb, 1792kb program internal RAM memory capacity. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.

Specifications

Weight

0.53

Width

4.29

Length

4.49

AD All Features

M340 serves as a all-in-one CPU

AD Application

Modicon® M340 Automation Platform Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Includes

BMXRMS008MP Memory Card

AD Invoice Description

MODULE PROCESSOR 2048KB 1024 I/O

AD Item Features 01

M340 serves as a all-in-one CPU

AD Item Features 02

Plug-and-work solution

AD Item Features 03

Reduced startup time

AD Item Features 04

Increased network reliability and maintainability

AD Item Features 05

Reduced total cost of ownership

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

4.4900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.5300

AD Package Weight UOM

LB

AD Package Width

4.2900

AD Package Width UOM

IN

Brand

Square D

Category

PROGRAMMABLE LOGIC & AUTOMATION BASE CPU'S & CONTROLLERS

Spec 1 Attribute

Communication Ports

Spec 1 Attribute Value

USB, Non-Isolated RJ45 Serial Link RS232C/RS485 Master/Slave Modbus RTU/ASCII 19.2 kbps

Spec 2 Attribute

Input/Output Capacity

Spec 2 Attribute Value

256 Multi-Rack/66 Single Rack Configuration

Spec 3 Attribute

Maximum I/O Capacity

Spec 3 Attribute Value

1024

Spec 4 Attribute

Memory

Spec 4 Attribute UOM

KB

Spec 4 Attribute Value

2048

Spec 5 Attribute

Operating Temperature

Spec 5 Attribute UOM

deg C

Spec 5 Attribute Value

0 To 60
