Schneider Electric

BMXP342020 - processor module M340, max 1024 discrete and 256 analog I/O, Modbus, Ethernet

Category Miscellaneous

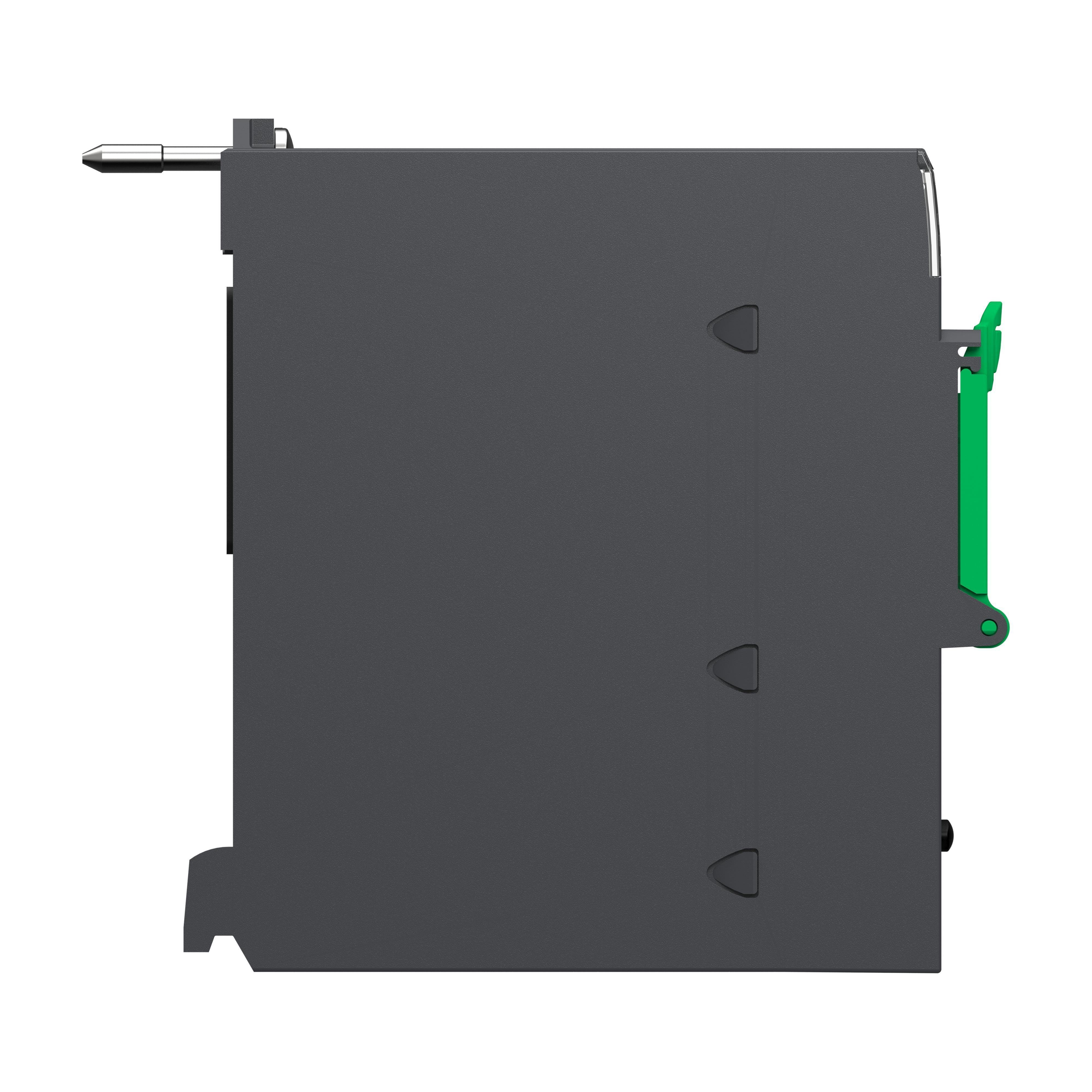

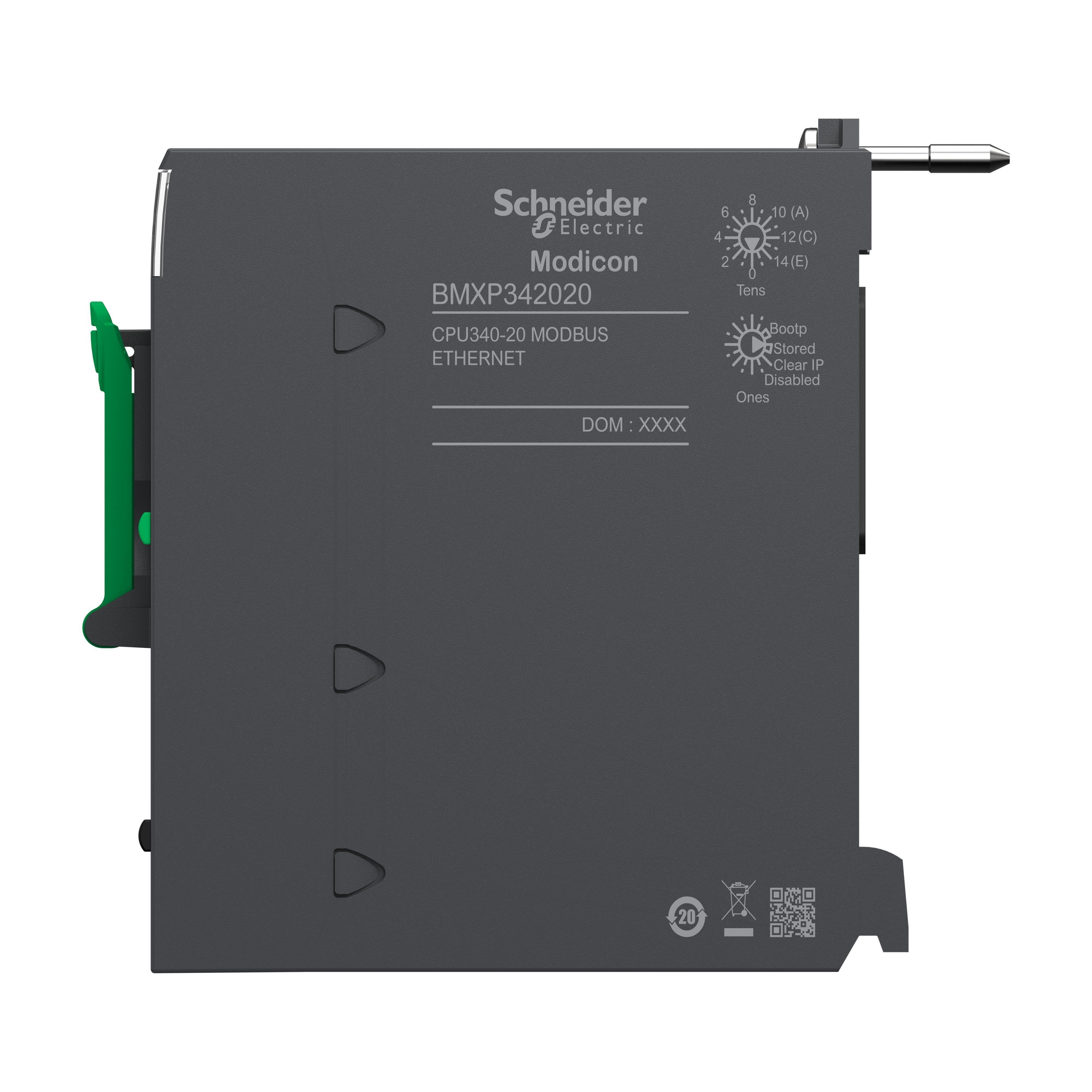

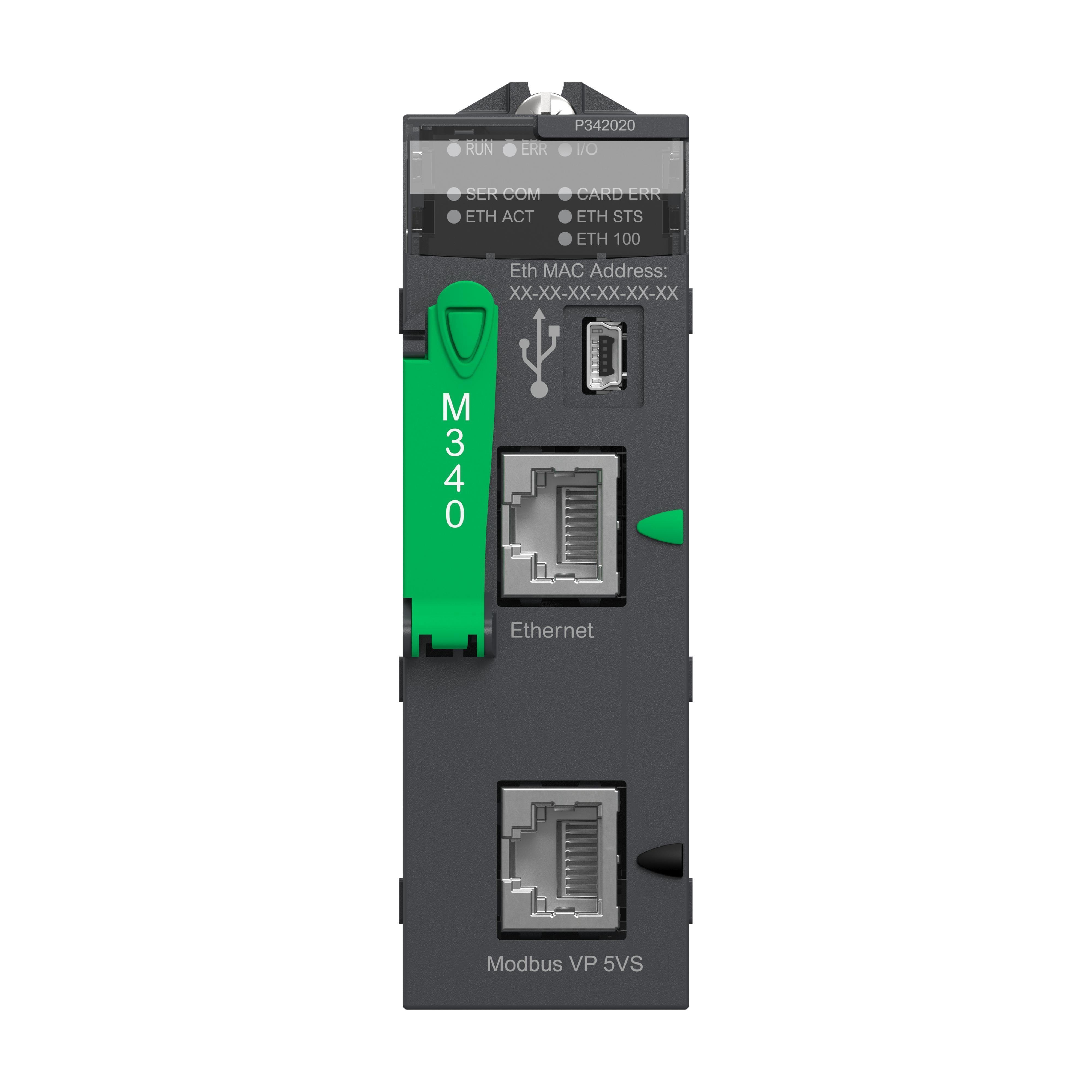

Picture of BMXP342020 - processor module M340, max 1024 discrete and 256 analog I/O, Modbus, Ethernet Picture of BMXP342020 - processor module M340, max 1024 discrete and 256 analog I/O, Modbus, Ethernet
Picture of BMXP342020 - processor module M340, max 1024 discrete and 256 analog I/O, Modbus, Ethernet Picture of BMXP342020 - processor module M340, max 1024 discrete and 256 analog I/O, Modbus, Ethernet
Picture of BMXP342020 - processor module M340, max 1024 discrete and 256 analog I/O, Modbus, Ethernet Picture of BMXP342020 - processor module M340, max 1024 discrete and 256 analog I/O, Modbus, Ethernet
Schneider Electric

BMXP342020 - processor module M340, max 1024 discrete and 256 analog I/O, Modbus, Ethernet

Item Code: 829470
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref BMXP342020

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

The M340 processor module has a maximum of 1024 discrete and 256 analog I/O (Modbus or Ethernet). 36 application specific channels, product or component type. The processor module can do monitoring, diagnostic counters Modbus, event counters Modbus, is transparent ready, has 4 CANopen racks and 11 slots. It also has 1024 I/O multirack configuration, 704 I/O single rack configuration, analog I/O processor capacity, 256 I/O multirack configuration and 66 I/O single rack configuration. The Modicon M340 offers in a small form factor flexibility and integrated functions. In the heart of your process, it provides plug-and-play solutions with both Schneider Electric and third party devices. The large capacity of Unity Pro SoCollaborative software will ease and shorten programming and commissioning time. Modicon M340 Programmable Automation Controllers (PACs) are built to suit the needs of the process industry and a wide range of demanding automation applications. Modicon M340 PACs can be used individually, but are also the perfect companion to the Modicon M580. Together they can increase the performance, quality, and the profitability of your machine production. M340 PACs have an all in one CPU. It operates at 7 Kinst/ms. By using a multitasking system, it has reflex time. This PAC is programmed with Unity™ Pro software. The M340 has a USB port for programming and HMI. Two additional Ethernet, CANopen® or Modbus™ ports are available as required. The memory can process programming code up to 70 Kinst. Application back up is in a supplied memory card. Additional file storage is available up to 128 MB with FTP access. Additional file storage is available up to 128 MB with FTP access. The M340 range doesn’t require a battery. It has extended temperature (-25°C +70°C) and conformal coating for operation in harsh environments. Protection for SI and OEM know how by using a SD card technology. Replace or hot swap I/O modules without stopping process. Configuration change on the fly (CCOTF) is used. No need to stop the process to expand system. FTD/DTM configuration tools for plug and play device integration. This simplifies configuration, commissioning, and maintenance. The M340 range is used in process industries, renewable energy applications (Solar, Wind power, etc.), water and cement applications, in manufacturing, in infrastructures and on machines.

Specifications

Weight

0.54

Width

4.29

Length

4.49

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/BMXP342020/BMXP342020.spin

AD All Features

M340 serves as a all-in-one CPU

AD Alternative Part Number

9788596

AD Application

Modicon® M340 Automation Platform Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD EAN

3595863910711

AD Gtin

03595863910711

AD IDEA Index ID

9788596

AD Includes

USB, Modbus/SERIAL and ETHERNET-Modbus/TCP

AD Invoice Description

MODULE PROCESSOR 1024 DISCRETE/256 ANLG

AD Item Features 01

M340 serves as a all-in-one CPU

AD Item Features 02

Plug-and-work solution

AD Item Features 03

Reduced startup time

AD Item Features 04

Increased network reliability and maintainability

AD Item Features 05

Reduced total cost of ownership

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

4.4900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.5400

AD Package Weight UOM

LB

AD Package Width

4.2900

AD Package Width UOM

IN

AD Part Number Keywords

BMXP342020 ; 9788596 ; 785901476542 ; 78590147654 ; 03595863910711 ; 3595863910711

Brand

Square D

Spec 1 Attribute

Communication Ports

Spec 1 Attribute Value

USB, Modbus, SERIAL and Ethernet-Modbus, TCP

Spec 2 Attribute

Input/Output Capacity

Spec 2 Attribute Value

256 Multi-Rack/66 Single-Rack Configuration

Spec 3 Attribute

Maximum I/O Capacity

Spec 3 Attribute Value

1024 I/O Multi-Rack, 704 I/O Single Rack

Spec 4 Attribute

Memory

Spec 4 Attribute Value

1024 Discrete/256 Analog

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Rack

Spec 6 Attribute

Operating Temperature

Spec 6 Attribute UOM

deg C

Spec 6 Attribute Value

0 To 60

Spec 7 Attribute

Type

Spec 7 Attribute Value

CPU
