Schneider Electric

CA3KN22BD3 - Control relay, TeSys K, 2 NO + 2 NC, lt or eq to 690V, 24VDC standard coil

Category IEC Control Relays & Accessories

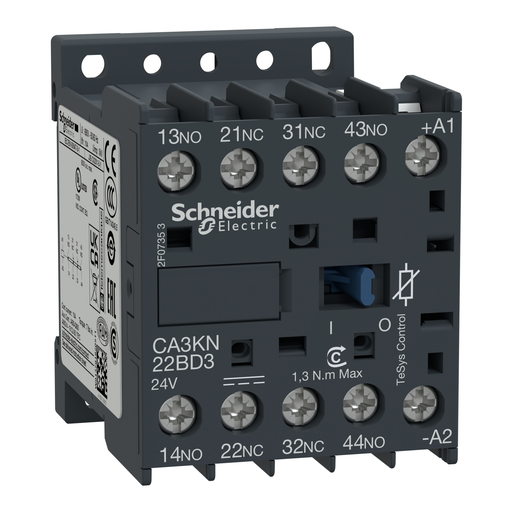

Picture of CA3KN22BD3 - Control relay, TeSys K, 2 NO + 2 NC, lt or eq to 690V, 24VDC standard coil
Schneider Electric

CA3KN22BD3 - Control relay, TeSys K, 2 NO + 2 NC, lt or eq to 690V, 24VDC standard coil

Item Code: 836906
Category IEC Control Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref CA3KN22BD3

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

TeSys K control relay, 4 contacts (2NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).

Specifications

Weight

0.49lb

Height

58mm

Width

2.42mm

Length

2.61mm

Depth

57mm

AD Application

Control Circuit Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

ID

AD Invoice Description

RELAY CTRL 10A 2NO-2NC 24VDC 3W 400HZ

AD Item Features 01

TeSys Control Relays provide a cost-effective solution to a simple application

AD Item Features 02

Same design as TeSys D, K and SK contactors

AD Item Features 03

Different ways for connection (such as screw clamp terminal, spring terminal, welded on PCB)

AD Item Features 04

Compatible for all the voltages on the market

AD Item Features 05

Control relays for AC or DC control circuits (AC15, DC13)

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

2.6100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.4900

AD Package Weight UOM

LB

AD Package Width

2.4200

AD Package Width UOM

IN

Brand

Schneider Electric

Category

IEC CONTROL RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

10

Spec 10 Attribute

Series

Spec 10 Attribute Value

K Series

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

-25 To 50

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Screw clamp

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V DC

Spec 2 Attribute Value

24

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

2NO-2NC 2 Form C

Spec 4 Attribute

Contact Rating

Spec 4 Attribute Value

10 A at 600 V AC

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

1.77 in W x 2.24 in D x 2.28 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP2x

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

400

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Power Rating

Spec 9 Attribute UOM

W

Spec 9 Attribute Value

3
