Schneider Electric

CAD32GD - TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 125 V DC standard coil

Category Miscellaneous

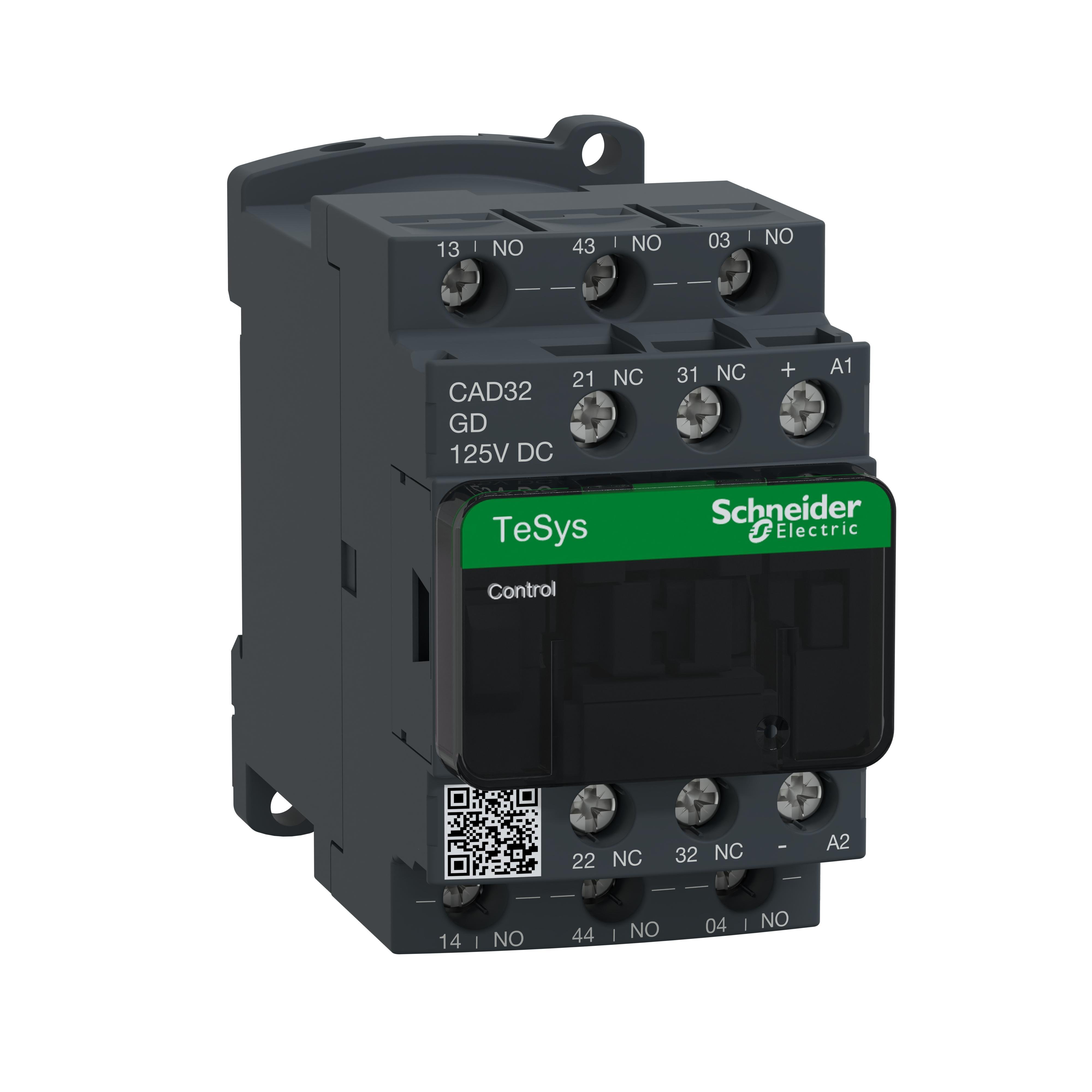

Picture of CAD32GD - TeSys Deca control relay - 3 NO + 2 NC -
Schneider Electric

CAD32GD - TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 125 V DC standard coil

Item Code: 824341
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref CAD32GD

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

TeSys Deca control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 125V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp termina

Specifications

Weight

1.09

Width

3.59

Length

4.37

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/cad32gd/cad32gd.spin

AD All Features

Same design as TeSys D, K and SK contactors

AD Alternative Part Number

8081188

AD Application

For multi-pole switching applications at voltages up to 600 and control circuit applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

3389110404258

AD Gtin

03389110404258

AD IDEA Index ID

8081188

AD Invoice Description

RELAY CTRL IEC 10A 3NO-2NC 125VDC 5.4W 5

AD Item Features 01

Same design as TeSys D, K and SK contactors

AD Item Features 02

Different ways for connection (such as screw clamp terminal, spring terminal, welded on PCB)

AD Item Features 03

Compatible for all the voltages on the market

AD Item Features 04

Control relays for AC or DC control circuits (AC15, DC13)

AD Keywords

Square D CAD32GD TeSys D IEC Control Relay, 10 A, 3NO-2NC 3 Form A/2 Form B Contact, 125 V DC V Coil ; Schneider Electric ; Schneider Electric ; CAD32GD ; 785901204855 ; IEC Control Relays

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

4.3700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.0900

AD Package Weight UOM

LB

AD Package Width

3.5900

AD Package Width UOM

IN

AD Part Number Keywords

CAD32GD ; 8081188 ; 785901204855 ; 78590120485 ; 03389110404258 ; 3389110404258

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

10

Spec 10 Attribute

Series

Spec 10 Attribute Value

TeSys™ D

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

-40 To 70

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Screw clamp

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V DC

Spec 2 Attribute Value

125

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

3NO-2NC 3 Form A/2 Form B

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

3.03 in H x 1.77 in W x 3.66 in D

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

IP2x

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50/60

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Front/Plate Rail

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

5

Spec 9 Attribute

Power Rating

Spec 9 Attribute UOM

W

Spec 9 Attribute Value

5.4
