Schneider Electric

CAD32U7 - TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 240 V AC standard coil

Category Miscellaneous

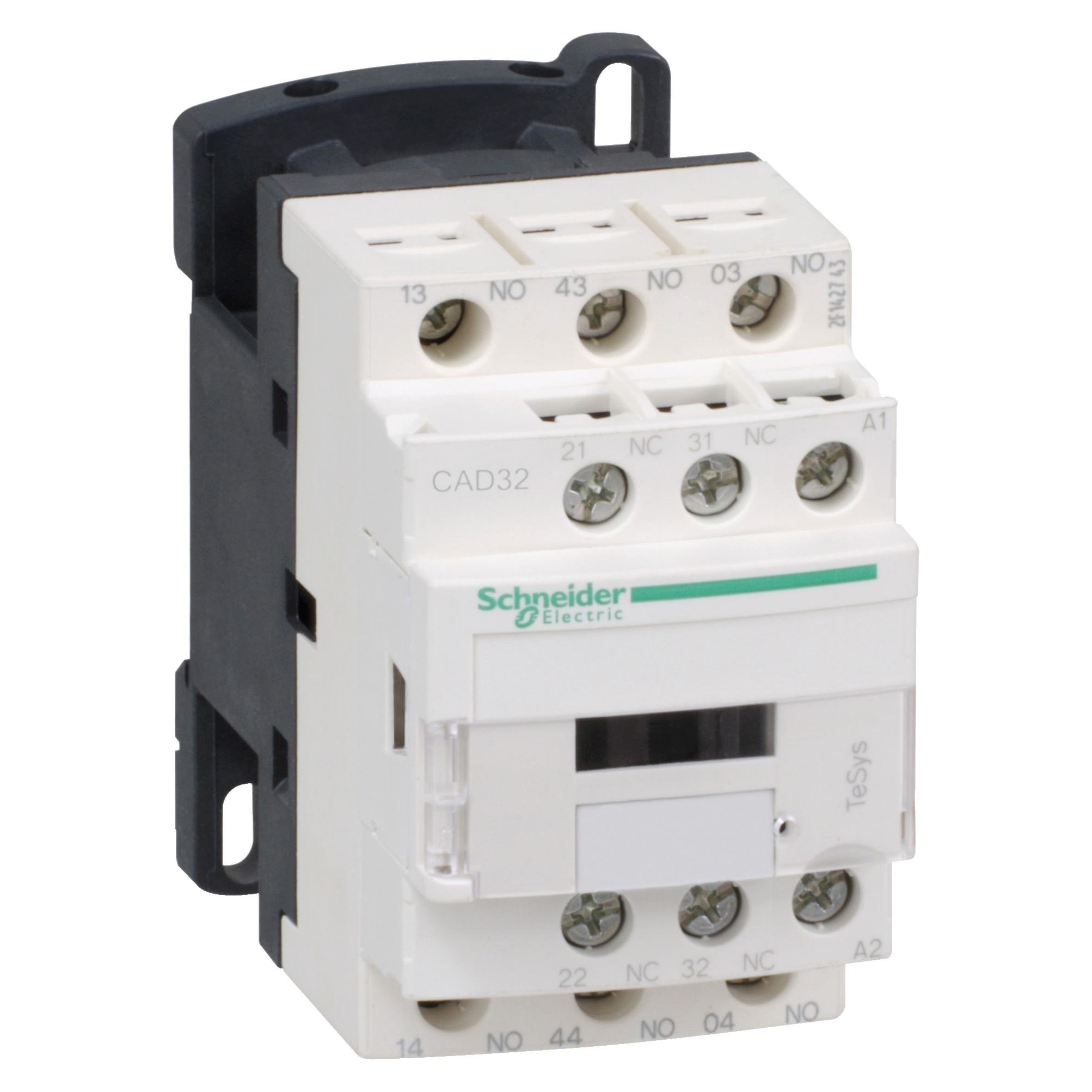

Picture of CAD32U7 - TeSys Deca control relay - 3 NO + 2 NC -
Schneider Electric

CAD32U7 - TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 240 V AC standard coil

Item Code: 880662
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref CAD32U7

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

TeSys Deca control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 240V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient te

Specifications

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/cad32u7/cad32u7.spin

AD Alternative Part Number

8081204

AD Application

Control Circuit Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

3389110402384

AD Gtin

03389110402384

AD IDEA Index ID

8081204

AD Invoice Description

RELAY CTRL 10A 3NO-2NC 240VAC 70VA 400HZ

AD Item Features 01

TeSys Control Relays provide a cost-effective solution to a simple application

AD Item Features 02

Same design as TeSys D, K and SK contactors

AD Item Features 03

Different ways for connection (such as screw clamp terminal, spring terminal, welded on PCB)

AD Item Features 04

Compatible for all the voltages on the market

AD Item Features 05

Control relays for AC or DC control circuits (AC15, DC13)

AD Keywords

Square D TeSys CAD32U7 D Series Control Relay, 10 A, 3NO-2NC 3 Form A/2 Form B Contact, 240 VAC V Coil ; Schneider Electric ; Schneider Electric ; CAD32U7 ; 785901204879 ; Control Relays

AD Manufacturer (Description)

Schneider Electric

AD Package Quantity

1

AD Part Number Keywords

CAD32U7 ; 8081204 ; 785901204879 ; 78590120487 ; 03389110402384 ; 3389110402384

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

10

Spec 10 Attribute

Series

Spec 10 Attribute Value

D Series

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg C

Spec 11 Attribute Value

-40 To 70

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Screw clamp

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute UOM

V AC

Spec 2 Attribute Value

240

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

3NO-2NC 3 Form A/2 Form B

Spec 4 Attribute

Contact Rating

Spec 4 Attribute Value

10 A at 600 V AC

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

1.77 in W x 3.66 in D x 3.03 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

IP2x

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

400

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Power Rating

Spec 9 Attribute UOM

VA

Spec 9 Attribute Value

70
