Schneider Electric

CHOM120PDF - Mini circuit breaker, Homeline Canadian, 20A, 1 pole, 120VAC, 10kA AIR, combo ARC/ground fault, plug on neutral, plug in, UL [TAA]

Category Miscellaneous

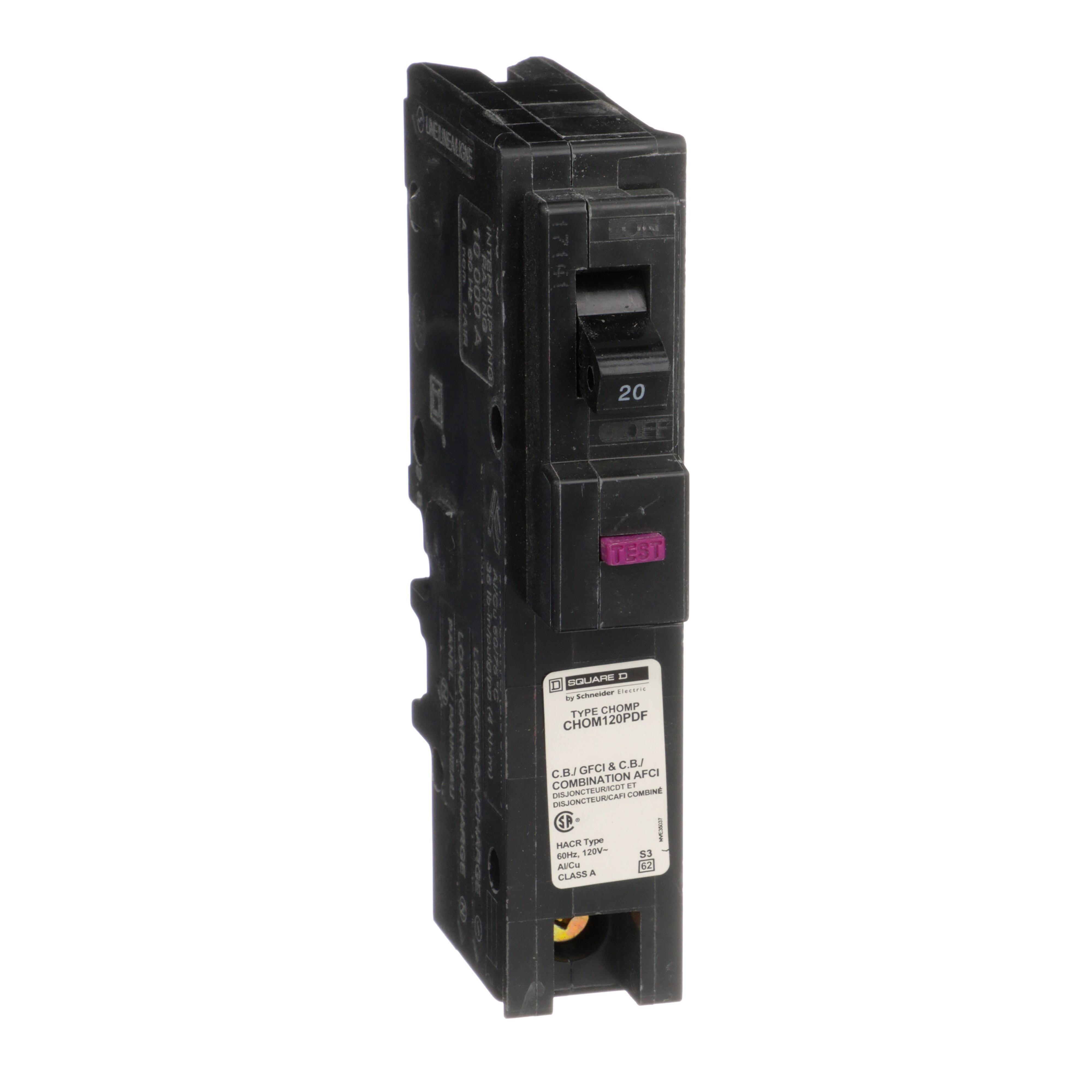

Picture of CHOM120PDF - Mini circuit breaker, Homeline Canadian, 20A, 1 pole, 120VAC, 10kA AIR, combo ARC/ground fault, plug on neutral, plug in, UL [TAA] Picture of CHOM120PDF - Mini circuit breaker, Homeline Canadian, 20A, 1 pole, 120VAC, 10kA AIR, combo ARC/ground fault, plug on neutral, plug in, UL [TAA]
Picture of CHOM120PDF - Mini circuit breaker, Homeline Canadian, 20A, 1 pole, 120VAC, 10kA AIR, combo ARC/ground fault, plug on neutral, plug in, UL [TAA] Picture of CHOM120PDF - Mini circuit breaker, Homeline Canadian, 20A, 1 pole, 120VAC, 10kA AIR, combo ARC/ground fault, plug on neutral, plug in, UL [TAA]
Schneider Electric

CHOM120PDF - Mini circuit breaker, Homeline Canadian, 20A, 1 pole, 120VAC, 10kA AIR, combo ARC/ground fault, plug on neutral, plug in, UL [TAA]

Item Code: 1102740
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref CHOM120PDF

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

CHOM Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 1 pole circuit breaker with plug in mounting is rated 20A at 120/240VAC. CHOM breakers provide 10kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. It includes a Dual Function feature with plug on neutral. CHOM Homeline miniature circuit breakers are CSA certified.

Specifications

Weight

0.63

Width

1.39

Length

5.05

AD All Features

Homeline Circuit Breakers are apart of the Square D making them compatible with Homeline electrical panels and CSEDs

AD Application

Designed for superior safety, quality and reliability

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

COMBINATION OCB 120VAC 20A 10KA 1

AD Item Features 01

Homeline Circuit Breakers are apart of the Square D making them compatible with Homeline electrical panels and CSEDs

AD Item Features 02

Designed to protect against equipment overloads and short-circuits

AD Item Features 03

For residential and commercial use

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

5.0500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.6300

AD Package Weight UOM

LB

AD Package Width

1.3900

AD Package Width UOM

IN

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

20

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Plug-on neutral

Spec 3 Attribute

Interrupt Rating

Spec 3 Attribute UOM

KA

Spec 3 Attribute Value

10

Spec 4 Attribute

Mounting Type

Spec 4 Attribute Value

Plug-On

Spec 5 Attribute

Number Of Poles

Spec 5 Attribute Value

1

Spec 6 Attribute

Temperature Rating

Spec 6 Attribute UOM

deg F

Spec 6 Attribute Value

104

Spec 7 Attribute

Type

Spec 7 Attribute Value

Dual Function

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute UOM

V AC

Spec 8 Attribute Value

120
