Schneider Electric

CQRB100CP - Meter mains, QO, CSED, ringed socket, 125A, surface mount, no bypass

Category Miscellaneous

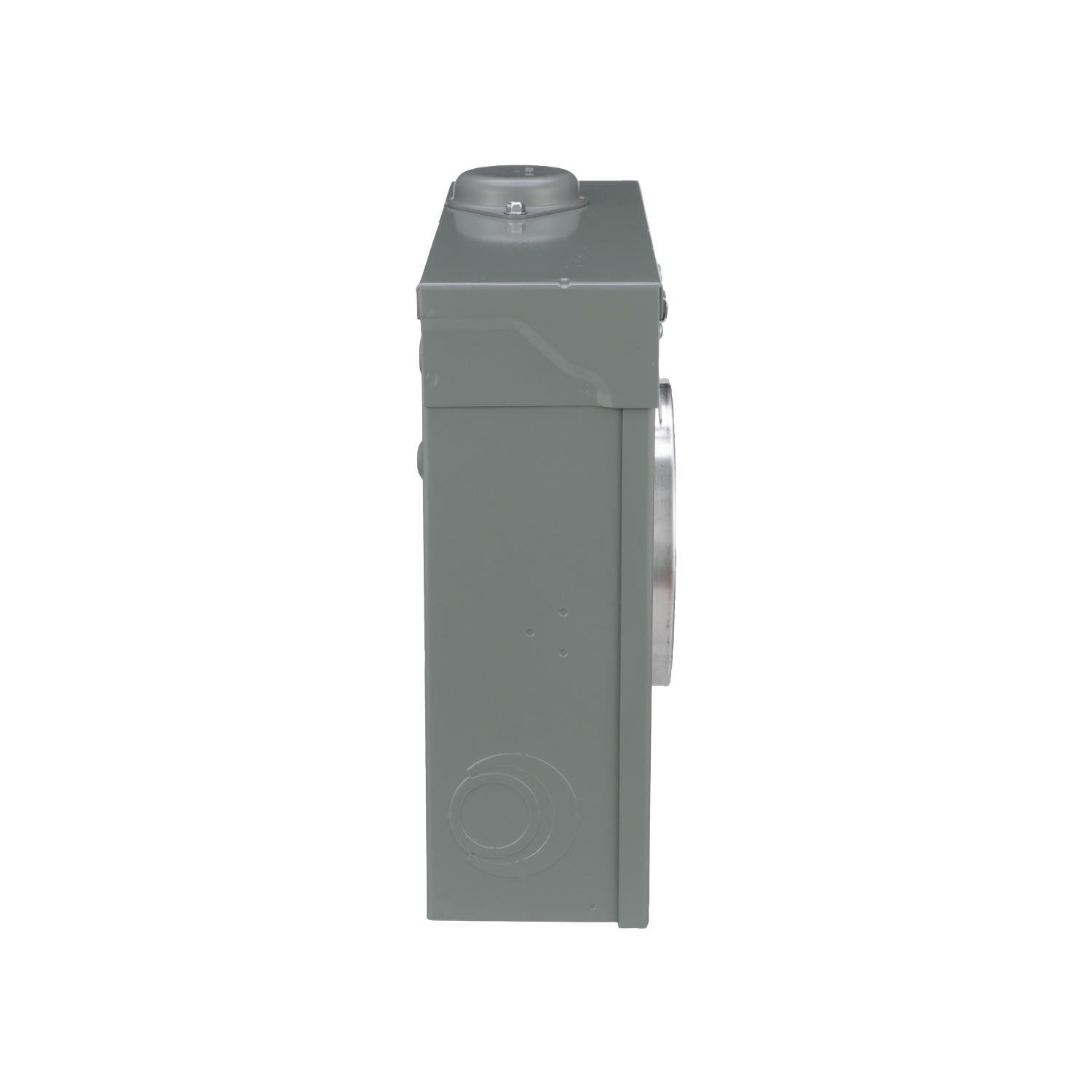

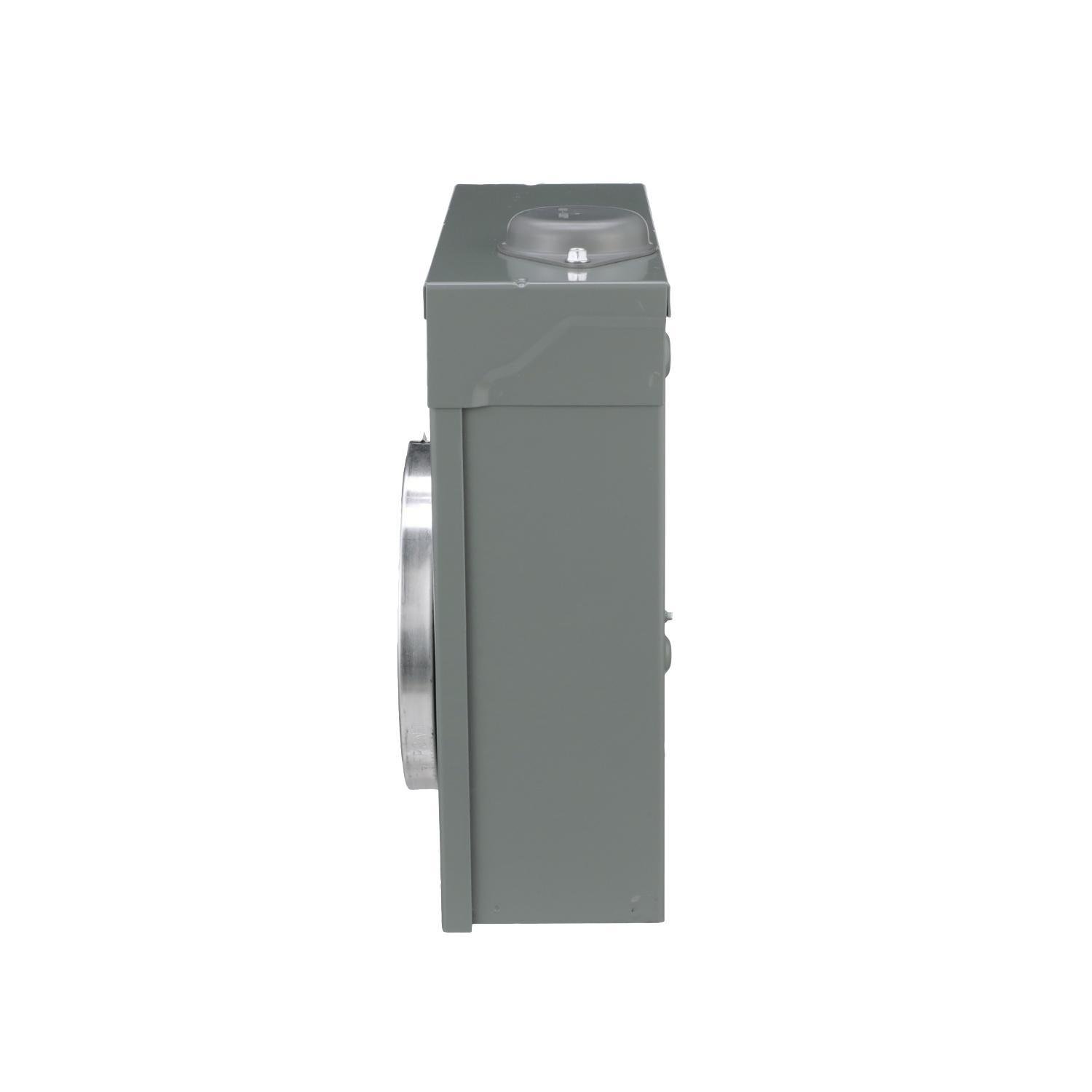

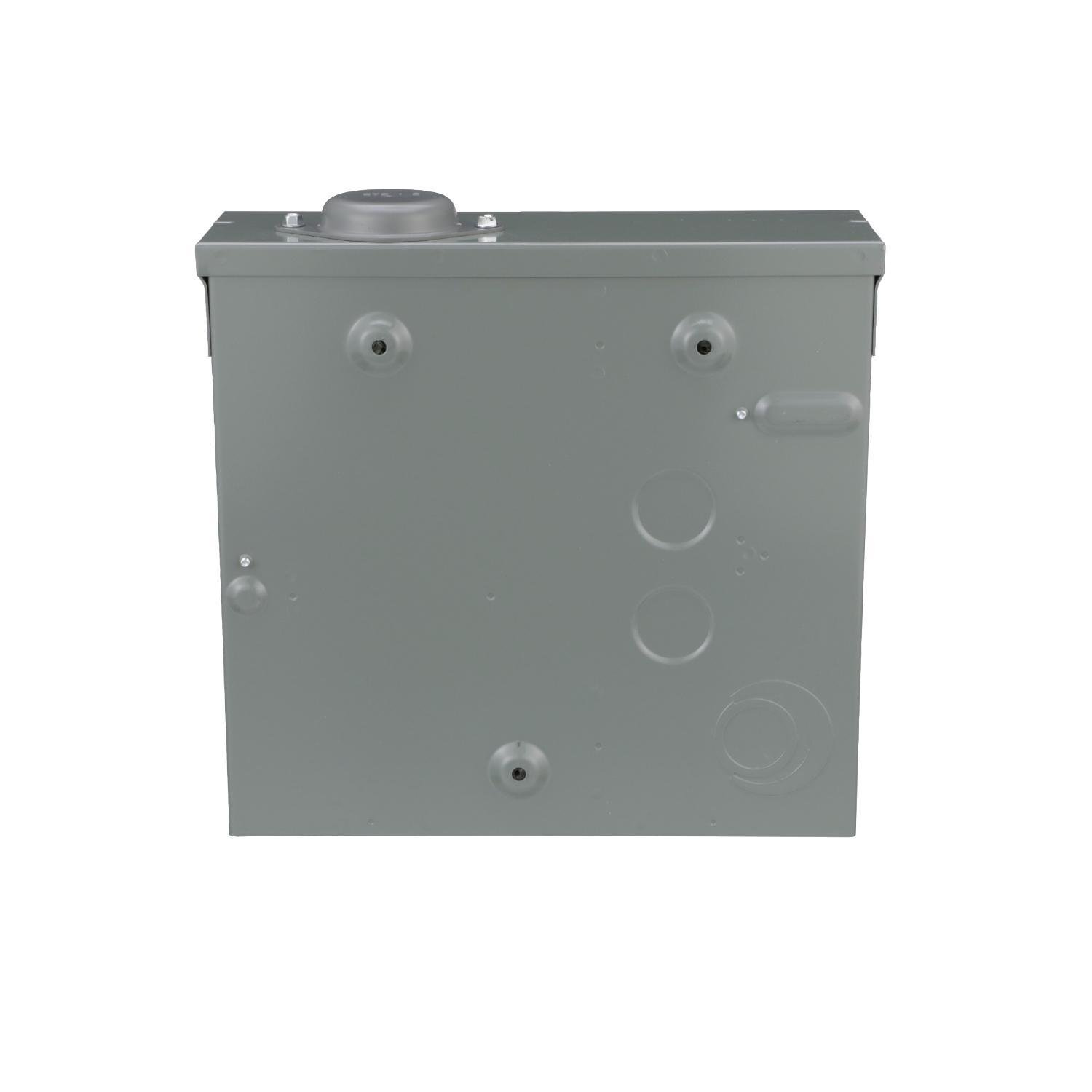

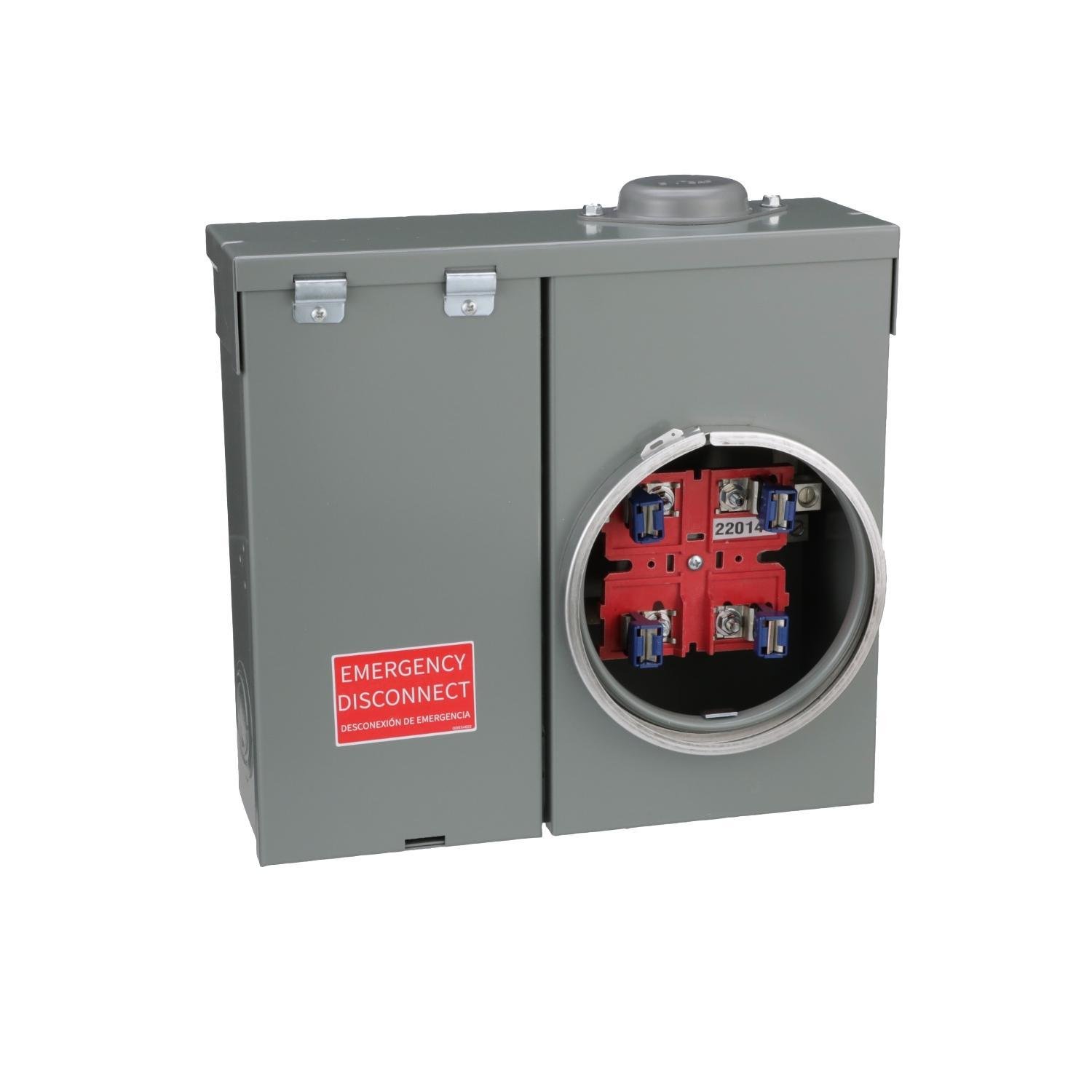

Picture of CQRB100CP - Meter mains, QO, CSED, ringed socket, 125A, surface mount, no bypass Picture of CQRB100CP - Meter mains, QO, CSED, ringed socket, 125A, surface mount, no bypass
Picture of CQRB100CP - Meter mains, QO, CSED, ringed socket, 125A, surface mount, no bypass Picture of CQRB100CP - Meter mains, QO, CSED, ringed socket, 125A, surface mount, no bypass
Picture of CQRB100CP - Meter mains, QO, CSED, ringed socket, 125A, surface mount, no bypass Picture of CQRB100CP - Meter mains, QO, CSED, ringed socket, 125A, surface mount, no bypass
Picture of CQRB100CP - Meter mains, QO, CSED, ringed socket, 125A, surface mount, no bypass Picture of CQRB100CP - Meter mains, QO, CSED, ringed socket, 125A, surface mount, no bypass
Picture of CQRB100CP - Meter mains, QO, CSED, ringed socket, 125A, surface mount, no bypass Picture of CQRB100CP - Meter mains, QO, CSED, ringed socket, 125A, surface mount, no bypass
Schneider Electric

CQRB100CP - Meter mains, QO, CSED, ringed socket, 125A, surface mount, no bypass

Item Code: 1011240
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref CQRB100CP

Document
Document
Call for Availability
Add to Favorites
Compare

Description

QO meter main devices are used in residential applications where local codes require service disconnects to be located outside the dwelling. They include the utility meter socket and factory installed and/or provisions for field installation of service disconnect(s) to feed downstream devices. Meter mains are surface mount and typically used with interior mounted sub feed load centers. This meter main is ring type at a 100 A Main breaker rating and 125 A line rated current. It has a hub type of B with service disconnect already installed and a short circuit rating of 10 kA. Service feed can be underground or overhead.

Specifications

Weight

15.41

Height

5.6

Width

14.07

Length

14.86

AD Application

Residential, Service Equipment, Compact Design and Outdoor Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Includes

Circuit Breaker

AD Invoice Description

MAIN MTR ENTR SVCE COMBINATION 100A

AD Item Features 01

QO ringless meter mains support standard utility meters and a main disconnect breakers

AD Item Features 02

This single compact solution provides a time and space saving solution for contractors and installers

AD Item Features 03

Suitable for use as service entrance equipment

AD Item Features 04

CSED allows for the meter socket to integrate with the load center into one compact design

AD Manufacturer (Description)

Schneider Electric

AD Package Height

5.6000

AD Package Height UOM

IN

AD Package Length

14.8600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1192.8000

AD Package Volume UOM

cu-in

AD Package Weight

15.4100

AD Package Weight UOM

LB

AD Package Width

14.0700

AD Package Width UOM

IN

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

100

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Line/Service Ground Lug

Spec 11 Attribute

Type

Spec 11 Attribute Value

Factory Installed Rainproof

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

120/240

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

8 to 1/0 AWG, 4 to 1/0 AWG Aluminum/Copper

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ring

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

12.8 in H x 13.82 in W x 4.4 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead/Underground

Spec 6 Attribute

Hub Type

Spec 6 Attribute Value

Type B

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Surface

Spec 8 Attribute

Number of Jaws

Spec 8 Attribute Value

4

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

1
