Square D

CU816D400CB - Meter mains, QO, CSED, ringed socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 manual bypass

Category Residential Meter Mains

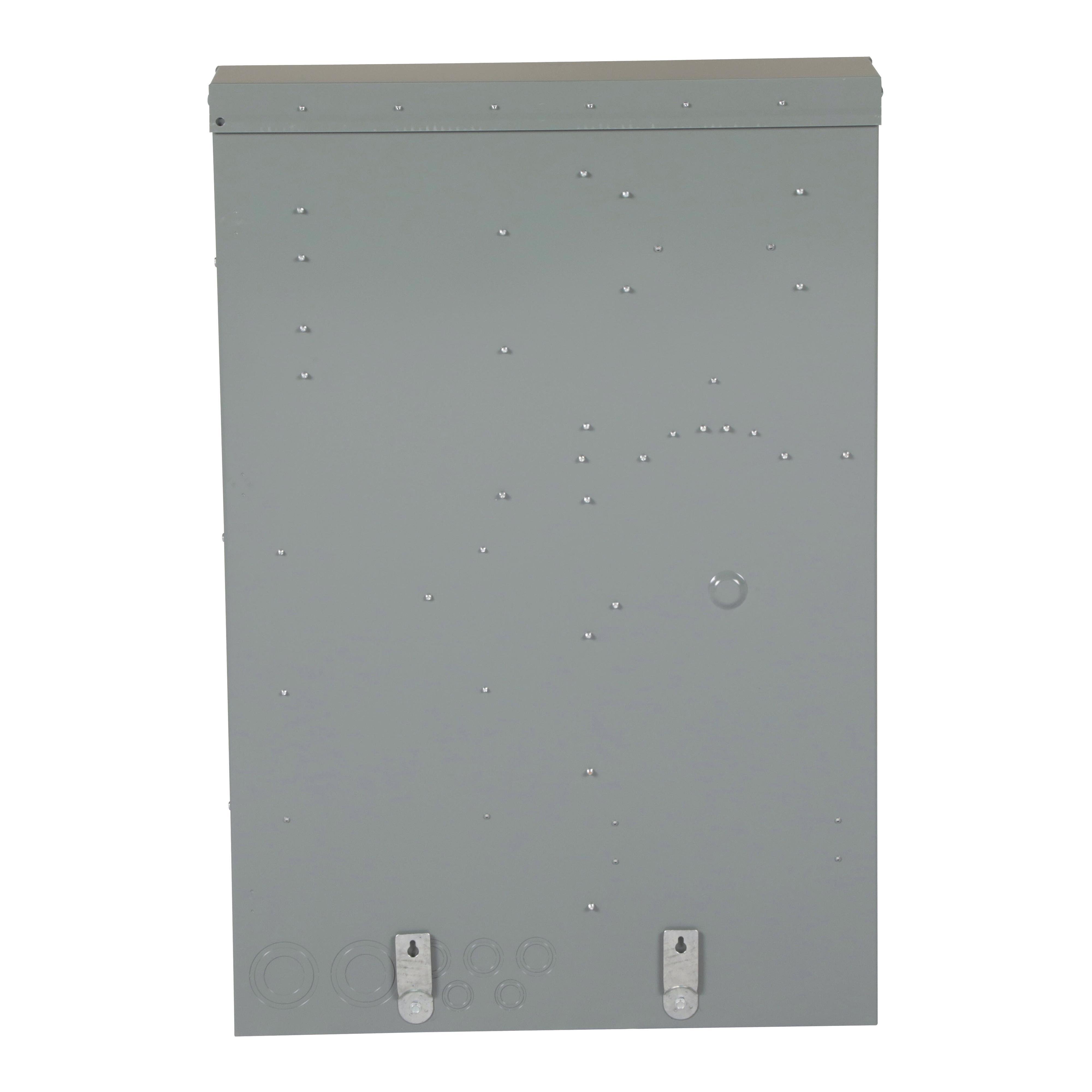

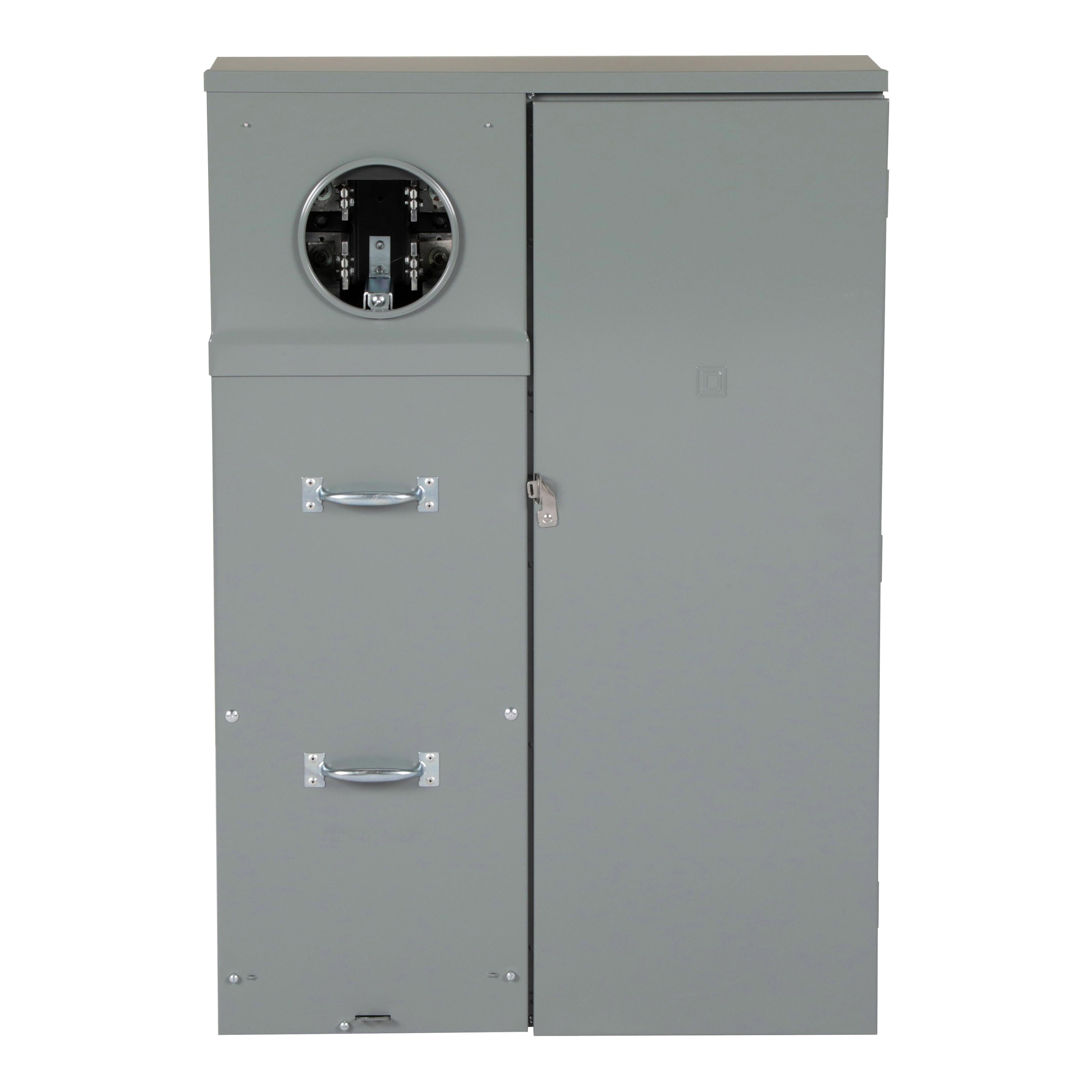

Picture of CU816D400CB - Meter mains, QO, CSED, ringed socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 manual bypass Picture of CU816D400CB - Meter mains, QO, CSED, ringed socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 manual bypass
Picture of CU816D400CB - Meter mains, QO, CSED, ringed socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 manual bypass Picture of CU816D400CB - Meter mains, QO, CSED, ringed socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 manual bypass
Picture of CU816D400CB - Meter mains, QO, CSED, ringed socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 manual bypass Picture of CU816D400CB - Meter mains, QO, CSED, ringed socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 manual bypass
Square D

CU816D400CB - Meter mains, QO, CSED, ringed socket, 400A, surface mount, maximum 8 spaces, 16 circuits, Class 320 manual bypass

Item Code: 855393
Category Residential Meter Mains
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref CU816D400CB

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Square D™ Meter Mains are single phase power distribution panels used in residential applications where local codes require service disconnects to be located outside the dwelling. The meter socket supports a standard utility meter and a main disconnect breaker which provides a time and space saving solution for contractors and installers. Meter mains are surface or semiflush mount with provisions. This is for the field installation of the service disconnect(s) that feed devices downstream. Interior subfeed load centers are typically used with these. This CSED is a QO ring type, class 320 socket with test block bypass, and underground feed. With a current rating of 400A, this product has a short circuit current rating of 25kA. Main lug interior option is also available. Devices meet the Electric Utility Service Equipment Requirements Committee (EUSERC) standards, Federal Specifications W-P-115C for government housing.

Specifications

Weight

1.12

Width

28

Length

7.8

AD Application

Residential Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

MAIN MTR ENTR SVCE COMBINATION 400A 1 4

AD Item Features 01

This single compact solution provides a time and space saving solution for contractors and installers

AD Item Features 02

Suitable for use as service entrance equipment

AD Item Features 03

CSED integrate meter socket that, a main disconnect and load center into one compact design

AD Item Features 04

California residents see Prop 65 WARNINGS

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

7.8000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

1.1200

AD Package Weight UOM

LB

AD Package Width

28.0000

AD Package Width UOM

IN

Brand

Square D

Category

RESIDENTIAL METER MAINS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

400

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

1

Spec 11 Attribute

Terminal Type

Spec 11 Attribute Value

Line/Service Ground/Feed Through Lug

Spec 12 Attribute

Type

Spec 12 Attribute Value

3-Wire 8-Circuit 16-Space Field Installed Rainproof

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

120/240

Spec 14 Attribute

Wire Size

Spec 14 Attribute Value

4 AWG to 250 kcmil Aluminum/Copper

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ring

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

41-1/4 in H x 28-1/4 in W x 7-1/2 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Underground

Spec 6 Attribute

Hub Size

Spec 6 Attribute Value

2-1/2 in, 3 in, 3-1/2 in, 4 in

Spec 7 Attribute

Hub Type

Spec 7 Attribute Value

A-L

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Flush

Spec 9 Attribute

Number of Jaws

Spec 9 Attribute Value

4
