Square D

D222N - Safety switch, general duty, fusible, 60A, 2 pole, 15hp, 240VAC, NEMA 1, 3 wire, 1 neutral,

Category Fusible General Duty Safety Switches

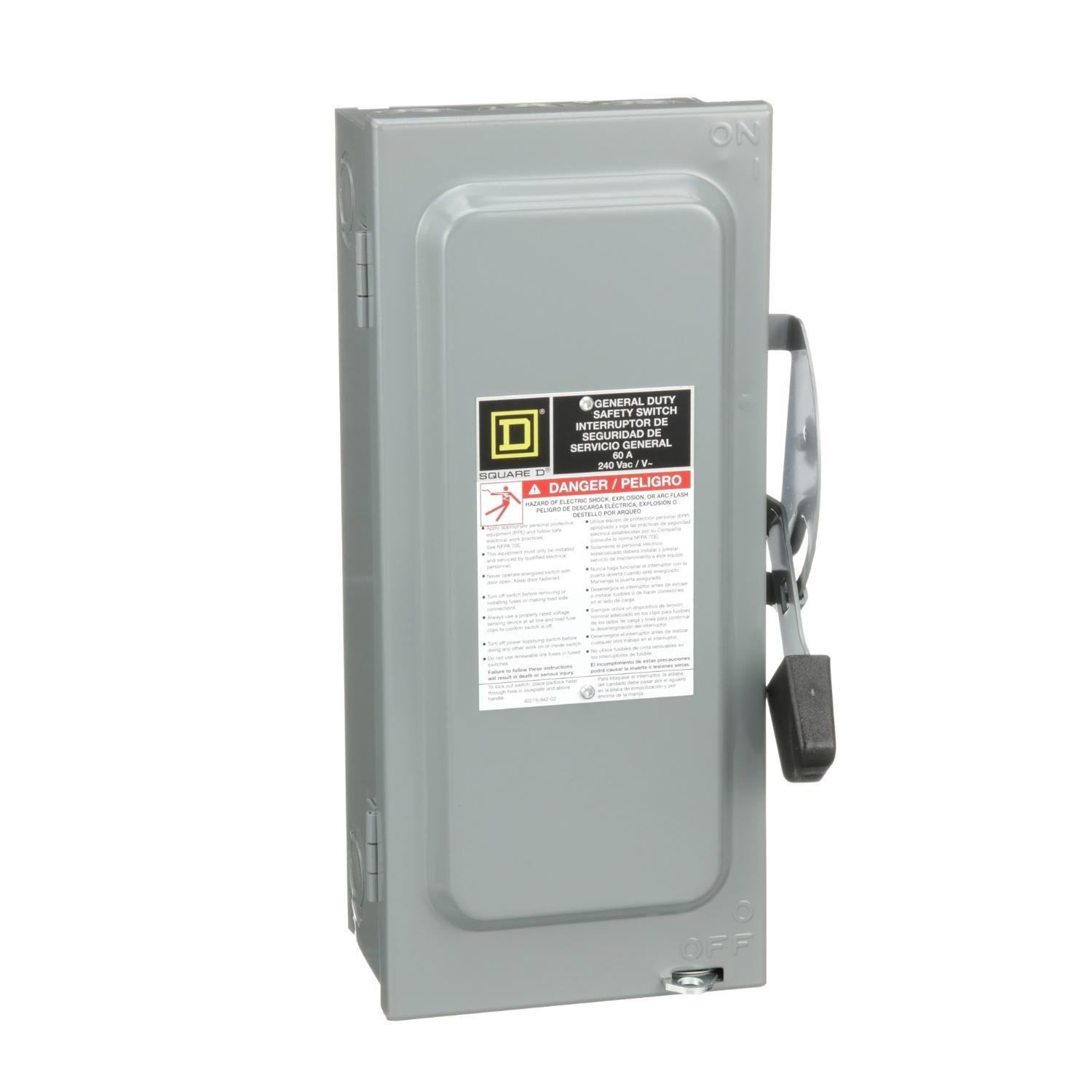

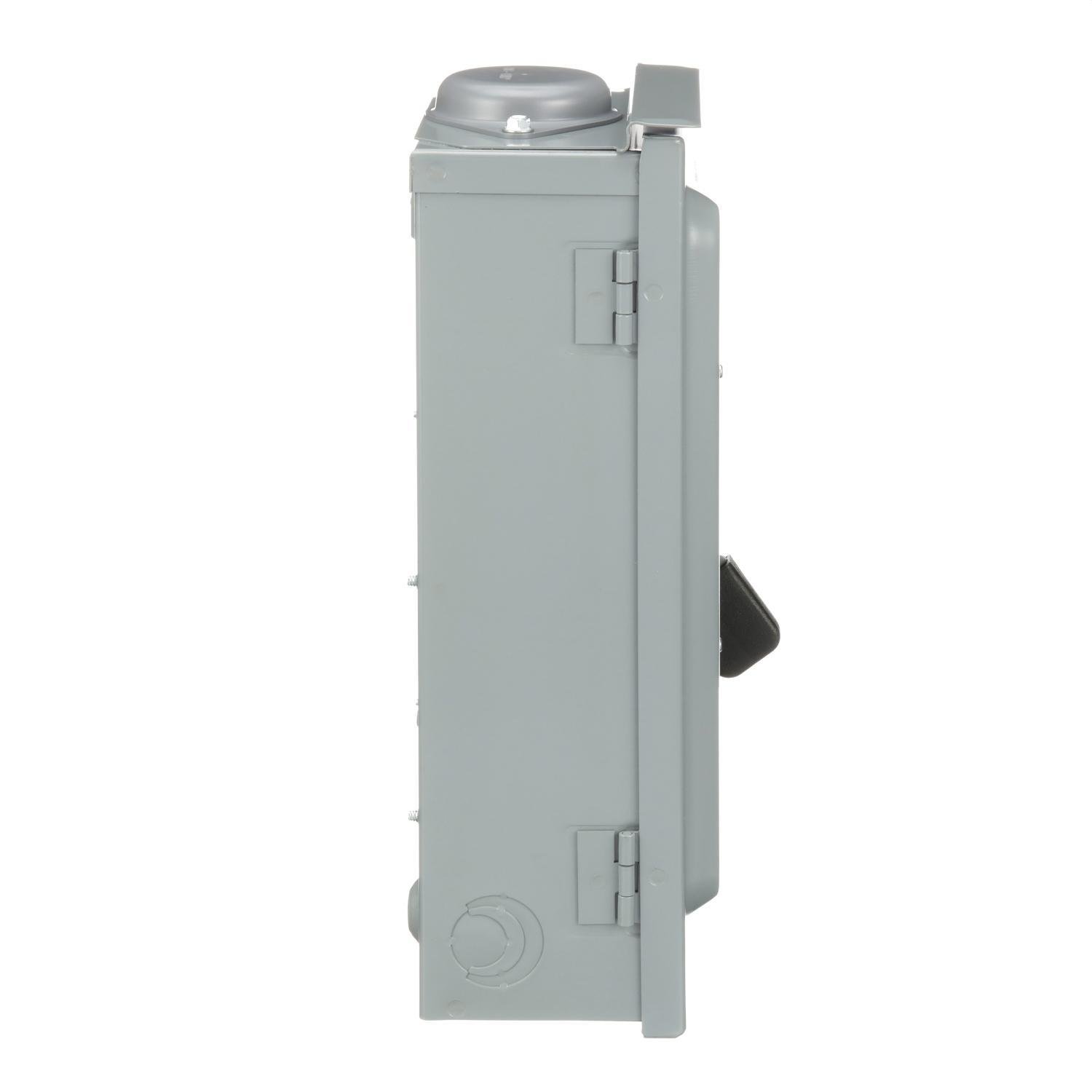

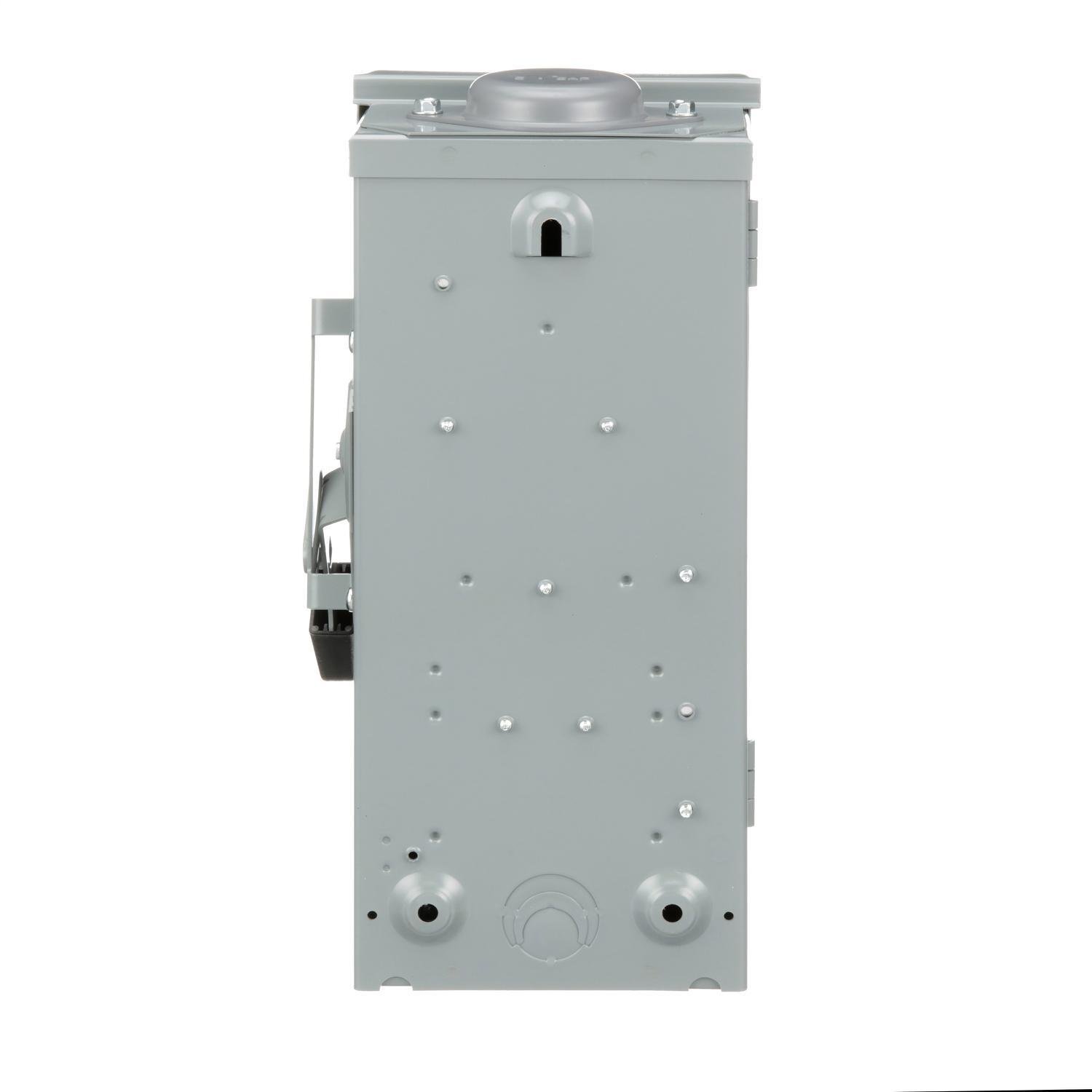

Picture of D222N - Safety switch, general duty, fusible, 60A, 2 pole, 15hp, 240VAC, NEMA 1, 3 wire, 1 neutral, Picture of D222N - Safety switch, general duty, fusible, 60A, 2 pole, 15hp, 240VAC, NEMA 1, 3 wire, 1 neutral,
Picture of D222N - Safety switch, general duty, fusible, 60A, 2 pole, 15hp, 240VAC, NEMA 1, 3 wire, 1 neutral, Picture of D222N - Safety switch, general duty, fusible, 60A, 2 pole, 15hp, 240VAC, NEMA 1, 3 wire, 1 neutral,
Picture of D222N - Safety switch, general duty, fusible, 60A, 2 pole, 15hp, 240VAC, NEMA 1, 3 wire, 1 neutral, Picture of D222N - Safety switch, general duty, fusible, 60A, 2 pole, 15hp, 240VAC, NEMA 1, 3 wire, 1 neutral,
Picture of D222N - Safety switch, general duty, fusible, 60A, 2 pole, 15hp, 240VAC, NEMA 1, 3 wire, 1 neutral, Picture of D222N - Safety switch, general duty, fusible, 60A, 2 pole, 15hp, 240VAC, NEMA 1, 3 wire, 1 neutral,
Picture of D222N - Safety switch, general duty, fusible, 60A, 2 pole, 15hp, 240VAC, NEMA 1, 3 wire, 1 neutral, Picture of D222N - Safety switch, general duty, fusible, 60A, 2 pole, 15hp, 240VAC, NEMA 1, 3 wire, 1 neutral,
Square D

D222N - Safety switch, general duty, fusible, 60A, 2 pole, 15hp, 240VAC, NEMA 1, 3 wire, 1 neutral,

Item Code: 17941
Category Fusible General Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref D222N

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory installed neutral assembly or field installed service grounding kit. This general duty single throw safety switch is a two pole, 60A, fusible disconnect with a 240VAC voltage rating. This switch has a factory installed neutral and a NEMA 1 enclosure and is surface mounted. This safety switch accepts H, K, or R fuses. This switch comes with lugs suitable for aluminum or copper conductors. This safety switch accepts H, K, or R fuses. These general duty switches are UL listed.

Specifications

Weight

7.75lb

Height

5.2mm

Width

7.53mm

Length

15.85mm

Depth

4.87mm

AD All Features

Fusible switches provide over-current and short circuit protection

AD Application

General Purpose and Indoor Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

SWITCH SAF DUTY GENL 240VAC 60A

AD Item Features 01

Fusible switches provide over-current and short circuit protection

AD Item Features 02

Excellent for disconnecting lighting, air condition, and appliances

AD Item Features 03

Quick make, quick break operating mechanism

AD Manufacturer (Description)

Schneider Electric

AD Package Height

5.2000

AD Package Height UOM

IN

AD Package Length

15.8500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

7.7500

AD Package Weight UOM

LB

AD Package Width

7.5300

AD Package Width UOM

IN

Brand

Square D

Category

FUSIBLE GENERAL DUTY SAFETY SWITCHES

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Handle

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Surface

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

2

Spec 12 Attribute

Number Of Wires

Spec 12 Attribute Value

3

Spec 13 Attribute

PHASE

Spec 13 Attribute Value

3-Jan

Spec 14 Attribute

Series

Spec 14 Attribute Value

F1

Spec 15 Attribute

Short Circuit Current Rating

Spec 15 Attribute UOM

KA

Spec 15 Attribute Value

100

Spec 16 Attribute

Terminal Type

Spec 16 Attribute Value

Lug

Spec 17 Attribute

Type

Spec 17 Attribute Value

Enclosed Fusible

Spec 18 Attribute

Voltage Rating

Spec 18 Attribute UOM

V AC

Spec 18 Attribute Value

240

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

60

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

DPST

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

14.6 in H x 6.51 in W x 4.87 in D

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Finish

Spec 6 Attribute Value

Galvanized

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

HORSEPOWER

Spec 8 Attribute Value

10 hp/15 hp

Spec 9 Attribute

Material

Spec 9 Attribute Value

Steel
