Schneider Electric

D226NR - Safety switch, general duty, fusible, 600A, 2 pole, 240VAC, NEMA 3R, neutral factory installed

Category Fusible General Duty Safety Switches

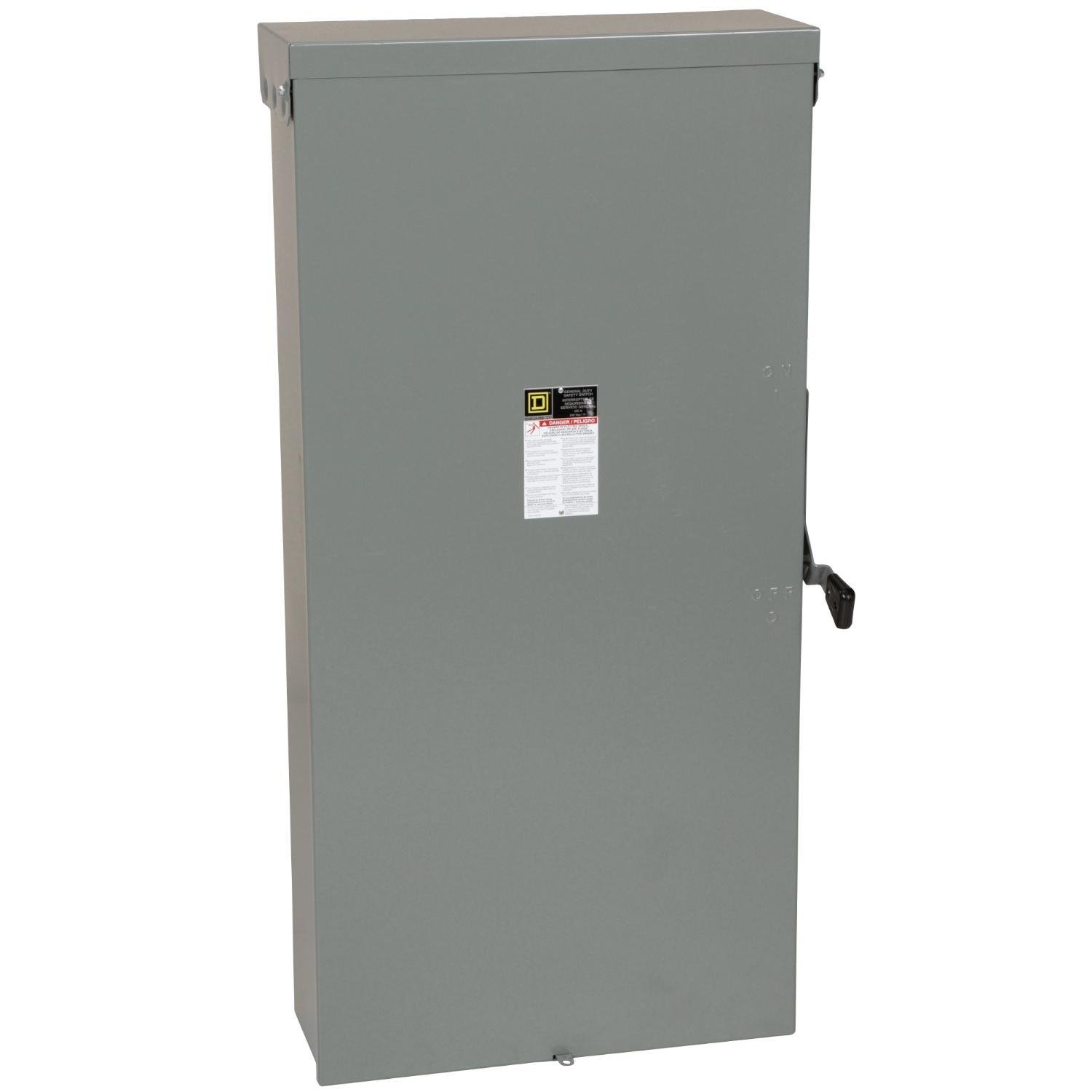

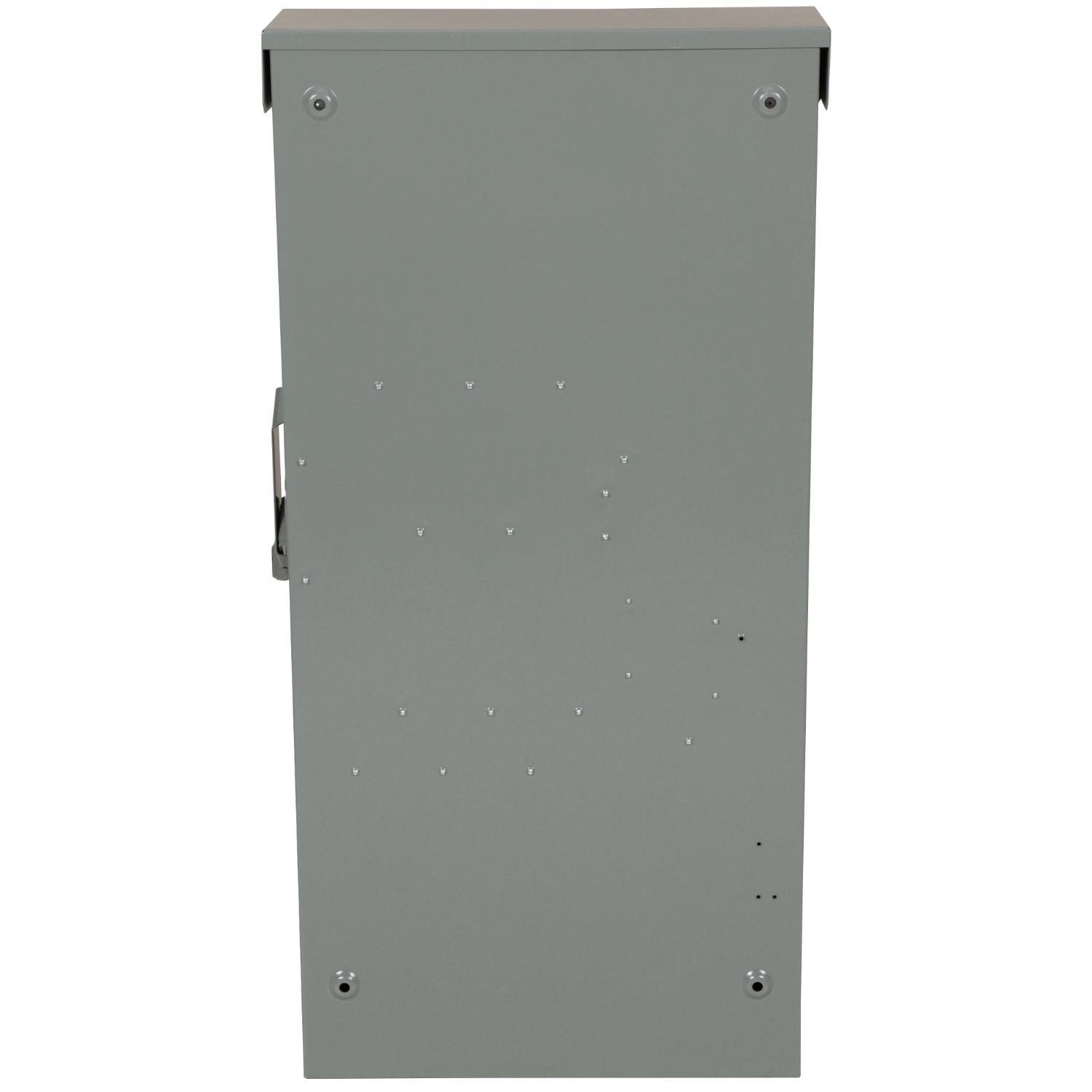

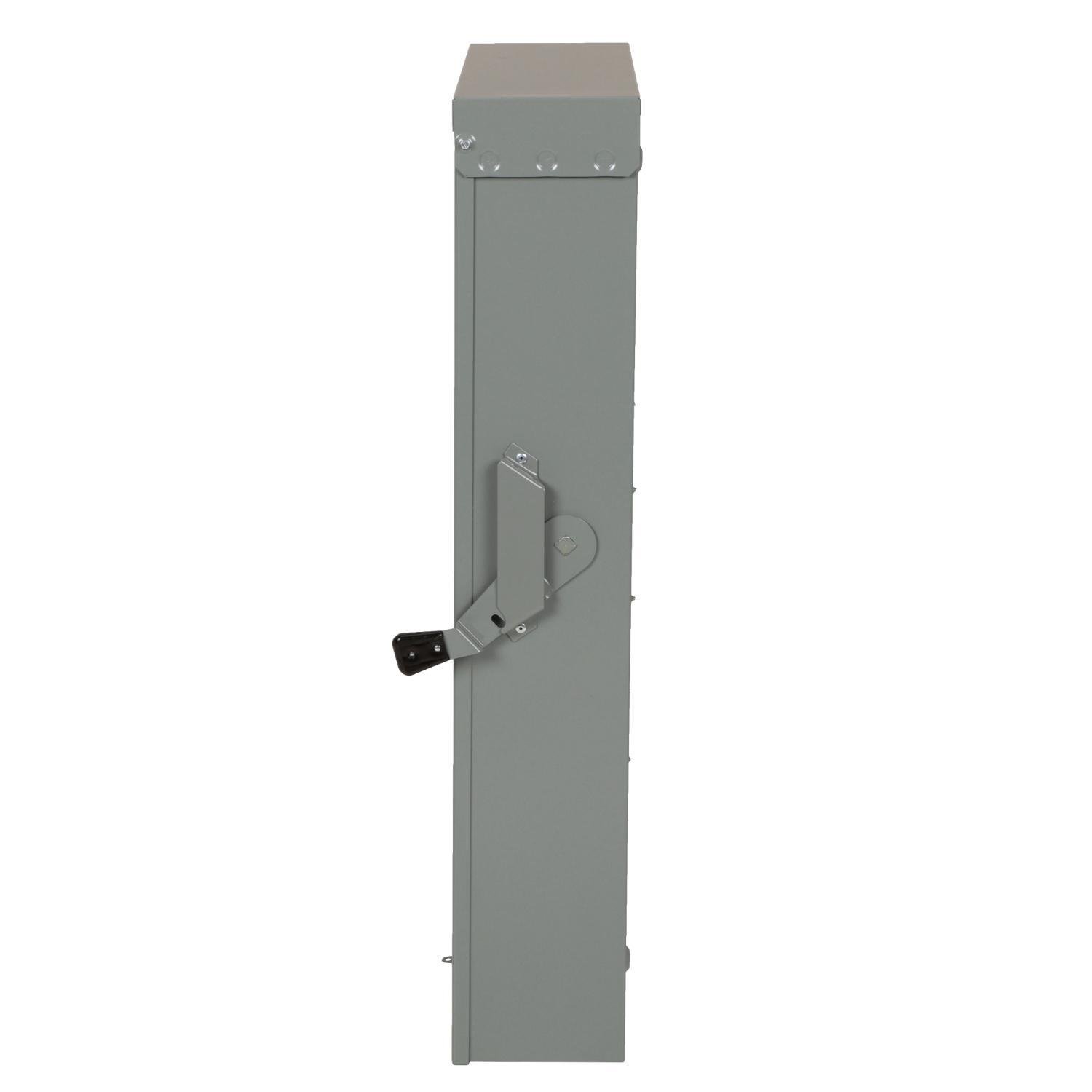

Picture of D226NR - Safety switch, general duty, fusible, 600A, 2 pole, 240VAC, NEMA 3R, neutral factory installed Picture of D226NR - Safety switch, general duty, fusible, 600A, 2 pole, 240VAC, NEMA 3R, neutral factory installed
Picture of D226NR - Safety switch, general duty, fusible, 600A, 2 pole, 240VAC, NEMA 3R, neutral factory installed Picture of D226NR - Safety switch, general duty, fusible, 600A, 2 pole, 240VAC, NEMA 3R, neutral factory installed
Picture of D226NR - Safety switch, general duty, fusible, 600A, 2 pole, 240VAC, NEMA 3R, neutral factory installed Picture of D226NR - Safety switch, general duty, fusible, 600A, 2 pole, 240VAC, NEMA 3R, neutral factory installed
Picture of D226NR - Safety switch, general duty, fusible, 600A, 2 pole, 240VAC, NEMA 3R, neutral factory installed Picture of D226NR - Safety switch, general duty, fusible, 600A, 2 pole, 240VAC, NEMA 3R, neutral factory installed
Schneider Electric

D226NR - Safety switch, general duty, fusible, 600A, 2 pole, 240VAC, NEMA 3R, neutral factory installed

Item Code: 48230
Category Fusible General Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref D226NR

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 600A with a NEMA 3R degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 2-pole, 240VAC has a short curcuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 4 / 500 kcmil, aluminium/copper. This switch is certified to UL standards Dinemsions for this product are 49.13 in (H), 25.13 in (W), 8.88 in (D). General Duty safety switchs come with an 18 months warranty.

Specifications

Weight

109.77lb

Height

49.13mm

Width

25.74mm

Length

50.82mm

Depth

8.88mm

AD All Features

Fusible switches provide over-current and short circuit protection

AD Application

General Purpose, Indoor/Outdoor, Light Commercial and Residential Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

SWITCH SAF 240VAC 600A DPST 2 100KA HDL

AD Item Features 01

Fusible switches provide over-current and short circuit protection

AD Item Features 02

Excellent for disconnecting lighting, air condition, and appliances

AD Item Features 03

Quick make, quick break operating mechanism

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

50.8200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

109.7700

AD Package Weight UOM

LB

AD Package Width

25.7400

AD Package Width UOM

IN

Brand

Square D

Category

FUSIBLE GENERAL DUTY SAFETY SWITCHES

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Handle

Spec 10 Attribute

Number Of Poles

Spec 10 Attribute Value

2

Spec 11 Attribute

Series

Spec 11 Attribute Value

E1 Series

Spec 12 Attribute

Short Circuit Current Rating

Spec 12 Attribute UOM

KA

Spec 12 Attribute Value

100

Spec 13 Attribute

Terminal Type

Spec 13 Attribute Value

Lug

Spec 14 Attribute

Type

Spec 14 Attribute Value

Fusible General Duty Iceproof Rainproof Sleetproof

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

240

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

600

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Contact Form

Spec 4 Attribute Value

DPST

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

24.75 in W x 8.88 in D x 49.13 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 3R

Spec 7 Attribute

Finish

Spec 7 Attribute Value

Baked Enamel/Galvanized/Phosphatized

Spec 8 Attribute

Material

Spec 8 Attribute Value

Steel

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Surface
