Square D

D321NRB - Safety switch, general duty, fusible, 30A, 3 pole, 7.5hp, 240VAC, NEMA 3R, bolt on provision, neutral factory installed

Category Fusible General Duty Safety Switches

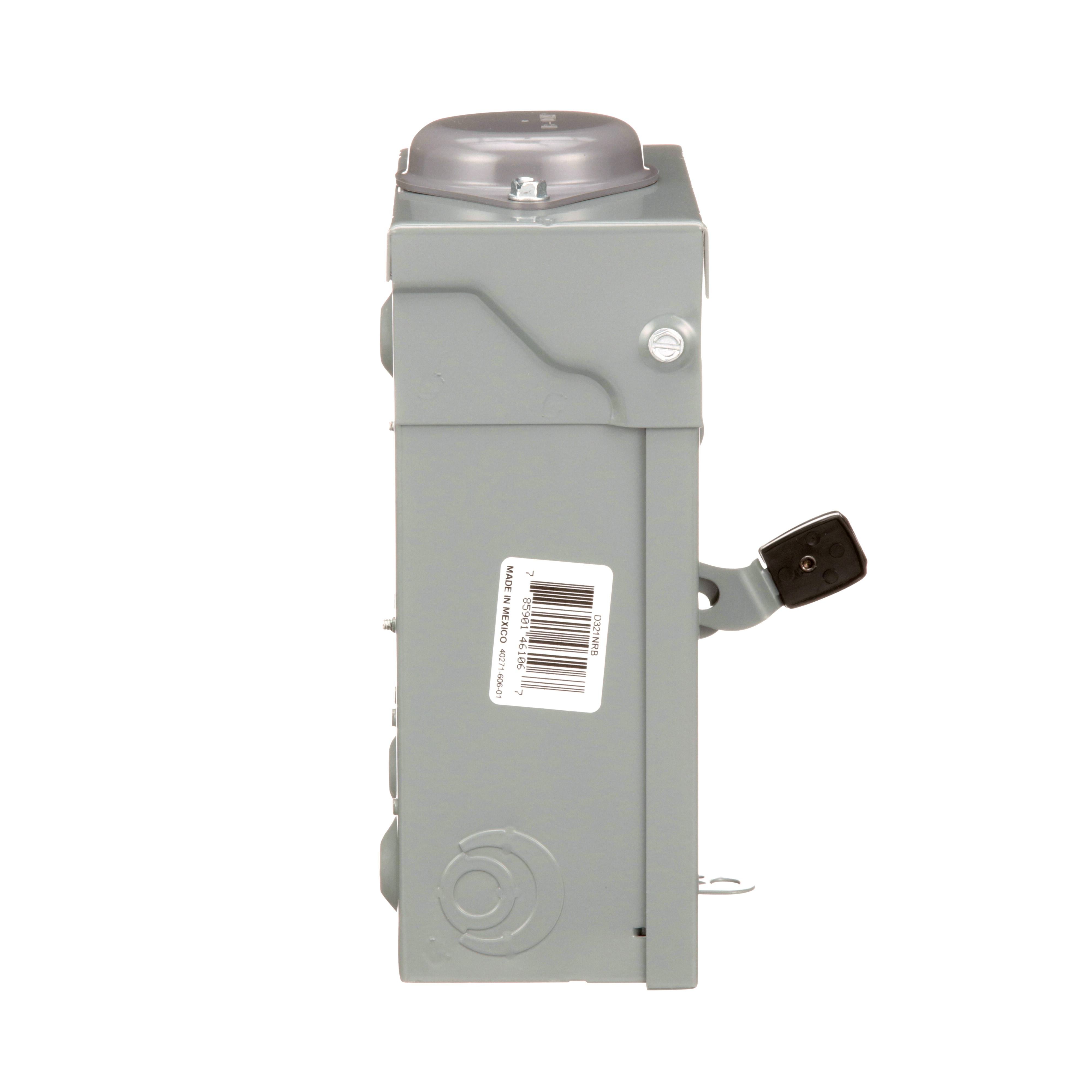

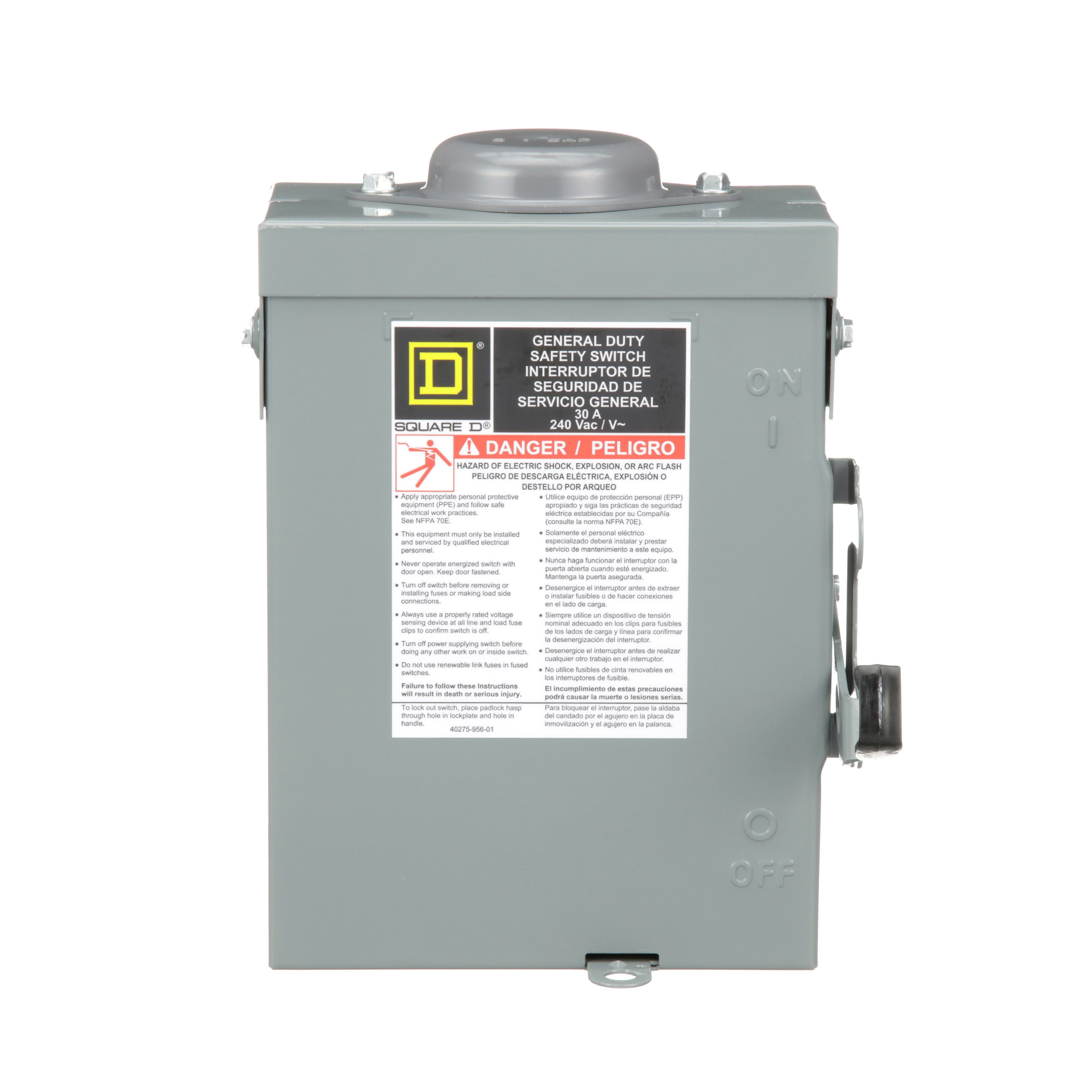

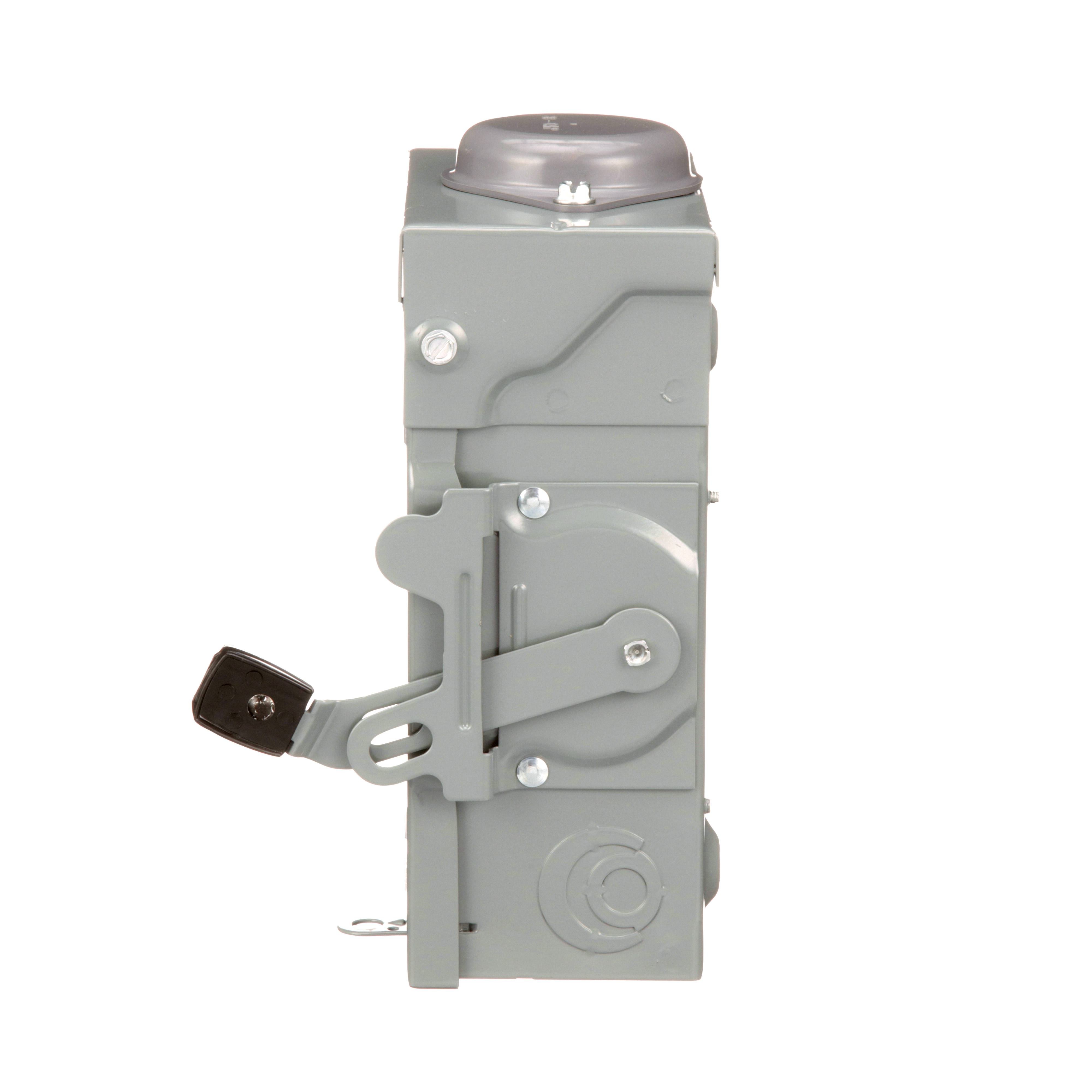

Picture of D321NRB - Safety switch, general duty, fusible, 30A, 3 pole, 7.5hp, 240VAC, NEMA 3R, bolt on provision, neutral factory installed Picture of D321NRB - Safety switch, general duty, fusible, 30A, 3 pole, 7.5hp, 240VAC, NEMA 3R, bolt on provision, neutral factory installed
Picture of D321NRB - Safety switch, general duty, fusible, 30A, 3 pole, 7.5hp, 240VAC, NEMA 3R, bolt on provision, neutral factory installed Picture of D321NRB - Safety switch, general duty, fusible, 30A, 3 pole, 7.5hp, 240VAC, NEMA 3R, bolt on provision, neutral factory installed
Picture of D321NRB - Safety switch, general duty, fusible, 30A, 3 pole, 7.5hp, 240VAC, NEMA 3R, bolt on provision, neutral factory installed Picture of D321NRB - Safety switch, general duty, fusible, 30A, 3 pole, 7.5hp, 240VAC, NEMA 3R, bolt on provision, neutral factory installed
Picture of D321NRB - Safety switch, general duty, fusible, 30A, 3 pole, 7.5hp, 240VAC, NEMA 3R, bolt on provision, neutral factory installed Picture of D321NRB - Safety switch, general duty, fusible, 30A, 3 pole, 7.5hp, 240VAC, NEMA 3R, bolt on provision, neutral factory installed
Square D

D321NRB - Safety switch, general duty, fusible, 30A, 3 pole, 7.5hp, 240VAC, NEMA 3R, bolt on provision, neutral factory installed

Item Code: 17950
Category Fusible General Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref D321NRB

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 30A with a NEMA 3R degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 3-pole, 240VAC has a short curcuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 14 AWG 6, copper & AWG 12 AWG 6, aluminium. This switch is certified to UL standards Dinemsions for this product are 9.63 in (H), 7.75 in (W), 3.75 in (D). General Duty safety switchs come with an 18 months warranty.

Specifications

Weight

4.89lb

Height

5.2mm

Width

7.73mm

Length

9.91mm

Depth

3.75mm

AD All Features

Fusible switches provide over-current and short circuit protection

AD Application

Indoor and outdoor applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

SWITCH SAF 240VAC 30A 7-1/2HP TPST 3 3

AD Item Features 01

Fusible switches provide over-current and short circuit protection

AD Item Features 02

Excellent for disconnecting lighting, air condition, and appliances

AD Item Features 03

Quick make, quick break operating mechanism

AD Manufacturer (Description)

Schneider Electric

AD Package Height

5.2000

AD Package Height UOM

IN

AD Package Length

9.9100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

4.8900

AD Package Weight UOM

LB

AD Package Width

7.7300

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/watch?v=7miLIVFYBgA

Brand

Square D

Category

FUSIBLE GENERAL DUTY SAFETY SWITCHES

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Handle

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Surface

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

3

Spec 12 Attribute

Number Of Wires

Spec 12 Attribute Value

3

Spec 13 Attribute

PHASE

Spec 13 Attribute Value

3-Jan

Spec 14 Attribute

Series

Spec 14 Attribute Value

E3

Spec 15 Attribute

Short Circuit Current Rating

Spec 15 Attribute UOM

KA

Spec 15 Attribute Value

100

Spec 16 Attribute

Terminal Type

Spec 16 Attribute Value

Lug

Spec 17 Attribute

Type

Spec 17 Attribute Value

Enclosed Fusible

Spec 18 Attribute

Voltage Rating

Spec 18 Attribute UOM

V AC

Spec 18 Attribute Value

240

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

30

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

3PST

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

9.63 in H x 7.25 in W x 3.75 in D

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 3R

Spec 6 Attribute

Finish

Spec 6 Attribute Value

Galvanized

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

HORSEPOWER

Spec 8 Attribute Value

3 hp/7.5 hp

Spec 9 Attribute

Material

Spec 9 Attribute Value

Steel
