Square D

D326N - Safety switch, general duty, fusible, 600A, 3 pole, 150hp, 240VAC, NEMA 1, neutral factory installed

Category Fusible General Duty Safety Switches

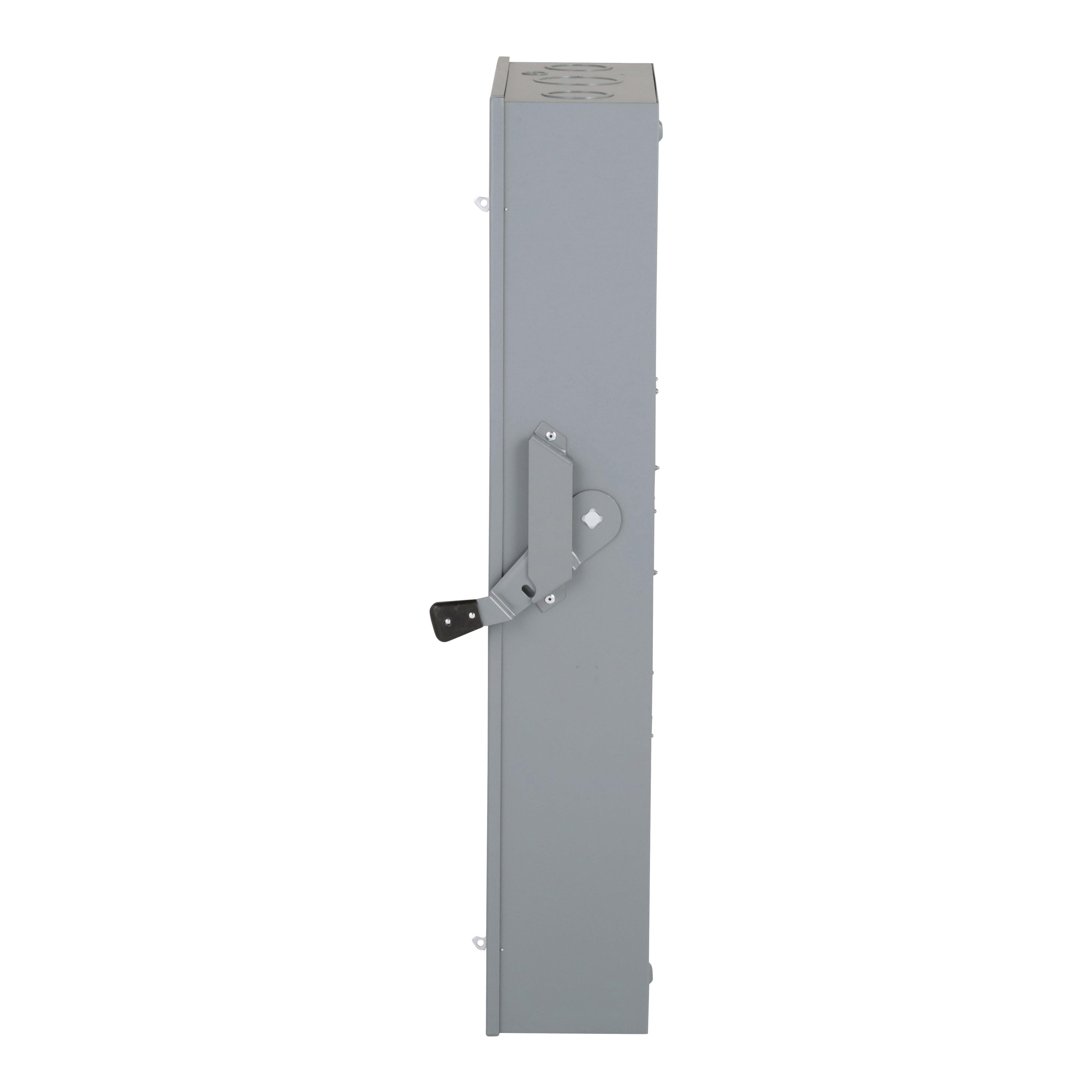

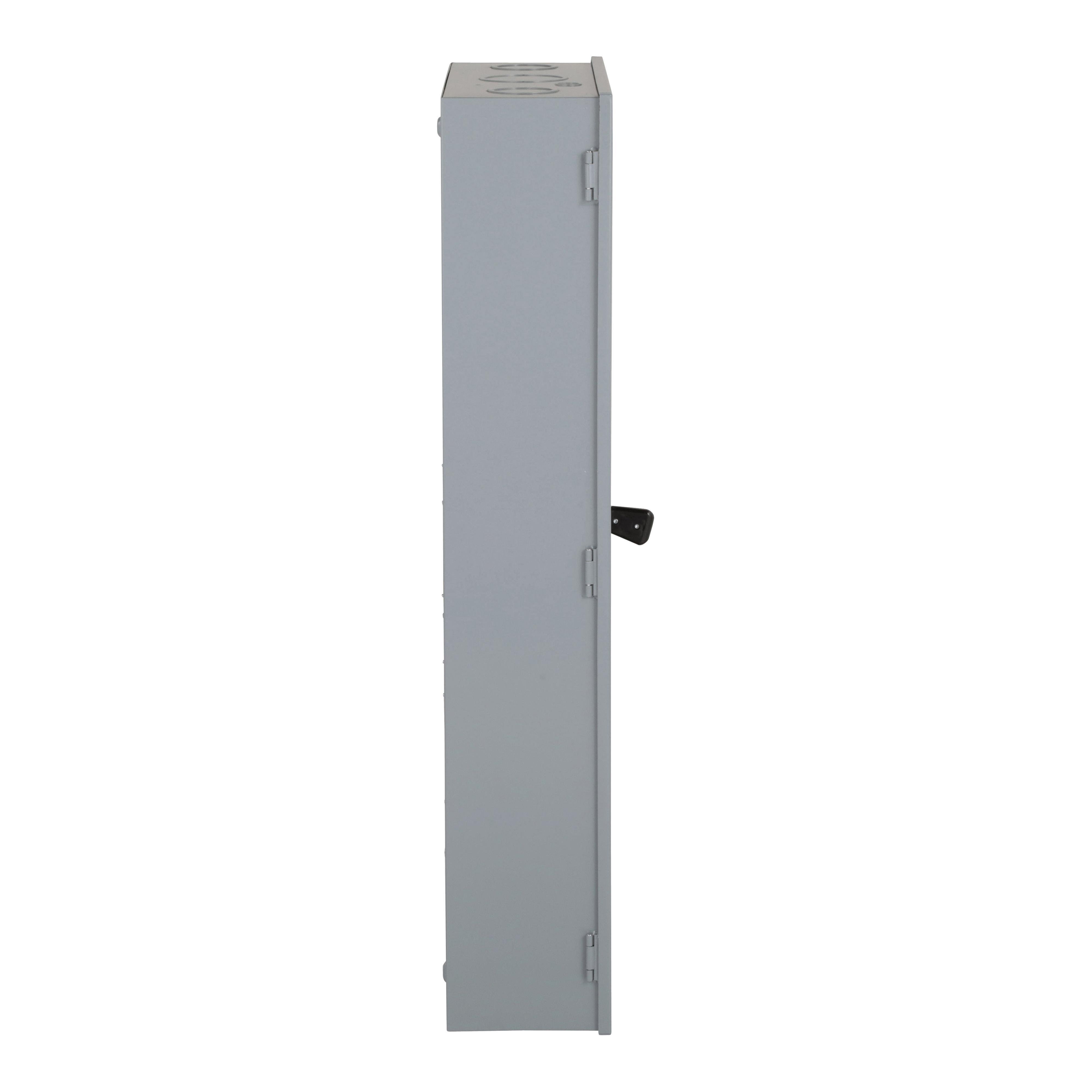

Picture of D326N - Safety switch, general duty, fusible, 600A, 3 pole, 150hp, 240VAC, NEMA 1, neutral factory installed Picture of D326N - Safety switch, general duty, fusible, 600A, 3 pole, 150hp, 240VAC, NEMA 1, neutral factory installed
Picture of D326N - Safety switch, general duty, fusible, 600A, 3 pole, 150hp, 240VAC, NEMA 1, neutral factory installed Picture of D326N - Safety switch, general duty, fusible, 600A, 3 pole, 150hp, 240VAC, NEMA 1, neutral factory installed
Picture of D326N - Safety switch, general duty, fusible, 600A, 3 pole, 150hp, 240VAC, NEMA 1, neutral factory installed Picture of D326N - Safety switch, general duty, fusible, 600A, 3 pole, 150hp, 240VAC, NEMA 1, neutral factory installed
Square D

D326N - Safety switch, general duty, fusible, 600A, 3 pole, 150hp, 240VAC, NEMA 1, neutral factory installed

Item Code: 32712
Category Fusible General Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref D326N

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 600A with a NEMA 1 degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 3-pole, 240VAC has a short curcuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 4/500 kcmil, aluminium/copper. This switch is certified to UL standards Dinemsions for this product are 45.12 in (H), 24.88 in (W), 8.88 in (D). General Duty safety switchs come with an 18 months warranty.

Specifications

Weight

126.73lb

Height

11.5mm

Width

25.74mm

Length

51.01mm

Depth

8.88mm

AD All Features

Fusible switches provide over-current and short circuit protection

AD Application

General Purpose, Indoor, Light Commercial and Residential Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

SWITCH SAF 240VAC 600A 75 TO 150HP TPST

AD Item Features 01

Fusible switches provide over-current and short circuit protection

AD Item Features 02

Excellent for disconnecting lighting, air condition, and appliances

AD Item Features 03

Quick make, quick break operating mechanism

AD Manufacturer (Description)

Schneider Electric

AD Package Height

11.5000

AD Package Height UOM

IN

AD Package Length

51.0100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

15398.5000

AD Package Volume UOM

cu-in

AD Package Weight

126.7300

AD Package Weight UOM

LB

AD Package Width

25.7400

AD Package Width UOM

IN

Brand

Square D

Category

FUSIBLE GENERAL DUTY SAFETY SWITCHES

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Handle

Spec 10 Attribute

Material

Spec 10 Attribute Value

Steel

Spec 11 Attribute

Mounting Type

Spec 11 Attribute Value

Surface

Spec 12 Attribute

Number Of Poles

Spec 12 Attribute Value

3

Spec 13 Attribute

Number Of Wires

Spec 13 Attribute Value

3

Spec 14 Attribute

PHASE

Spec 14 Attribute Value

3-Jan

Spec 15 Attribute

Series

Spec 15 Attribute Value

E3 Series

Spec 16 Attribute

Short Circuit Current Rating

Spec 16 Attribute UOM

KA

Spec 16 Attribute Value

100

Spec 17 Attribute

Terminal Type

Spec 17 Attribute Value

Lug

Spec 18 Attribute

Type

Spec 18 Attribute Value

Fusible General Duty

Spec 19 Attribute

Voltage Rating

Spec 19 Attribute UOM

V AC

Spec 19 Attribute Value

240

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

600

Spec 3 Attribute

Color

Spec 3 Attribute Value

Gray

Spec 4 Attribute

Contact Form

Spec 4 Attribute Value

3PST

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

24 in W x 8.88 in D x 49.13 in H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 1

Spec 7 Attribute

Finish

Spec 7 Attribute Value

Baked Enamel/Galvanized/Phosphatized

Spec 8 Attribute

Frequency Rating

Spec 8 Attribute UOM

HZ

Spec 8 Attribute Value

50/60

Spec 9 Attribute

HORSEPOWER

Spec 9 Attribute UOM

HP

Spec 9 Attribute Value

75 to 150
