Schneider Electric

DPE09B7 - IEC contactor,Easy TeSys DPE,nonreversing,9A,3P,3HP at 480V AC,24V 50/60Hz coil

Category Miscellaneous

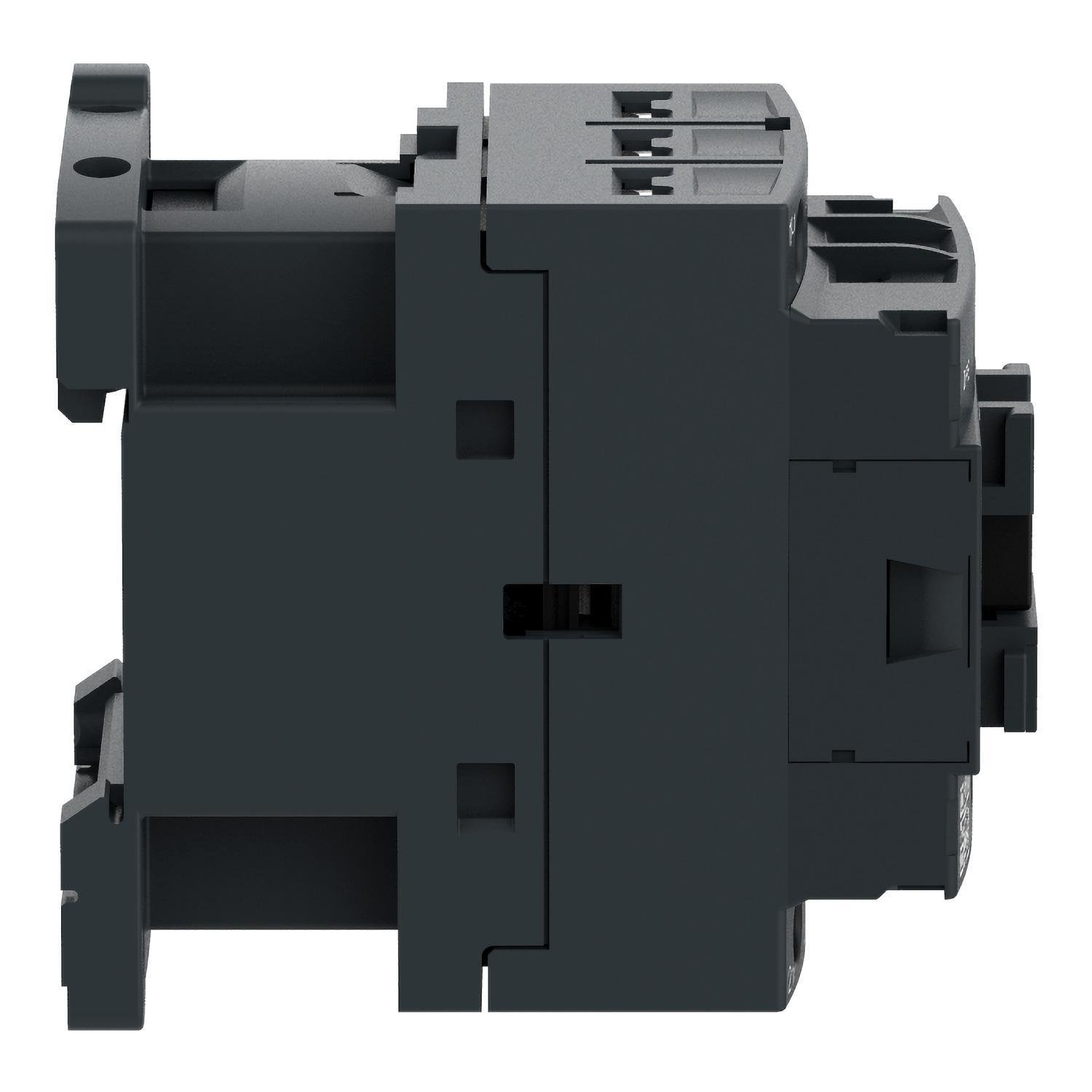

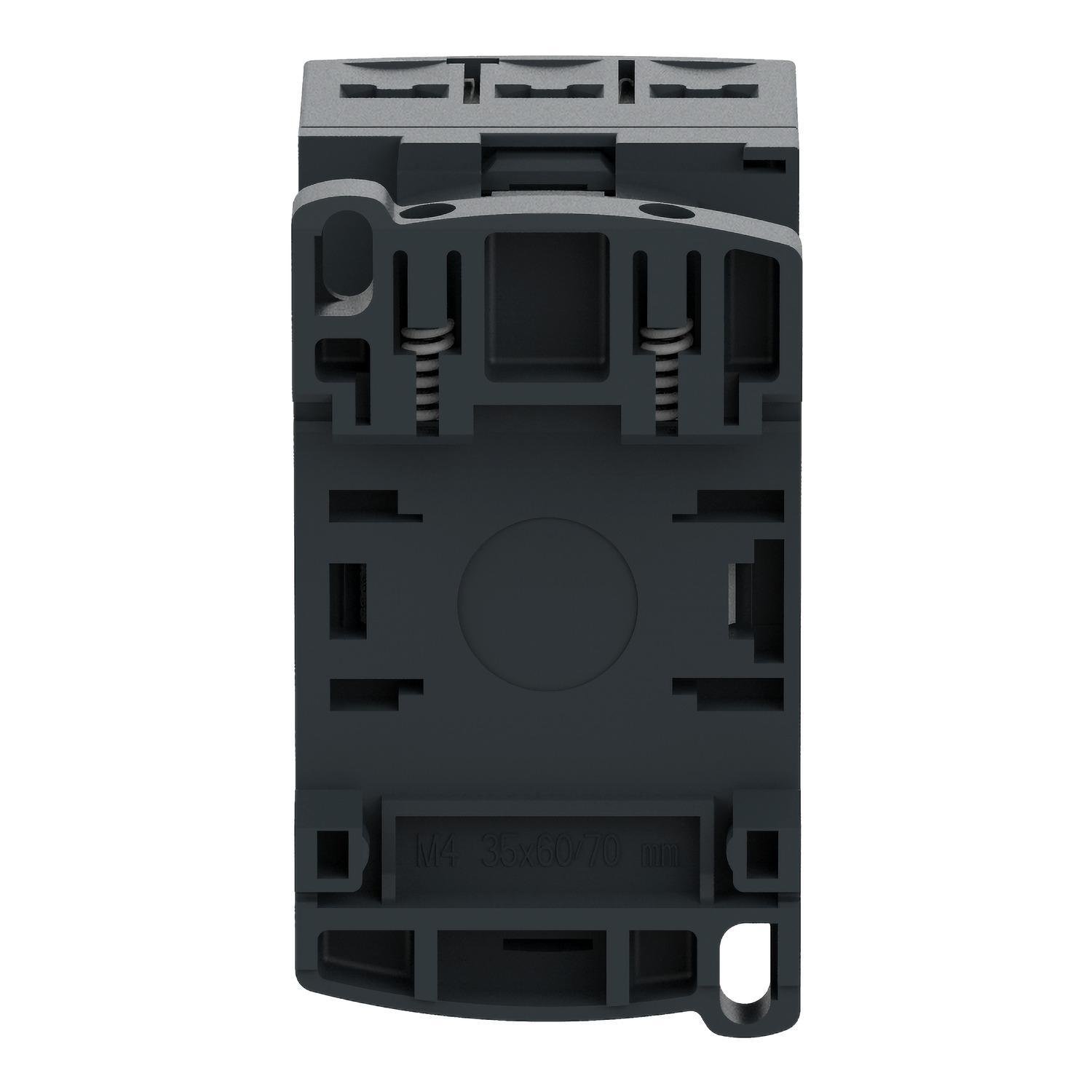

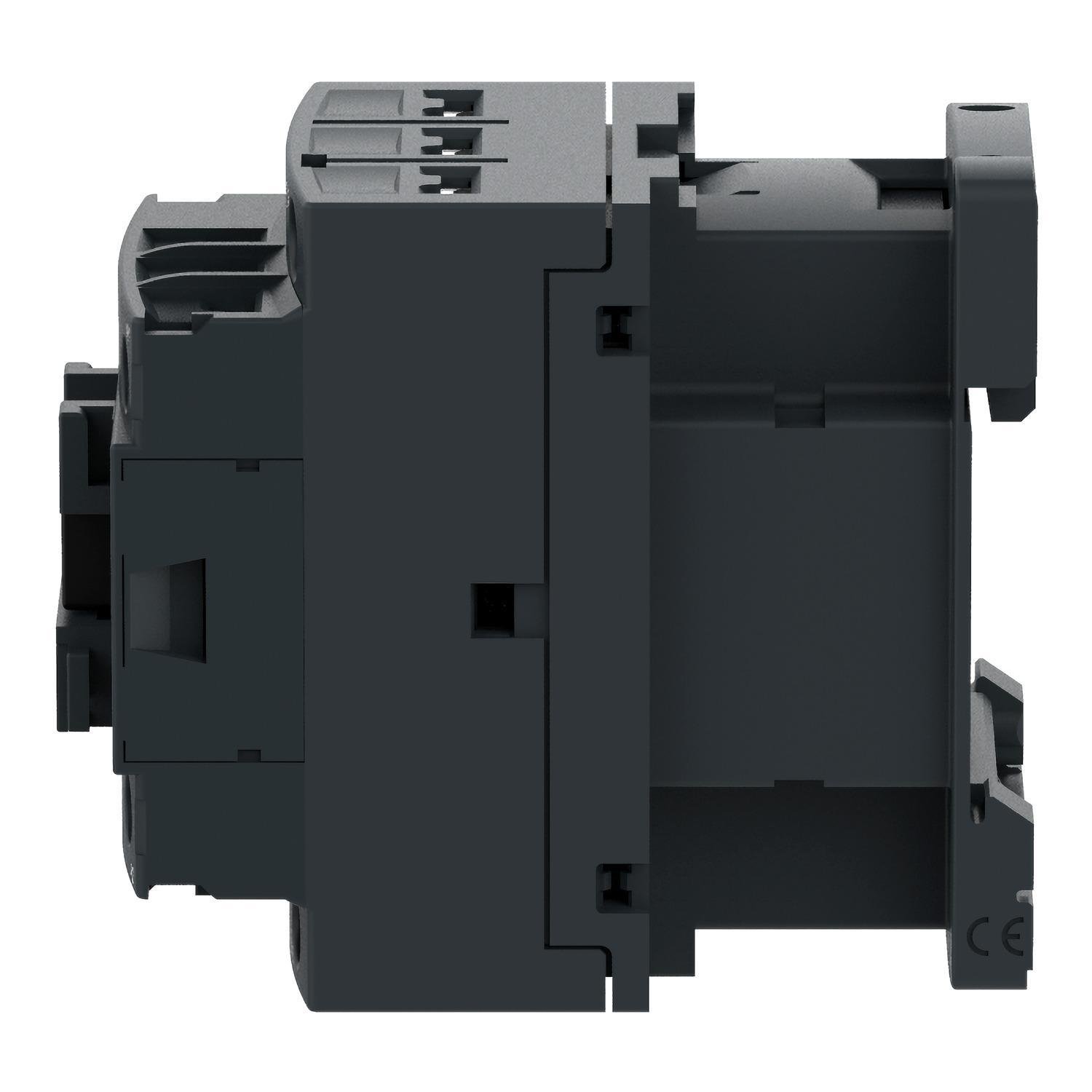

Picture of DPE09B7 - IEC contactor,Easy TeSys DPE,nonreversing,9A,3P,3HP at 480V AC,24V 50/60Hz coil Picture of DPE09B7 - IEC contactor,Easy TeSys DPE,nonreversing,9A,3P,3HP at 480V AC,24V 50/60Hz coil
Picture of DPE09B7 - IEC contactor,Easy TeSys DPE,nonreversing,9A,3P,3HP at 480V AC,24V 50/60Hz coil Picture of DPE09B7 - IEC contactor,Easy TeSys DPE,nonreversing,9A,3P,3HP at 480V AC,24V 50/60Hz coil
Picture of DPE09B7 - IEC contactor,Easy TeSys DPE,nonreversing,9A,3P,3HP at 480V AC,24V 50/60Hz coil Picture of DPE09B7 - IEC contactor,Easy TeSys DPE,nonreversing,9A,3P,3HP at 480V AC,24V 50/60Hz coil
Picture of DPE09B7 - IEC contactor,Easy TeSys DPE,nonreversing,9A,3P,3HP at 480V AC,24V 50/60Hz coil Picture of DPE09B7 - IEC contactor,Easy TeSys DPE,nonreversing,9A,3P,3HP at 480V AC,24V 50/60Hz coil
Schneider Electric

DPE09B7 - IEC contactor,Easy TeSys DPE,nonreversing,9A,3P,3HP at 480V AC,24V 50/60Hz coil

Item Code: 1169955
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref DPE09B7

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Easy TeSys DPE IEC contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (3 HP@480V). It provides a 24V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA).

Specifications

Weight

0.79

Height

2.11

Width

3.67

Length

4.66

AD All Features

DPE contactors can offer quick simple setup, while maintaining a compact size

AD Application

For Resistive load and Motor control

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

ID

AD Invoice Description

NEMA & IEC CONTACTORS EASY TESYS

AD Item Features 01

DPE contactors can offer quick simple setup, while maintaining a compact size

AD Item Features 02

Simple to select and install at optimized budget

AD Item Features 03

Reduced installation time

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.1100

AD Package Height UOM

IN

AD Package Length

4.6600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.7900

AD Package Weight UOM

LB

AD Package Width

3.6700

AD Package Width UOM

IN

Brand

Square D

Spec 1 Attribute

Coil Power Rating

Spec 1 Attribute Value

3 hp at 480 VAC

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Plate/Rail

Spec 11 Attribute

Number of Auxiliary Contacts

Spec 11 Attribute Value

1NO

Spec 12 Attribute

Number Of Poles

Spec 12 Attribute Value

3

Spec 13 Attribute

Operating Cycles

Spec 13 Attribute UOM

Cycles/hr

Spec 13 Attribute Value

3600

Spec 14 Attribute

Operating Temperature

Spec 14 Attribute UOM

deg C

Spec 14 Attribute Value

-40 To 60

Spec 15 Attribute

Power Factor

Spec 15 Attribute Value

70 Inrush, 7/7.5 Hold-In

Spec 16 Attribute

Series

Spec 16 Attribute Value

DPE

Spec 17 Attribute

Terminal Type

Spec 17 Attribute Value

Screw clamp

Spec 18 Attribute

Type

Spec 18 Attribute Value

Easy TeSys

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute Value

24 V AC at 50/60 Hz

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Screw clamp

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

3NO

Spec 5 Attribute

Contact Type

Spec 5 Attribute Value

Non-reversing

Spec 6 Attribute

Dimensions

Spec 6 Attribute Value

3.03 in H x 1.77 in W x 3.39 in D

Spec 7 Attribute

Enclosure Type

Spec 7 Attribute Value

IP20

Spec 8 Attribute

Frequency Rating

Spec 8 Attribute UOM

HZ

Spec 8 Attribute Value

50, 60

Spec 9 Attribute

Maximum Load Current

Spec 9 Attribute UOM

A

Spec 9 Attribute Value

9
