Schneider Electric

DPE32BL - IEC contactor,Easy TeSys DPE,nonreversing,32A,3P,15HP at 480V AC,24V DC coil

Category IEC Contactors

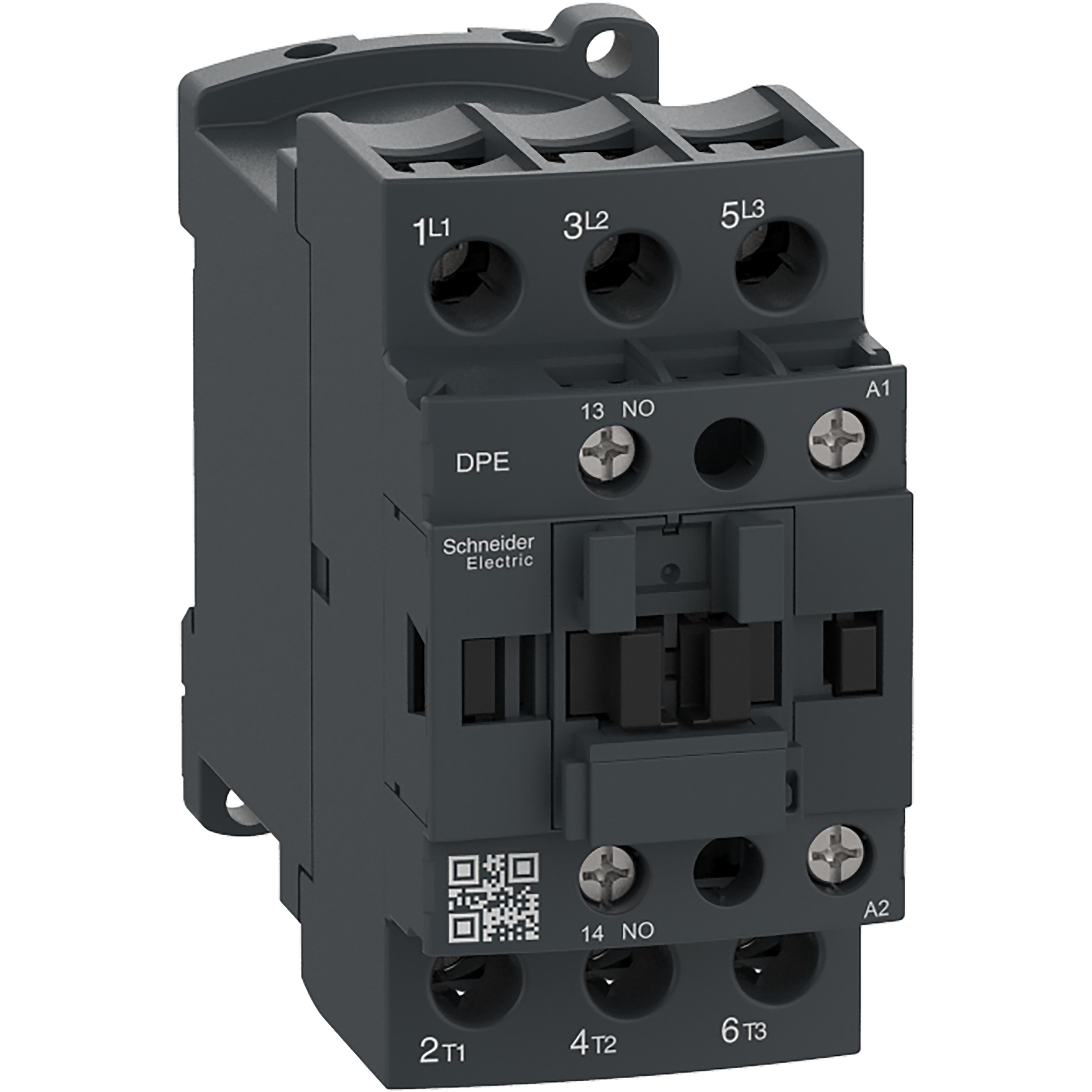

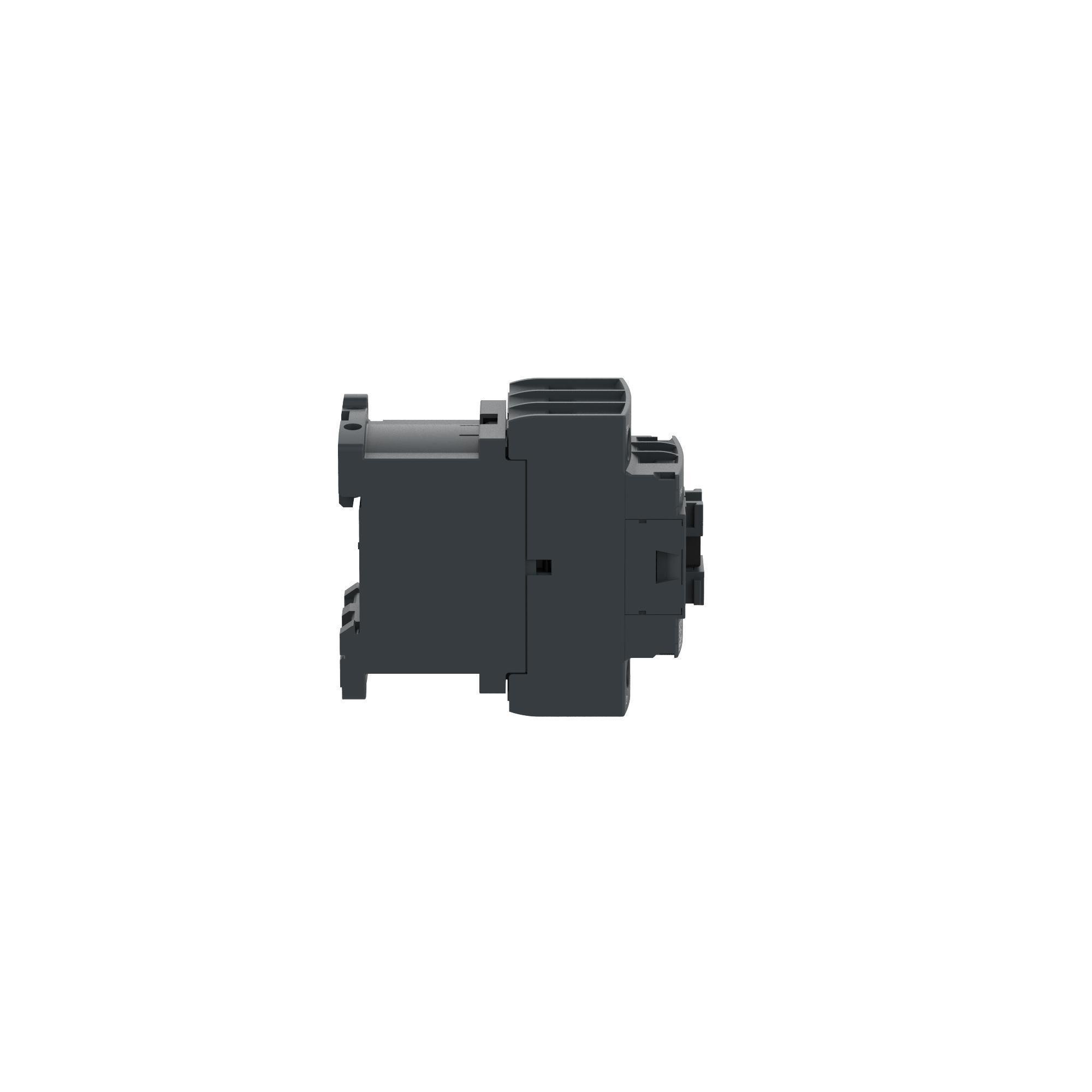

Picture of DPE32BL - IEC contactor,Easy TeSys DPE,nonreversing,32A,3P,15HP at 480V AC,24V DC coil Picture of DPE32BL - IEC contactor,Easy TeSys DPE,nonreversing,32A,3P,15HP at 480V AC,24V DC coil
Picture of DPE32BL - IEC contactor,Easy TeSys DPE,nonreversing,32A,3P,15HP at 480V AC,24V DC coil Picture of DPE32BL - IEC contactor,Easy TeSys DPE,nonreversing,32A,3P,15HP at 480V AC,24V DC coil
Picture of DPE32BL - IEC contactor,Easy TeSys DPE,nonreversing,32A,3P,15HP at 480V AC,24V DC coil Picture of DPE32BL - IEC contactor,Easy TeSys DPE,nonreversing,32A,3P,15HP at 480V AC,24V DC coil
Schneider Electric

DPE32BL - IEC contactor,Easy TeSys DPE,nonreversing,32A,3P,15HP at 480V AC,24V DC coil

Item Code: 1169964
Category IEC Contactors
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref DPE32BL

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Easy TeSys DPE IEC contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3 (15 HP@480V). It provides a 24V DC coil, 1NO built-in auxiliary contacts, connection by screw clamp terminals. Compact (45mm width), DIN-rail mounting or scre

Specifications

Weight

0.88

Height

3.94

Width

1.75

Length

3.31

AD All Features

DPE contactors can offer quick simple setup, while maintaining a compact size

AD Application

For Resistive load and Motor control

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

NEMA & IEC CONTACTORS EASY TESYS

AD Item Features 01

DPE contactors can offer quick simple setup, while maintaining a compact size

AD Item Features 02

Simple to select and install at optimized budget

AD Item Features 03

Reduced installation time

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.9400

AD Package Height UOM

IN

AD Package Length

3.3100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.8800

AD Package Weight UOM

LB

AD Package Width

1.7500

AD Package Width UOM

IN

Brand

Square D

Category

IEC Contactors

Spec 1 Attribute

Coil Power Rating

Spec 1 Attribute Value

15 hp at 480 VAC

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Plate/Rail

Spec 11 Attribute

Number of Auxiliary Contacts

Spec 11 Attribute Value

1NO

Spec 12 Attribute

Number Of Poles

Spec 12 Attribute Value

3

Spec 13 Attribute

Operating Cycles

Spec 13 Attribute UOM

Cycles/hr

Spec 13 Attribute Value

3600

Spec 14 Attribute

Operating Temperature

Spec 14 Attribute UOM

deg C

Spec 14 Attribute Value

-40 To 60

Spec 15 Attribute

Power Factor

Spec 15 Attribute Value

2.4 Inrush, 2.4 Hold-In

Spec 16 Attribute

Series

Spec 16 Attribute Value

DPE

Spec 17 Attribute

Terminal Type

Spec 17 Attribute Value

Screw clamp

Spec 18 Attribute

Type

Spec 18 Attribute Value

Easy TeSys

Spec 2 Attribute

Coil Voltage

Spec 2 Attribute Value

24 V AC at 50/60 Hz

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Screw clamp

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

3NO

Spec 5 Attribute

Contact Type

Spec 5 Attribute Value

Non-reversing

Spec 6 Attribute

Dimensions

Spec 6 Attribute Value

3.35 in H x 1.77 in W x 3.62 in D

Spec 7 Attribute

Enclosure Type

Spec 7 Attribute Value

IP20

Spec 8 Attribute

Frequency Rating

Spec 8 Attribute UOM

HZ

Spec 8 Attribute Value

50, 60

Spec 9 Attribute

Maximum Load Current

Spec 9 Attribute UOM

A

Spec 9 Attribute Value

32
