Square D

DT363 - Safety switch, double throw, fusible, 3 pole, 3 wire, 600VAC, 600VDC, 100A, Type 1

Category Miscellaneous

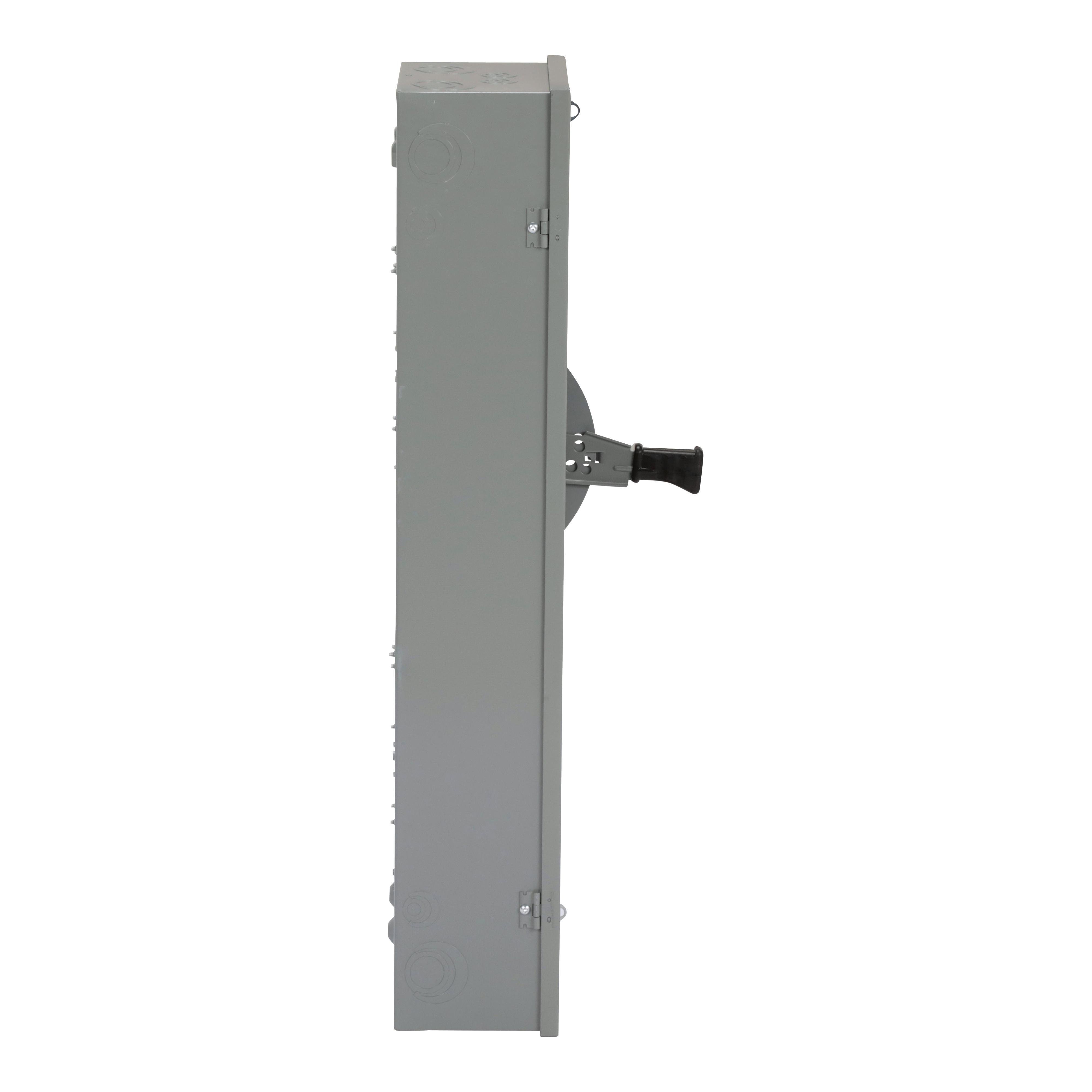

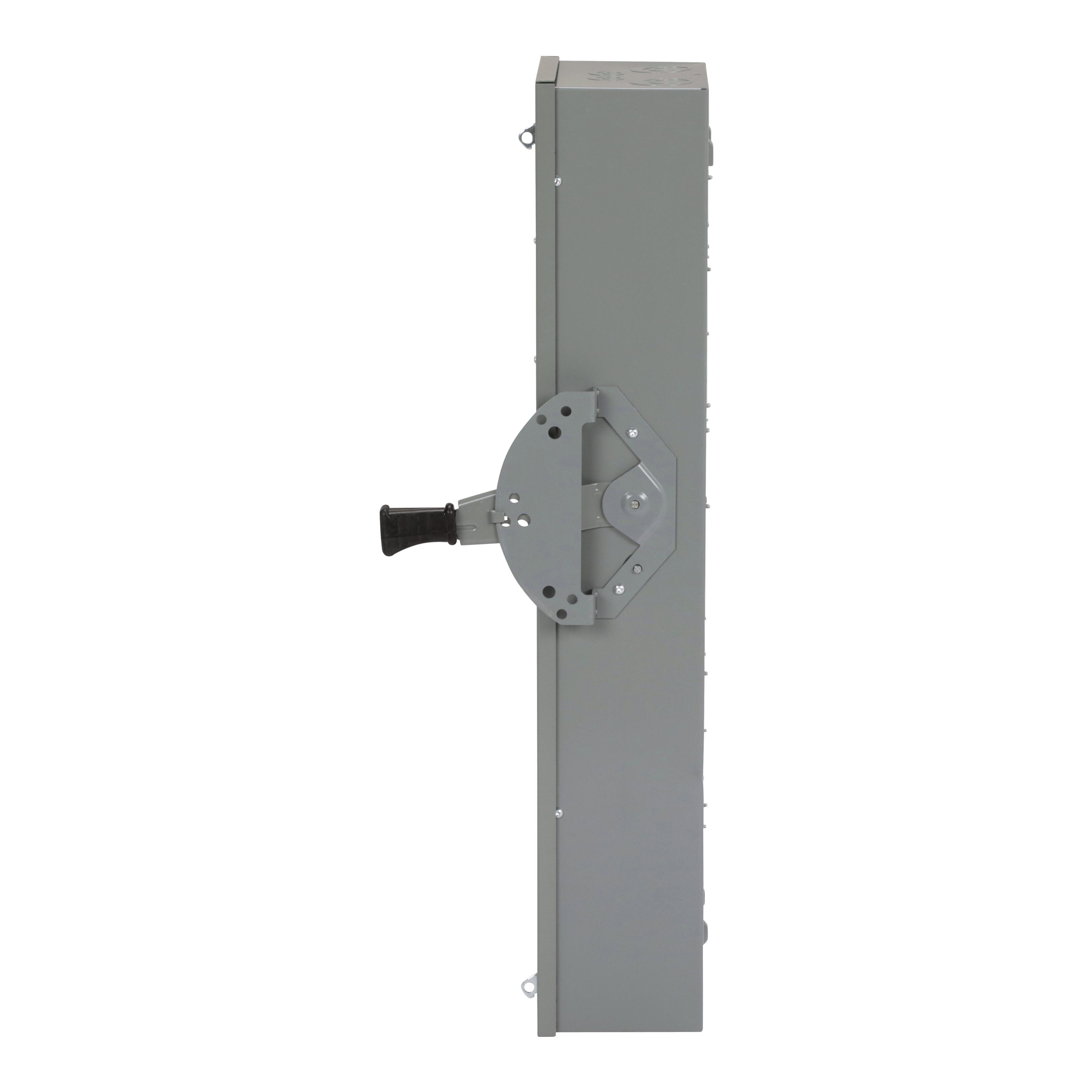

Picture of DT363 - Safety switch, double throw, fusible, 3 pole, 3 wire, 600VAC, 600VDC, 100A, Type 1 Picture of DT363 - Safety switch, double throw, fusible, 3 pole, 3 wire, 600VAC, 600VDC, 100A, Type 1
Picture of DT363 - Safety switch, double throw, fusible, 3 pole, 3 wire, 600VAC, 600VDC, 100A, Type 1 Picture of DT363 - Safety switch, double throw, fusible, 3 pole, 3 wire, 600VAC, 600VDC, 100A, Type 1
Picture of DT363 - Safety switch, double throw, fusible, 3 pole, 3 wire, 600VAC, 600VDC, 100A, Type 1 Picture of DT363 - Safety switch, double throw, fusible, 3 pole, 3 wire, 600VAC, 600VDC, 100A, Type 1
Square D

DT363 - Safety switch, double throw, fusible, 3 pole, 3 wire, 600VAC, 600VDC, 100A, Type 1

Item Code: 586366
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref DT363

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Schneider Electric's Square D double throw safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for commercial, industrial, and manufacturing installations. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This double throw safety switch is a fusible disconnect and has a rated current of 100A for 600VAC and 600VDC. This heavy duty switch has a 3 wire configuration with 3 poles. The device accepts H or K R or J fuse types. The enclosure is surface mounted and is a Type 1. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.

Specifications

Weight

42.91

Width

11.97

Length

40.4

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/dt323/dt323.spin

AD All Features

Reliable performance

AD Alternative Part Number

8130940

AD Application

For manual transfer of one load between two power sources, educational, healthcare, wastewater, manufacturing, mining, mineral, residential, light commercial, industrial and indoor applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901308461

AD Gtin

00785901308461

AD IDEA Index ID

8130940

AD Invoice Description

SWITCH SAF 600VAC/VDC 100A TPDT 3 3 3 DT

AD Item Features 01

Reliable Performance

AD Item Features 02

Long term durability

AD Item Features 03

Enclosed operating mechanism

AD Keywords

DT363 F5 Fusible General Purpose Safety Switch, 600 V AC/DC, 100 A, 15 hp, 20 hp, 30 hp, 3 Form C 3PDT Contact, 3 Poles ; Schneider Electric ; Square D ; DT363 ; DT363 ; 785901308461 ; Double Throw Safety Switches

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

40.4000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

42.9100

AD Package Weight UOM

LB

AD Package Width

11.9700

AD Package Width UOM

IN

AD Part Number Keywords

DT363 ; 8130940 ; 785901308461 ; 78590130846 ; 00785901308461 ; 0785901308461

Brand

Square D

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

DOUBLE THROW

Spec 10 Attribute

Number Of Wires

Spec 10 Attribute Value

3

Spec 11 Attribute

PHASE

Spec 11 Attribute Value

3

Spec 12 Attribute

Series

Spec 12 Attribute Value

F5

Spec 13 Attribute

Short Circuit Current Rating

Spec 13 Attribute UOM

KA

Spec 13 Attribute Value

200

Spec 14 Attribute

Type

Spec 14 Attribute Value

Fusible General Purpose

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC/DC

Spec 15 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

100

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

3 Form C 3PDT

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

11.13 in W x 6.75 in D x 38 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

HORSEPOWER

Spec 6 Attribute Value

15 hp, 20 hp, 30 hp

Spec 7 Attribute

Material

Spec 7 Attribute Value

Steel

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
