Square D

DTU223 - Safety switch, double throw, non fusible, 2 pole, 2 wire, 240VAC, 250VDC, 100A, Type 1

Category Miscellaneous

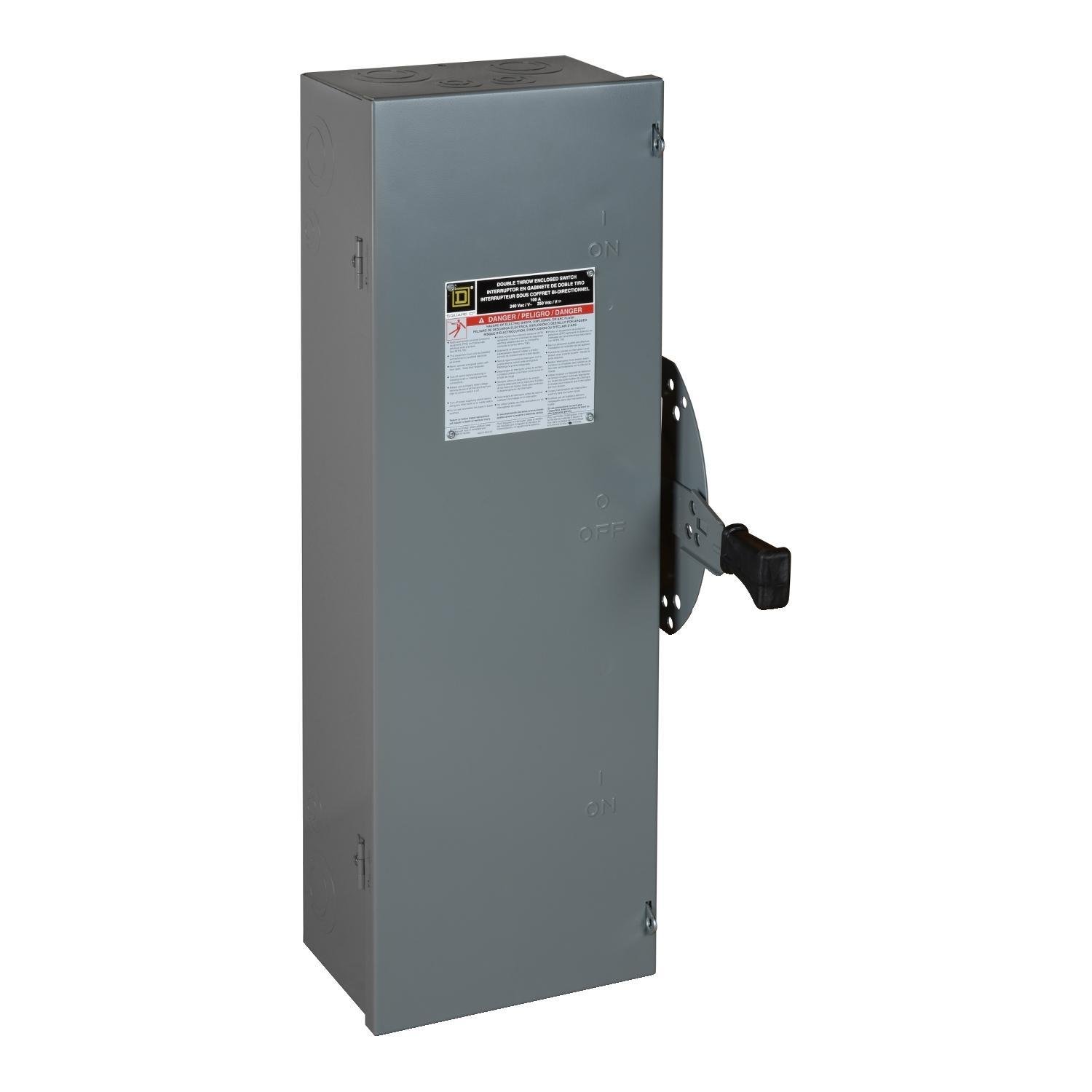

Picture of DTU223 - Safety switch, double throw, non fusible, 2 pole, 2 wire, 240VAC, 250VDC, 100A, Type 1
Square D

DTU223 - Safety switch, double throw, non fusible, 2 pole, 2 wire, 240VAC, 250VDC, 100A, Type 1

Item Code: 32715
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref DTU223

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Schneider Electric's Square D double throw safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for commercial, industrial, and manufacturing installations. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This double throw safety switch is a non fusible disconnect and has a rated current of 100A for 240VAC and 250VDC. This heavy duty switch has a 2 wire configuration with 2 poles. The enclosure is surface mounted and is a Type 1. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.

Specifications

Weight

43.91

Height

10.2

Width

12.28

Length

32.69

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/DTU223/DTU223.spin

AD All Features

Reliable performance

AD Alternative Part Number

8130975

AD Application

For manual transfer of one load between two power sources, residential, light commercial and industrial applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901308645

AD Gtin

00785901308645

AD IDEA Index ID

8130975

AD Invoice Description

SWITCH SAF 240 VAC 250 VDC 100A 15HP

AD Item Features 01

Reliable Performance

AD Item Features 02

Long term durability

AD Item Features 03

Enclosed operating mechanism

AD Keywords

DTU223 DT Series Double Throw Heavy Duty General Purpose Non-Fusible Safety Switch, 240 V AC/250 V DC, 100 A, 15 hp, 2 Form C DPDT Contact, 2 Poles ; Schneider Electric ; Square D ; DTU223 ; DTU223 ; 785901308645 ; General Duty Safety Switches

AD Manufacturer (Description)

Schneider Electric

AD Package Height

10.2000

AD Package Height UOM

IN

AD Package Length

32.6900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

4173.8400

AD Package Volume UOM

cu-in

AD Package Weight

43.9100

AD Package Weight UOM

LB

AD Package Width

12.2800

AD Package Width UOM

IN

AD Part Number Keywords

DTU223 ; 8130975 ; 785901308645 ; 78590130864 ; 00785901308645 ; 0785901308645

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

100

Spec 10 Attribute

Series

Spec 10 Attribute Value

DT Series

Spec 11 Attribute

Short Circuit Current Rating

Spec 11 Attribute UOM

KA

Spec 11 Attribute Value

10

Spec 12 Attribute

Type

Spec 12 Attribute Value

Double Throw Heavy Duty General Purpose Non-Fusible

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute Value

240 V AC/250 V DC

Spec 2 Attribute

Contact Form

Spec 2 Attribute Value

2 Form C DPDT

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

11.96 in W x 6.93 in D x 29.94 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1

Spec 5 Attribute

HORSEPOWER

Spec 5 Attribute UOM

HP

Spec 5 Attribute Value

15

Spec 6 Attribute

Insulation Type

Spec 6 Attribute Value

Class H/K

Spec 7 Attribute

Material

Spec 7 Attribute Value

304 Stainless Steel

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

2
