Square D

DTU323RB - Safety switch, double throw, non fusible, 3 pole, 3 wire, 240VAC, 250VDC, 100A, Type 3R, bolt on hub prov

Category Miscellaneous

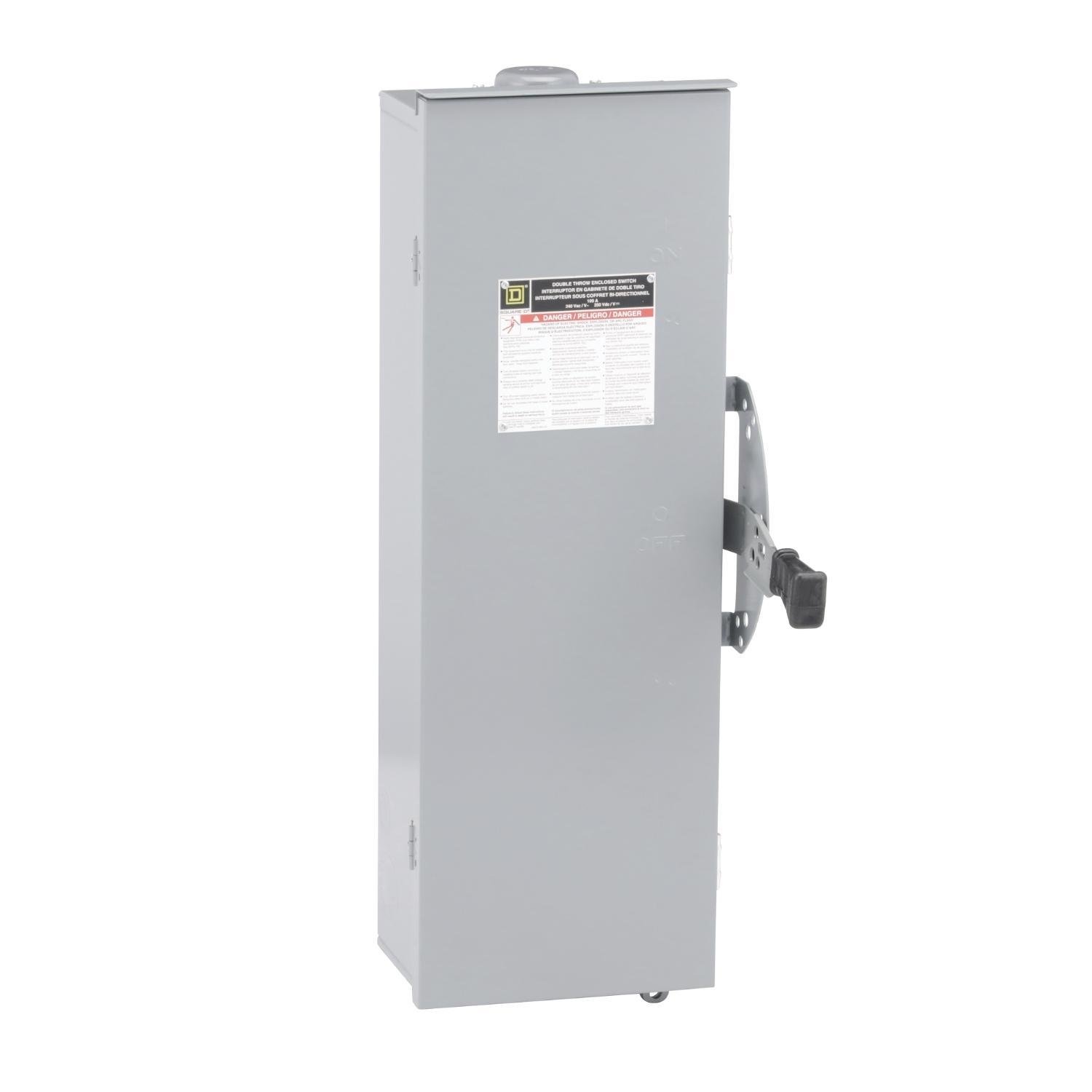

Picture of DTU323RB - Safety switch, double throw, non fusible, 3 pole, 3 wire, 240VAC, 250VDC, 100A, Type 3R, bolt on hub prov
Square D

DTU323RB - Safety switch, double throw, non fusible, 3 pole, 3 wire, 240VAC, 250VDC, 100A, Type 3R, bolt on hub prov

Item Code: 51425
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref DTU323RB

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Schneider Electric's Square D double throw safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for commercial, industrial, and manufacturing installations. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This double throw safety switch is a non fusible disconnect and has a rated current of 100A for 240VAC and 250VDC. This heavy duty switch has a 3 wire configuration with 3 poles. The enclosure is surface mounted and is a Type 3R with bolt on provisions. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.

Specifications

Weight

37.72

Height

10

Width

12.28

Length

32.69

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/DTU323RB/DTU323RB.spin

AD All Features

Reliable performance

AD Alternative Part Number

8130995

AD Application

Educational, General Purpose, Healthcare, Industrial, Indoor/Outdoor, Light Commercial, Manufacturing, Mining, Mineral, Residential and Wastewater Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901308737

AD Gtin

00785901308737

AD IDEA Index ID

8130995

AD Invoice Description

SWITCH SAF 240/250VAC/VDC 100A TPDT 3 3

AD Item Features 01

Reliable Performance

AD Item Features 02

Long term durability

AD Item Features 03

Enclosed operating mechanism

AD Manufacturer (Description)

Schneider Electric

AD Package Height

10.0000

AD Package Height UOM

IN

AD Package Length

32.6900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

4092.0000

AD Package Volume UOM

cu-in

AD Package Weight

37.7200

AD Package Weight UOM

LB

AD Package Width

12.2800

AD Package Width UOM

IN

AD Part Number Keywords

DTU323RB ; 8130995 ; 785901308737 ; 78590130873 ; 00785901308737 ; 0785901308737

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

100

Spec 10 Attribute

Number Of Wires

Spec 10 Attribute Value

3

Spec 11 Attribute

PHASE

Spec 11 Attribute Value

3-Jan

Spec 12 Attribute

Series

Spec 12 Attribute Value

F5 Series

Spec 13 Attribute

Short Circuit Current Rating

Spec 13 Attribute UOM

KA

Spec 13 Attribute Value

200

Spec 14 Attribute

Type

Spec 14 Attribute Value

Non-Fusible Iceproof Rainproof Sleetproof

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute Value

240 V AC/250 V DC

Spec 2 Attribute

Contact Form

Spec 2 Attribute Value

3 Form C 3PDT

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

11.96 in W x 6.93 in D x 30.5 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Finish

Spec 5 Attribute Value

Hot dipped galvanized

Spec 6 Attribute

HORSEPOWER

Spec 6 Attribute Value

15 hp, 20 hp, 30 hp

Spec 7 Attribute

Material

Spec 7 Attribute Value

Steel

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
