Square D

DTU324N - Safety switch, double throw, non fusible, 3 pole, 4 wire, 240VAC, 200A, Type 1, with neutral

Category Non-Fusible Double Throw Safety Switches

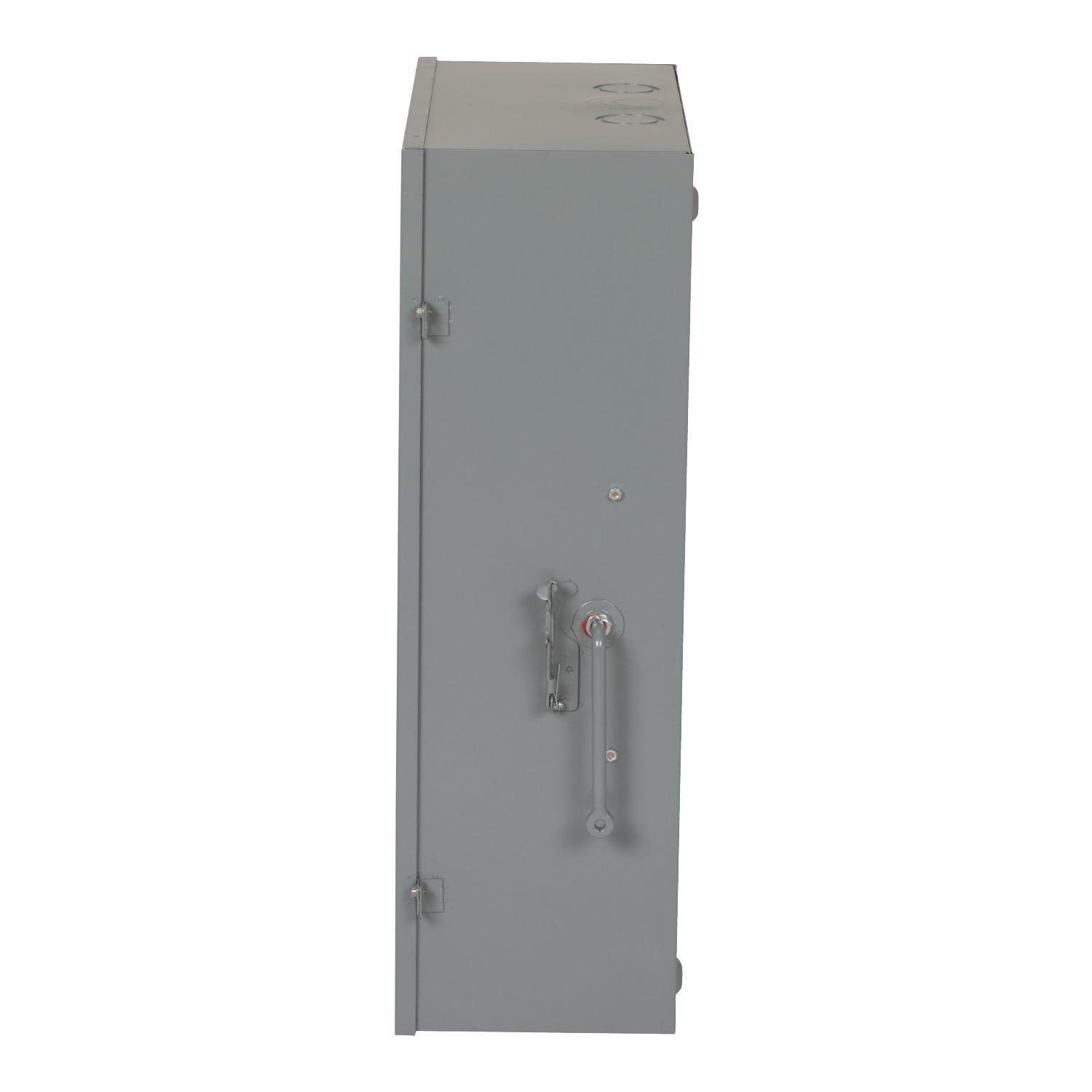

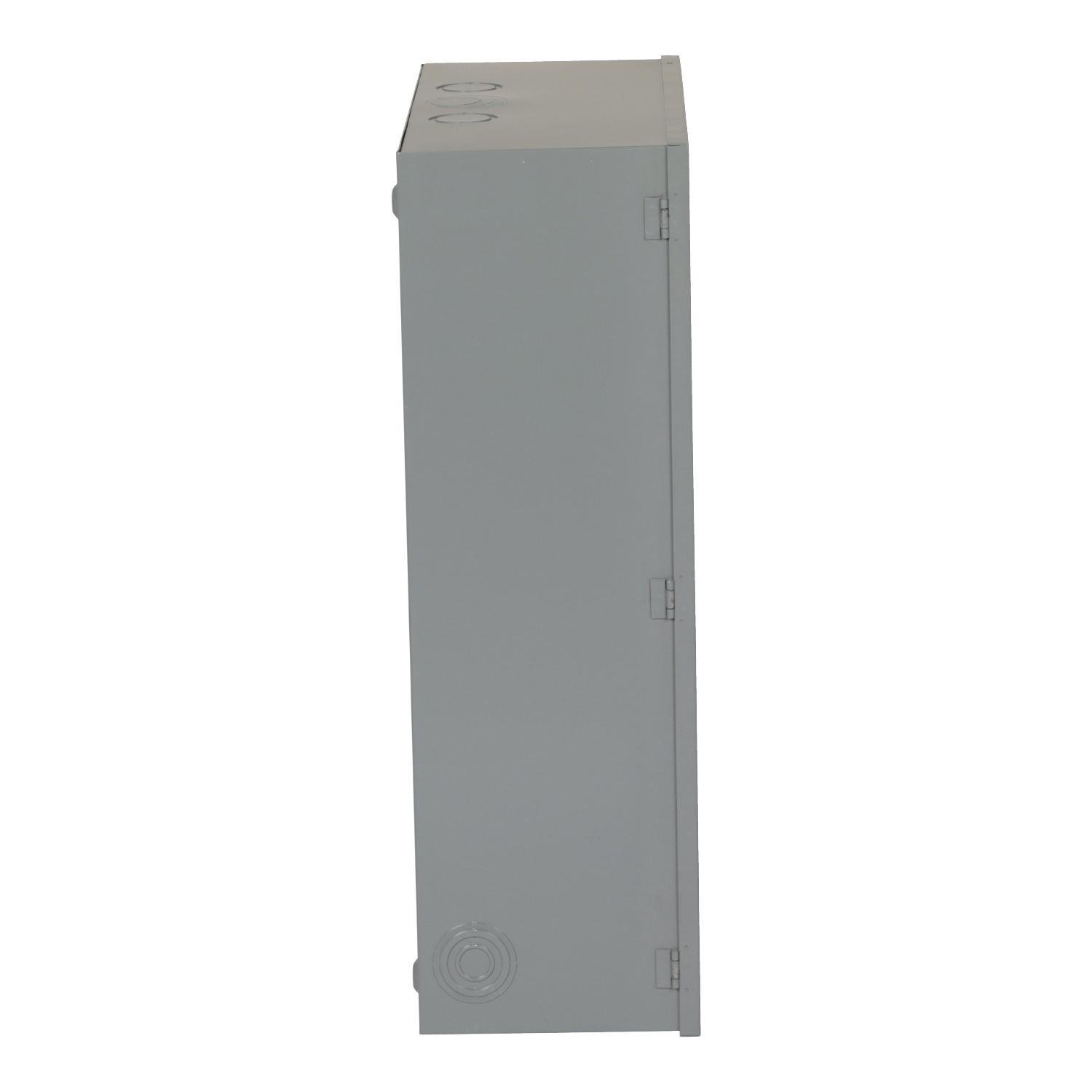

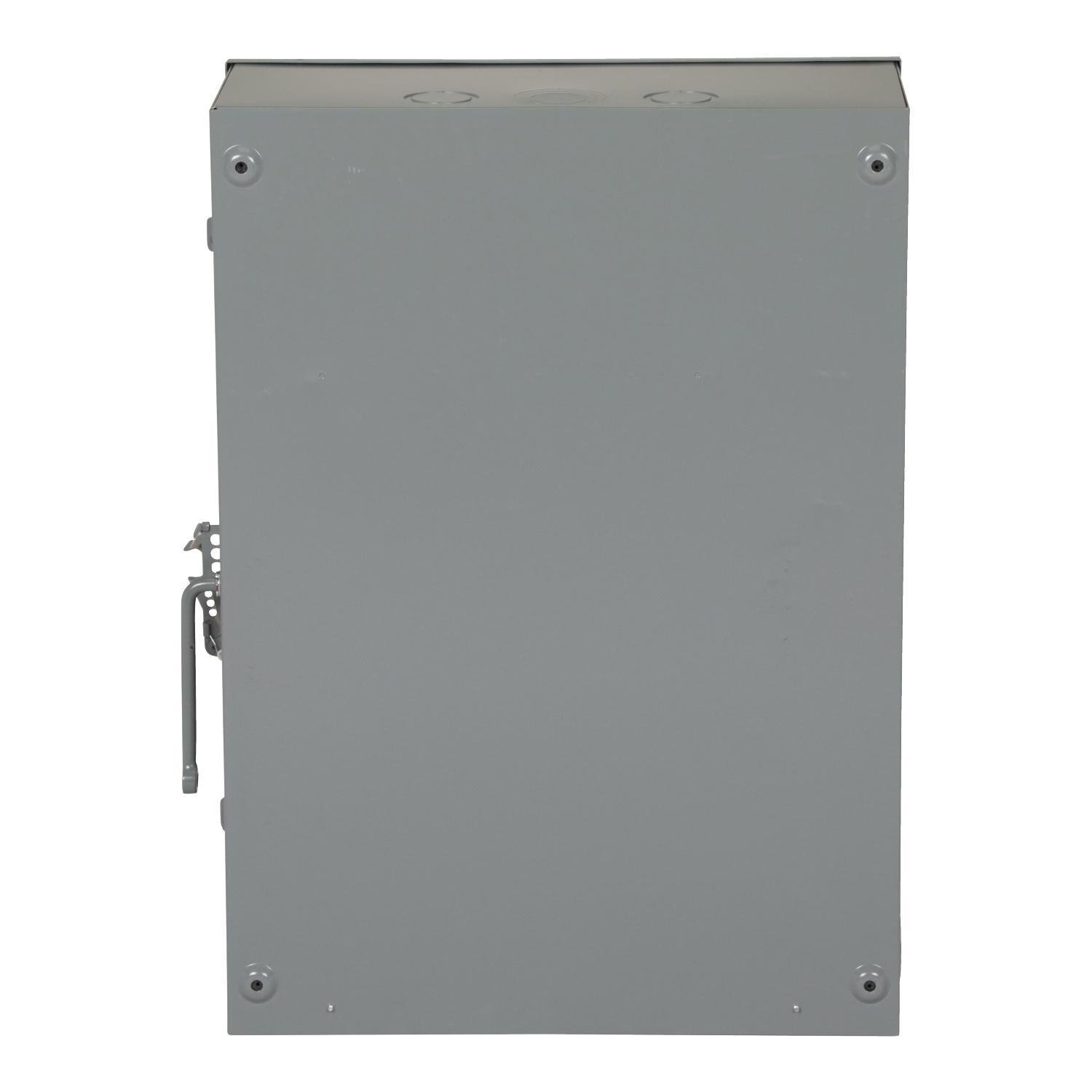

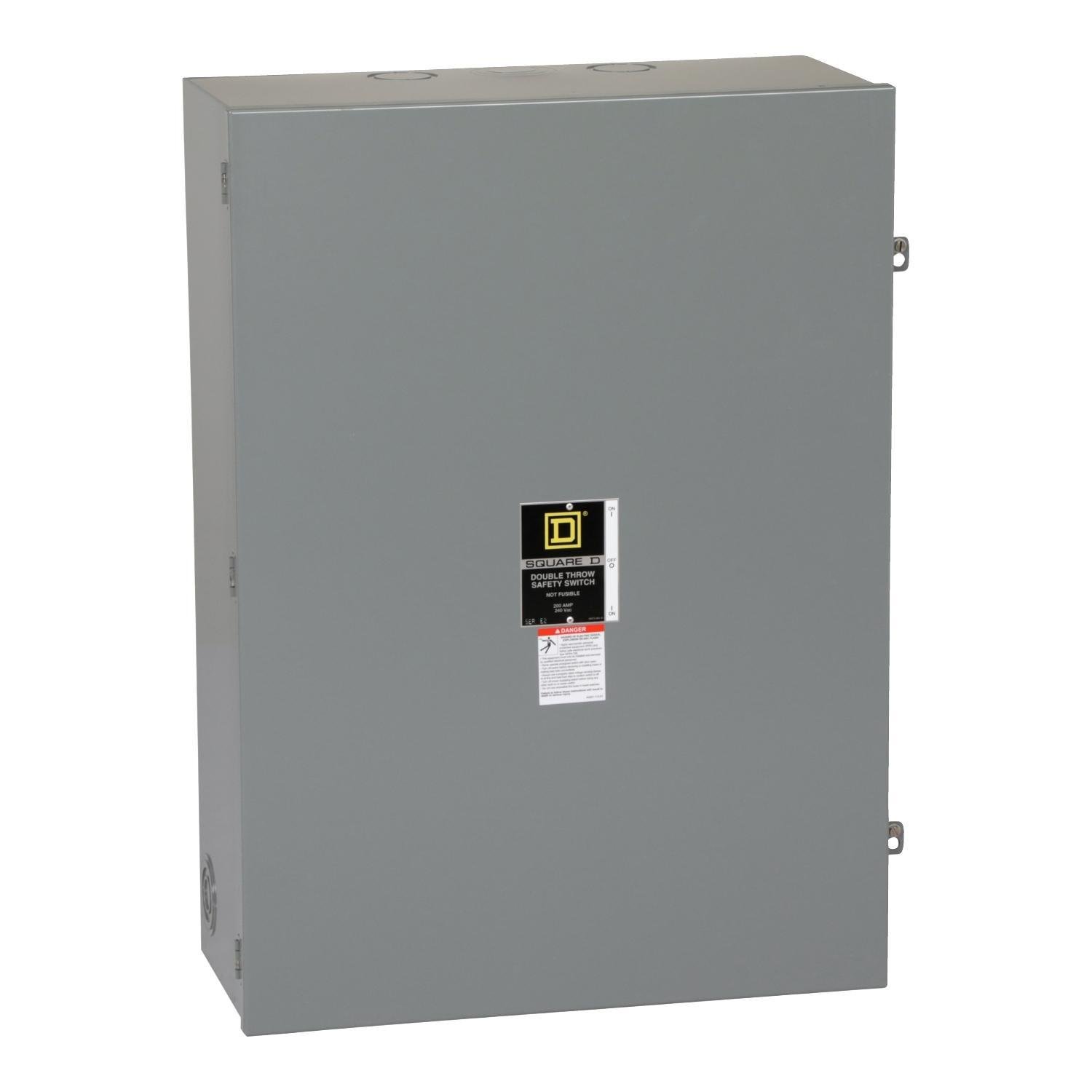

Picture of DTU324N - Safety switch, double throw, non fusible, 3 pole, 4 wire, 240VAC, 200A, Type 1, with neutral Picture of DTU324N - Safety switch, double throw, non fusible, 3 pole, 4 wire, 240VAC, 200A, Type 1, with neutral
Picture of DTU324N - Safety switch, double throw, non fusible, 3 pole, 4 wire, 240VAC, 200A, Type 1, with neutral Picture of DTU324N - Safety switch, double throw, non fusible, 3 pole, 4 wire, 240VAC, 200A, Type 1, with neutral
Picture of DTU324N - Safety switch, double throw, non fusible, 3 pole, 4 wire, 240VAC, 200A, Type 1, with neutral Picture of DTU324N - Safety switch, double throw, non fusible, 3 pole, 4 wire, 240VAC, 200A, Type 1, with neutral
Picture of DTU324N - Safety switch, double throw, non fusible, 3 pole, 4 wire, 240VAC, 200A, Type 1, with neutral Picture of DTU324N - Safety switch, double throw, non fusible, 3 pole, 4 wire, 240VAC, 200A, Type 1, with neutral
Picture of DTU324N - Safety switch, double throw, non fusible, 3 pole, 4 wire, 240VAC, 200A, Type 1, with neutral Picture of DTU324N - Safety switch, double throw, non fusible, 3 pole, 4 wire, 240VAC, 200A, Type 1, with neutral
Square D

DTU324N - Safety switch, double throw, non fusible, 3 pole, 4 wire, 240VAC, 200A, Type 1, with neutral

Item Code: 989251
Category Non-Fusible Double Throw Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref DTU324N

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Schneider Electric's Square D double throw safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for commercial, industrial, and manufacturing installations. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This double throw safety switch is a non fusible disconnect and has a rated current of 200A for 240VAC. This general duty switch has a 4 wire configuration with 3 poles and a factory installed neutral. The enclosure is surface mounted and is a Type 1. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.

Specifications

Weight

76.84

Width

25.95

Length

33.88

AD All Features

Reliable performance

AD Application

Service Entrance Equipment, Residential, Light Commercial, Industrial, Indoor and General Purpose Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

SWITCH SAF 240VAC 200A 15HP TPDT 3 3 STL

AD Item Features 01

Reliable Performance

AD Item Features 02

Long term durability

AD Item Features 03

Enclosed operating mechanism

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

33.8800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

76.8400

AD Package Weight UOM

LB

AD Package Width

25.9500

AD Package Width UOM

IN

Brand

Square D

Category

NON-FUSIBLE DOUBLE THROW SAFETY SWITCHES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

3

Spec 11 Attribute

Series

Spec 11 Attribute Value

E1

Spec 12 Attribute

Short Circuit Current Rating

Spec 12 Attribute UOM

KA

Spec 12 Attribute Value

100

Spec 13 Attribute

Type

Spec 13 Attribute Value

Non-Fusible Disconnect

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

240

Spec 2 Attribute

Contact Form

Spec 2 Attribute Value

3 Form C 3PDT

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

26.25 in W x 10.63 in D x 32.5 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1

Spec 5 Attribute

Finish

Spec 5 Attribute Value

Baked Enamel

Spec 6 Attribute

HORSEPOWER

Spec 6 Attribute UOM

HP

Spec 6 Attribute Value

15

Spec 7 Attribute

Material

Spec 7 Attribute Value

Steel

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
