Square D

DTU362DS - Safety switch, double throw, non fusible, 3 pole, 3 wire, 600VAC, 600VDC, 60A, Type 4/4X/5, 304 stainless steel

Category Non-Fusible Double Throw Safety Switches

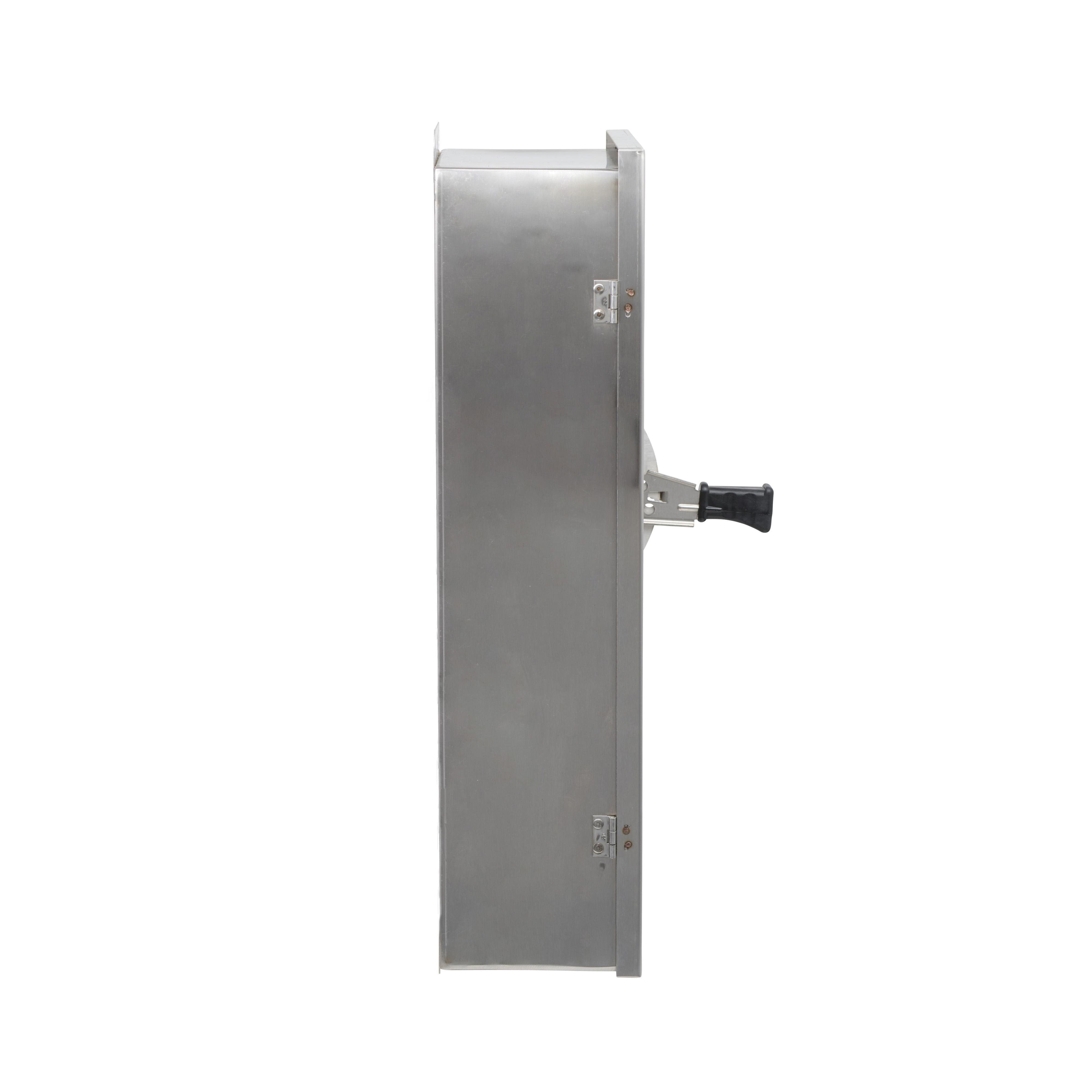

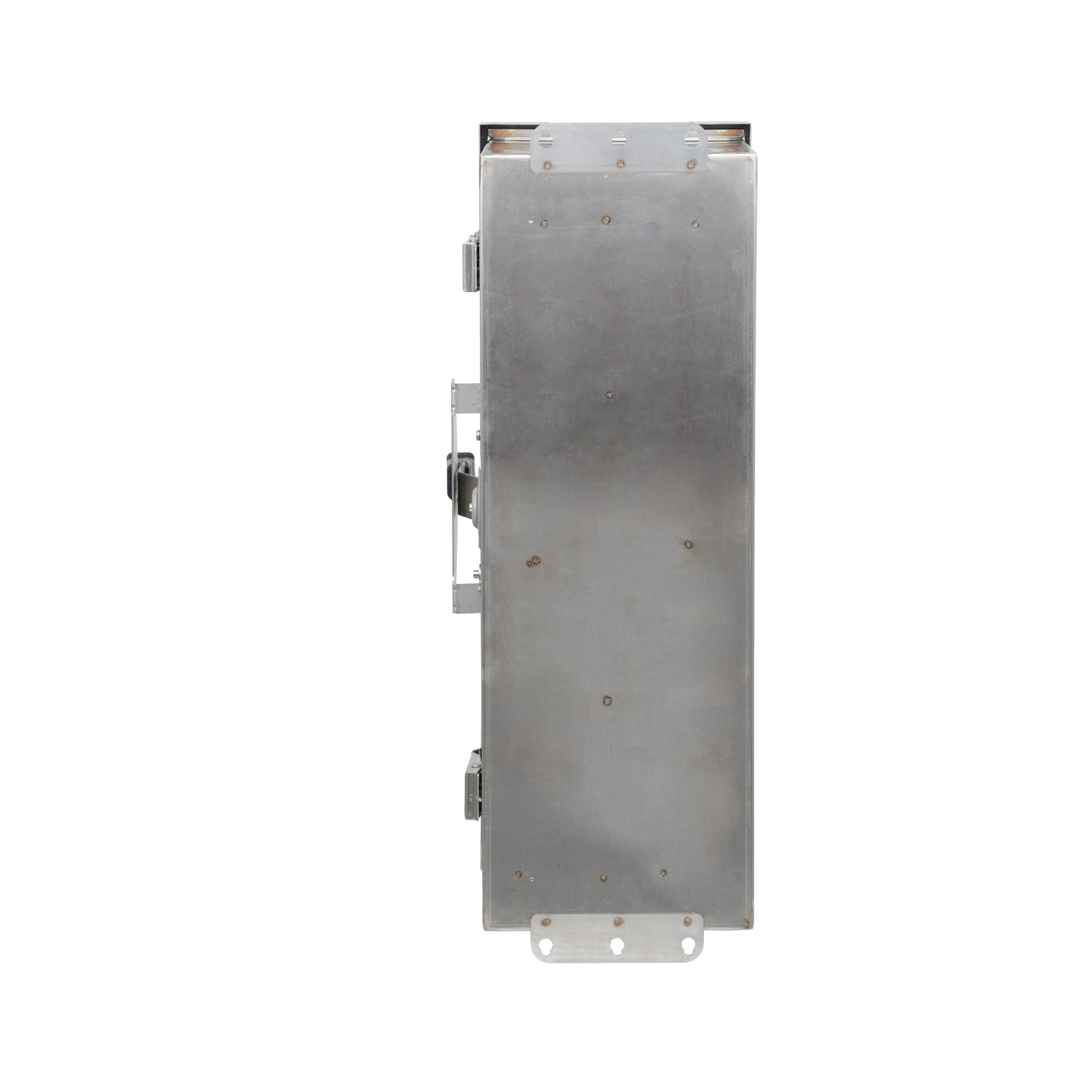

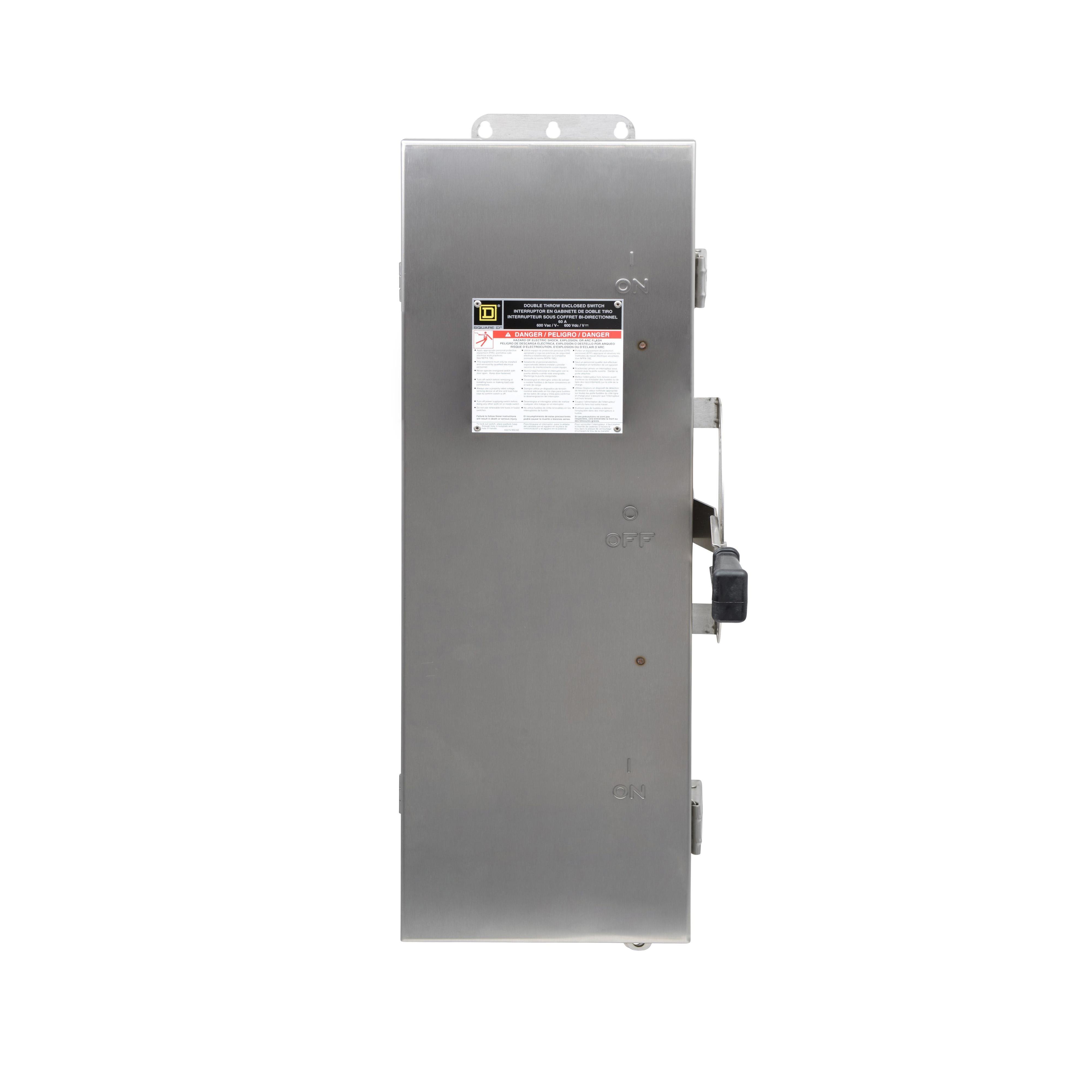

Picture of DTU362DS - Safety switch, double throw, non fusible, 3 pole, 3 wire, 600VAC, 600VDC, 60A, Type 4/4X/5, 304 stainless steel Picture of DTU362DS - Safety switch, double throw, non fusible, 3 pole, 3 wire, 600VAC, 600VDC, 60A, Type 4/4X/5, 304 stainless steel
Picture of DTU362DS - Safety switch, double throw, non fusible, 3 pole, 3 wire, 600VAC, 600VDC, 60A, Type 4/4X/5, 304 stainless steel Picture of DTU362DS - Safety switch, double throw, non fusible, 3 pole, 3 wire, 600VAC, 600VDC, 60A, Type 4/4X/5, 304 stainless steel
Picture of DTU362DS - Safety switch, double throw, non fusible, 3 pole, 3 wire, 600VAC, 600VDC, 60A, Type 4/4X/5, 304 stainless steel Picture of DTU362DS - Safety switch, double throw, non fusible, 3 pole, 3 wire, 600VAC, 600VDC, 60A, Type 4/4X/5, 304 stainless steel
Picture of DTU362DS - Safety switch, double throw, non fusible, 3 pole, 3 wire, 600VAC, 600VDC, 60A, Type 4/4X/5, 304 stainless steel Picture of DTU362DS - Safety switch, double throw, non fusible, 3 pole, 3 wire, 600VAC, 600VDC, 60A, Type 4/4X/5, 304 stainless steel
Square D

DTU362DS - Safety switch, double throw, non fusible, 3 pole, 3 wire, 600VAC, 600VDC, 60A, Type 4/4X/5, 304 stainless steel

Item Code: 616183
Category Non-Fusible Double Throw Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref DTU362DS

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Schneider Electric's Square D double throw safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for commercial, industrial, and manufacturing installations. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This double throw safety switch is a non fusible disconnect and has a rated current of 60A for 600VAC and 600VDC. This heavy duty switch has a 3 wire configuration with 3 poles. The enclosure is surface mounted and is a Type 4/4X/5 stainless steel 304. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.

Specifications

Weight

41.31

Width

12.38

Length

32.69

AD All Features

Reliable performance

AD Application

For manual transfer of one load between two power sources, educational, healthcare, wastewater, manufacturing, mining, mineral, residential, light commercial, industrial, indoor/outdoor applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

SWITCH SAF 600VAC/VDC 60A 30 HP 60 HP

AD Item Features 01

Reliable Performance

AD Item Features 02

Long term durability

AD Item Features 03

Enclosed operating mechanism

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

32.6900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

41.3100

AD Package Weight UOM

LB

AD Package Width

12.3800

AD Package Width UOM

IN

Brand

Square D

Category

NON-FUSIBLE DOUBLE THROW SAFETY SWITCHES

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

DOUBLE THROW

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

3

Spec 11 Attribute

Series

Spec 11 Attribute Value

F6

Spec 12 Attribute

Short Circuit Current Rating

Spec 12 Attribute UOM

KA

Spec 12 Attribute Value

200

Spec 13 Attribute

Type

Spec 13 Attribute Value

Corrosion-Resistant Dust/Watertight Non-Fusible

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC/DC

Spec 14 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

60

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

11.5 in W x 7.12 in D x 30.26 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 4/4X/5

Spec 5 Attribute

HORSEPOWER

Spec 5 Attribute Value

30 hp, 60 hp

Spec 6 Attribute

Material

Spec 6 Attribute Value

304 Stainless Steel

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Surface

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

Number Of Wires

Spec 9 Attribute Value

3
