Square D

DU322 - Safety switch, general duty, non fusible, 60A, 3 pole, 15hp, 240VAC, NEMA 1

Category Non-Fusible General Duty Safety Switches

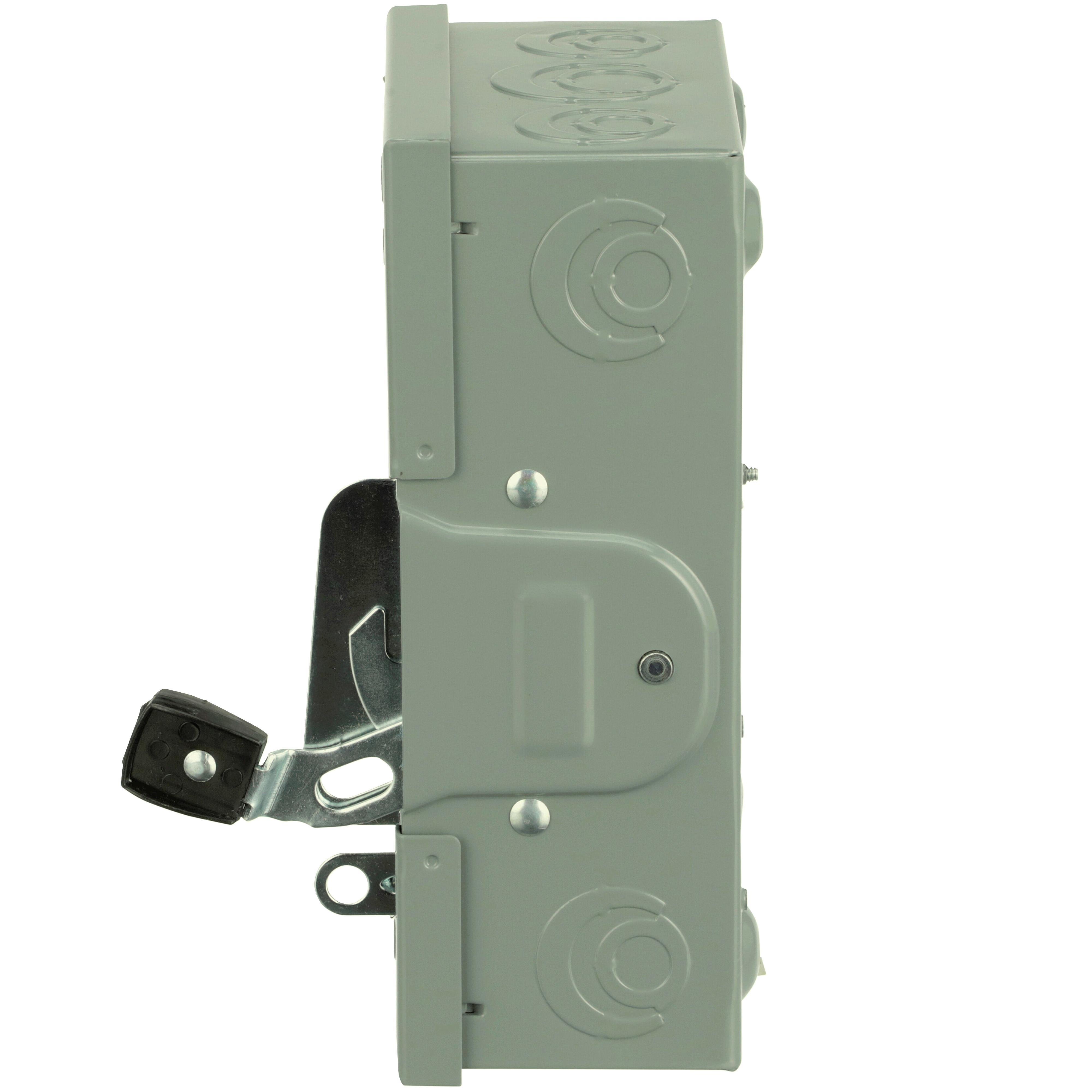

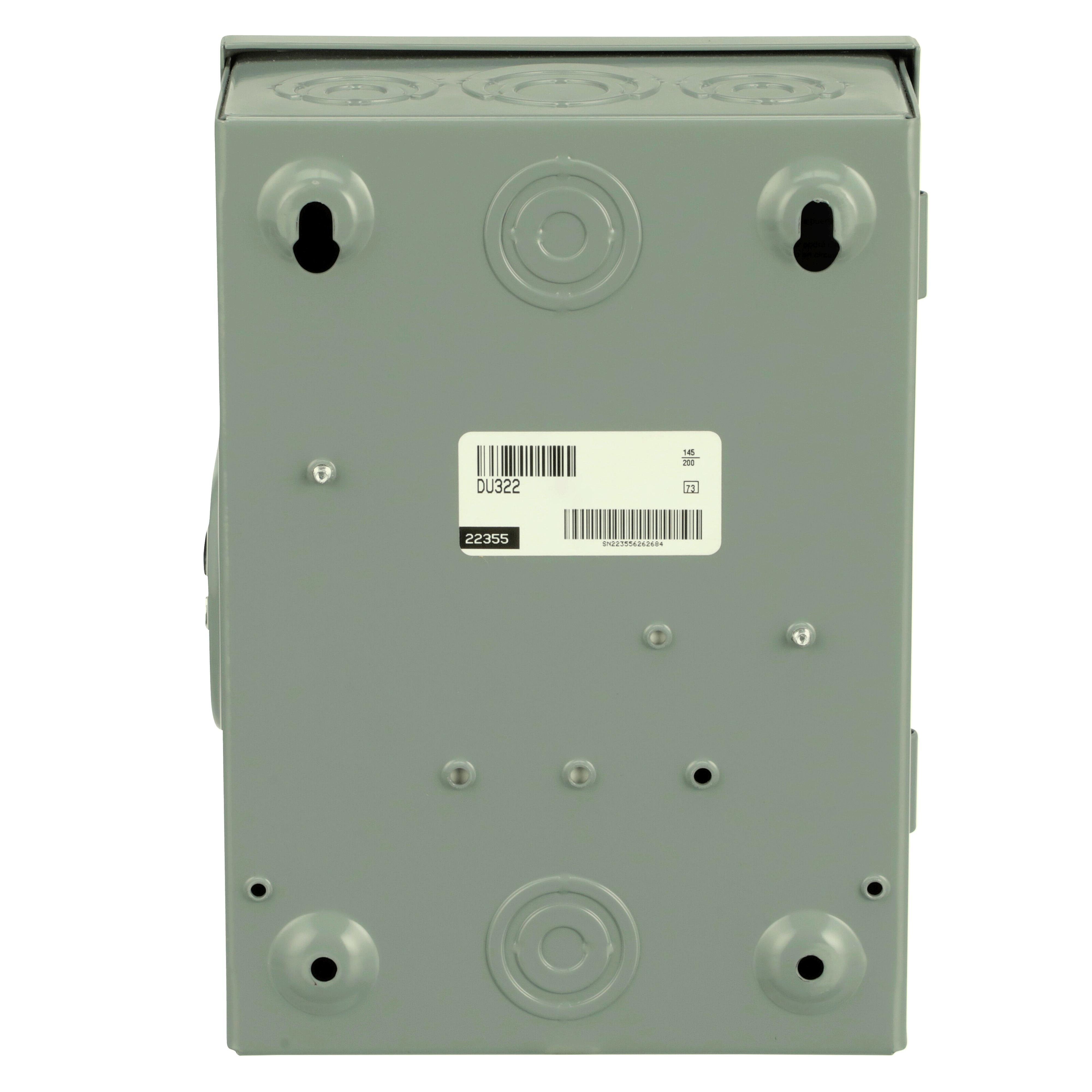

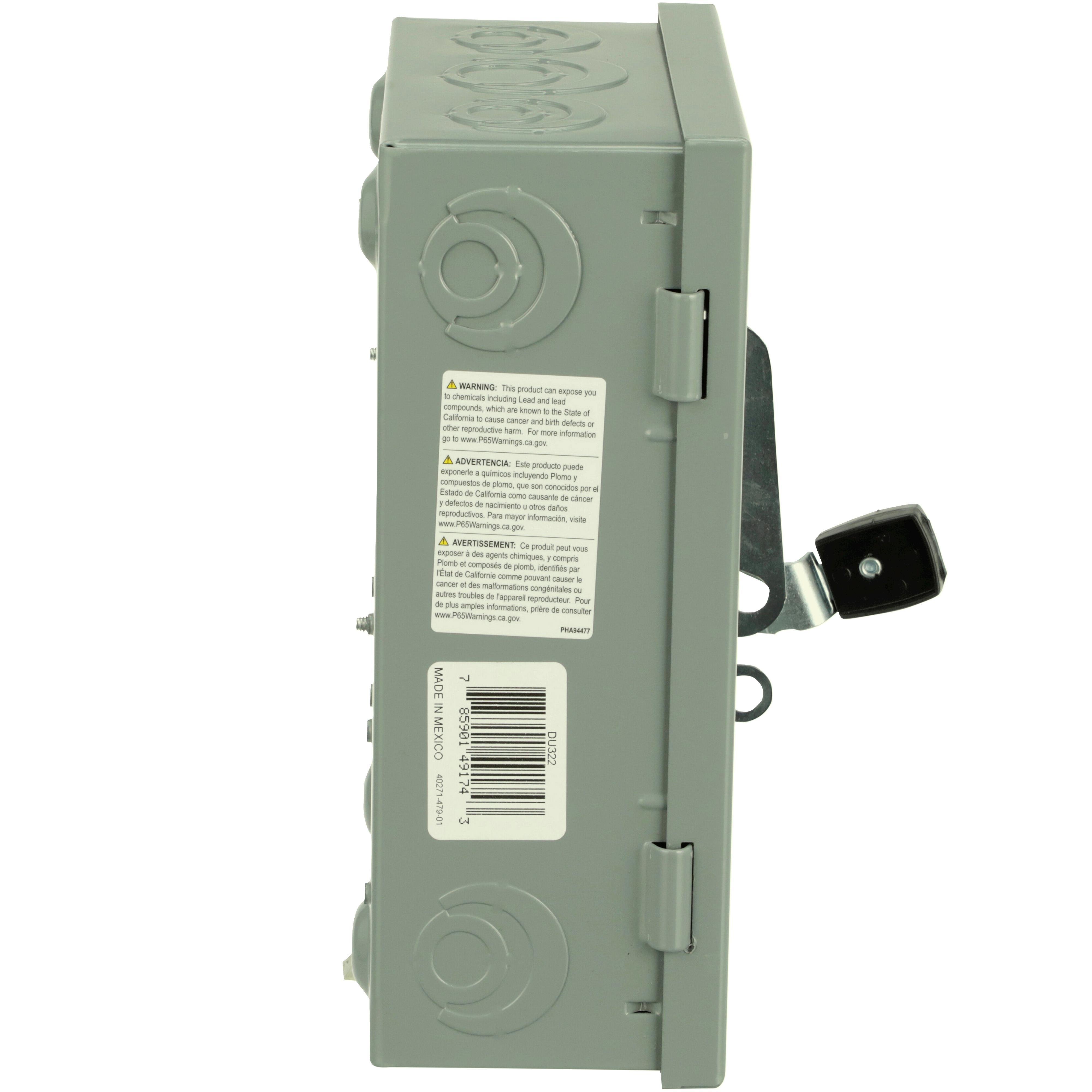

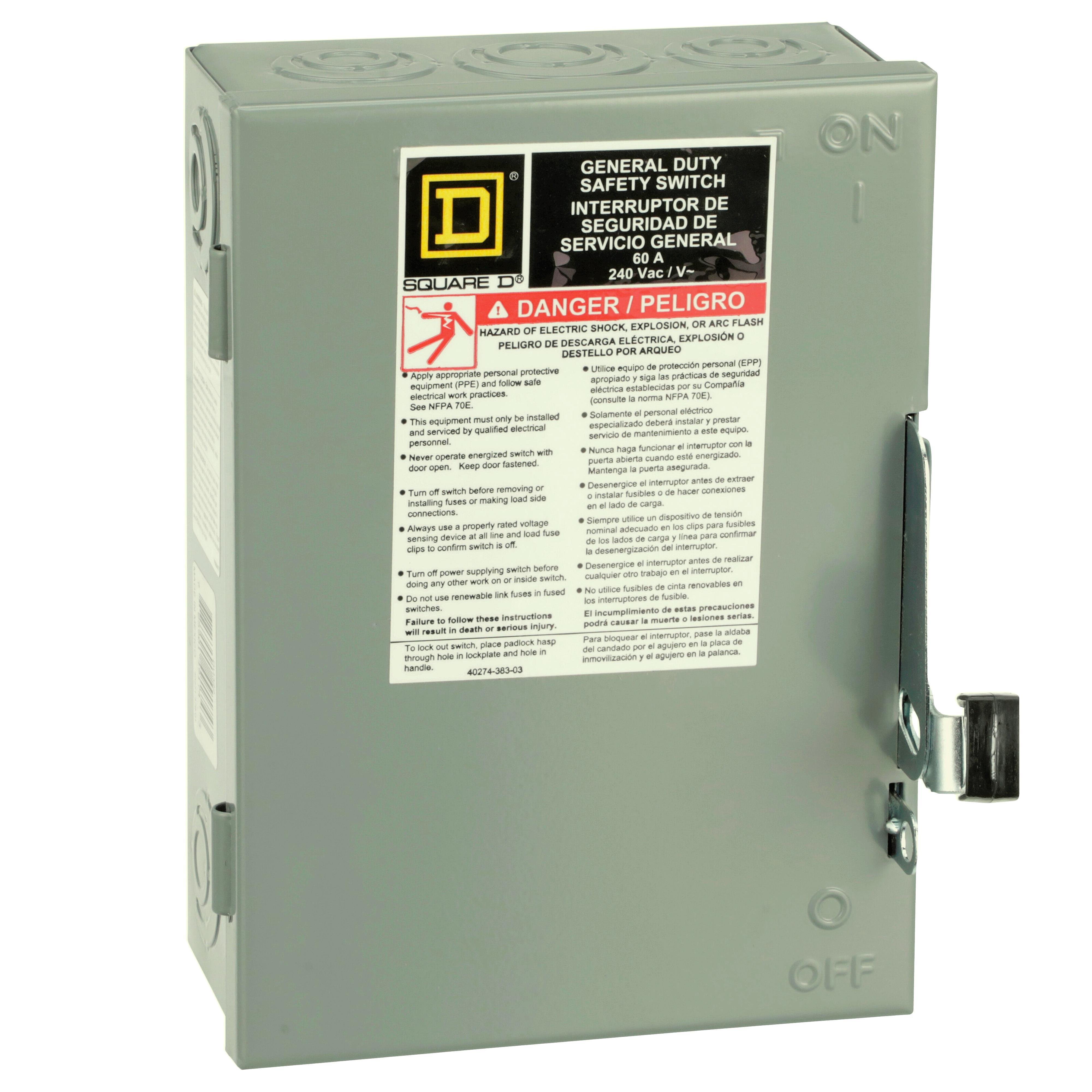

Picture of DU322 - Safety switch, general duty, non fusible, 60A, 3 pole, 15hp, 240VAC, NEMA 1 Picture of DU322 - Safety switch, general duty, non fusible, 60A, 3 pole, 15hp, 240VAC, NEMA 1
Picture of DU322 - Safety switch, general duty, non fusible, 60A, 3 pole, 15hp, 240VAC, NEMA 1 Picture of DU322 - Safety switch, general duty, non fusible, 60A, 3 pole, 15hp, 240VAC, NEMA 1
Picture of DU322 - Safety switch, general duty, non fusible, 60A, 3 pole, 15hp, 240VAC, NEMA 1 Picture of DU322 - Safety switch, general duty, non fusible, 60A, 3 pole, 15hp, 240VAC, NEMA 1
Picture of DU322 - Safety switch, general duty, non fusible, 60A, 3 pole, 15hp, 240VAC, NEMA 1 Picture of DU322 - Safety switch, general duty, non fusible, 60A, 3 pole, 15hp, 240VAC, NEMA 1
Picture of DU322 - Safety switch, general duty, non fusible, 60A, 3 pole, 15hp, 240VAC, NEMA 1 Picture of DU322 - Safety switch, general duty, non fusible, 60A, 3 pole, 15hp, 240VAC, NEMA 1
Square D

DU322 - Safety switch, general duty, non fusible, 60A, 3 pole, 15hp, 240VAC, NEMA 1

Item Code: 17976
Category Non-Fusible General Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref DU322

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 60A with a NEMA 1 degree of protection. This non-fusible disconnect switch comes with no neutral. This general duty switch is a 3-pole, 240VAC has a short curcuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 12 AWG 3, aluminium & AWG 14 AWG 3, copper. This switch is certified to UL standards Dinemsions for this product are 9.25 in (H), 7.25 in (W), 3.63 in (D). General Duty safety switchs come with an 18 months warranty.

Purchasing Quantities

EACH

1

BOX

5

Specifications

Weight

4.29lb

Height

5.2mm

Width

6.74mm

Length

9.21mm

Depth

3.63mm

AD All Features

Fusible switches provide over-current and short circuit protection

AD Application

Commercial, General Purpose, Indoor and Residential Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

SWITCH SAF 240VAC 60A 10 TO 15HP TPST 3

AD Item Features 01

Fusible switches provide over-current and short circuit protection

AD Item Features 02

Excellent for disconnecting lighting, air condition, and appliances

AD Item Features 03

Quick make, quick break operating mechanism

AD Manufacturer (Description)

Schneider Electric

AD Package Height

5.2000

AD Package Height UOM

IN

AD Package Length

9.2100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

328.8500

AD Package Volume UOM

cu-in

AD Package Weight

4.2900

AD Package Weight UOM

LB

AD Package Width

6.7400

AD Package Width UOM

IN

Brand

Square D

Category

NON-FUSIBLE GENERAL DUTY SAFETY SWITCHES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

60

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

3-Jan

Spec 11 Attribute

Series

Spec 11 Attribute Value

E1 Series

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Lug

Spec 13 Attribute

Type

Spec 13 Attribute Value

Enclosed General Duty Non-Fusible

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

240

Spec 2 Attribute

Contact Form

Spec 2 Attribute Value

3PST

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

7.25 in W x 3.63 in D x 9.25 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1

Spec 5 Attribute

HORSEPOWER

Spec 5 Attribute UOM

HP

Spec 5 Attribute Value

10 To 15

Spec 6 Attribute

Material

Spec 6 Attribute Value

Steel

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Surface

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

Number Of Wires

Spec 9 Attribute Value

3
