Square D

DU323RB - Safety switch, general duty, non fusible, 100A, 3 pole, 3 wire, 30hp, 240VAC, NEMA 3R, bolt on hub provision

Category Non-Fusible General Duty Safety Switches

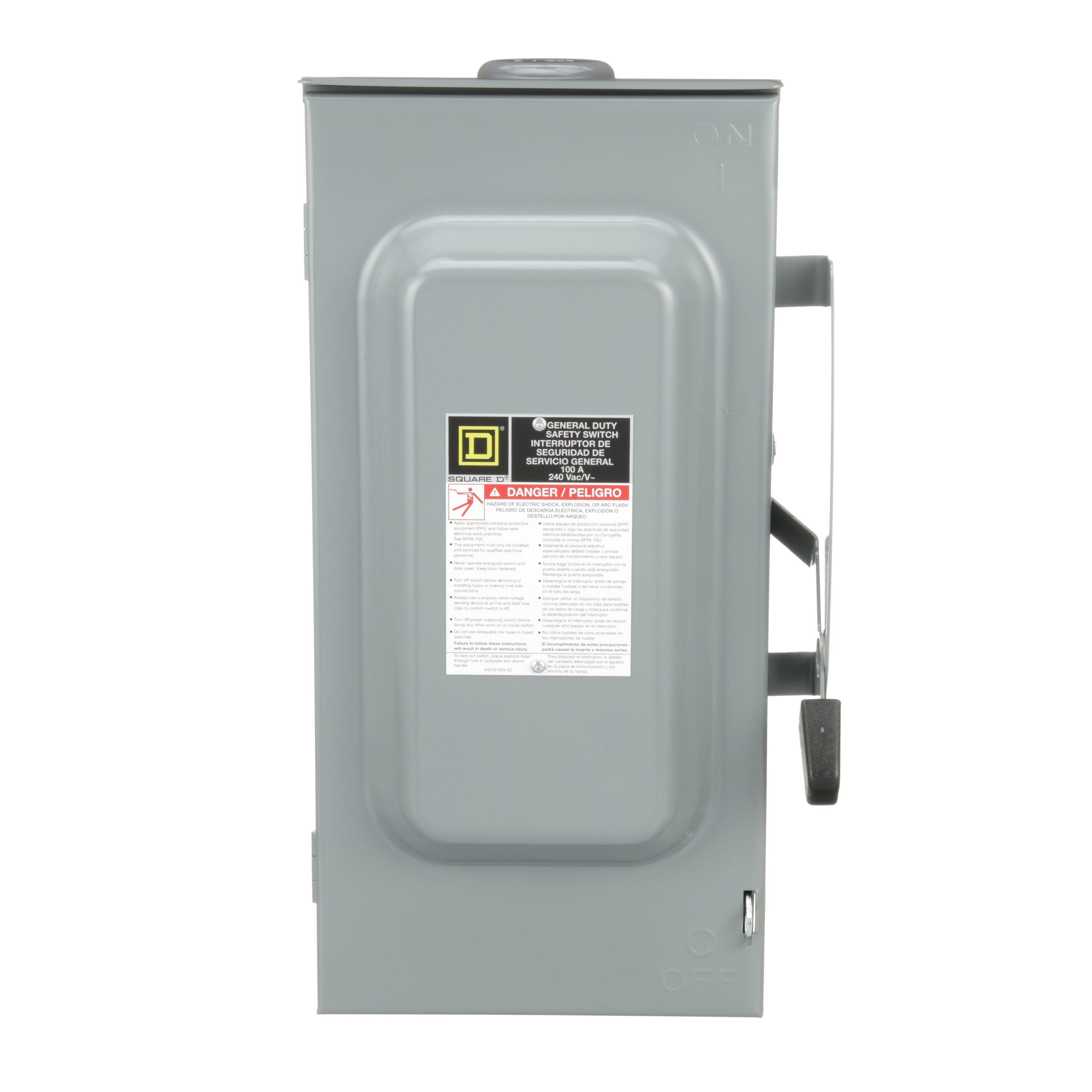

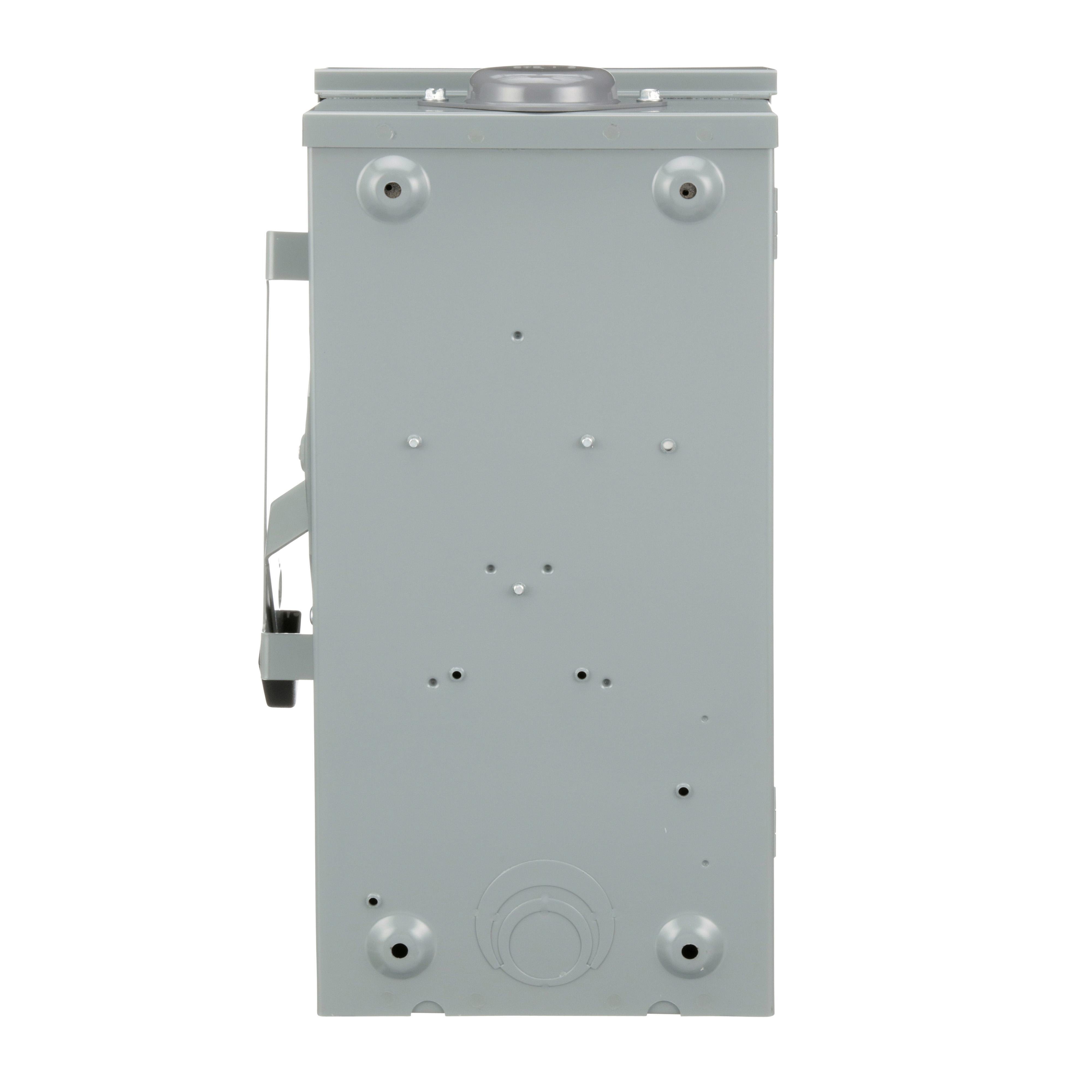

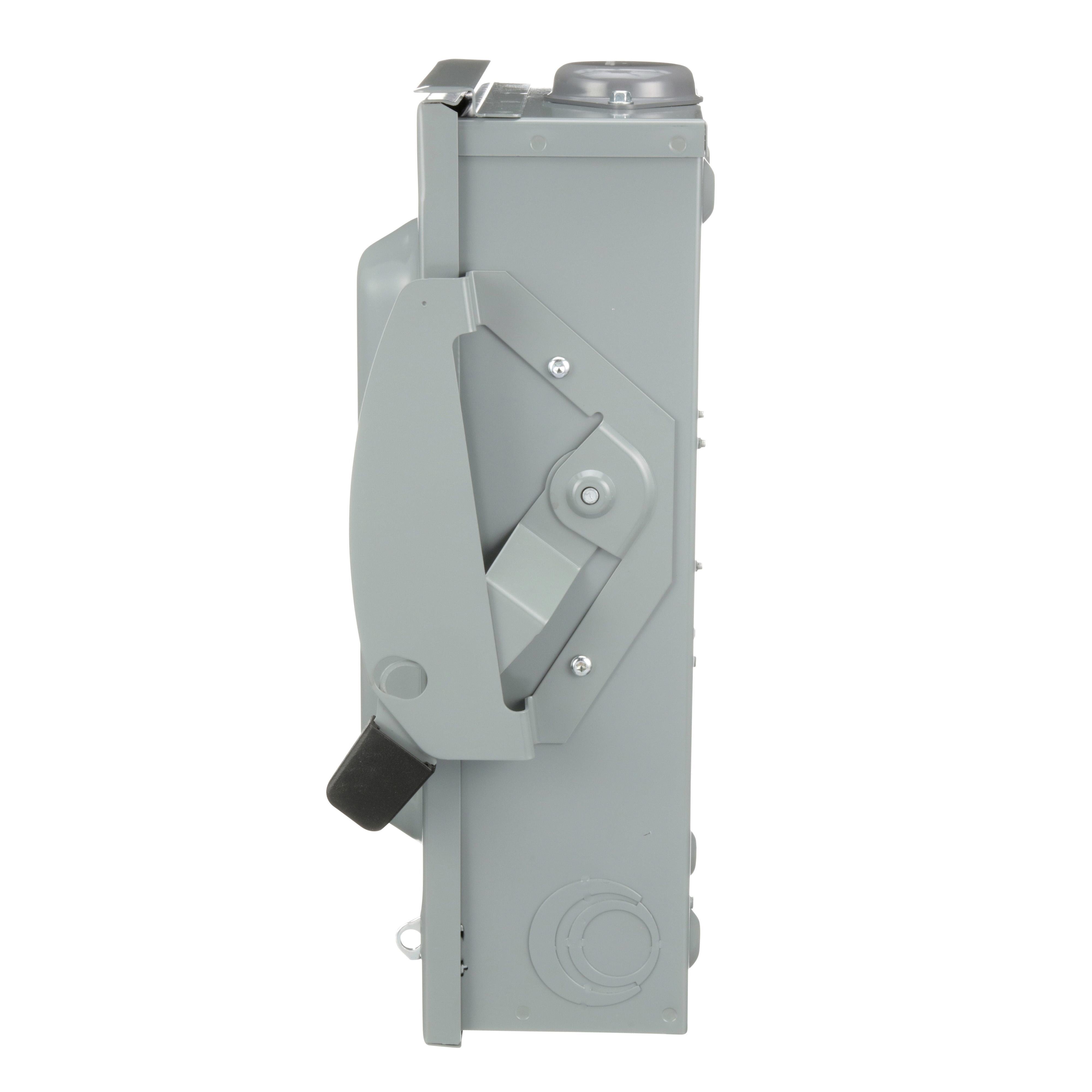

Picture of DU323RB - Safety switch, general duty, non fusible, 100A, 3 pole, 3 wire, 30hp, 240VAC, NEMA 3R, bolt on hub provision Picture of DU323RB - Safety switch, general duty, non fusible, 100A, 3 pole, 3 wire, 30hp, 240VAC, NEMA 3R, bolt on hub provision
Picture of DU323RB - Safety switch, general duty, non fusible, 100A, 3 pole, 3 wire, 30hp, 240VAC, NEMA 3R, bolt on hub provision Picture of DU323RB - Safety switch, general duty, non fusible, 100A, 3 pole, 3 wire, 30hp, 240VAC, NEMA 3R, bolt on hub provision
Picture of DU323RB - Safety switch, general duty, non fusible, 100A, 3 pole, 3 wire, 30hp, 240VAC, NEMA 3R, bolt on hub provision Picture of DU323RB - Safety switch, general duty, non fusible, 100A, 3 pole, 3 wire, 30hp, 240VAC, NEMA 3R, bolt on hub provision
Picture of DU323RB - Safety switch, general duty, non fusible, 100A, 3 pole, 3 wire, 30hp, 240VAC, NEMA 3R, bolt on hub provision Picture of DU323RB - Safety switch, general duty, non fusible, 100A, 3 pole, 3 wire, 30hp, 240VAC, NEMA 3R, bolt on hub provision
Square D

DU323RB - Safety switch, general duty, non fusible, 100A, 3 pole, 3 wire, 30hp, 240VAC, NEMA 3R, bolt on hub provision

Item Code: 17979
Category Non-Fusible General Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref DU323RB

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory installed neutral assembly or field installed service grounding kit. This general duty single throw safety switch is a three pole, 100A, non fusible disconnect with a 240VAC voltage rating. This switch has a NEMA 3R enclosure and is surface mounted. This switch comes with lugs suitable for aluminum or copper conductors. These general duty switches are UL listed.

Specifications

Weight

14.75lb

Height

7.3mm

Width

10.4mm

Length

19.71mm

Depth

6.5mm

AD All Features

Fusible switches provide over-current and short circuit protection

AD Application

Indoor and outdoor applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

SWITCH SAF 240VAC 100A 30HP TPST 3 3 HDL

AD Item Features 01

Fusible switches provide over-current and short circuit protection

AD Item Features 02

Excellent for disconnecting lighting, air condition, and appliances

AD Item Features 03

Quick make, quick break operating mechanism

AD Manufacturer (Description)

Schneider Electric

AD Package Height

7.3000

AD Package Height UOM

IN

AD Package Length

19.7100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

14.7500

AD Package Weight UOM

LB

AD Package Width

10.4000

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/watch?v=abIf06C7qgc

Brand

Square D

Category

NON-FUSIBLE GENERAL DUTY SAFETY SWITCHES

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Handle

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Surface

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

3

Spec 12 Attribute

Number Of Wires

Spec 12 Attribute Value

3

Spec 13 Attribute

PHASE

Spec 13 Attribute Value

3-Jan

Spec 14 Attribute

Series

Spec 14 Attribute Value

F3 Series

Spec 15 Attribute

Short Circuit Current Rating

Spec 15 Attribute UOM

KA

Spec 15 Attribute Value

100

Spec 16 Attribute

Terminal Type

Spec 16 Attribute Value

Lug

Spec 17 Attribute

Type

Spec 17 Attribute Value

General Duty Non-Fusible Iceproof Rainproof

Spec 18 Attribute

Voltage Rating

Spec 18 Attribute UOM

V AC

Spec 18 Attribute Value

240

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

100

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

3PST

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

8-1/2 in W x 6-1/2 in D x 17-1/2 in H

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 3R

Spec 6 Attribute

Finish

Spec 6 Attribute Value

Hot dipped galvanized

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

HORSEPOWER

Spec 8 Attribute UOM

HP

Spec 8 Attribute Value

30

Spec 9 Attribute

Material

Spec 9 Attribute Value

Steel
