Square D

ECB24030G3 - Circuit Breaker, PowerLink™, 30A, 2 pole, 480Y/277VAC, 14kA, remotely operated, bolt on mount [TAA]

Category Bolt-On Circuit Breakers

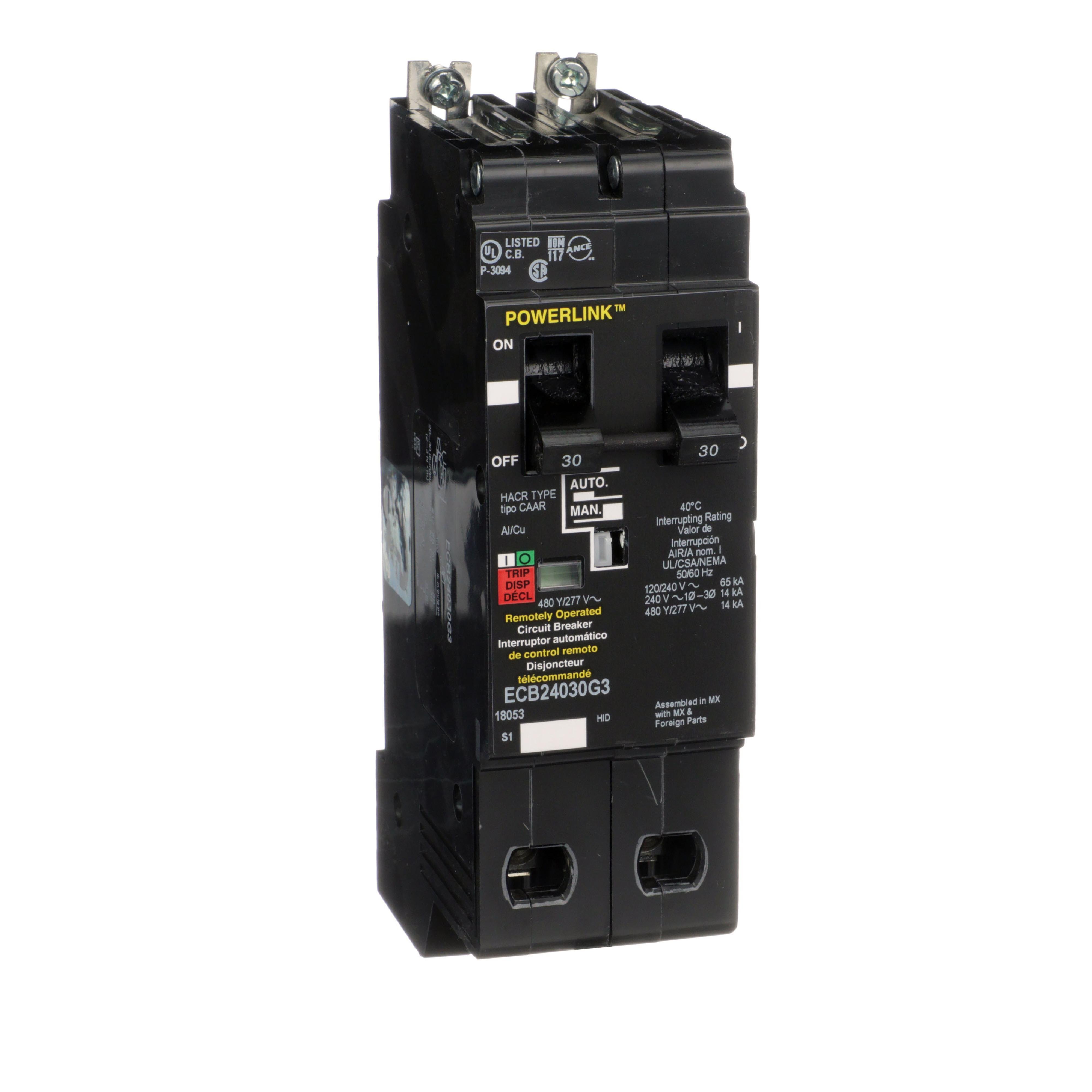

Picture of ECB24030G3 - Circuit Breaker, PowerLink™, 30A, 2 pole, 480Y/277VAC, 14kA, remotely operated, bolt on mount [TAA] Picture of ECB24030G3 - Circuit Breaker, PowerLink™, 30A, 2 pole, 480Y/277VAC, 14kA, remotely operated, bolt on mount [TAA]
Picture of ECB24030G3 - Circuit Breaker, PowerLink™, 30A, 2 pole, 480Y/277VAC, 14kA, remotely operated, bolt on mount [TAA] Picture of ECB24030G3 - Circuit Breaker, PowerLink™, 30A, 2 pole, 480Y/277VAC, 14kA, remotely operated, bolt on mount [TAA]
Square D

ECB24030G3 - Circuit Breaker, PowerLink™, 30A, 2 pole, 480Y/277VAC, 14kA, remotely operated, bolt on mount [TAA]

Item Code: 676881
Category Bolt-On Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ECB24030G3

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

PowerLink™ circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for PowerLink™ Intelligent panelboard. They can be configured to automatically or manually reset once tripped using a bimetallic strip. This circuit breaker is HACR rated to a current capacity of 30 amperages, allowing for it be ideally used in congruence with HVAC systems. Certified by the Underwriters Laboratory to meet the designed specifications.

Specifications

Weight

2.81

Height

3.5

Width

6.54

Length

9.91

AD All Features

Protects circuits from faults and overcurrent

AD Application

Emergency Lighting Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

BREAKER CKT CASE MLD 480Y/277VAC 30A 2 E

AD Item Features 01

Protects circuits from faults and overcurrent

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.5000

AD Package Height UOM

IN

AD Package Length

9.9100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

231.0000

AD Package Volume UOM

cu-in

AD Package Weight

2.8100

AD Package Weight UOM

LB

AD Package Width

6.5400

AD Package Width UOM

IN

Brand

Square D

Category

BOLT-ON CIRCUIT BREAKERS

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Toggle

Spec 10 Attribute

Trip Range

Spec 10 Attribute UOM

A

Spec 10 Attribute Value

30

Spec 11 Attribute

Trip Type

Spec 11 Attribute Value

Thermal Magnetic

Spec 12 Attribute

Type

Spec 12 Attribute Value

Type ECB-G3

Spec 13 Attribute

Voltage Rating

Spec 13 Attribute UOM

V AC

Spec 13 Attribute Value

480/277

Spec 14 Attribute

Wire Size

Spec 14 Attribute UOM

AWG

Spec 14 Attribute Value

14 to 8

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

30

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Load Lug

Spec 4 Attribute

Frame

Spec 4 Attribute Value

E

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

14/65

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Bolted-On

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

2

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

1

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg F

Spec 9 Attribute Value

140
