Square D

EDB14020EPD - Mini circuit breaker, E-Frame, 20A, 1 pole, 277VAC, 25kA max, bolt on, 30mA ground fault protection [TAA]

Category Miscellaneous

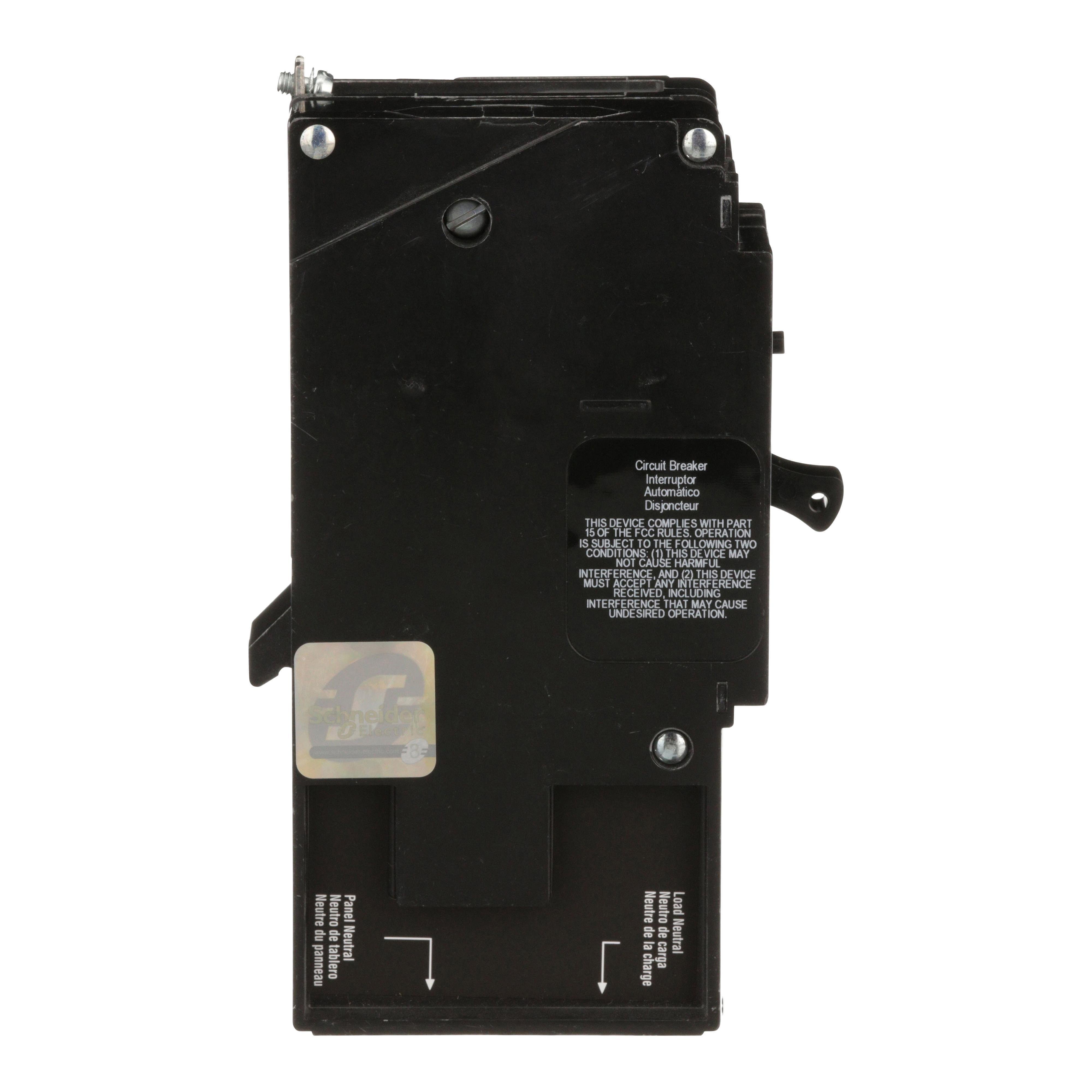

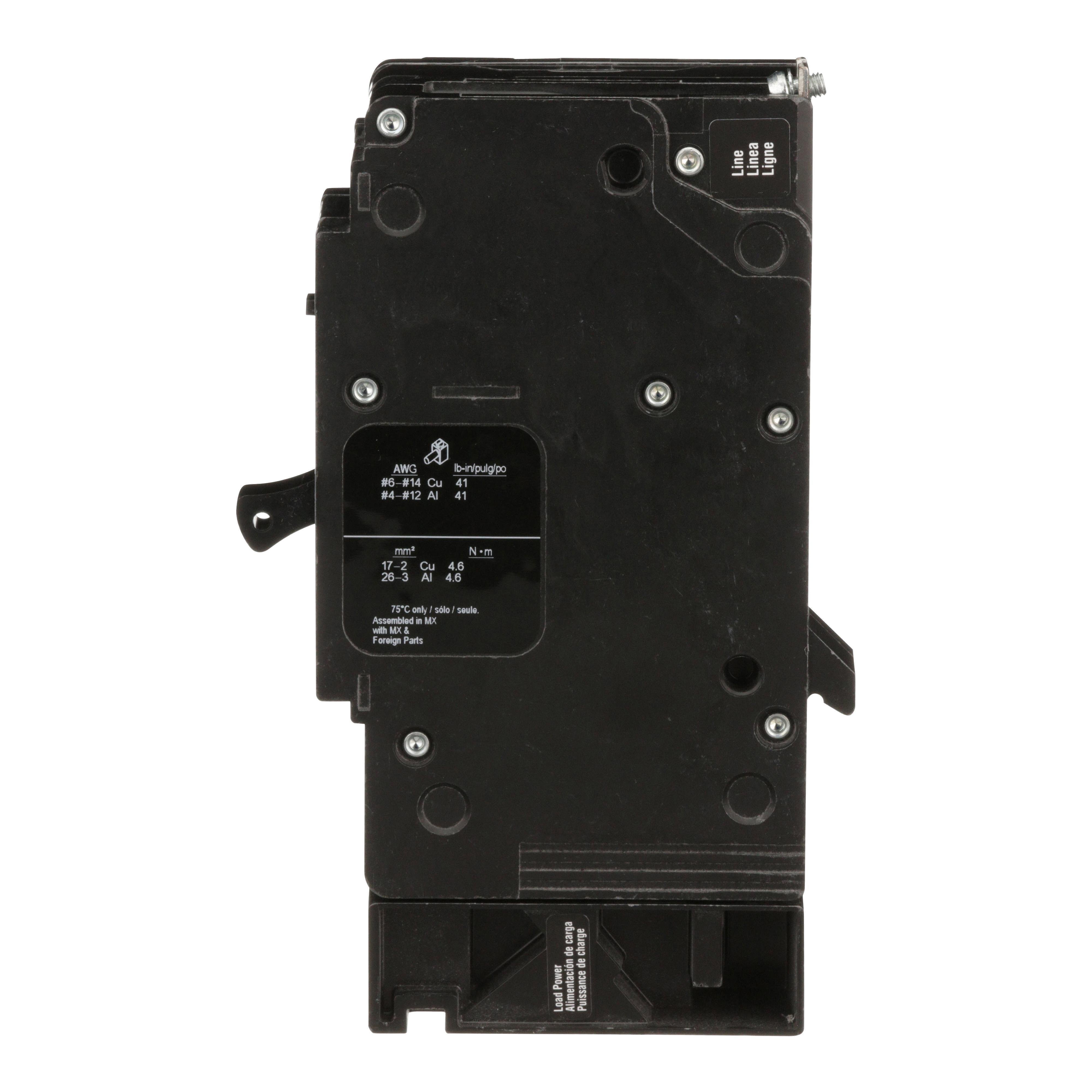

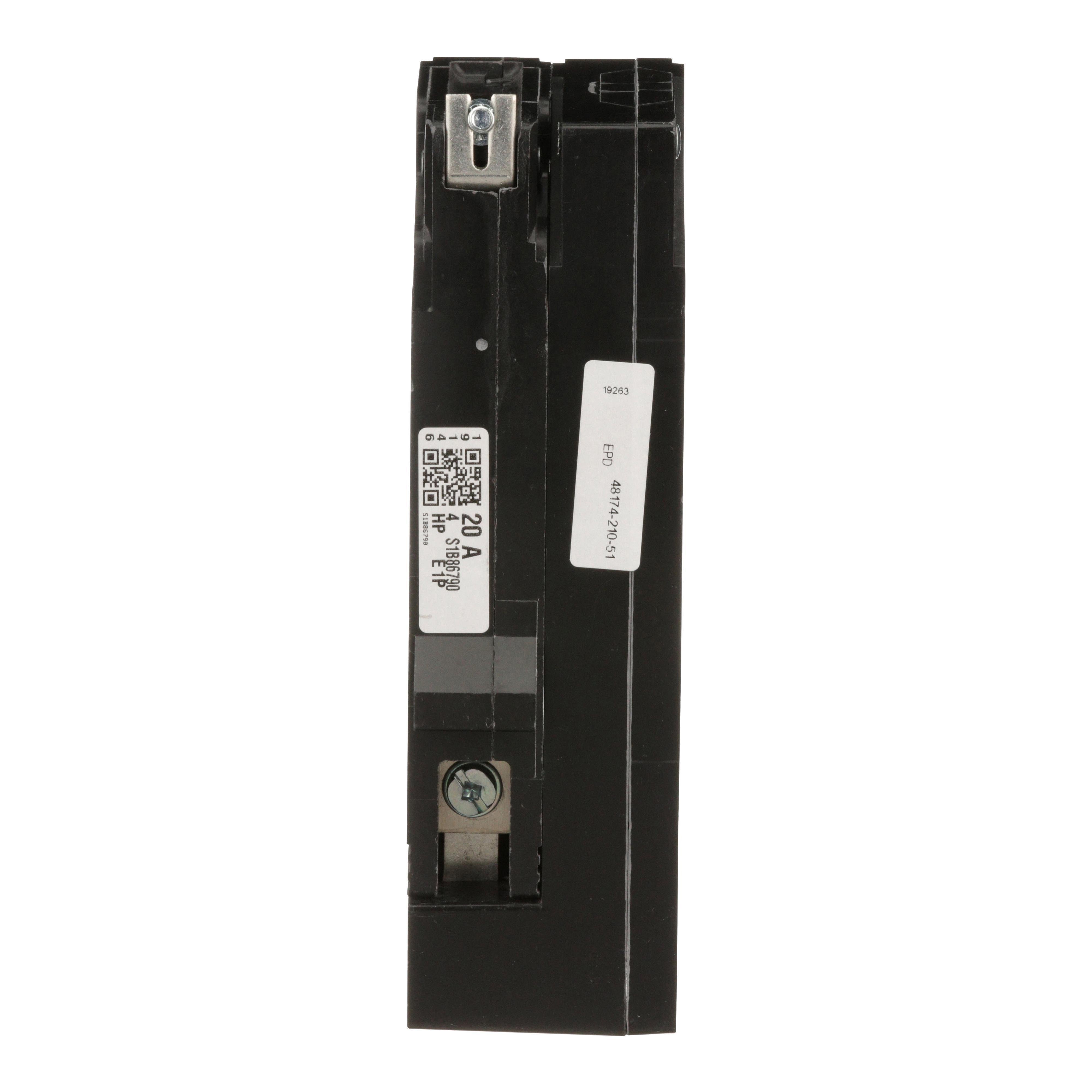

Picture of EDB14020EPD - Mini circuit breaker, E-Frame, 20A, 1 pole, 277VAC, 25kA max, bolt on, 30mA ground fault protection [TAA] Picture of EDB14020EPD - Mini circuit breaker, E-Frame, 20A, 1 pole, 277VAC, 25kA max, bolt on, 30mA ground fault protection [TAA]
Picture of EDB14020EPD - Mini circuit breaker, E-Frame, 20A, 1 pole, 277VAC, 25kA max, bolt on, 30mA ground fault protection [TAA] Picture of EDB14020EPD - Mini circuit breaker, E-Frame, 20A, 1 pole, 277VAC, 25kA max, bolt on, 30mA ground fault protection [TAA]
Picture of EDB14020EPD - Mini circuit breaker, E-Frame, 20A, 1 pole, 277VAC, 25kA max, bolt on, 30mA ground fault protection [TAA] Picture of EDB14020EPD - Mini circuit breaker, E-Frame, 20A, 1 pole, 277VAC, 25kA max, bolt on, 30mA ground fault protection [TAA]
Picture of EDB14020EPD - Mini circuit breaker, E-Frame, 20A, 1 pole, 277VAC, 25kA max, bolt on, 30mA ground fault protection [TAA] Picture of EDB14020EPD - Mini circuit breaker, E-Frame, 20A, 1 pole, 277VAC, 25kA max, bolt on, 30mA ground fault protection [TAA]
Square D

EDB14020EPD - Mini circuit breaker, E-Frame, 20A, 1 pole, 277VAC, 25kA max, bolt on, 30mA ground fault protection [TAA]

Item Code: 581837
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EDB14020EPD

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 20A, 1 pole, and has an operating voltage of 277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This one includes 30 mA ground protection. This breaker was calibrated for 40 degrees C. This product is UL Listed as Switching duty and High Intensity Discharge. HACR rated.

Specifications

Weight

2.08

Width

5.65

Length

7.23

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/EDB14020EPD/EDB14020EPD.spin

AD All Features

Used in lighting panelboards

AD Alternative Part Number

9135072

AD Application

Provides Overload and Short Circuit Protection Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD Document Caption 5

Technical Bulletin

AD EAN

0785901425045

AD Gtin

00785901425045

AD IDEA Index ID

9135072

AD Invoice Description

BREAKER CKT MINTR 277VAC 20A 18KA E 875A

AD Item Features 01

Used in lighting panelboards

AD Item Features 02

From 15A to 125A ratings

AD Item Features 03

Troubleshoot faster with Visi-Trip

AD Keywords

E-FRAME EDB14020EPD Type EDB Class B Molded Case Miniature Circuit Breaker, 277 V AC, 20 A, 18 kA Interrupt, 1 Pole, Thermal Magnetic Trip ; Schneider Electric ; Square D ; EDB14020EPD ; EDB14020EPD ; 785901425045 ; Ground-Fault Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

7.2300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

2.0800

AD Package Weight UOM

LB

AD Package Width

5.6500

AD Package Width UOM

IN

AD Part Number Keywords

EDB14020EPD ; 9135072 ; 785901425045 ; 78590142504 ; 00785901425045 ; 0785901425045

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

20

Spec 10 Attribute

Trip Type

Spec 10 Attribute Value

Thermal Magnetic

Spec 11 Attribute

Type

Spec 11 Attribute Value

Type EDB Class B Molded Case

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

277

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

14 to 6 AWG, 12 to 4 AWG

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

4.05 in L x 1.96 in W x 6.64 in H

Spec 4 Attribute

Frame

Spec 4 Attribute Value

E

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

18

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Bolt-on

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

1

Spec 8 Attribute

Temperature Rating

Spec 8 Attribute UOM

deg C

Spec 8 Attribute Value

40

Spec 9 Attribute

Trip Range

Spec 9 Attribute UOM

A

Spec 9 Attribute Value

875
