Square D

EDB24080 - Mini circuit breaker, E-Frame, 80A, 2 pole, 480Y/277VAC, 25kA max, bolt on [TAA]

Category Miscellaneous

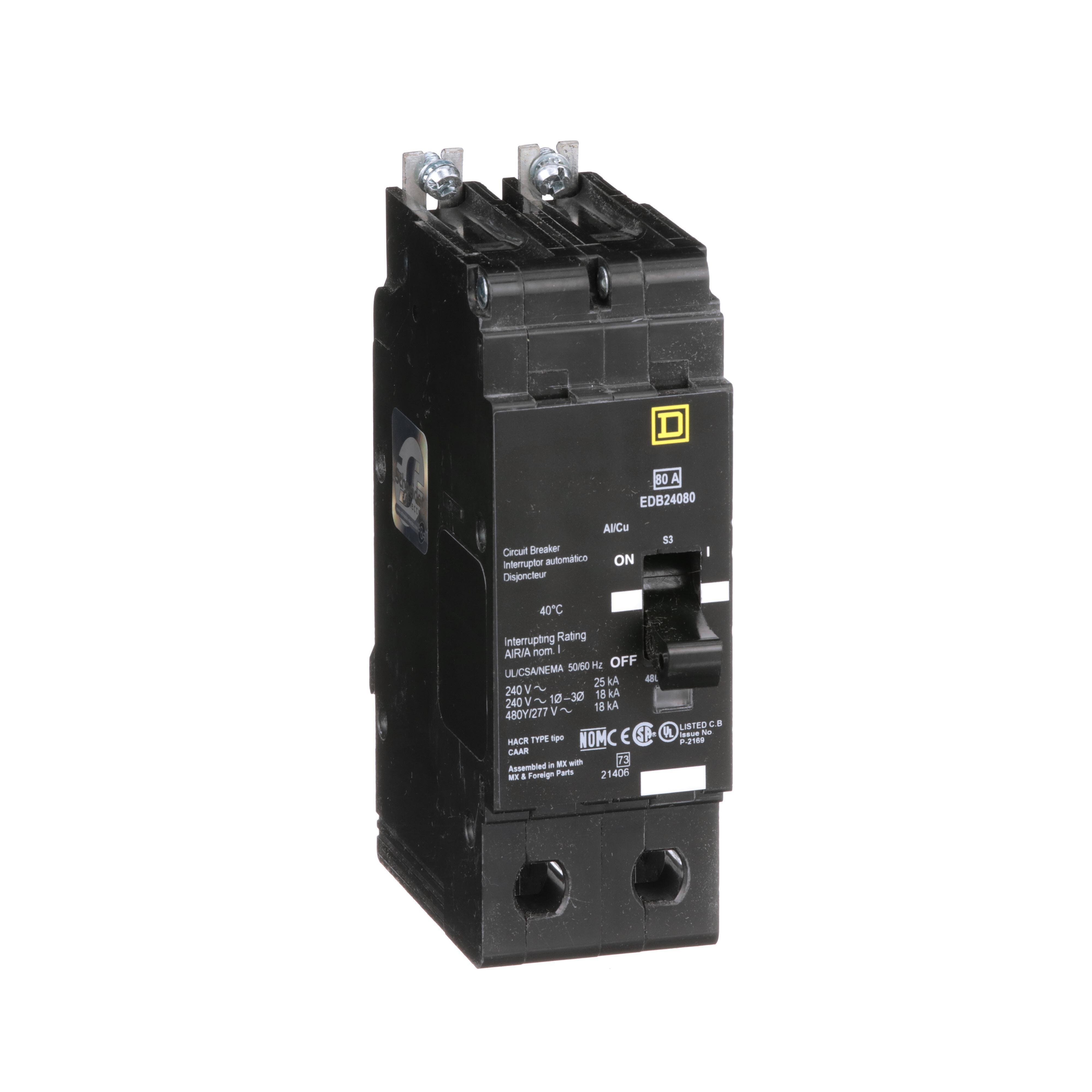

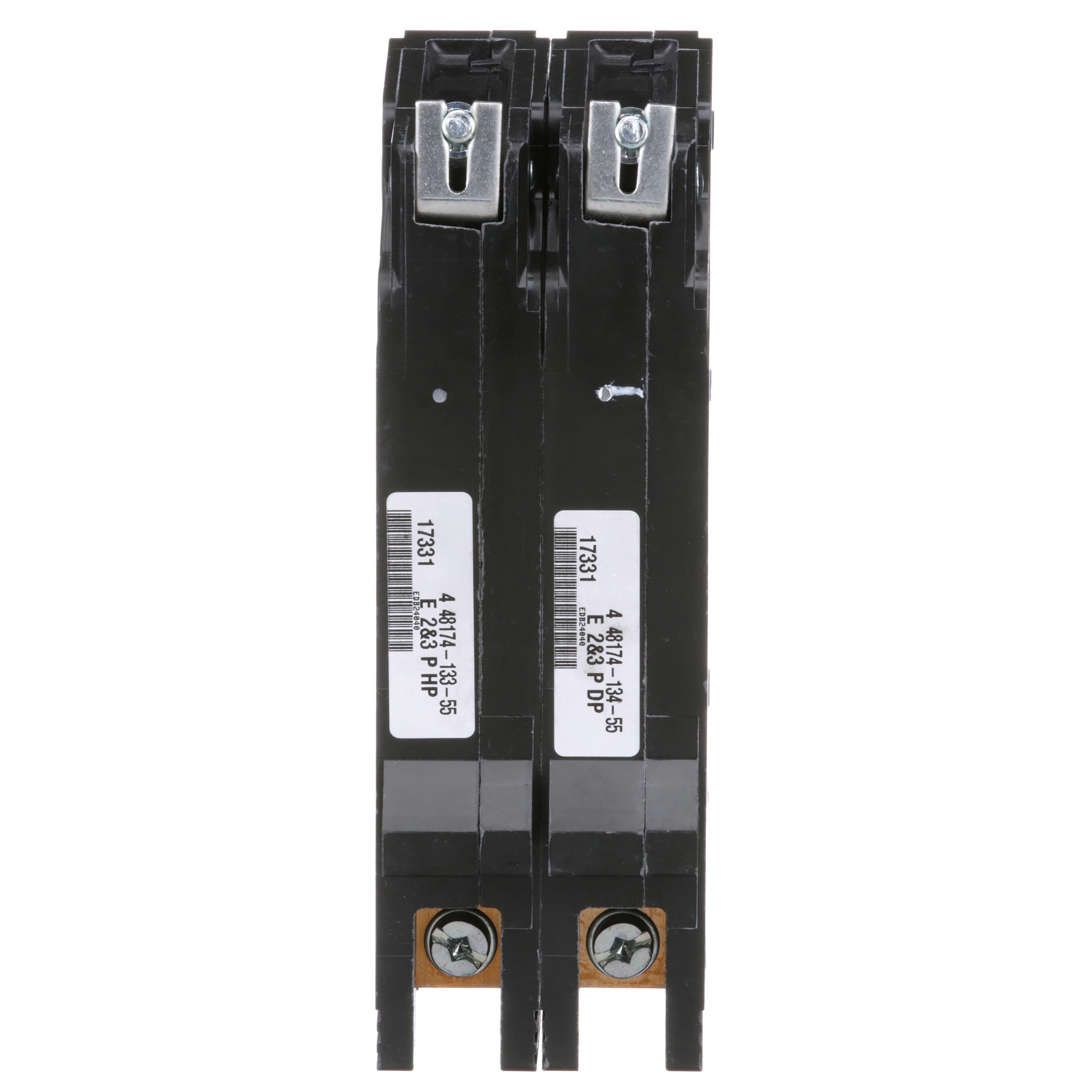

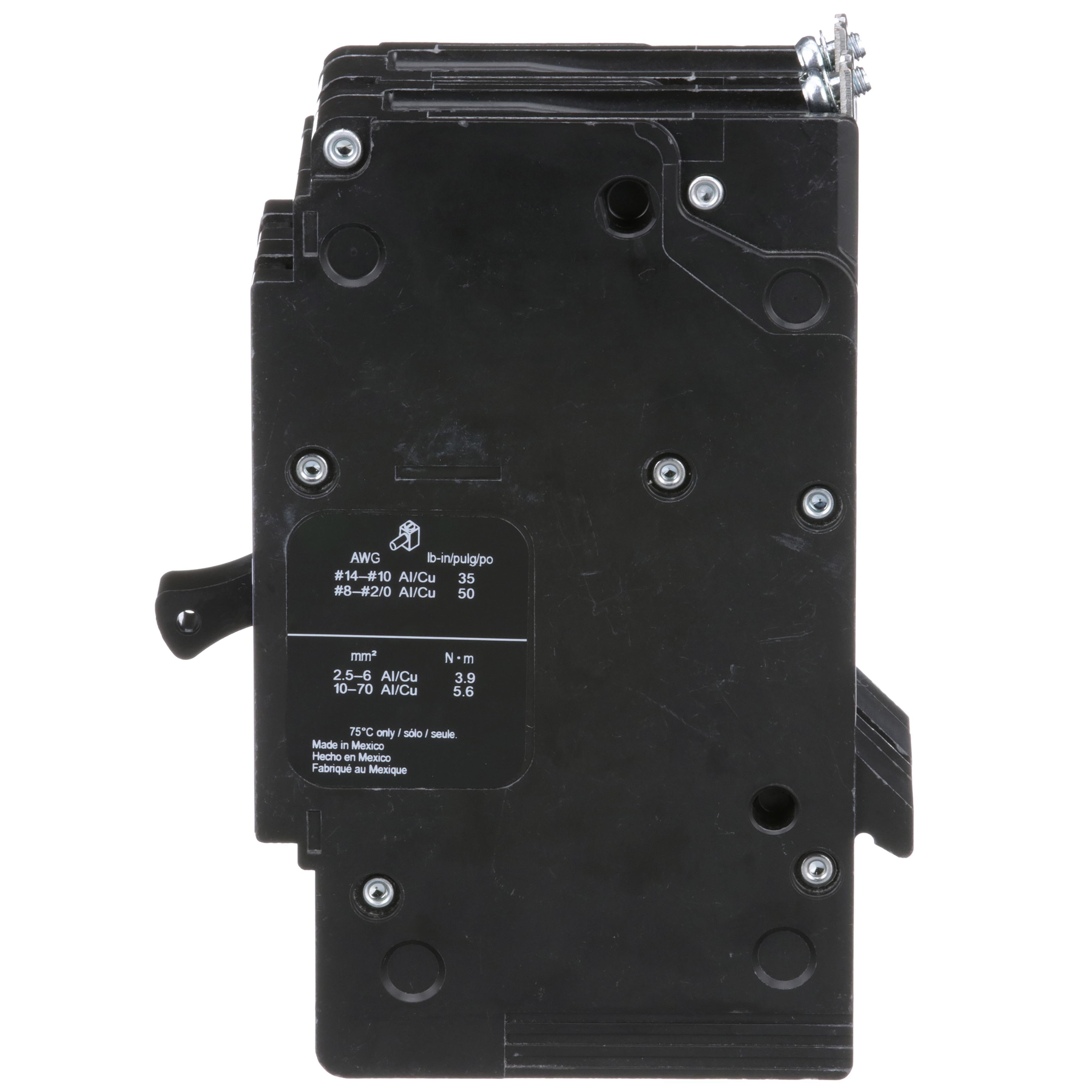

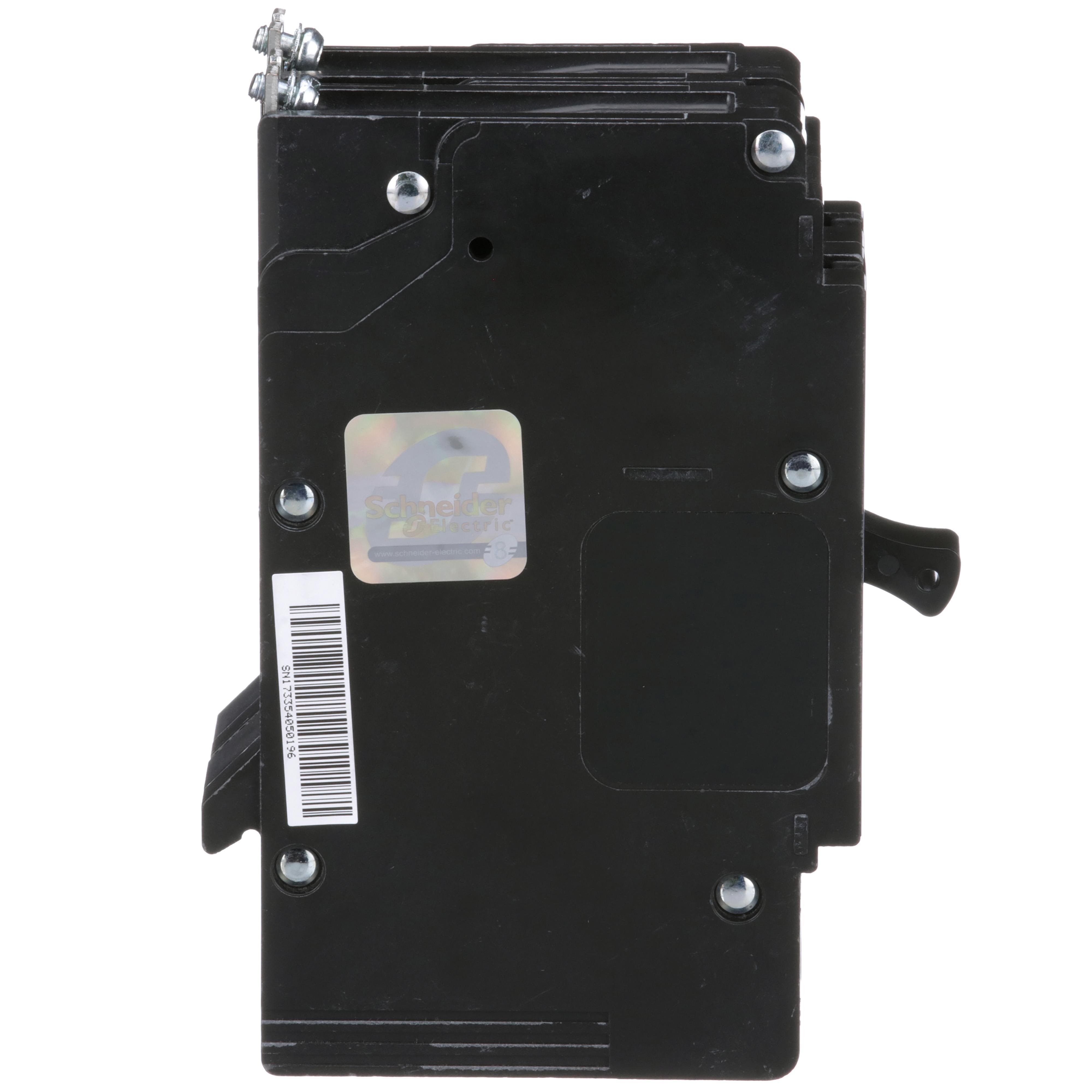

Picture of EDB24080 - Mini circuit breaker, E-Frame, 80A, 2 pole, 480Y/277VAC, 25kA max, bolt on [TAA] Picture of EDB24080 - Mini circuit breaker, E-Frame, 80A, 2 pole, 480Y/277VAC, 25kA max, bolt on [TAA]
Picture of EDB24080 - Mini circuit breaker, E-Frame, 80A, 2 pole, 480Y/277VAC, 25kA max, bolt on [TAA] Picture of EDB24080 - Mini circuit breaker, E-Frame, 80A, 2 pole, 480Y/277VAC, 25kA max, bolt on [TAA]
Picture of EDB24080 - Mini circuit breaker, E-Frame, 80A, 2 pole, 480Y/277VAC, 25kA max, bolt on [TAA] Picture of EDB24080 - Mini circuit breaker, E-Frame, 80A, 2 pole, 480Y/277VAC, 25kA max, bolt on [TAA]
Picture of EDB24080 - Mini circuit breaker, E-Frame, 80A, 2 pole, 480Y/277VAC, 25kA max, bolt on [TAA] Picture of EDB24080 - Mini circuit breaker, E-Frame, 80A, 2 pole, 480Y/277VAC, 25kA max, bolt on [TAA]
Picture of EDB24080 - Mini circuit breaker, E-Frame, 80A, 2 pole, 480Y/277VAC, 25kA max, bolt on [TAA] Picture of EDB24080 - Mini circuit breaker, E-Frame, 80A, 2 pole, 480Y/277VAC, 25kA max, bolt on [TAA]
Square D

EDB24080 - Mini circuit breaker, E-Frame, 80A, 2 pole, 480Y/277VAC, 25kA max, bolt on [TAA]

Item Code: 531294
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EDB24080

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 80A, 2 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 1000A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 2300A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. HACR rated.

Specifications

Weight

2.53

Height

3.8

Width

6.14

Length

9.71

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/edb24035/edb24035.spin

AD All Features

Used in lighting panelboards

AD Alternative Part Number

8131673

AD Application

For NF panelboards and HACR applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD Document Caption 5

Technical Bulletin

AD EAN

0785901311058

AD Gtin

00785901311058

AD IDEA Index ID

8131673

AD Invoice Description

BREAKER CKT MINTR 277/480YVAC 80A E

AD Item Features 01

Used in lighting panelboards

AD Item Features 02

Superior overload and short circuit protection

AD Item Features 03

From 15A to 125A ratings

AD Item Features 04

Troubleshoot faster with Visi-Trip

AD Keywords

E-FRAME EDB24080 Type EDB Molded Case Standard Miniature Circuit Breaker, 277/480Y V AC, 80 A, 18/25 kA Interrupt, 2 Poles, Thermal Magnetic Trip ; Schneider Electric ; Square D ; EDB24080 ; EDB24080 ; 785901311058 ; Miniature Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.8000

AD Package Height UOM

IN

AD Package Length

9.7100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

230.8900

AD Package Volume UOM

cu-in

AD Package Weight

2.5300

AD Package Weight UOM

LB

AD Package Width

6.1400

AD Package Width UOM

IN

AD Part Number Keywords

EDB24080 ; 8131673 ; 785901311058 ; 78590131105 ; 00785901311058 ; 0785901311058

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

80

Spec 10 Attribute

Trip Type

Spec 10 Attribute Value

Thermal Magnetic

Spec 11 Attribute

Type

Spec 11 Attribute Value

Type EDB Molded Case Standard

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

277/480Y

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

14 to 2/0 AWG, 12 to 2/0 AWG

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

4.05 in L x 1.96 in W x 5.66 in H

Spec 4 Attribute

Frame

Spec 4 Attribute Value

E

Spec 5 Attribute

Interrupt Rating

Spec 5 Attribute UOM

KA

Spec 5 Attribute Value

18/25

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Bolt-on

Spec 7 Attribute

Number Of Poles

Spec 7 Attribute Value

2

Spec 8 Attribute

Temperature Rating

Spec 8 Attribute UOM

deg C

Spec 8 Attribute Value

40

Spec 9 Attribute

Trip Range

Spec 9 Attribute UOM

A

Spec 9 Attribute Value

2300
