EDB34060 - [TAA] Mini circuit breaker, E-Frame, 60A, 3 pole, 480Y/277VAC, 25kA max, bolt on

Category Bolt-On Circuit Breakers

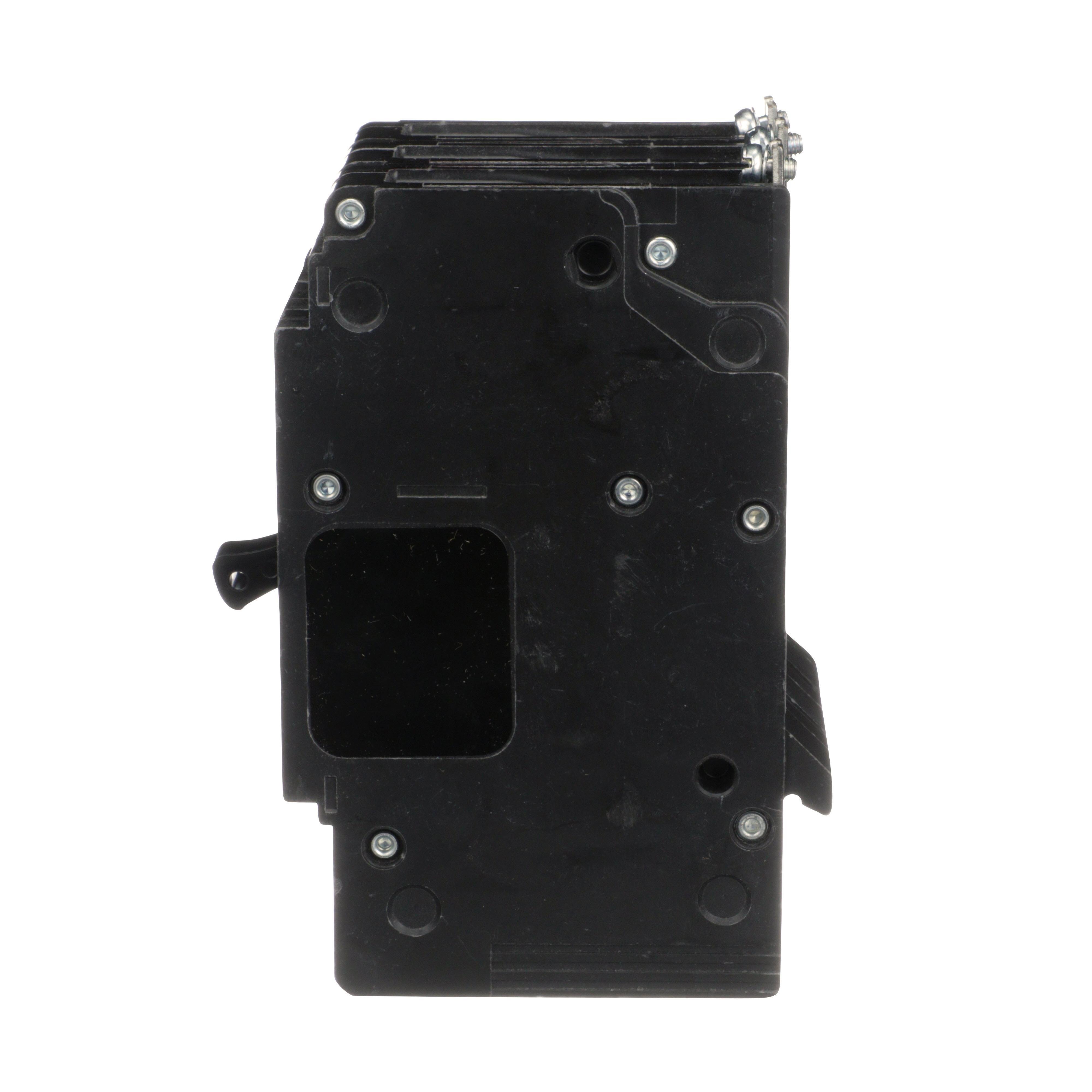

Picture of EDB34060 - [TAA] Mini circuit breaker, E-Frame, 60A, 3 pole, 480Y/277VAC, 25kA max, bolt on
Square D

EDB34060 - [TAA] Mini circuit breaker, E-Frame, 60A, 3 pole, 480Y/277VAC, 25kA max, bolt on

Item Code: 17998
Category Bolt-On Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EDB34060

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Technical Bulletin
Call for Availability
Add to Favorites
Compare

Description

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 60A, 3 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 630A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. HACR rated.

Specifications

Weight

3.65lb

Height

5.9mm

Width

6.93mm

Length

9.91mm

Depth

4.05mm

Amperage Rating

60 A

Brand

Square D

Category

BOLT-ON CIRCUIT BREAKERS

Connection Type

Lug

Dimensions

4.05 in L x 2.94 in W x 5.66 in H

Frame

E

Frequency Rating

50/60 Hz

Interrupt Rating

18 kA

Mounting Type

Bolt-on

Number Of Poles

3

Phase

3

Temperature Rating

104 deg F

Trip Range

630 to 1800 A

Trip Type

Thermal Magnetic

Type

Molded Case Standard

Voltage Rating

277/480Y V AC

Wire Size

12 to 2 AWG, 14 to 2/0 AWG
