EGB14025 - Mini circuit breaker, E-Frame, 25A, 1 pole, 277VAC, 65kA max, bolt on [TAA]

Category Bolt-On Circuit Breakers

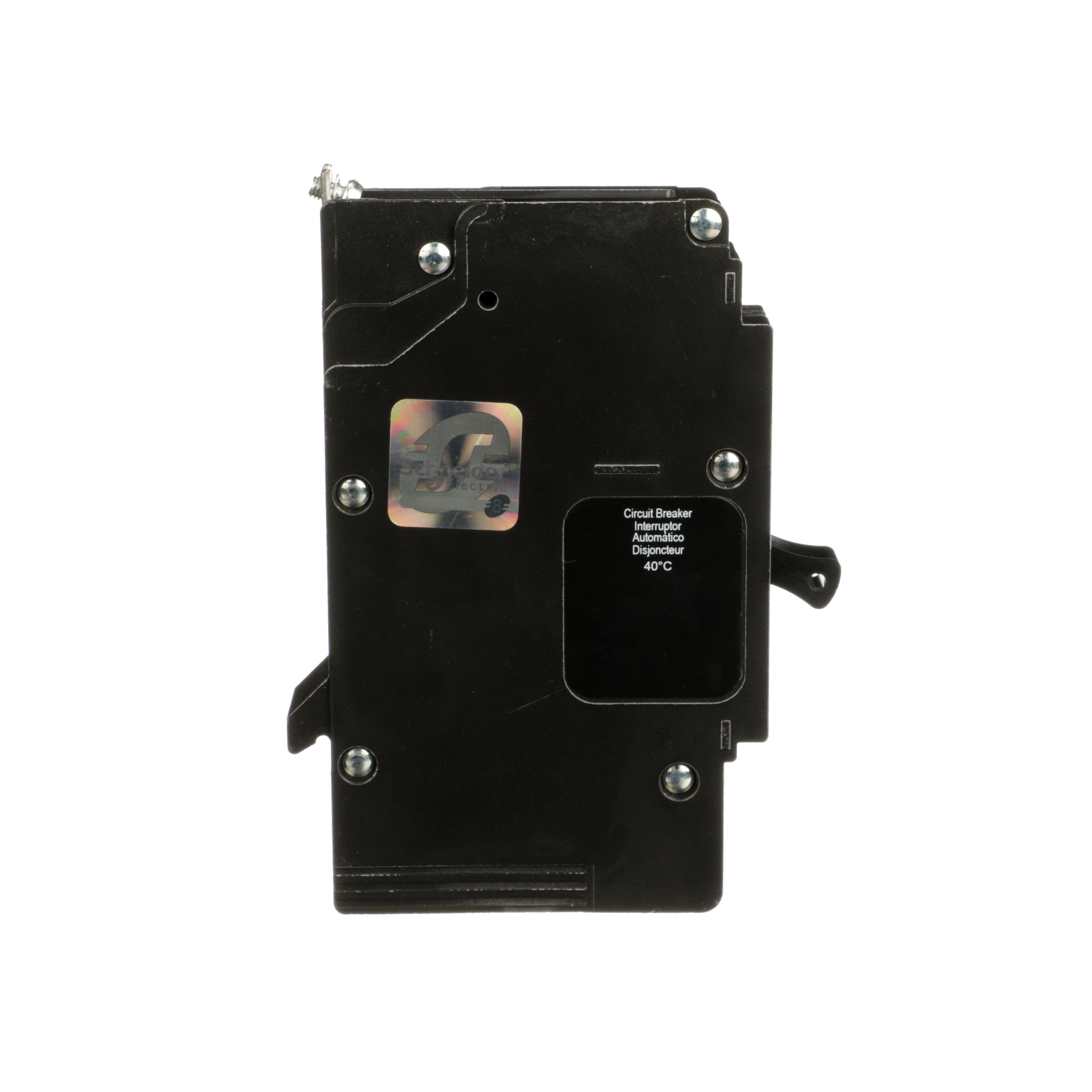

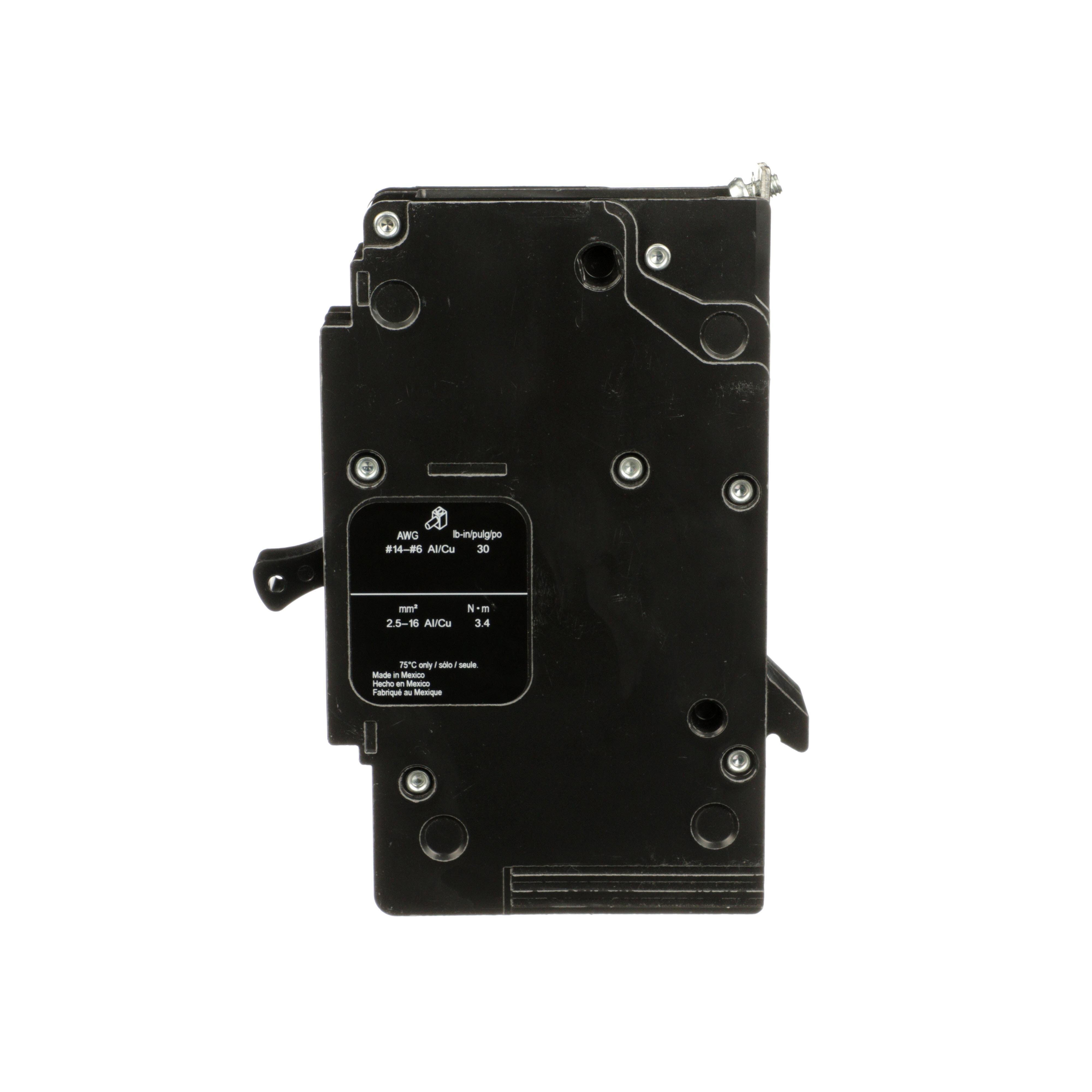

Picture of EGB14025 - Mini circuit breaker, E-Frame, 25A, 1 pole, 277VAC, 65kA max, bolt on [TAA]
Square D

EGB14025 - Mini circuit breaker, E-Frame, 25A, 1 pole, 277VAC, 65kA max, bolt on [TAA]

Item Code: 853104
Category Bolt-On Circuit Breakers
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EGB14025

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Technical Bulletin
Call for Availability
Add to Favorites
Compare

Description

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 25A, 1 pole, and has an operating voltage of 277 VAC. It also provides a 65 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.

Specifications

Weight

1.35

Width

6.04

Length

10.1

Amperage Rating

25 A

Brand

Square D

Category

BOLT-ON CIRCUIT BREAKERS

Connection Type

Lug

Dimensions

5.66 in H x 0.98 in W x 4.05 in D

Frame

E

Frequency Rating

50/60 Hz

Interrupt Rating

65 kA at 240 VAC, 35 kA at 480Y/277 VAC

Material

Thermoset Composite Resin

Mounting Type

Bolted-On

Number Of Poles

1

Phase

1

Temperature Rating

104 deg F

Trip Range

270 to 875 A

Trip Type

Thermal Magnetic

Type

Type EGB

Voltage Rating

277 V AC

Wire Size

12 to 6 AWG Al, 14 to 6 AWG Cu
