EGB34070 - Mini circuit breaker, E-Frame, 70A, 3 pole, 480Y/277VAC, 65kA max, bolt on [TAA]

Category Miscellaneous

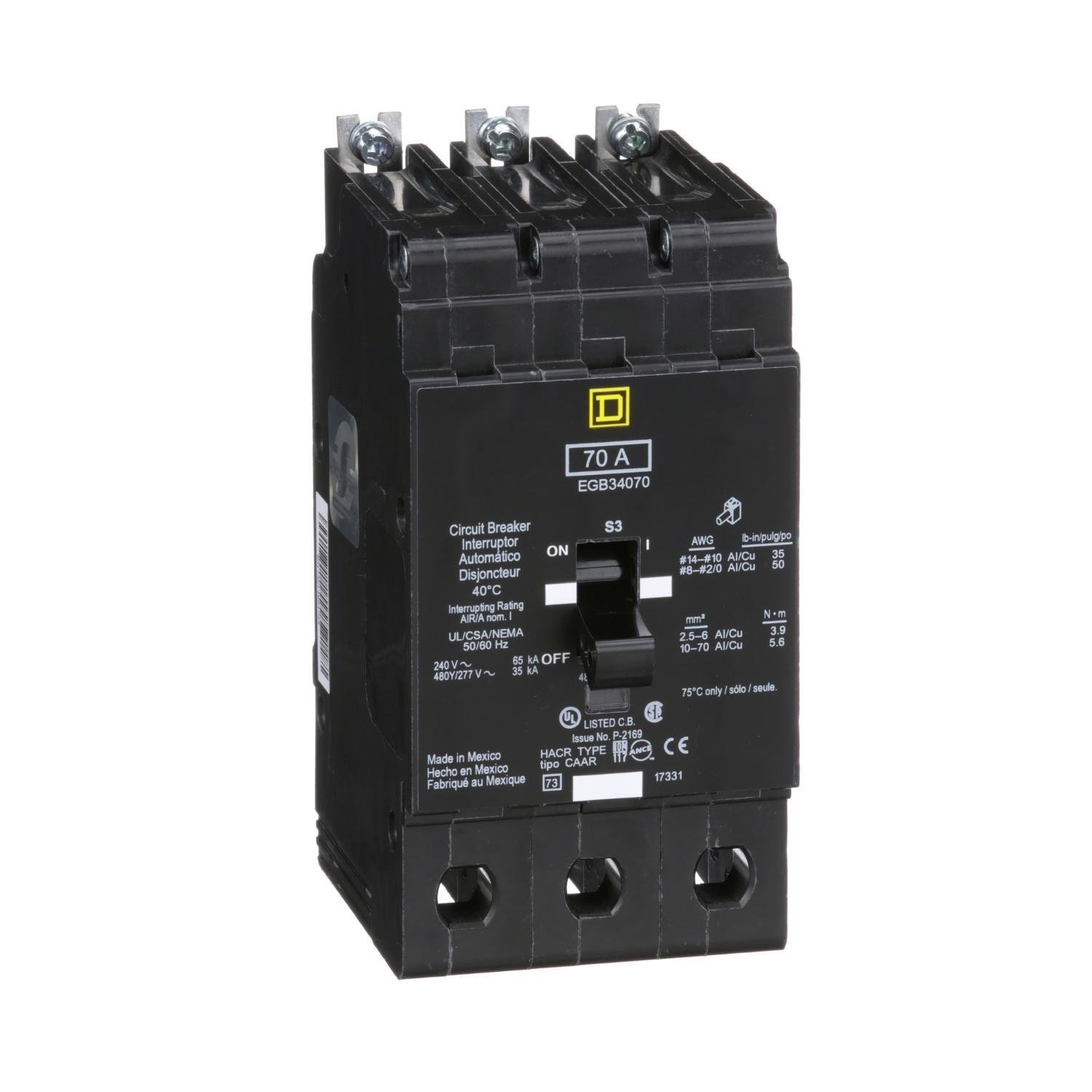

Picture of EGB34070 - Mini circuit breaker, E-Frame, 70A, 3 pole, 480Y/277VAC, 65kA max, bolt on [TAA]
Square D

EGB34070 - Mini circuit breaker, E-Frame, 70A, 3 pole, 480Y/277VAC, 65kA max, bolt on [TAA]

Item Code: 32722
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EGB34070

Document
Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 70A, 3 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 65 kA max interrupt rating at 120 VAC. This device has a hold current of 630A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 1800A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. HACR rated.

Specifications

Weight

3.54

Height

4.9

Width

6.04

Length

9.71

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/EGB34070/EGB34070.spin

AD All Features

Used in lighting panelboards

AD Alternative Part Number

8142306

AD Application

For overload and short circuit protection

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Full Engineering Drawing

AD Document Caption 5

Technical Bulletin

AD EAN

0785901326441

AD Gtin

00785901326441

AD IDEA Index ID

8142306

AD Invoice Description

BREAKER CKT MINTR 277/480YVAC 70A 35KA E

AD Item Features 01

Used in lighting panelboards

AD Item Features 02

From 15A to 125A ratings

AD Item Features 03

Troubleshoot faster with Visi-Trip

AD Keywords

E-FRAME EGB34070 Type EGB Molded Case Standard Miniature Circuit Breaker, 277/480Y V AC, 70 A, 35 kA Interrupt, 3 Poles, Thermal Magnetic Trip ; Schneider Electric ; Square D ; EGB34070 ; EGB34070 ; 785901326441 ; Miniature Circuit Breakers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.9000

AD Package Height UOM

IN

AD Package Length

9.7100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

297.7200

AD Package Volume UOM

cu-in

AD Package Weight

3.5400

AD Package Weight UOM

LB

AD Package Width

6.0400

AD Package Width UOM

IN

AD Part Number Keywords

EGB34070 ; 8142306 ; 785901326441 ; 78590132644 ; 00785901326441 ; 0785901326441

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

70

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

40

Spec 11 Attribute

Trip Range

Spec 11 Attribute UOM

A

Spec 11 Attribute Value

630 to 1800

Spec 12 Attribute

Trip Type

Spec 12 Attribute Value

Thermal Magnetic

Spec 13 Attribute

Type

Spec 13 Attribute Value

Type EGB Molded Case Standard

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC

Spec 14 Attribute Value

277/480Y

Spec 15 Attribute

Wire Size

Spec 15 Attribute Value

12 to 2/0 AWG, 14 to 2/0 AWG

Spec 2 Attribute

Connection Type

Spec 2 Attribute Value

Lug

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

4.05 in L x 2.94 in W x 5.66 in H

Spec 4 Attribute

Frame

Spec 4 Attribute Value

E

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50/60

Spec 6 Attribute

Interrupt Rating

Spec 6 Attribute UOM

KA

Spec 6 Attribute Value

35

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Bolt-on

Spec 8 Attribute

Number Of Poles

Spec 8 Attribute Value

3

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

3
