Square D™

EIK1 - Interlock, safety switch, 1 x NO, 1 x NC contact, general duty series F 100A to 200A rated or heavy duty series F5/F6/F7

Category Safety Switch Accessories

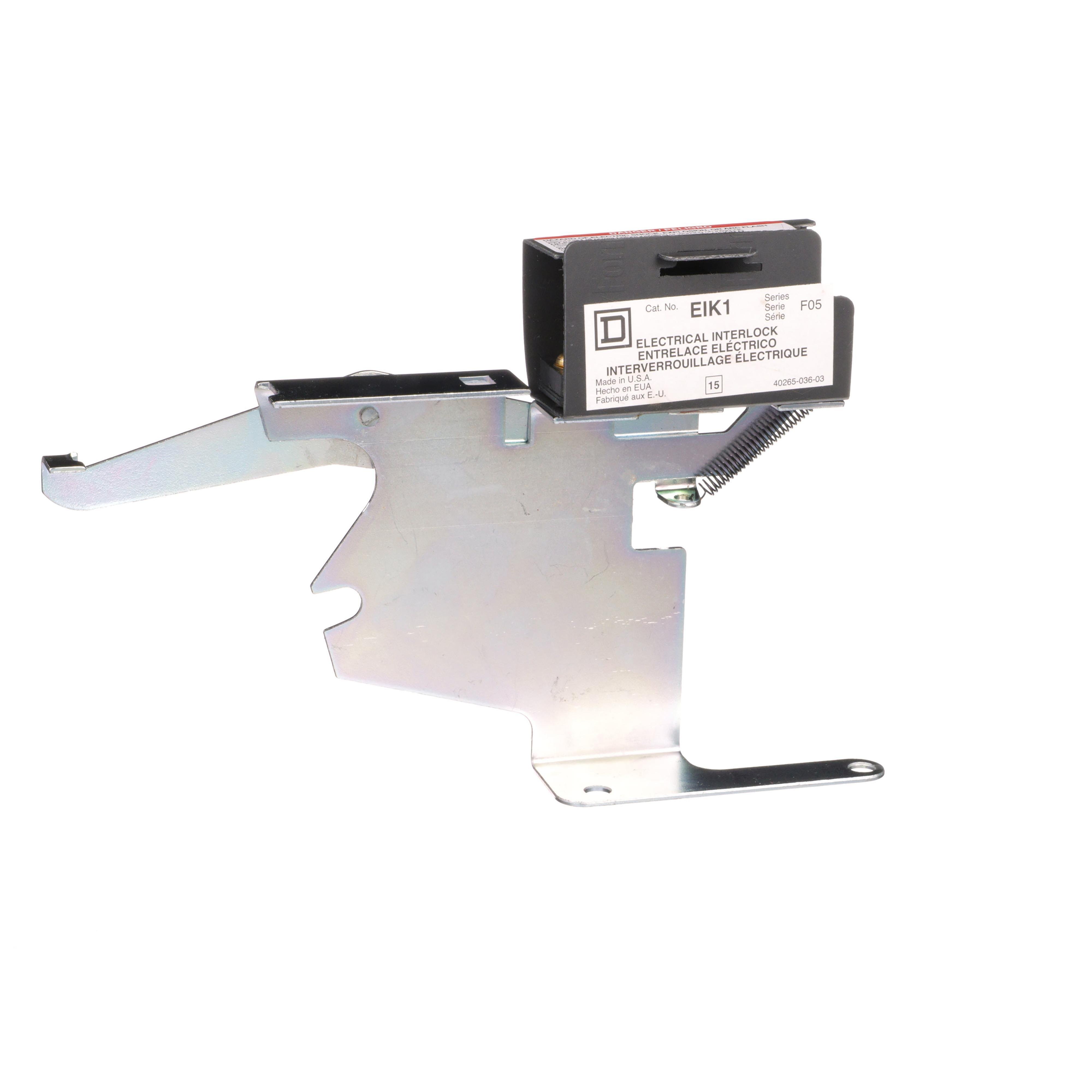

Picture of EIK1 - Interlock, safety switch, 1 x NO, 1 x NC contact, general duty series F 100A to 200A rated or heavy duty series F5/F6/F7
Square D™

EIK1 - Interlock, safety switch, 1 x NO, 1 x NC contact, general duty series F 100A to 200A rated or heavy duty series F5/F6/F7

Item Code: 18012
Category Safety Switch Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EIK1

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. This electrical interlock for switches rated 100A to 200A comes in kit form for field installation. A pivot arm operates from switch mechanism, breaking the control circuit before the main switch blades break. Each kit contains instructions for proper field mounting. It is UL listed.

Specifications

Weight

0.7lb

Height

3.9mm

Width

6.14mm

Length

6.93mm

Depth

1.48mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/EIK1/EIK1.spin

AD All Features

Electrical interlock for breaking the control circuit before the main switch blades break

AD Alternative Part Number

8157518

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

0785901751304

AD Gtin

00785901751304

AD IDEA Index ID

8157518

AD Invoice Description

KIT ELECTRICAL INTLK SW AUX 600VAC STL

AD Item Features 01

Electrical interlock for breaking the control circuit before the main switch blades break

AD Item Features 02

Available in kit form for field installation

AD Keywords

EIK1 F Series Auxiliary Electrical Interlock Switch Kit, 600 V AC, 100/200 A, For Use With Series F General Duty Safety Switch ; Schneider Electric ; Square D ; EIK1 ; EIK1 ; 785901751304 ; Safety/Disconnect Interlock Kits

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.9000

AD Package Height UOM

IN

AD Package Length

6.9300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

169.2600

AD Package Volume UOM

cu-in

AD Package Weight

0.7000

AD Package Weight UOM

LB

AD Package Width

6.1400

AD Package Width UOM

IN

AD Part Number Keywords

EIK1 ; 8157518 ; 785901751304 ; 78590175130 ; 00785901751304 ; 0785901751304

AD Video Links

https://www.youtube.com/embed/3j1msgeG034

Brand

Square D

Category

SAFETY SWITCH ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

100/200

Spec 2 Attribute

Dimensions

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

1.48

Spec 3 Attribute

Material

Spec 3 Attribute Value

Steel

Spec 4 Attribute

Series

Spec 4 Attribute Value

F Series

Spec 5 Attribute

Suitable For Use With

Spec 5 Attribute Value

Series F General Duty Safety Switch

Spec 6 Attribute

Type

Spec 6 Attribute Value

Auxiliary

Spec 7 Attribute

Voltage Rating

Spec 7 Attribute UOM

V AC

Spec 7 Attribute Value

600
