Schneider Electric

EXN112T3H - Transformer, dry type, DOE 2016, 112.5kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 21M, 150C rise

Category Dry Type Transformers 600V Or Less

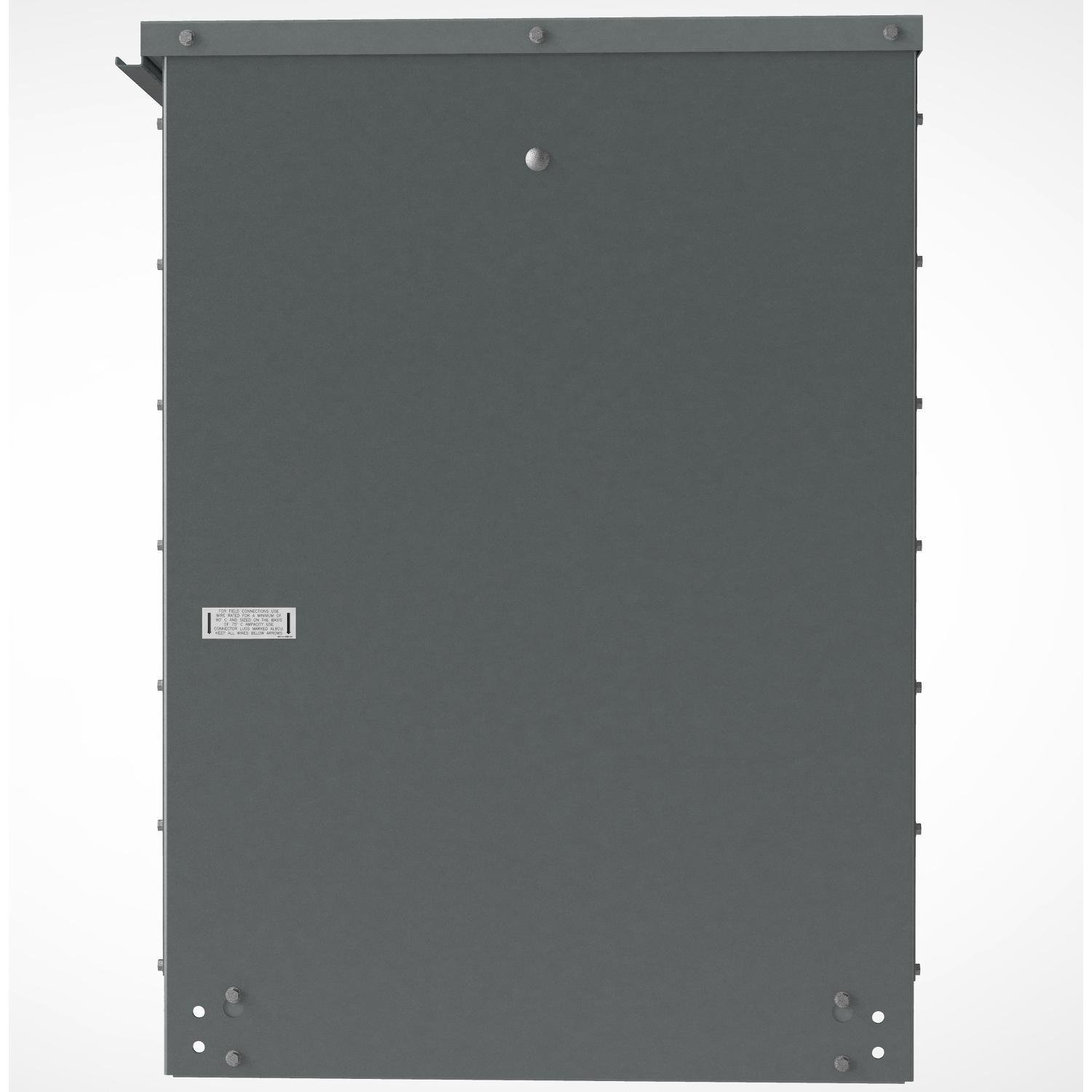

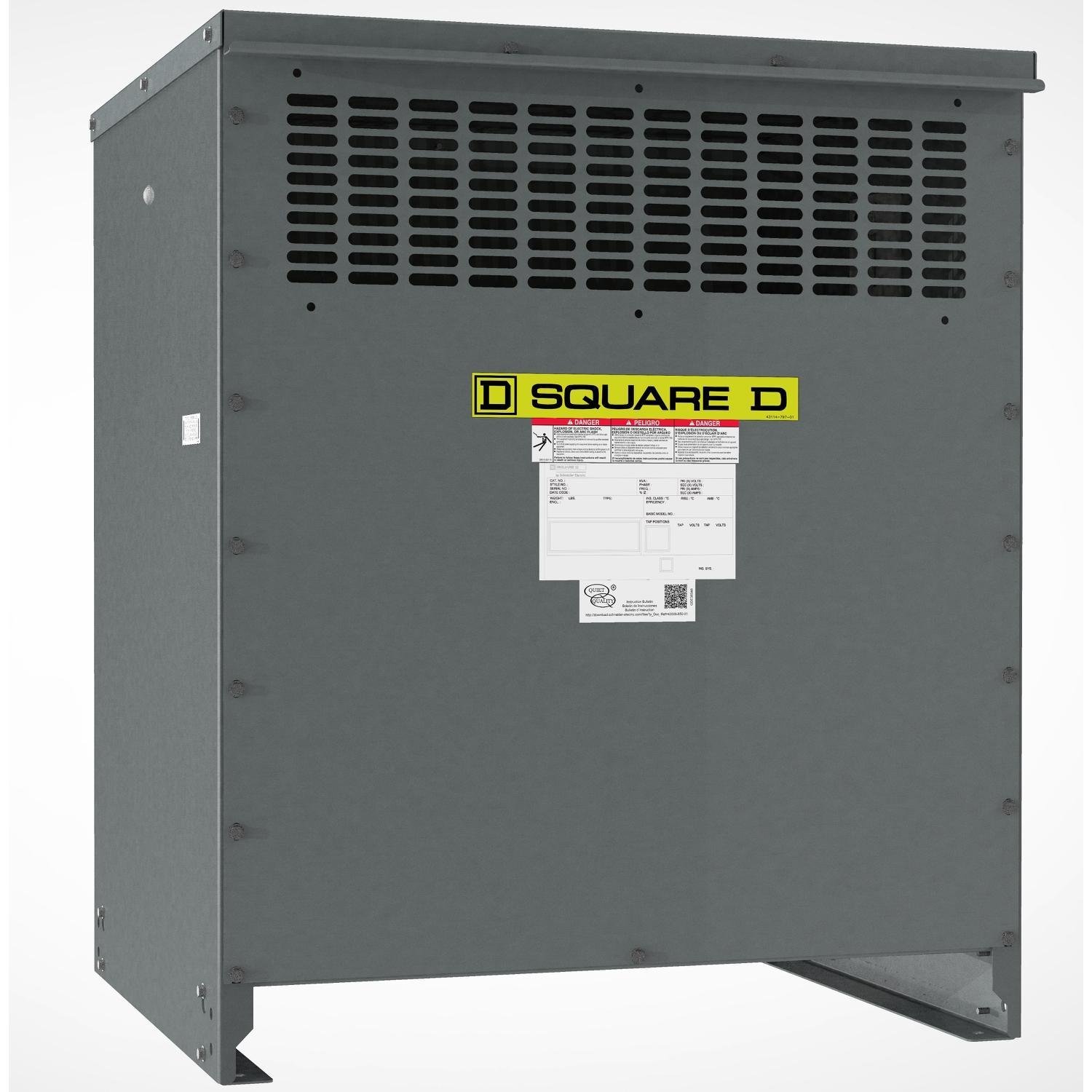

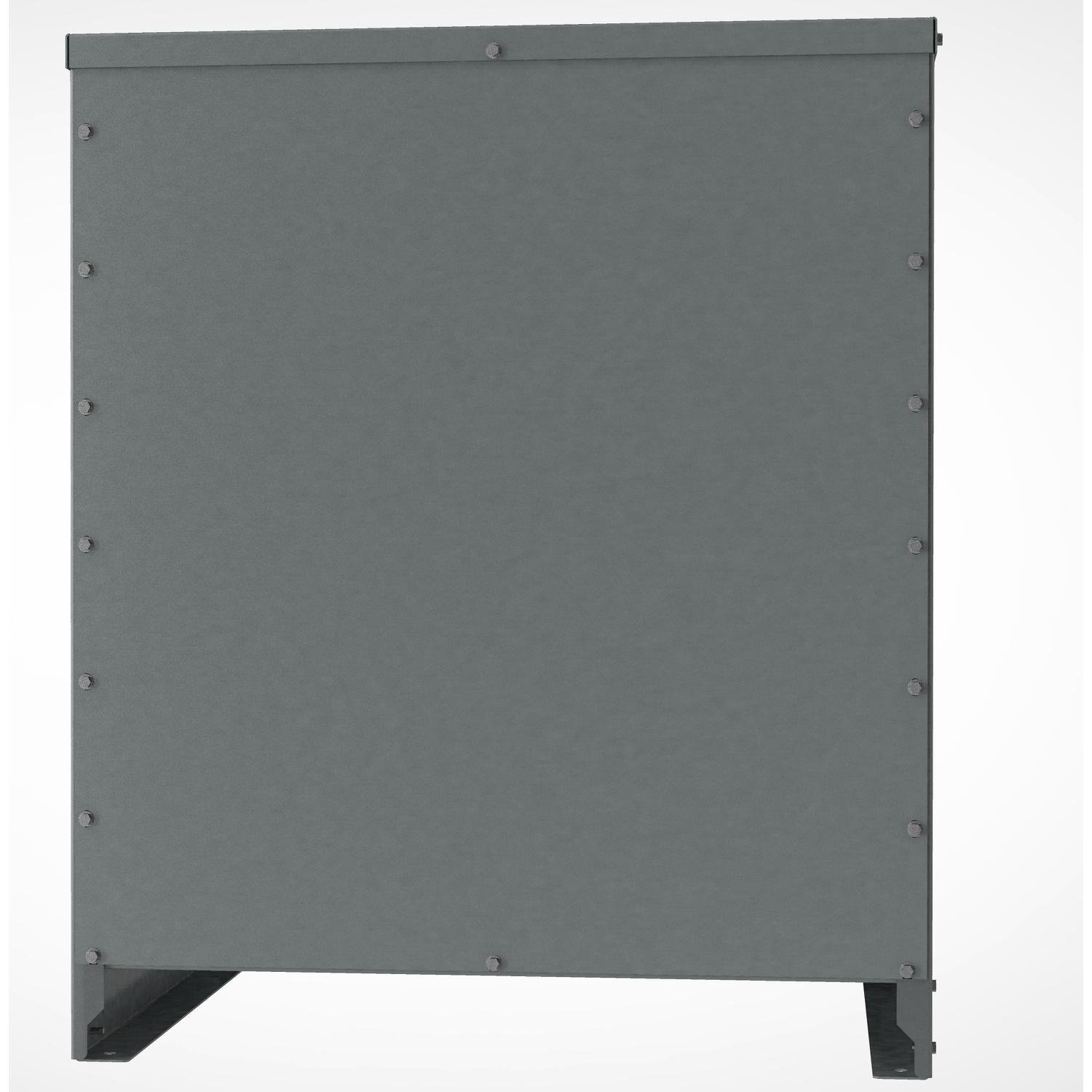

Picture of EXN112T3H - Transformer, dry type, DOE 2016, 112.5kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 21M, 150C rise Picture of EXN112T3H - Transformer, dry type, DOE 2016, 112.5kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 21M, 150C rise
Picture of EXN112T3H - Transformer, dry type, DOE 2016, 112.5kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 21M, 150C rise Picture of EXN112T3H - Transformer, dry type, DOE 2016, 112.5kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 21M, 150C rise
Picture of EXN112T3H - Transformer, dry type, DOE 2016, 112.5kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 21M, 150C rise Picture of EXN112T3H - Transformer, dry type, DOE 2016, 112.5kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 21M, 150C rise
Picture of EXN112T3H - Transformer, dry type, DOE 2016, 112.5kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 21M, 150C rise Picture of EXN112T3H - Transformer, dry type, DOE 2016, 112.5kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 21M, 150C rise
Picture of EXN112T3H - Transformer, dry type, DOE 2016, 112.5kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 21M, 150C rise Picture of EXN112T3H - Transformer, dry type, DOE 2016, 112.5kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 21M, 150C rise
Schneider Electric

EXN112T3H - Transformer, dry type, DOE 2016, 112.5kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 21M, 150C rise

Item Code: 1069866
Category Dry Type Transformers 600V Or Less
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EXN112T3H

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

EXN three phase low voltage dry type distribution transformers from Square D comply with DOE energy conservation standards and Natural Resources Canada (NRCan) minimum energy efficiency levels. This transformer is a 112.5kVA, 480V primary (three wire), 208Y/120V secondary (four wire) with aluminum windings with a 220 insulation system design for 150 degree C temperature rise. This transformer’s DOE 2016 and NRCan efficiency is a minimum of 98.74% at 35% loading and 75°C temperature. Terminals are designed to accommodate wire ranges sized for 125% of the secondary nameplate current and 250% of the primary nameplate current. The terminals allow for NEMA two hole lugs and wiring bending radius to align with the wire ranges and to allow for side and bottom access. Units are natural air cooled with exhaust vents located on the front only, allowing the transformers to be mounted with rear clearance to obstructions of ½ inch. Units are shipped as Type 2 for indoor installation, field convertible to Type 3R via weathershield for outdoor installation. The transformers are floor mounted but field accessories are available for wall or trapeze (ceiling) mounting. EX transformers have a low sound level, with a minimum of 3dB below NEMA Standard ST-20 requirements. Units are specifically designed to function with other Square D equipment; inrush is coordinated to meet identified breaker trip curves, and IZ levels allow for let through current to match AIR levels of panelboards. See product data sheets for these values.

Specifications

Weight

746.44lb

Height

43.5mm

Width

34.18mm

Length

34.67mm

Depth

722mm

AD All Features

Space-saving design

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

TRANSFORMER DISTRIBUTION 480 DELTAV 60HZ

AD Item Features 01

Space-saving design

AD Item Features 02

Terminals sized to handle Square D equipment

AD Item Features 03

Bending radius for side and bottom access

AD Manufacturer (Description)

Schneider Electric

AD Package Height

43.5000

AD Package Height UOM

IN

AD Package Length

34.6700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

52526.2000

AD Package Volume UOM

cu-in

AD Package Weight

746.4400

AD Package Weight UOM

LB

AD Package Width

34.1800

AD Package Width UOM

IN

Brand

Square D

Category

DRY TYPE TRANSFORMERS 600V OR LESS

Spec 1 Attribute

Connection Type

Spec 1 Attribute Value

4/6 Hole NEMA Pad

Spec 10 Attribute

Secondary Voltage

Spec 10 Attribute UOM

V

Spec 10 Attribute Value

208Y/120

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

104

Spec 12 Attribute

Type

Spec 12 Attribute Value

Low Voltage Natural Convection Cooling

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

31.3 in W x 28.43 in D x 37.52 in H

Spec 3 Attribute

Frequency Rating

Spec 3 Attribute UOM

HZ

Spec 3 Attribute Value

60

Spec 4 Attribute

Insulation

Spec 4 Attribute UOM

deg C

Spec 4 Attribute Value

220

Spec 5 Attribute

Maximum Amperage Rating

Spec 5 Attribute UOM

A

Spec 5 Attribute Value

312.27

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Ceiling/Floor

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

3

Spec 8 Attribute

Power Rating

Spec 8 Attribute UOM

kVA

Spec 8 Attribute Value

112.5

Spec 9 Attribute

Primary Voltage

Spec 9 Attribute UOM

V

Spec 9 Attribute Value

480 Delta
