Square D™

EXN150T3H - Transformer, dry type, DOE 2016, 150kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 22M, 150C rise

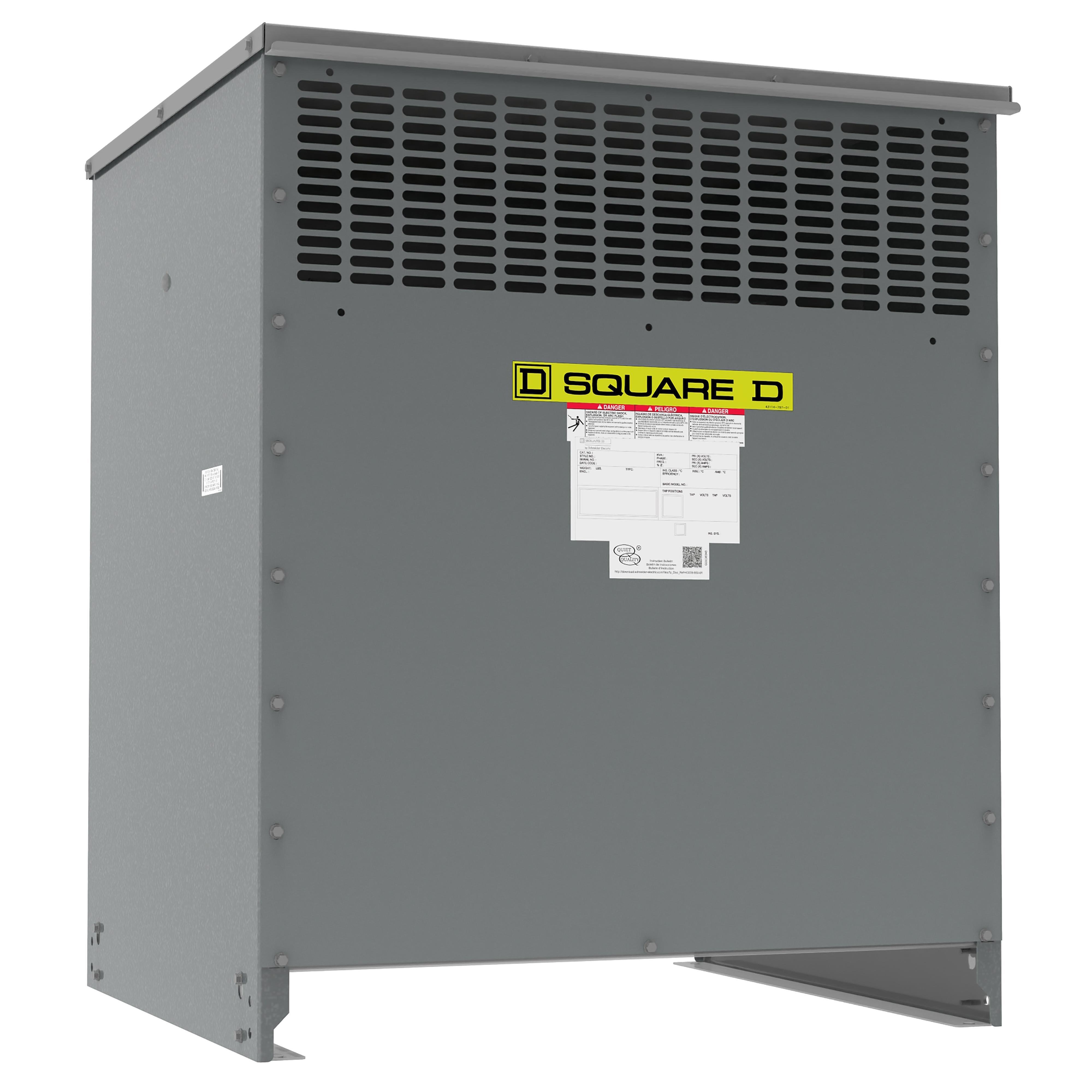

Picture of EXN150T3H - Transformer, dry type, DOE 2016, 150kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 22M, 150C rise Picture of EXN150T3H - Transformer, dry type, DOE 2016, 150kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 22M, 150C rise
Picture of EXN150T3H - Transformer, dry type, DOE 2016, 150kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 22M, 150C rise Picture of EXN150T3H - Transformer, dry type, DOE 2016, 150kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 22M, 150C rise
Square D™

EXN150T3H - Transformer, dry type, DOE 2016, 150kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 22M, 150C rise

Item Code: 1066025
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EXN150T3H

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

EXN three phase low voltage dry type distribution transformers from Square D comply with DOE energy conservation standards and Natural Resources Canada (NRCan) minimum energy efficiency levels. This transformer is a 150kVA, 480V primary (three wire), 208Y/120V secondary (four wire) with aluminum windings with a 220 insulation system design for 150 degree C temperature rise. This transformer’s DOE 2016 and NRCan efficiency is a minimum of 98.83% at 35% loading and 75°C temperature. Terminals are designed to accommodate wire ranges sized for 125% of the secondary nameplate current and 250% of the primary nameplate current. The terminals allow for NEMA two hole lugs and wiring bending radius to align with the wire ranges and to allow for side and bottom access. Units are natural air cooled with exhaust vents located on the front only, allowing the transformers to be mounted with rear clearance to obstructions of ½ inch. Units are shipped as Type 2 for indoor installation, field convertible to Type 3R via weathershield for outdoor installation. The transformers are floor mounted but field accessories are available for wall or trapeze (ceiling) mounting. EX transformers have a low sound level, with a minimum of 3dB below NEMA Standard ST-20 requirements. Units are specifically designed to function with other Square D equipment; inrush is coordinated to meet identified breaker trip curves, and IZ levels allow for let through current to match AIR levels of panelboards. See product data sheets for these values.

Specifications

Weight

1012.86lb

Height

46.5mm

Width

37.64mm

Length

34.67mm

Depth

827mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/exn150t1814h/exn150t1814h.spin

AD All Features

Space-saving design

AD Alternative Part Number

14898179

AD Application

Low Voltage Electrical Distribution, Building Management and Security, Data Centers, Networks and Secure Power Applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD Gtin

00785901357940

AD IDEA Index ID

14898179

AD Invoice Description

TRANSFORMER EFFICIENT ENGY 480 V DELTA

AD Item Features 01

Space-saving design

AD Item Features 02

Terminals sized to handle Square D equipment

AD Item Features 03

Bending radius for side and bottom access

AD Keywords

EXN150T3H Energy Efficient Transformer, 480 V Delta Primary, 208Y/120 V Secondary, 150 kVA Power Rating, 60 Hz, 3 ph ; Schneider Electric ; Square D ; EXN150T3H ; EXN150T3H ; 785901357940 ; General Purpose - Multi-Use Transformers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

46.5000

AD Package Height UOM

IN

AD Package Length

34.6700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

61845.0000

AD Package Volume UOM

cu-in

AD Package Weight

1012.8600

AD Package Weight UOM

LB

AD Package Width

37.6400

AD Package Width UOM

IN

AD Part Number Keywords

EXN150T3H ; 14898179 ; 785901357940 ; 78590135794 ; 00785901357940

AD Video Links

https://youtu.be/Ks1cBzorOEQ

Brand

Square D

Spec 1 Attribute

Connection Type

Spec 1 Attribute Value

4-Hole 11.1 mm NEMA Pad Primary, 4-Hole 11.1 mm NEMA Pad Secondary and 6-Hole 11.1 mm NEMA Pad Secondary

Spec 10 Attribute

Number of Taps

Spec 10 Attribute Value

(2) 2.5% FCAN/(4) 2.5% FCBN

Spec 11 Attribute

PHASE

Spec 11 Attribute Value

3

Spec 12 Attribute

Power Rating

Spec 12 Attribute UOM

kVA

Spec 12 Attribute Value

150

Spec 13 Attribute

Primary Voltage

Spec 13 Attribute Value

480 V delta

Spec 14 Attribute

Secondary Voltage

Spec 14 Attribute UOM

V

Spec 14 Attribute Value

208Y/120

Spec 15 Attribute

Temperature Rating

Spec 15 Attribute Value

150 DEG C Rise

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

827 mm L x 855 mm W x 1031 mm H

Spec 3 Attribute

Efficiency

Spec 3 Attribute UOM

%

Spec 3 Attribute Value

98.83

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 2/3R/ST-20

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

60

Spec 6 Attribute

Housing Material

Spec 6 Attribute Value

Aluminum

Spec 7 Attribute

Insulation

Spec 7 Attribute Value

Class 220

Spec 8 Attribute

Maximum Amperage Rating

Spec 8 Attribute Value

180.42 A, 416.36 A, 150 kVA Operational/13.43 kA Let Through Current

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Ceiling/Floor
