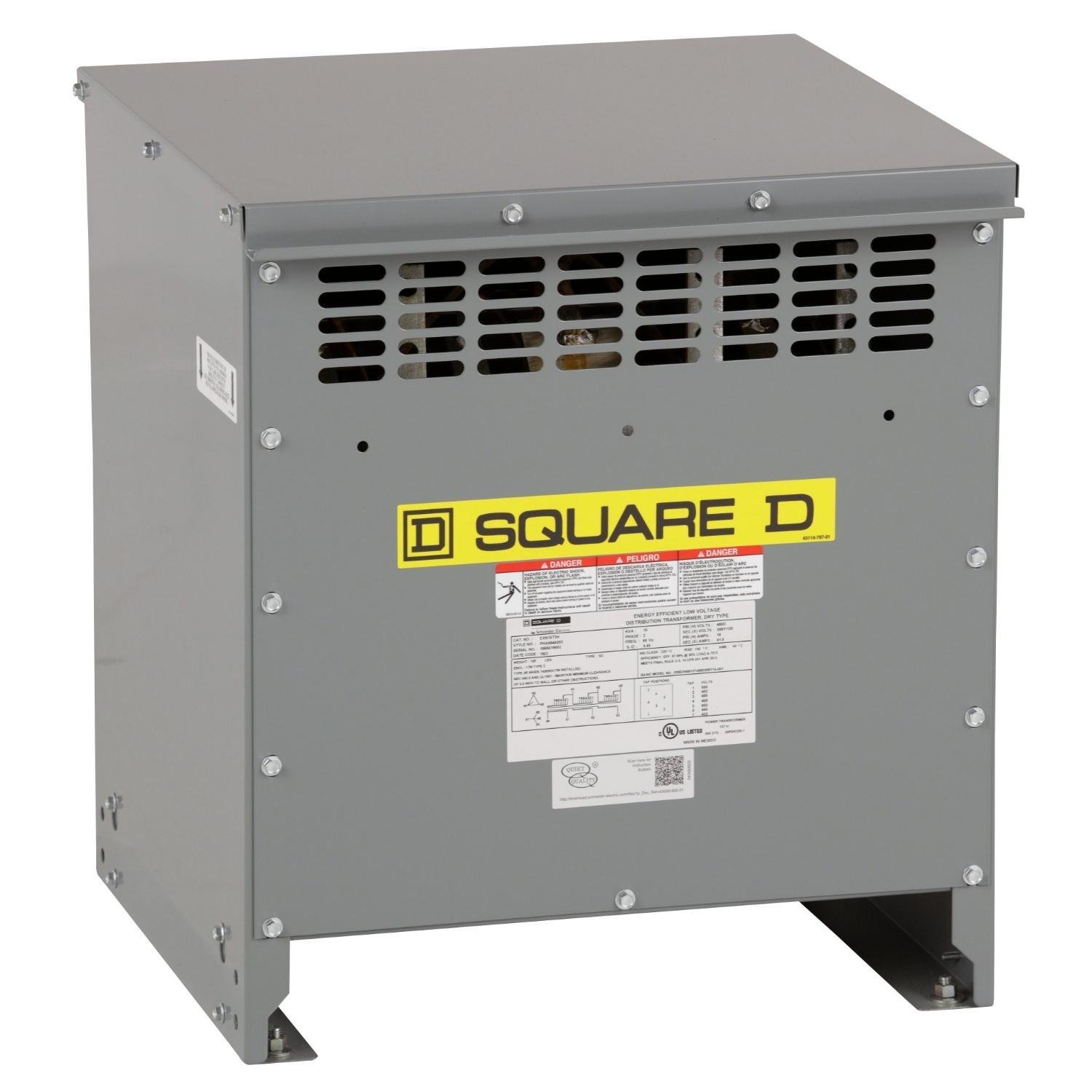

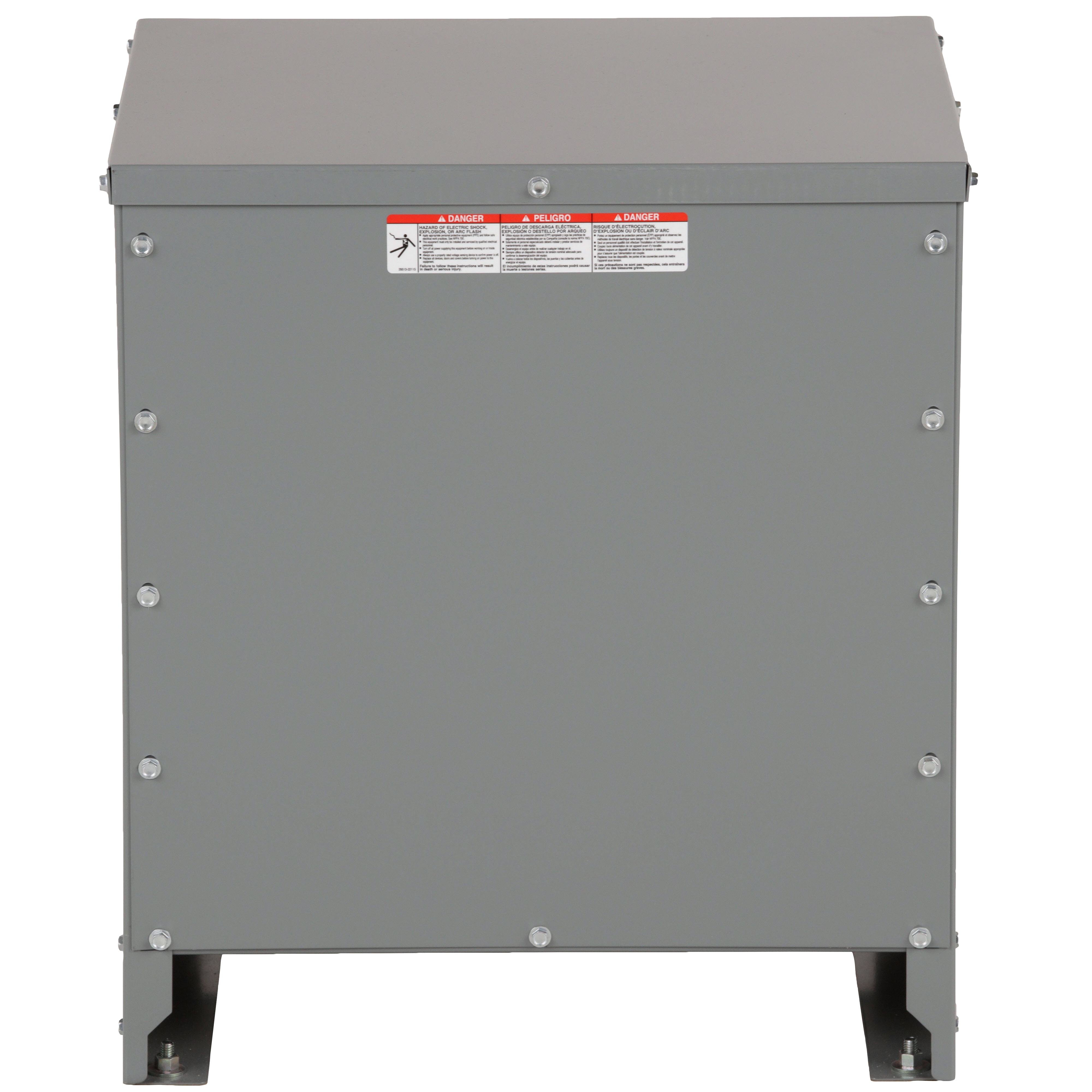

Picture of EXN15T3H - Transformer, dry type, DOE 2016, 15kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 17M, 150C rise

Square D™

EXN15T3H - Transformer, dry type, DOE 2016, 15kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 17M, 150C rise

Item Code: 1067195

Manufacturer SCHNEIDER ELECTRIC

Manufacturer Ref EXN15T3H

Document
Document
Document
Document

selection not available, try a different combination

Call for Availability

Add to Favorites

Compare

Description

EXN three phase low voltage dry type distribution transformers from Square D comply with DOE energy conservation standards and Natural Resources Canada (NRCan) minimum energy efficiency levels. This transformer is a 15kVA, 480V primary (three wire), 208Y/120V secondary (four wire) with aluminum windings with a 220 insulation system design for 150 degree C temperature rise. This transformer’s DOE 2016 and NRCan efficiency is a minimum of 97.89% at 35% loading and 75°C temperature. Terminals are designed to accommodate wire ranges sized for 125% of the secondary nameplate current and 250% of the primary nameplate current. The terminals allow for NEMA two hole lugs and wiring bending radius to align with the wire ranges and to allow for side and bottom access. Units are natural air cooled with exhaust vents located on the front only, allowing the transformers to be mounted with rear clearance to obstructions of ½ inch. Units are shipped as Type 2 for indoor installation, field convertible to Type 3R via weathershield for outdoor installation. The transformers are floor mounted but field accessories are available for wall or trapeze (ceiling) mounting. EX transformers have a low sound level, with a minimum of 3dB below NEMA Standard ST-20 requirements. Units are specifically designed to function with other Square D equipment; inrush is coordinated to meet identified breaker trip curves, and IZ levels allow for let through current to match AIR levels of panelboards. See product data sheets for these values.

Specifications

Weight

211.55lb

Height

609mm

Width

24.86mm

Length

24.57mm

Depth

538mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/exn15t3h/exn15t3h.spin

AD All Features

Space-saving design

AD Alternative Part Number

14670486

AD Application

Low Voltage Electrical Distribution Applications

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD Document Caption 4

Technical Bulletin

AD Gtin

00785901272472

AD IDEA Index ID

14670486

AD Invoice Description

TRANSFORMER 480 DELTA VAC 208Y/120 VAC

AD Item Features 01

Space-saving design

AD Item Features 02

Terminals sized to handle Square D equipment

AD Item Features 03

Bending radius for side and bottom access

AD Keywords

EXN15T3H Dry Type Energy Efficient Transformer, 480 Delta V AC Primary, 208Y/120 VAC Secondary, 15 kVA Power Rating, 60 Hz, 3 Phase ; Schneider Electric ; Square D ; EXN15T3H ; EXN15T3H ; 785901272472 ; General Purpose - Multi-Use Transformers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

AD Package Length

24.5700

AD Package Length UOM

AD Package Quantity

AD Package Weight

211.5500

AD Package Weight UOM

AD Package Width

24.8600

AD Package Width UOM

AD Part Number Keywords

EXN15T3H ; 14670486 ; 785901272472 ; 78590127247 ; 00785901272472

Brand

Square D

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

538 mm L x 546 mm W x 26.97 in H

Spec 10 Attribute

Primary Voltage

Spec 10 Attribute Value

480 Delta V AC

Spec 11 Attribute

Secondary Voltage

Spec 11 Attribute Value

208Y/120 V AC

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg C

Spec 12 Attribute Value

150

Spec 13 Attribute

Type

Spec 13 Attribute Value

Dry Type Energy Efficient

Spec 2 Attribute

Efficiency

Spec 2 Attribute UOM

Spec 2 Attribute Value

98.08

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 3R

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

Spec 4 Attribute Value

Spec 5 Attribute

Maximum Amperage Rating

Spec 5 Attribute UOM

Spec 5 Attribute Value

1.1

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Ceiling/Floor

Spec 7 Attribute

Number of Taps

Spec 7 Attribute Value

4-Feb

Spec 8 Attribute

PHASE

Spec 8 Attribute Value

Spec 9 Attribute

Power Rating

Spec 9 Attribute UOM

kVA

Spec 9 Attribute Value

Square D™
