Square D

EXN15T3HFCU - Transformer, dry type, DOE 2016, 15kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 17M, 115C rise, Cu

Category Miscellaneous

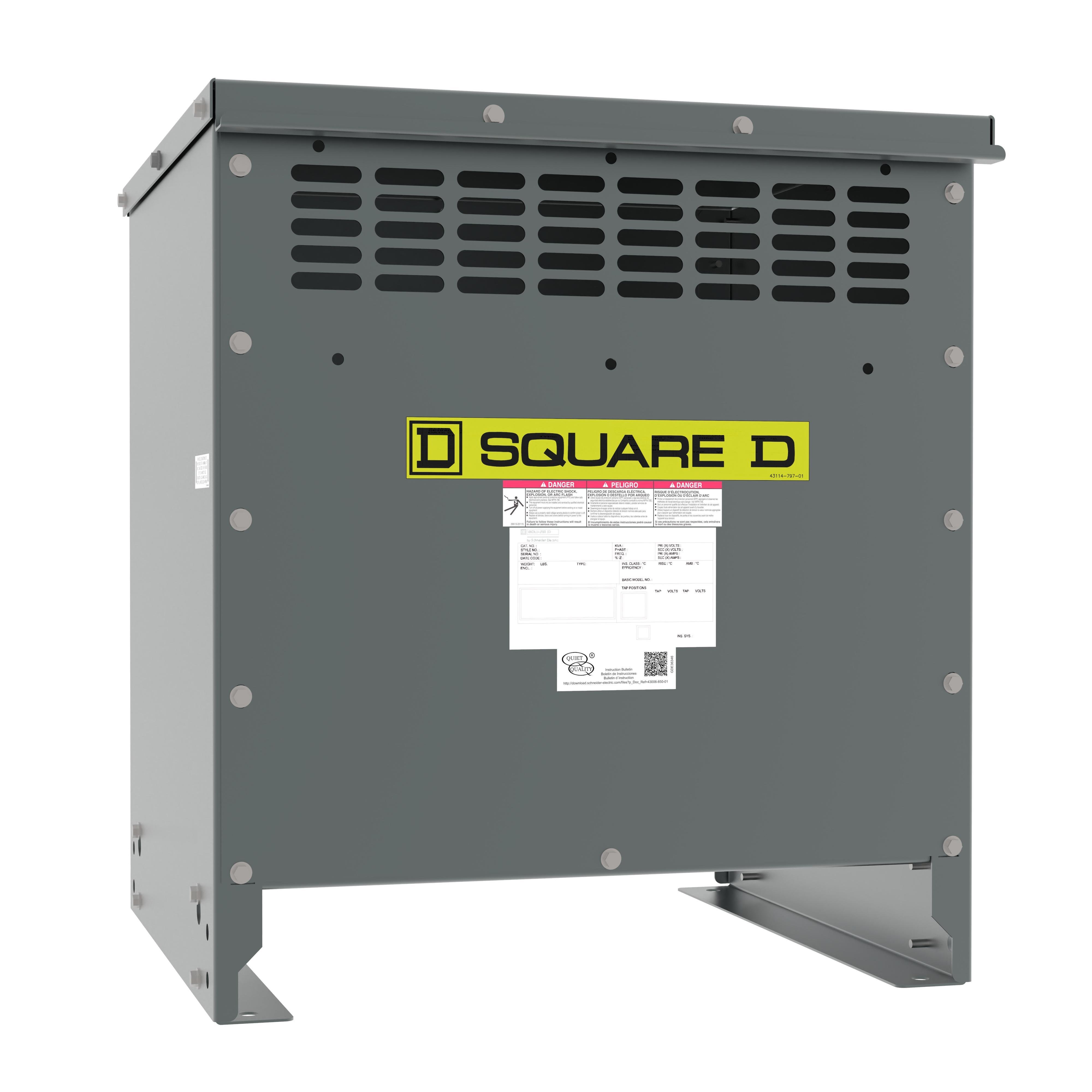

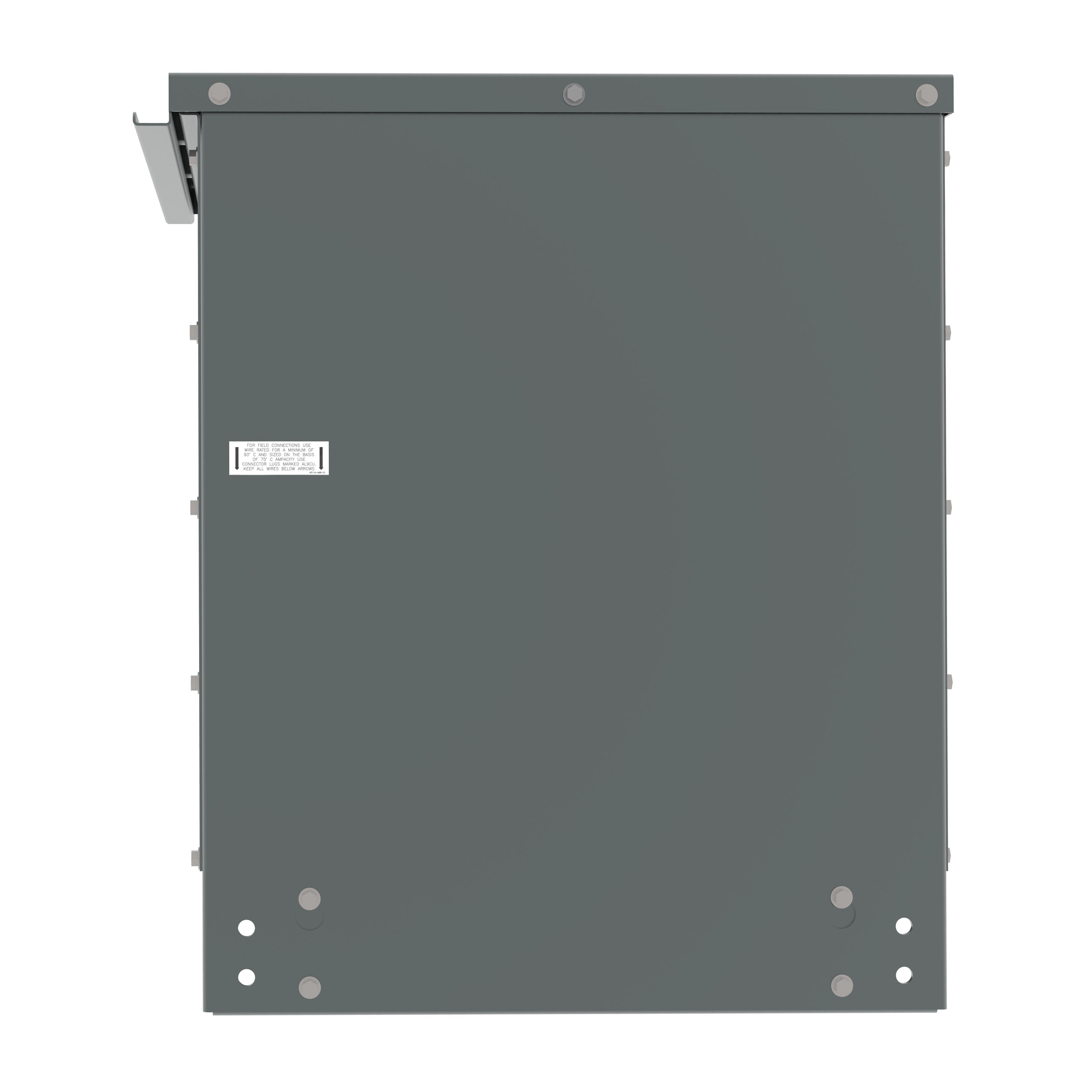

Picture of EXN15T3HFCU - Transformer, dry type, DOE 2016, 15kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 17M, 115C rise, Cu Picture of EXN15T3HFCU - Transformer, dry type, DOE 2016, 15kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 17M, 115C rise, Cu
Picture of EXN15T3HFCU - Transformer, dry type, DOE 2016, 15kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 17M, 115C rise, Cu Picture of EXN15T3HFCU - Transformer, dry type, DOE 2016, 15kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 17M, 115C rise, Cu
Picture of EXN15T3HFCU - Transformer, dry type, DOE 2016, 15kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 17M, 115C rise, Cu Picture of EXN15T3HFCU - Transformer, dry type, DOE 2016, 15kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 17M, 115C rise, Cu
Square D

EXN15T3HFCU - Transformer, dry type, DOE 2016, 15kVA, 3 phase, 480V delta primary, 208Y/120V secondary, 17M, 115C rise, Cu

Item Code: 1135940
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref EXN15T3HFCU

Document
Document
Call for Availability
Add to Favorites
Compare

Description

EXN three phase low voltage dry type distribution transformers from Square D comply with DOE energy conservation standards and Natural Resources Canada (NRCan) minimum energy efficiency levels. This transformer is a 15kVA, 480V primary (three wire), 208Y/120V secondary (four wire) with copper windings with a 220 insulation system design for 115 degree C temperature rise. This transformer’s DOE 2016 and NRCan efficiency is a minimum of 97.89% at 35% loading and 75°C temperature. Terminals are designed to accommodate wire ranges sized for 125% of the secondary nameplate current and 250% of the primary nameplate current. The terminals allow for NEMA two hole lugs and wiring bending radius to align with the wire ranges and to allow for side and bottom access. Units are natural air cooled with exhaust vents located on the front only, allowing the transformers to be mounted with rear clearance to obstructions of ½ inch. Units are shipped as Type 2 for indoor installation, field convertible to Type 3R via weathershield for outdoor installation. The transformers are floor mounted but field accessories are available for wall or trapeze (ceiling) mounting. EX transformers have a low sound level, with a minimum of 3dB below NEMA Standard ST-20 requirements. Units are specifically designed to function with other Square D equipment; inrush is coordinated to meet identified breaker trip curves, and IZ levels allow for let through current to match AIR levels of panelboards. See product data sheets for these values.

Specifications

Weight

242.48

Height

30

Width

24.77

Length

24.77

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/exn15t1814h/exn15t1814h.spin

AD All Features

Comes in a space-saving design

AD Application

For designing with the minimum AIC Panels available

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

MX

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Invoice Description

GP MU XFMR 480V 208Y/120V 3 40DEG C

AD Item Features 01

Comes in a space-saving design

AD Item Features 02

Terminals sized to handle Square D equipment

AD Item Features 03

Bending radius for side and bottom access to the transformer

AD Keywords

Square D™ EXN15T3HFCU PH Series, 480 V primary, 208Y/120 V secondary, 3 phase ; Square D ; EXN15T3HFCU ; 785901436683 ; General Purpose - Multi-Use Transformers

AD Manufacturer (Description)

Schneider Electric

AD Package Height

30.0000

AD Package Height UOM

IN

AD Package Length

24.7700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

18750.0000

AD Package Volume UOM

cu-in

AD Package Weight

242.4800

AD Package Weight UOM

LB

AD Package Width

24.7700

AD Package Width UOM

IN

AD Part Number Keywords

EXN15T3HFCU ; 785901436683 ; 78590143668

Brand

Square D

Spec 1 Attribute

Dimensions

Spec 1 Attribute Value

23.98 in H x 21.50 in W x 21.18 in D

Spec 2 Attribute

Efficiency

Spec 2 Attribute Value

98.03 % at 35 % load factor

Spec 3 Attribute

PHASE

Spec 3 Attribute Value

3

Spec 4 Attribute

Primary Voltage

Spec 4 Attribute UOM

V

Spec 4 Attribute Value

480

Spec 5 Attribute

Secondary Voltage

Spec 5 Attribute UOM

V

Spec 5 Attribute Value

208Y/120

Spec 6 Attribute

Series

Spec 6 Attribute Value

PH Series

Spec 7 Attribute

Temperature Rating

Spec 7 Attribute UOM

deg C

Spec 7 Attribute Value

40
